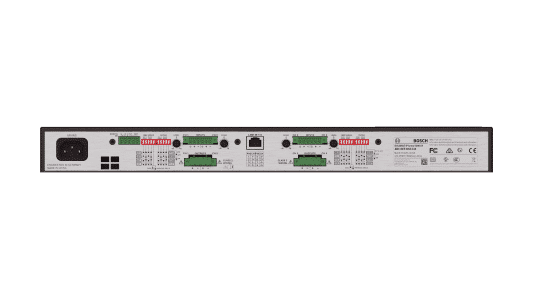

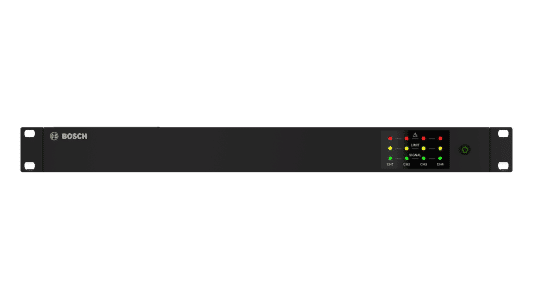

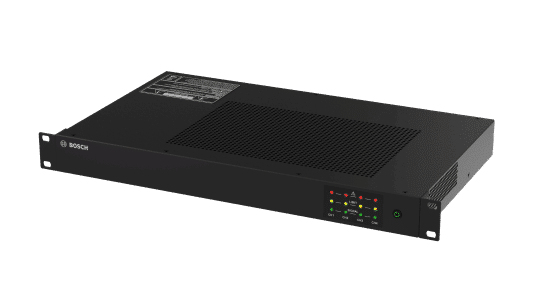

Power amplifier, 600W, 4 channel

• 4‑channel amplifier, with a total powerTANK capacity of 600 W
• Variable Load Drive (VLD) providing the same power into 4 Ω, 8 Ω, 70 V or 100 V
• ecoRAIL and APD deliver significant reduction in power consumption
• dualCOOL convection cooling with additional intelligent fan in case of extreme thermal conditions
• Comprehensive protection package for reliable operation

Key Specifications

Output power: 4 Ω, 8 Ω, 70 V, 100 V
Rated output power1: 4 x 150 W
Maximum output power per channel (power sharing)1 at minimum impedance: 500 W, 600 W, 500 W, 600 W
Total rated output power1: 600 W
Number of channels: 4
Output voltage rated output power: 24.5 VRMS, 34.6 VRMS, 70.7 VRMS, 100 VRMS
Maximum output voltage: 40.0 VRMS, 56.0 VRMS, 70.7 VRMS, 100 VRMS
Rated impedance per channel: 4 Ω, 8 Ω, 33.3 Ω, 66.7 Ω
Minimum impedance per channel: 2.6 Ω, 4 Ω, 10 Ω, 16.7 Ω
