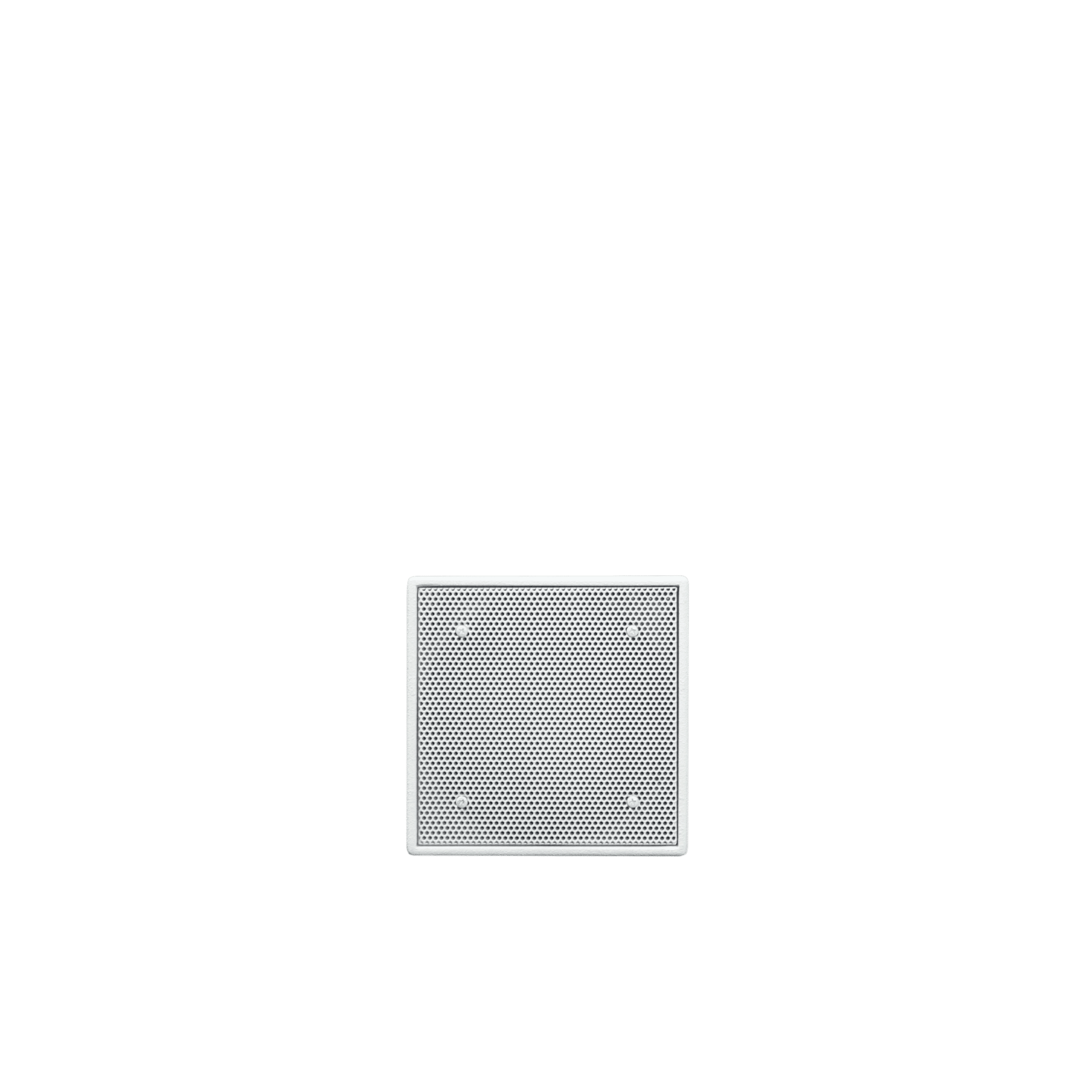

IS6T is a passive 2-way coaxial cube speaker designed for permanent installations
Features
- Passive cube speaker
- bracket included
- Black or white version available
- Phoenix connectors
Technical Data
Speaker Type: Passive 2-way Coaxial Speaker
Acoustical data
RMS Power: 100 W
Peak Power: 400 W
Frequency Response [-6 dB]: 85 Hz – 20,000 Hz
Impedance: 8 Ohm
Sensitivity 1W@m: 93 dB
Max SPL: 119 dB
HF: 1x 0.75″, 1″ v.c. Neodymium
LF: 1x 6.5″, 1.5″ v.c. Coaxial woofer
Dispersion: 100×100°
X-Over Frequency: 2100 Hz (internal X-Over)
Input
Connections: Phoenix
Mechanics
Housing: Plywood, water-painted coating
Rigging points: 2x M6 threaded nut
Accessories: bracket included
IP rating: IP 32
Width: 195 mm (7.7 in)
Height: 195 mm (7.7 in)
Depth: 210 mm (8.3 in)
Weight: 4.8 kg (10.6 lbs)
