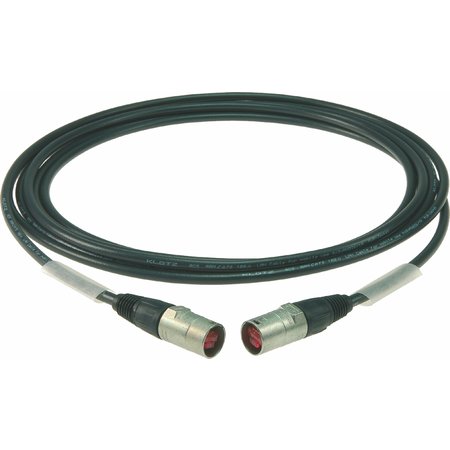

RC5EE highly flexible RamCAT network cable for the use on the road

• ruggedized Cat. 5 Outdoor, S/UTP, AWG26 standed
• pinout acc. to TIA / EIA 568-B
• PUR overall jacket
• max. bandwidth: <60 m = 100 MHz;>60 m<100MHz

Length	1 m
Colour	black
Outer jacker	PUR
Packaging	Cable carrier
Weight	0,1549 kg

Cable
Cable typ	RC5 – 4x 2x 0.15 mm (AWG 26/19) 100 Ohm
Outer jacket	PUR
Overall diameter	6.3 mm
Max. data transmissin rate	100 MHz
Pinout	TIA / EIA 568-b
Connectors
Connector 1	CAT5e etherCON RJ45
Conenctor 2	CAT5e etherCON RJ45

length:            1 m
colour:            black
outer jacket:   PUR
packaging:     blister
weight:           0,1549 kg

technical data:

cable
cable type                              RC5 – 4x 2x 0.15 mm (AWG 26/19)                                               100 Ohm
outer jacket                            PUR
overall diameter                     6.3mm
max. data transmission rate  100 MHz
pinout                                     TIA / EIA 568-B

connectors
connector 1             CAT5e etherCON RJ45
connector 2             CAT5e etherCON RJ45
