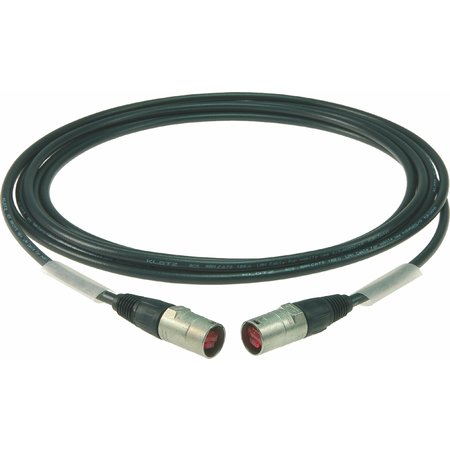

RC5EE highly flexible RamCAT network cable for the use on the road
- ruggedized Cat. 5 Outdoor, S/UTP, AWG26 stranded
- pinout acc. to TIA / EIA 568-B
- PUR overall jacket
- max. bandwidth: <60 m = 100 MHz: > 60 m < 100 MHz
| Length | 5 m |
| Colour | black |
| Outer jacket | PUR |
| Packaging | cable carrier |
| Weight | 0,3539 kg |
| Cable | |
| Cable typ | RC5 – 4x 2x 0.15 mm (QWG 26/19) 100 Ohm |
| Outer jacket | PUR |
| Overall diameter | 6.3 mm |
| Max. data transmission rate | 100 MHz |
| Pinout | TIA / EIA 568-B |
| Connectors | |
| Connector 1 | CAT5e etherCON RJ45 |
| Connector 2 | CAT5e etherCON RJ45 |
