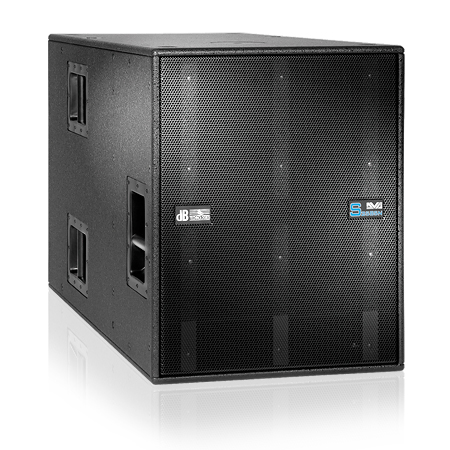

The DVA S2585N is a compact subsystem featuring a cardioid layout designed for utmost directivity. The system consists of two separate chambers, one loaded with a forward facing 18“ woofer and another with a rearward facing 15″ woofer.

FEATURES

• VARIABLE CROSSOVER FREQUENCIES
• PRECISE LIMITER FUNCTIONS
• ON BOARD DELAY FOR PERFECT TIME ALIGNMENT
• PRESET FOR CONFIGURING CARDIOD SYSTEMS
• SETTINGS ACCESSIBLE VIA ROTARY ENCODER
• X-OVER OUT
• RDNET NETWORK PORT

Technical Data
Speaker Type: Active Cardiod-Subwoofer

Acoustical data
Frequency Response [+/- 3dB]: 35 – 120 Hz
Max SPL: 140 dB
Directivity: Cardiod
LF: 18+15 ”
Voice Coil LF: 4 ”

Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
Power Supply: 2.5 kW SMPS
LF Amp: 2500 W RMS
Cooling: Convection

Processor
Controller: DSP 56 bit
AD/DA Converter: 24bit/ 96 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope: 24 dB/Octave

Mechanics
Housing: Multiplex plywood
Housing Design: Rectangular
Handles: 3x Per Side
Accessory: Dolly, Dust Cover, Rain Cover
Pole Mount: M20
Rigging Points: integrated for SRK10 fly kit 2xPick Points on top to fix DRK10/20 rigging frames
Width: 515 mm (20.6 in)
Height: 640 mm (25.6 in)
Depth: 1000 mm (40 in)
Weight: 65 kg (143.3 lbs)
