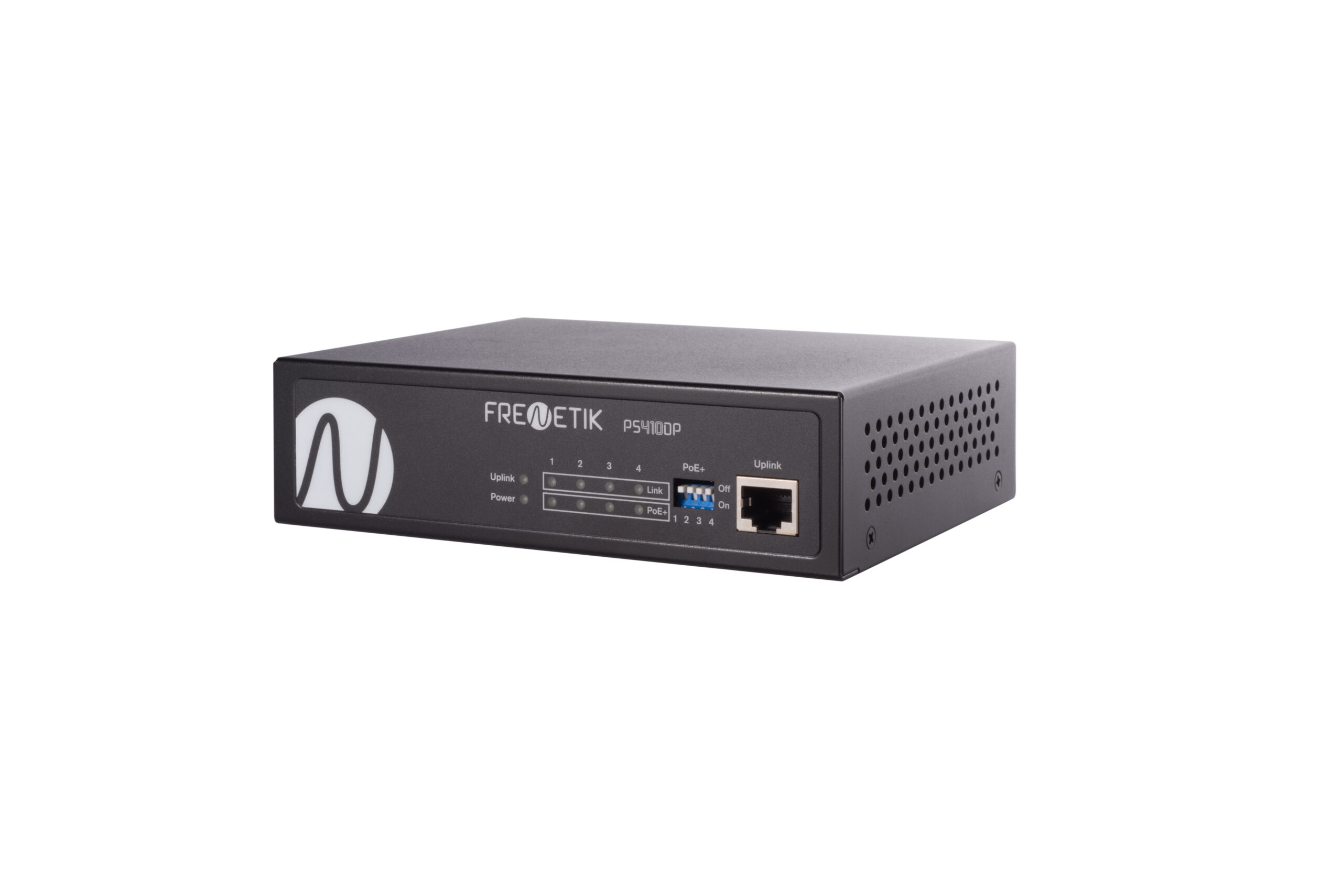

Dante™ Distributor PoE+ 1 input and 4 outputs.Allows distribution of the Dante network and supply of PoE+ to 4 FRENETIK speakers simultaneously • PoE+ power supply disconnectable on each port • Maximum power permanently available on each port • Also allows distribution to any IP network protocol and supply to all other devices with PoE

• 3 year warranty

Colour: Black

Technical data:

• Ref.: PS410DP
• Standards:

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.3x Flow ControlIEEE 802.3at/af PoE

midspan PoE

• Non-PoE ports: 1
• PoE+ ports: 4
• PoE activation (On/Off): Dip-Switches
• Ethernet switch features:

MAC Address: 1

Buffer Memory: 48KB

Store and Forward

Auto MDIX

Auto Negotiation

Non-Blocking

• Packet filtering/transmission speeds:

100Mbps port – 148,800pps

10Mbps port – 14,880pps

• Network cables:

100BaseTx Cat. 5 UTP/STP

10BaseT Cat. 3, 4, 5 UTP/STP

• Standard PoE wiring: 4, 5, 7 ,8

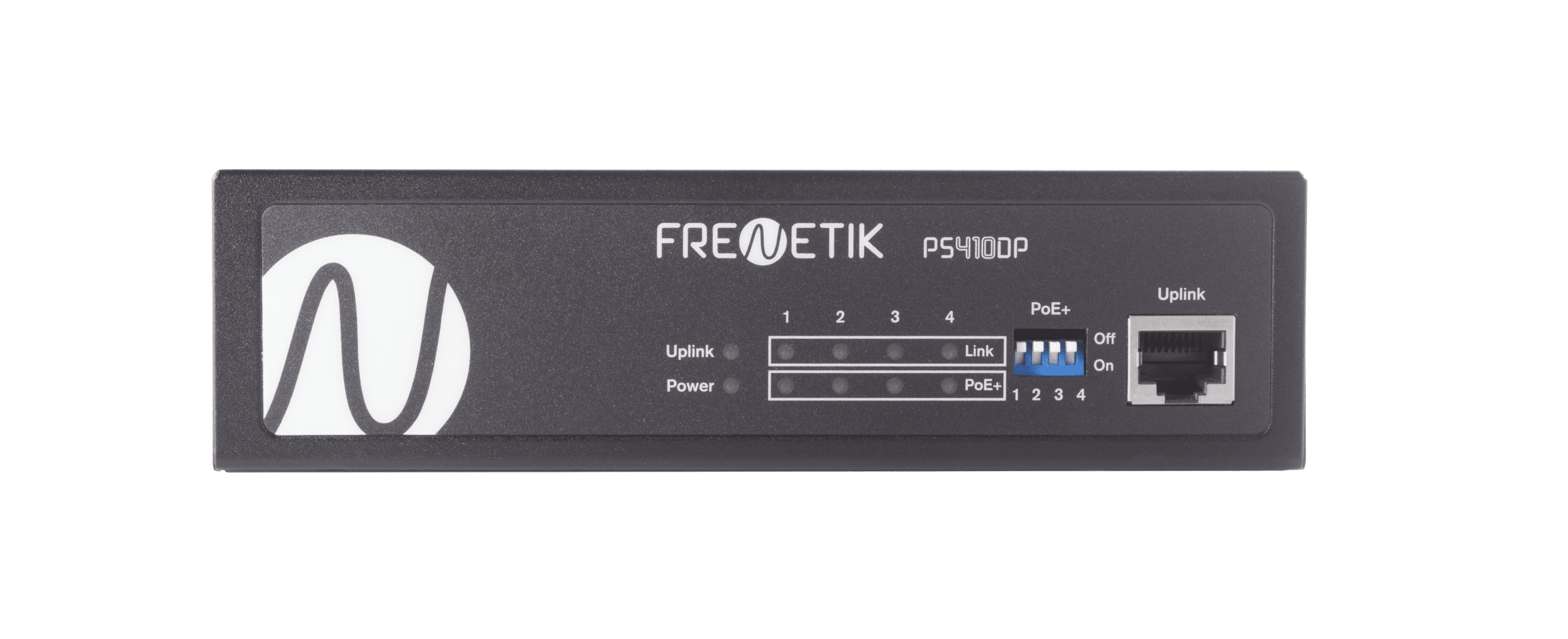

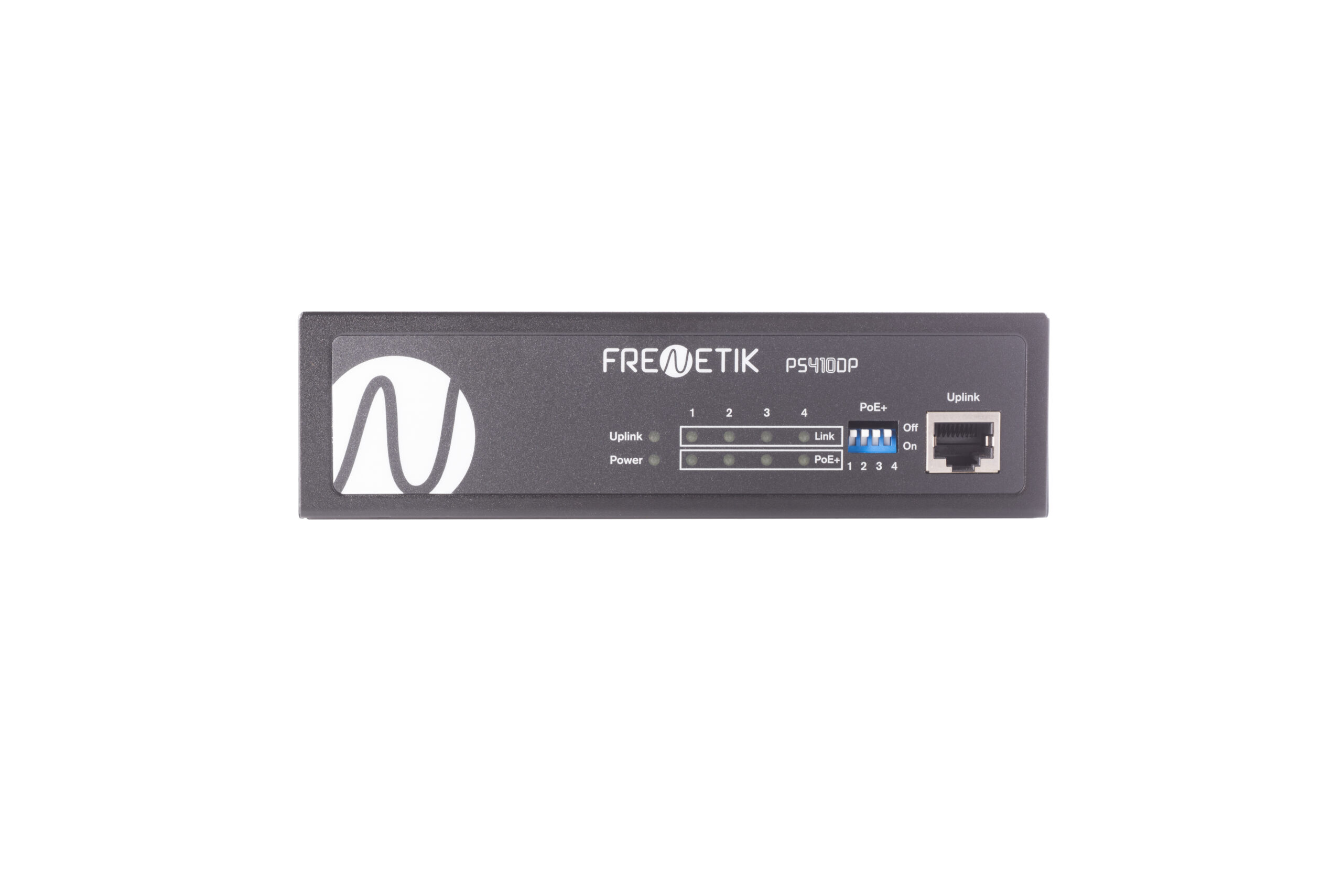

• LED indicators:

Per port: Activity / link with 10/100M, PoE ON/OFF (except Uplink)

For the device: Power

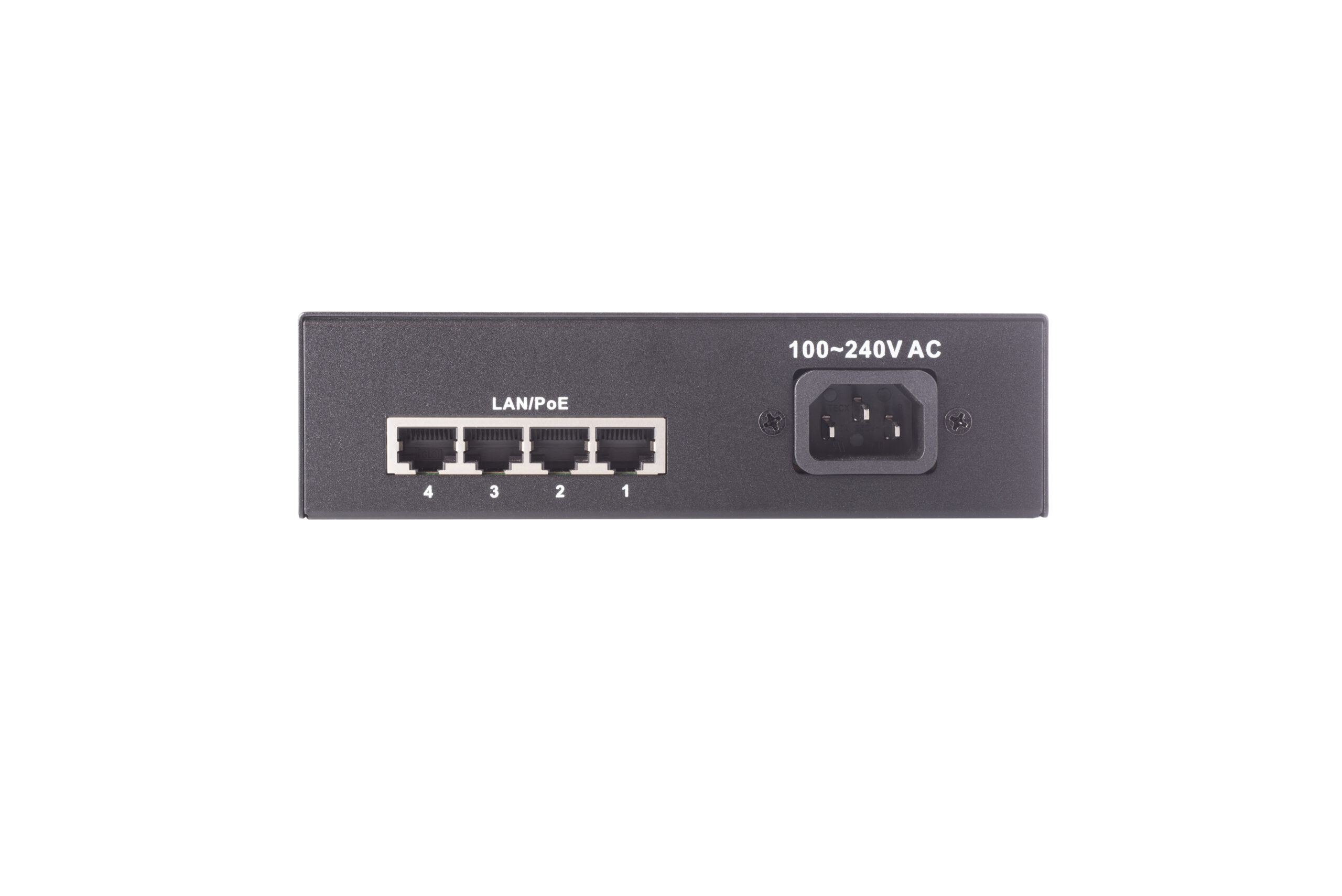

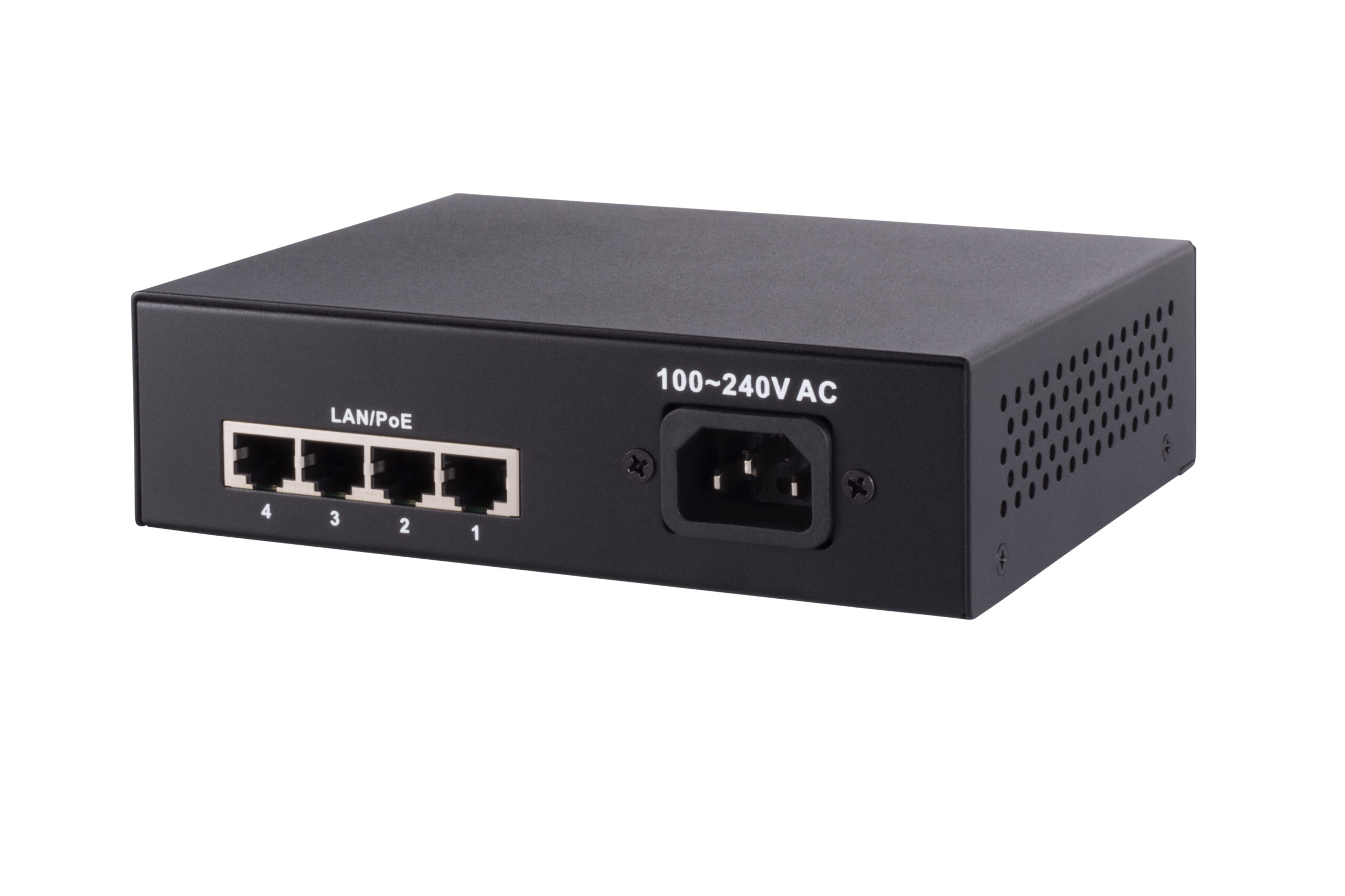

• Power:

Input: 100-240 VAC, 50~60 Hz

Outpouts: 56 VDC 2.14 A (120 W)

• PoE power on each port: 30 W
• Power consumption (excluding PoE): 5 Watts (Max)
• Dimensions: 44 x 160 x 122 mm
• Weight: 0.80 kg
• Operating temperature range: 0 to 40°C
• Storage temperature range: -20°C to 90°C
• Humidity: 10 to 90% (non-condensing))
