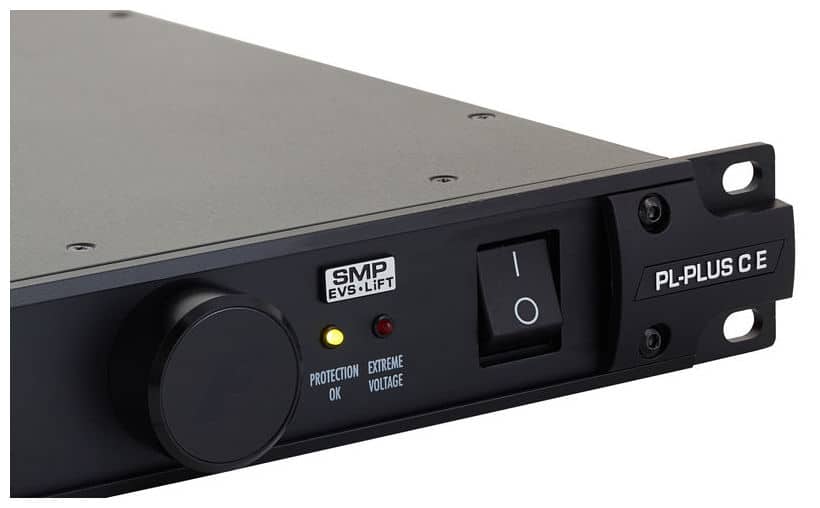

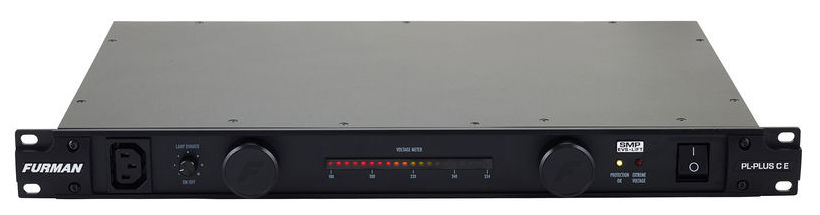

The Classic Series features Furman revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technoloty (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge suppresor.
Technical Specifications
Family: Classic Series 240V
Line Voltage: 240 Volts
AC Protection Technology: Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination
Current Rating: 10 amps
Operating Voltage: 180 to 274 VAC
Over Voltage Shutdown: 275 VAC typically
Spike Protection Modes: Line to neutral, zero ground leakage
Spike Clamping Voltage: 376 VAC peak @ 3,000 Amps, 266 VAC RMS
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 amps
Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz (Linear attenuation curve from 0.05 – 100 Ohms line impedance)
Dimensions: 44.45mm H x 482.6mm W x 266.7mm D
Weight: 5 kg
Construction: Steel chassis, 3mm brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
Power Consumption: 25 VA
Safety Agency Listing: CE
