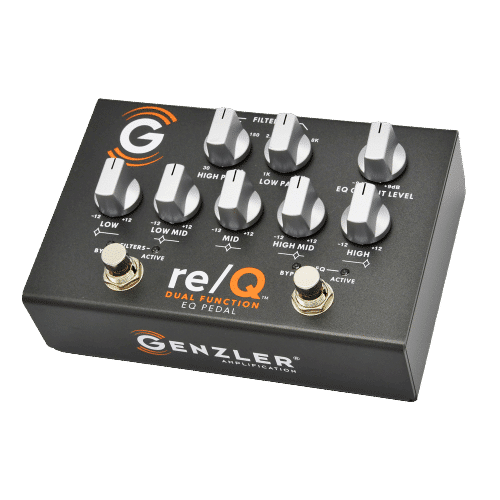

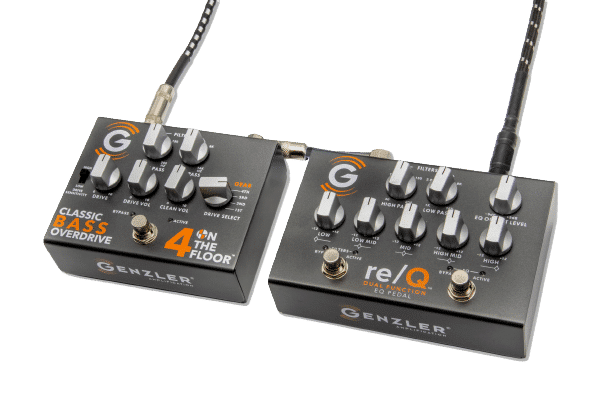

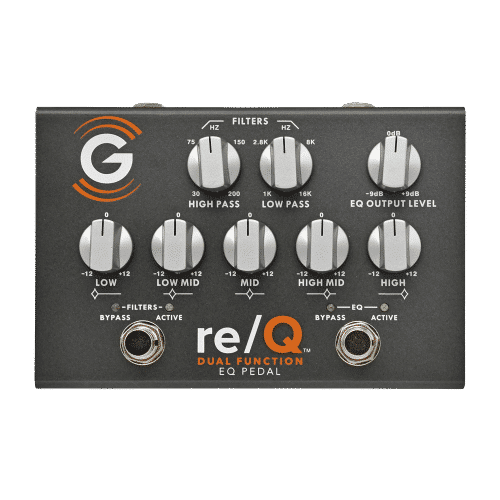

The re/Q™ DUAL FUNCTION EQ PEDAL is a low noise, ALL ANALOG multi-function HIGH PASS FILTER – LOW PASS FILTER and 5 BAND EQ pedal that gives the player complete tonal control over the cut-off of the extreme low and high frequencies, plus 5 bands of peak-dip equalization.  The filter section is foot switched independently from the EQ section, and there is additional make-up gain or cut after the EQ for balancing of levels or to act as an additional boost/cut function when the EQ is switched into the signal path. The re/Q is also a great companion to our 4 ON THE FLOOR Classic Overdrive Pedal.  It can be used to tailor your instrument’s tone for various overdrive settings, or increased boost levels for any of the Overdrive gears.

There are a wide variety of uses for the re/Q and is an excellent compliment to either of our MAGELLAN 350 or MAGELLAN 800 bass amps and our Acoustic Array PRO and MINI acoustic combos.

Features:

• • Lightweight Aluminum Chassis
  • Rugged Stomp Switches
  • Low-noise, Silent Switching Circuitry
  • High-Pass and Low-Pass Filter
  • 5 Band Fixed EQ Network
  • EQ Output Level Control

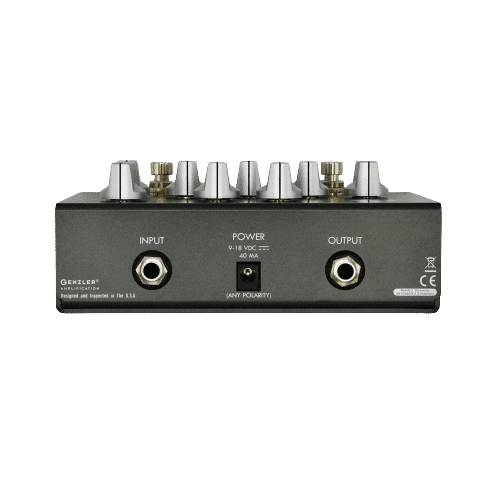

  • Accepts Power Supplies From 9VDC – 18VDC (low noise type), Either Polarity (auto detecting) 40mA Max — (Power Supply Not Included)



Specifications

• Input Impedance: >1M ohm
• Output Impedance: 1k ohm
• HPF: 30Hz – 200hz
• LPF: 1kHz – 14kHz
• EQ Filter Points:
  • LOW: 90 Hz
  • LOW MID: 250Hz
  • MID: 630Hz
  • HIGH MID: 1.3kHz
  • HIGH: 2.6kHz
• EQ Band Control Range:  +/- 12dB
• EQ Output Level Control Range:  +/-9dB
• Input Sensitivity (nominal):  -10dBu to -20dBu (instrument level)
• Input Level (maximum): 0dBu (9V supply), +5dBu (12V supply), +10dBu (18V supply)
• Output Level (nominal): -10dBu to -20dBu (instrument level)
• Output Level (maximum): +9dBu (9V supply) +14dBu (12V supply), +20dBu (18V supply)
• Power Supply: 9VDC-18VDC (low noise type), either polarity (auto-detecting), 40mA max   (Power supply not included)
• Dimension W x D x H: 152 x 104mm x 59 mm
  Weight: 0.6kg
