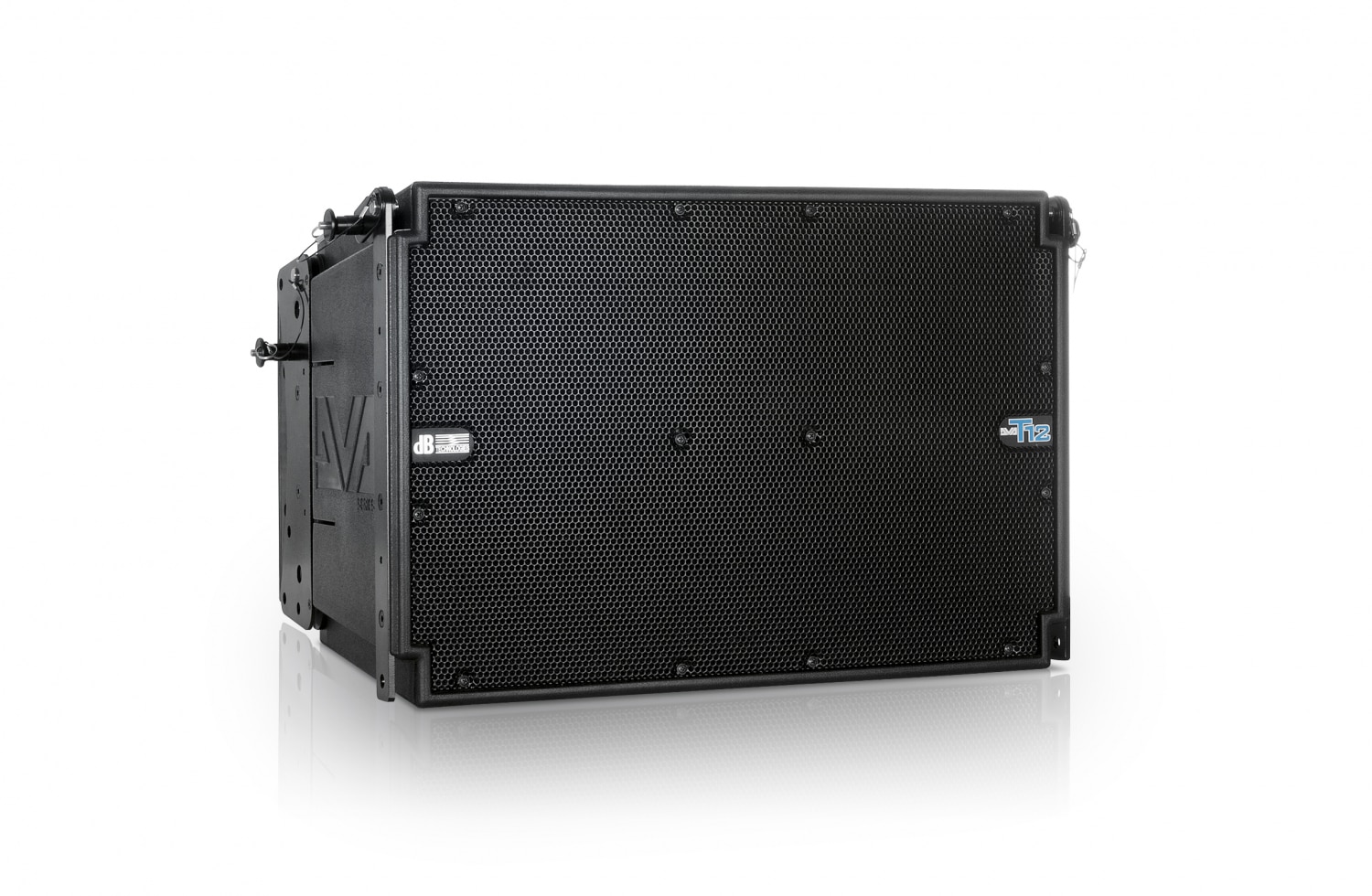

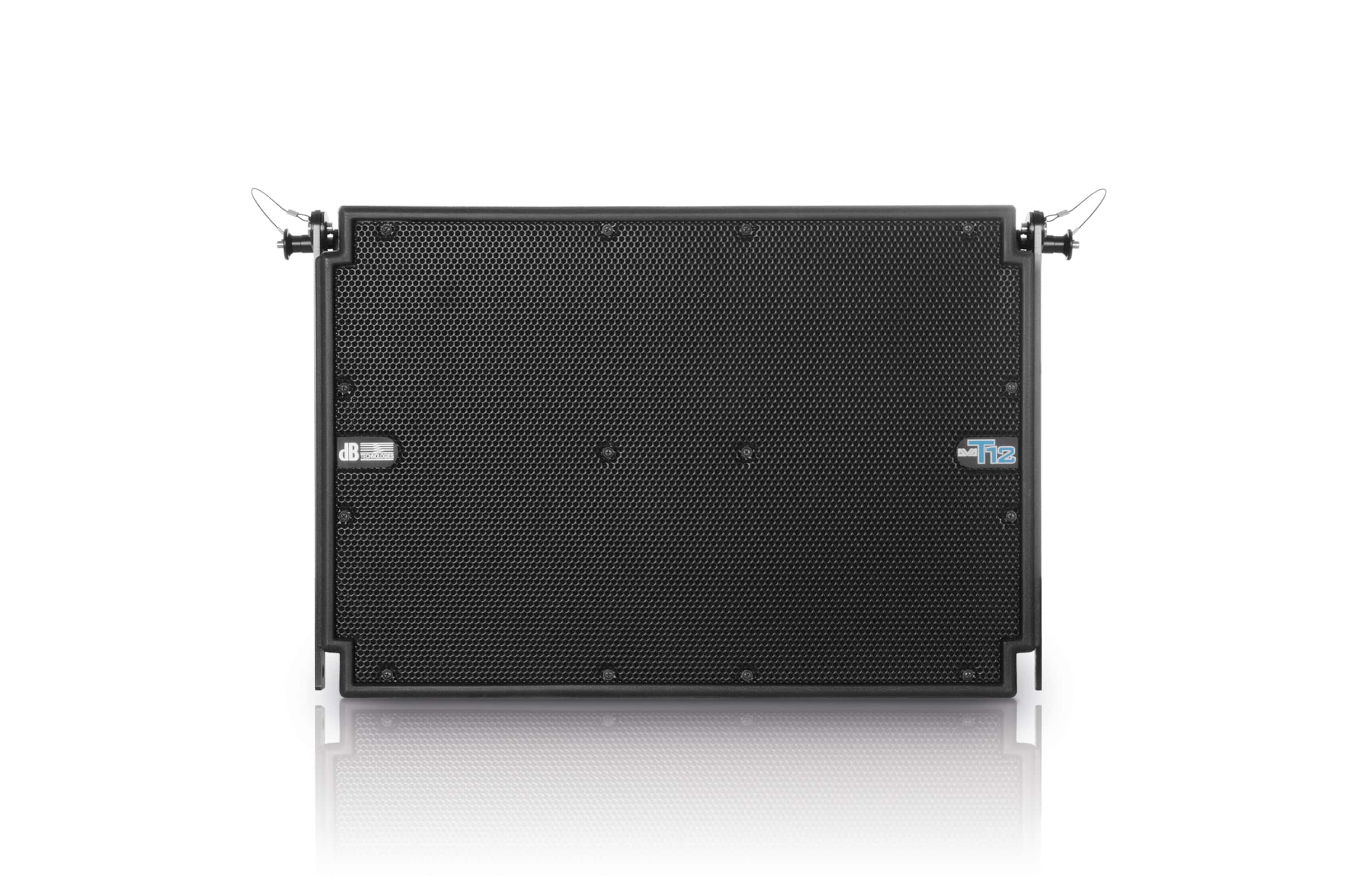

Active Line Array module 12″/6.5″/1″ 1500 Watt RMS. DVA T12 is a step up the evolutionary ladder from the successful DVA T4 line array system. Although it provides more power and has greater range, its active three-way design makes it just as easy to set up and install as its predecessor.
Features
- LONG-THROW SYSTEM
- FULLY POWERED 3-WAY UNIT
- FREELY SCALABLE TO SETUPS OF ANY SIZE
- HIGH-END DIGITAL CONTROLLER ON BOARD
- NETWORK READY WITH INTEGRATED RDNET PORT
- HARDWARE COMPATIBLE WITH DVA T8 AND T4
Technical Data
Speaker Type: 3-Way Active Line Array Module
Acoustical data
Frequency Response [-6dB]: 60 – 19.000 Hz
Max SPL: One Unit: 136 dB
HF: 3×1 “
Voice Coil HF: 1.4 “
Directivity: 100×10 ° Single unit
Horn: Integrated CD Horn
MF: 2x 6.5 “
Type MF:
Neodymium
Sealed Basket
Phase Plug
Horn Loaded
Neodymium
Sealed Basket
Phase Plug
Horn Loaded
Voice Coil MF: 2 “
LF: 12 “
Type LF: Neodymium
Voice Coil LF: 3 “
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
HF Amp: 350 W RMS
MF Amp: 350 W RMS
LF Amp: 710 W RMS
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: 24 bit/96 kHz
System Presets: 8, HF/Low-mid correction
Limiter: Dual Active Limiter
Multiband RMS, Peak, Thermal
Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF: 1800 Hz
Slope MF-HF: 24 dB/Octave
Crossover Frequency LF-MF: 420 Hz
Slope LF-MF: 24 dB/Octave

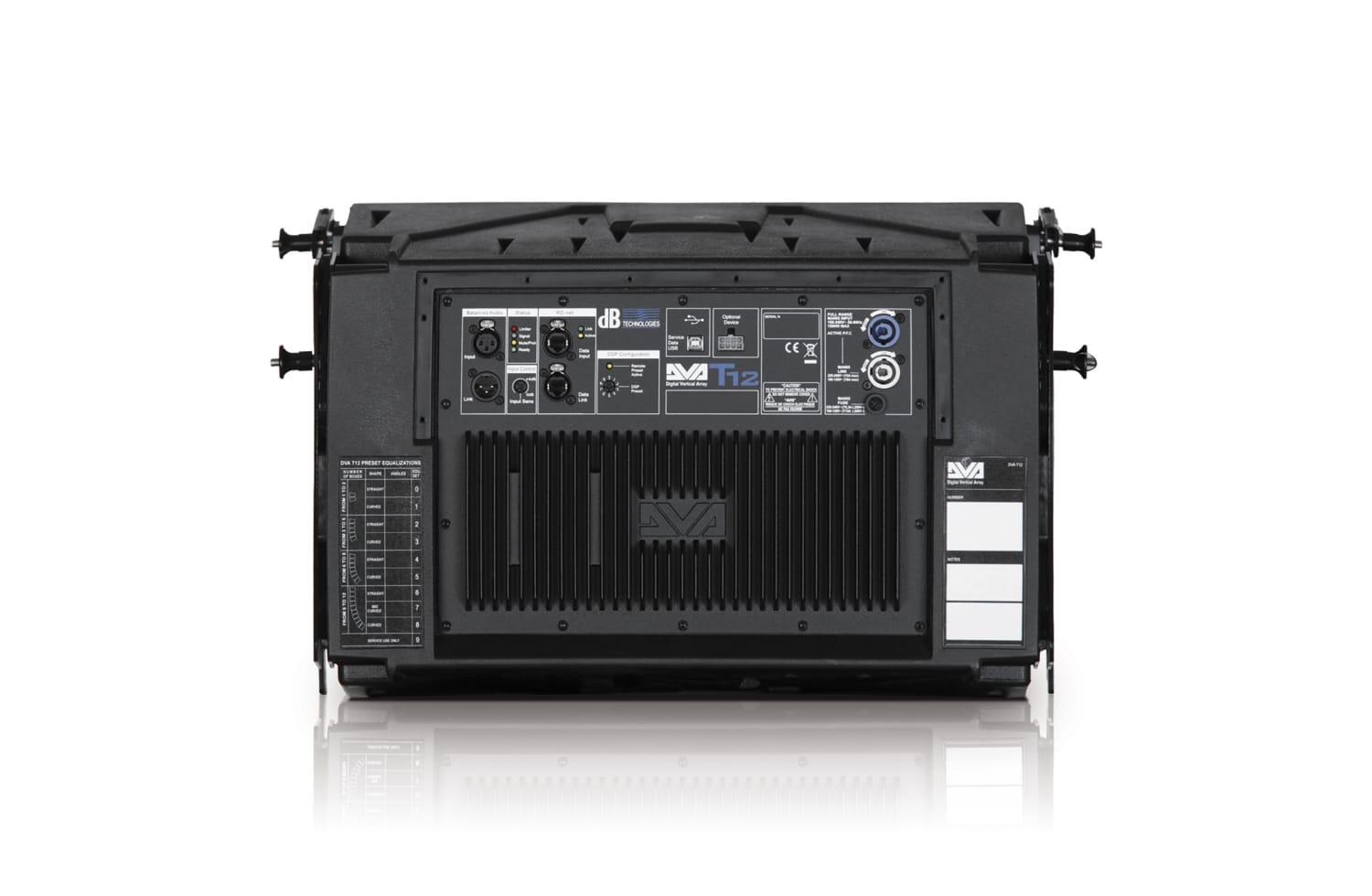

Input
Signal Input: 1x XLR fem, Bal.
Signal Output:1x XLR male, Bal.
Network: RDnet remote control RJ45 connector IN/OUT
Power Socket:
1x Powercon In
1x Powercon Out
1x Powercon Out
Voltage Range: 90 – 240 V
Mechanics
Housing: Polypropylen PP Aluminium reinforced
Housing Design: Trapezoidal 10°:
Housing Design: Trapezoidal 10°:

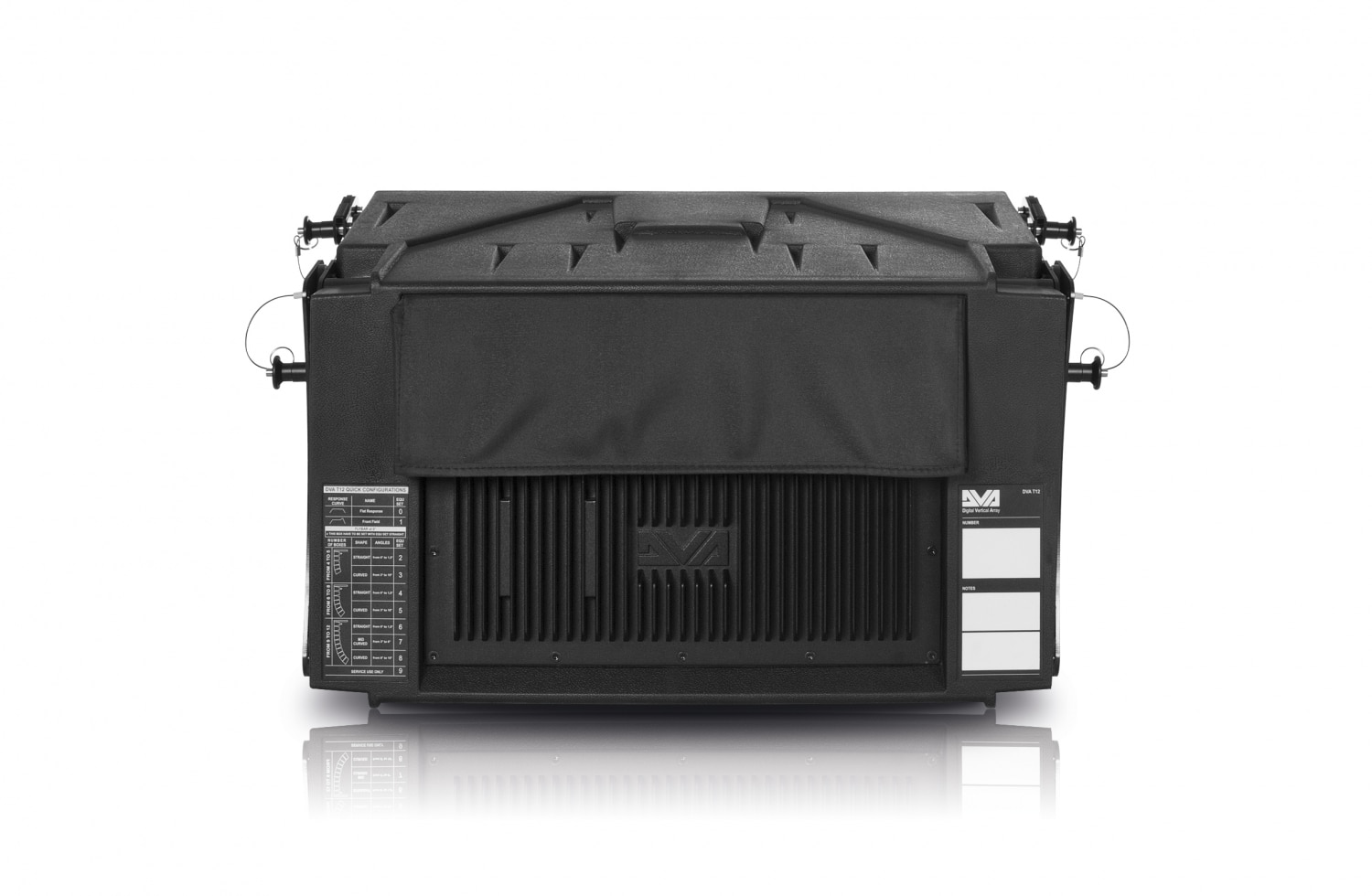

Rain Cover: Included
Rigging Points: Integrated rigging hardware
Width: 580 mm (23.2 in)
Height: 386 mm (15.44 in)
Depth: 430 mm (17.2 in)
Weight: 29,9 kg (63.93 lbs)
