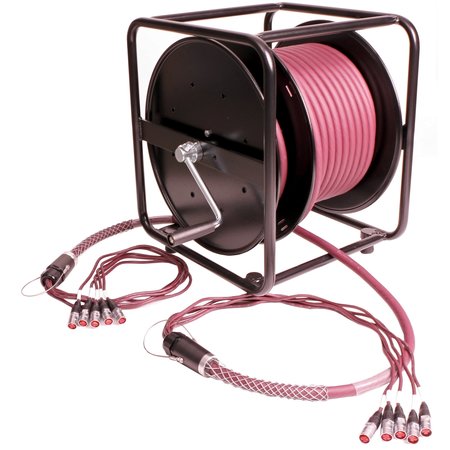

RC-EEW highly flexible RamCAT 5-fold network multicore cable for use on the road on drum
- ruggedized Cat. 5 Outdoor, S/UTP, AWG26 stranded
- pinout acc. to TIA / EIA 568-B
- PUR overall jacket
- max. bandwidth: < 60 m = 100 MHz; > 60 m < 100 MHz
- 5-fold multicore
- drum can be fully detached from cable
| Length | 75 m |
| Outer jacket | PUR |
| Colour | claret ciolet |
| Cable drum | SKKL4731 |
| Weight | 51,782 kg |
| Cable | |
| Cable typ | RC5-M5 – 5x(4x 2x 0.15 mm) AWG 26/19, stranded conductor, PUR jacket, Ø 19.6 mm |
| Outer jacket | PUR |
| Overall-diameter | 19.6 mm |
| Max. data transmission rate | 100 MHz |
| Pinout | TIA/EIA 568-B |
| Cable drum | SKKL4730 |
| Connectors | |
| Connector 1 | CAT5e ehterCON RJ45 |
| Connector 2 | CAT5e etherCON RJ45 |
