| Construction | |
| Cond. construction | stranded tinned copper, 7 x 0.20 mm |
| Cond. cross section | 0.22 mm2 |
| Insulation | polyethylene (PE) |
| Core standing | 2 cores twisted to a pair |
| Cable stranding | 2 pairs stranded |
| Overall shield | AL/PET foil, metal outside stranded tinned copper, drain wire + tinned copper, braid (>75% coverge) |
| Outer jacket | PVC |
| Overall diameter | 6.5 mm |
| Mechanics | |
| Min. bending radius | 35 mm |
| Working temperature | -20°C / +70°C |
| Flame retardancy | acc. to VDE 0482 part 265-2-1 and IEC 60332-1 |
| Heat of combustion | 206 kWh/km |
| Electric | |
| Conductor resistance | 80 Ω/km |
| Capacitance
cond./shield |
60 pF/m |
| Characeristic impedance | 100 Ω |
| Attenuation [dB/100m]
1 Mhz 3 MHz 10 MHz |
2.1
3 6.5 |
| Insulation resistance | > 10 GΩ x km |
| Test voltage
Cond./cond Cond./shield |
1200V
500V |
Data kabel 100 ohm
45,00 kr.
⚠️ varen på fjernlager, leveringstid 8-14 dage
⚠️ varen på fjernlager, leveringstid 8-14 dage

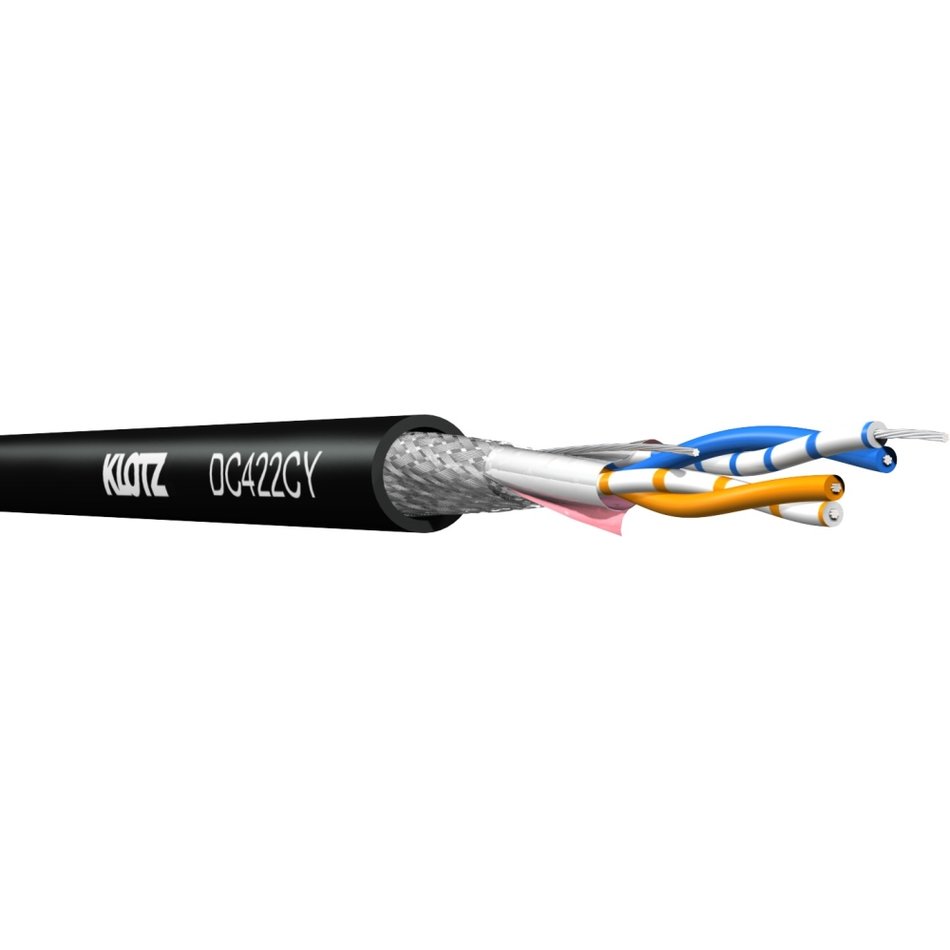

Data kabel 100 ohm, 2 x 2 x 0,22 mm2, AWG 24/7, dobbeltskærm
