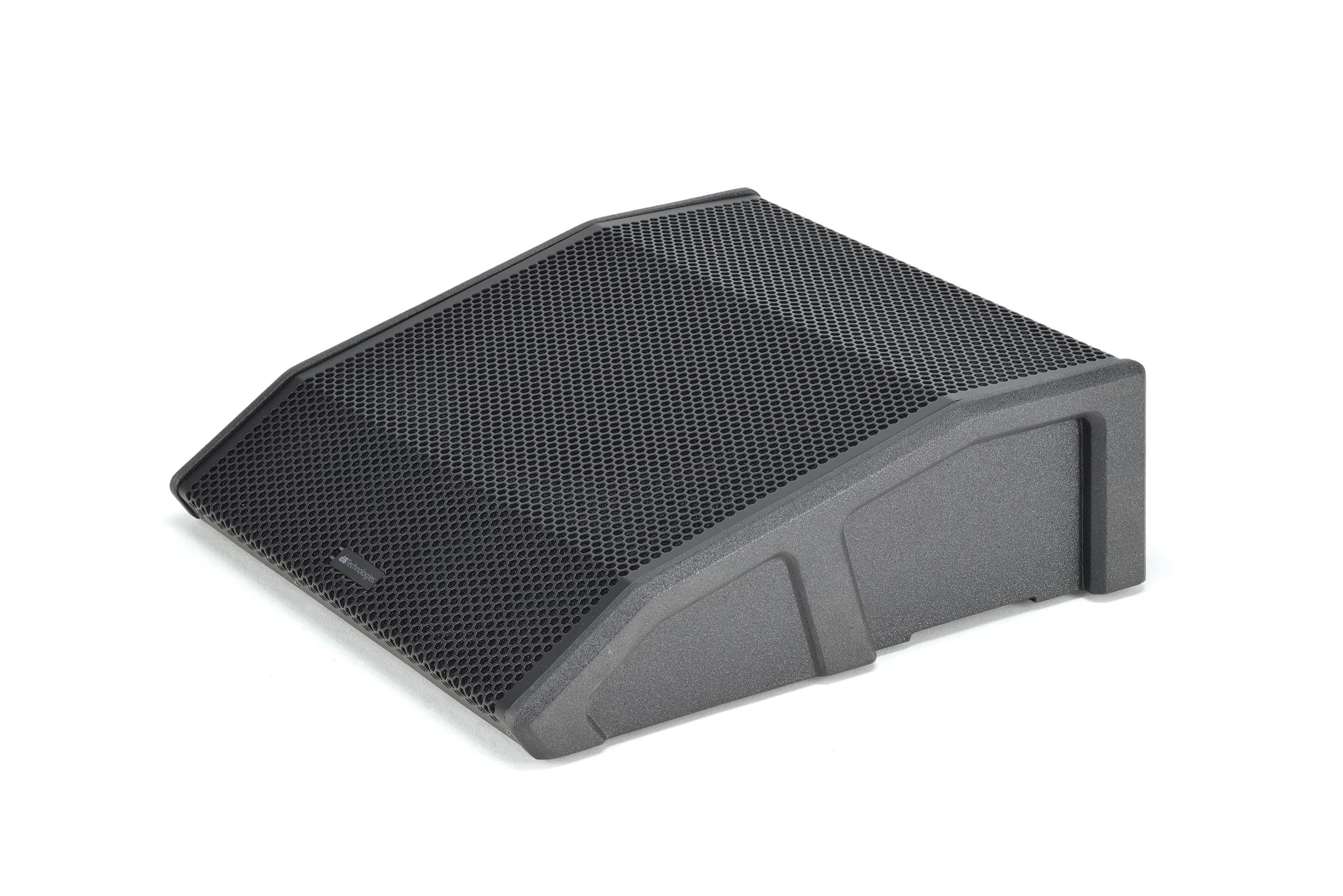

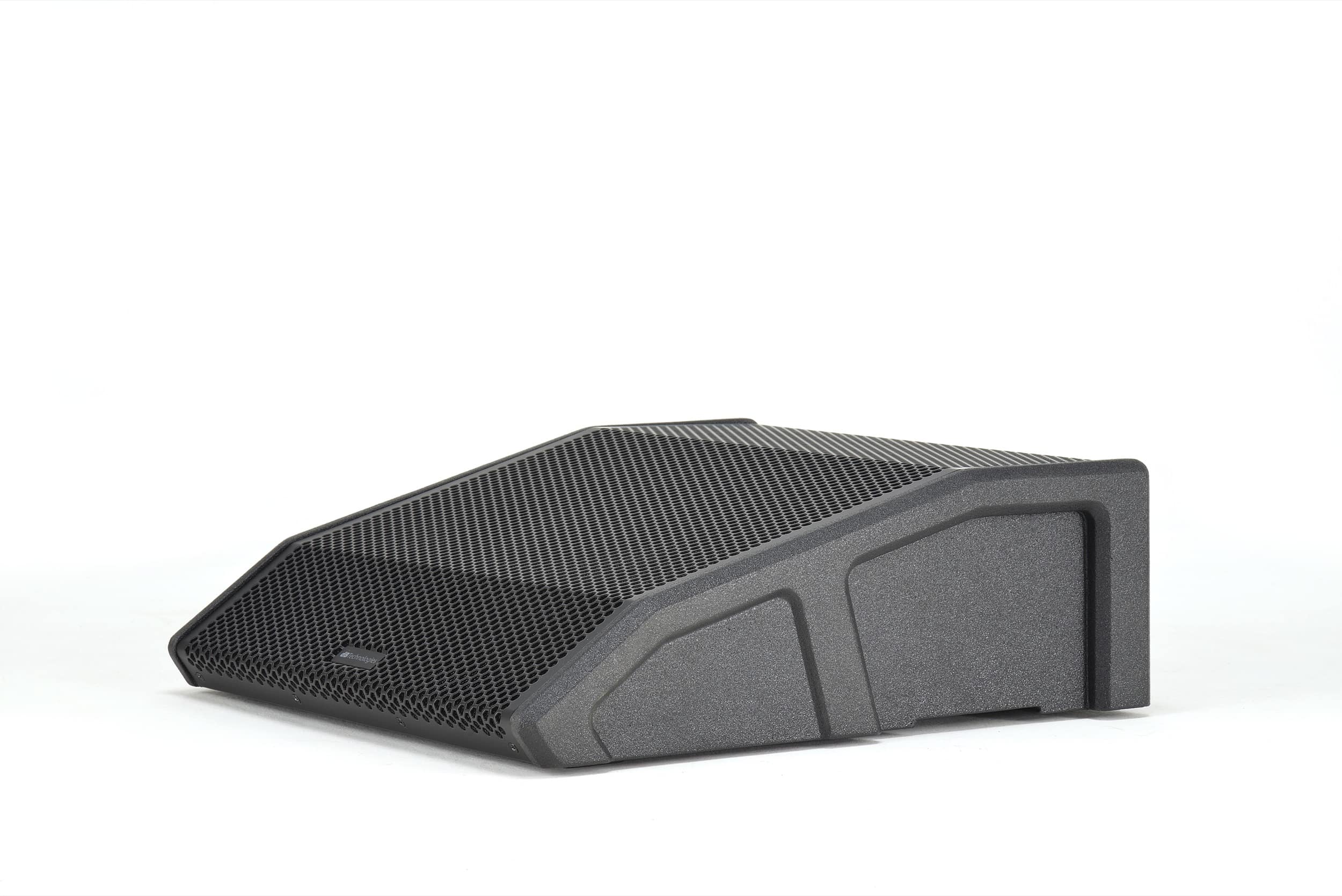

The ultra-slim wedge speaker designed to be discreetly integrated in broadcast studios, theatre stages, congress facilities and wherever an unobtrusive and versatile wedge is needed
Features
- Active 2-way wedge speaker
- Innovative ultra-slim design
- Height 165 mm only
- 400W RMS Class-D amplifier
- Anti-feedback acoustic configuration
- Variable acoustic focus
- Remote control via RDNet

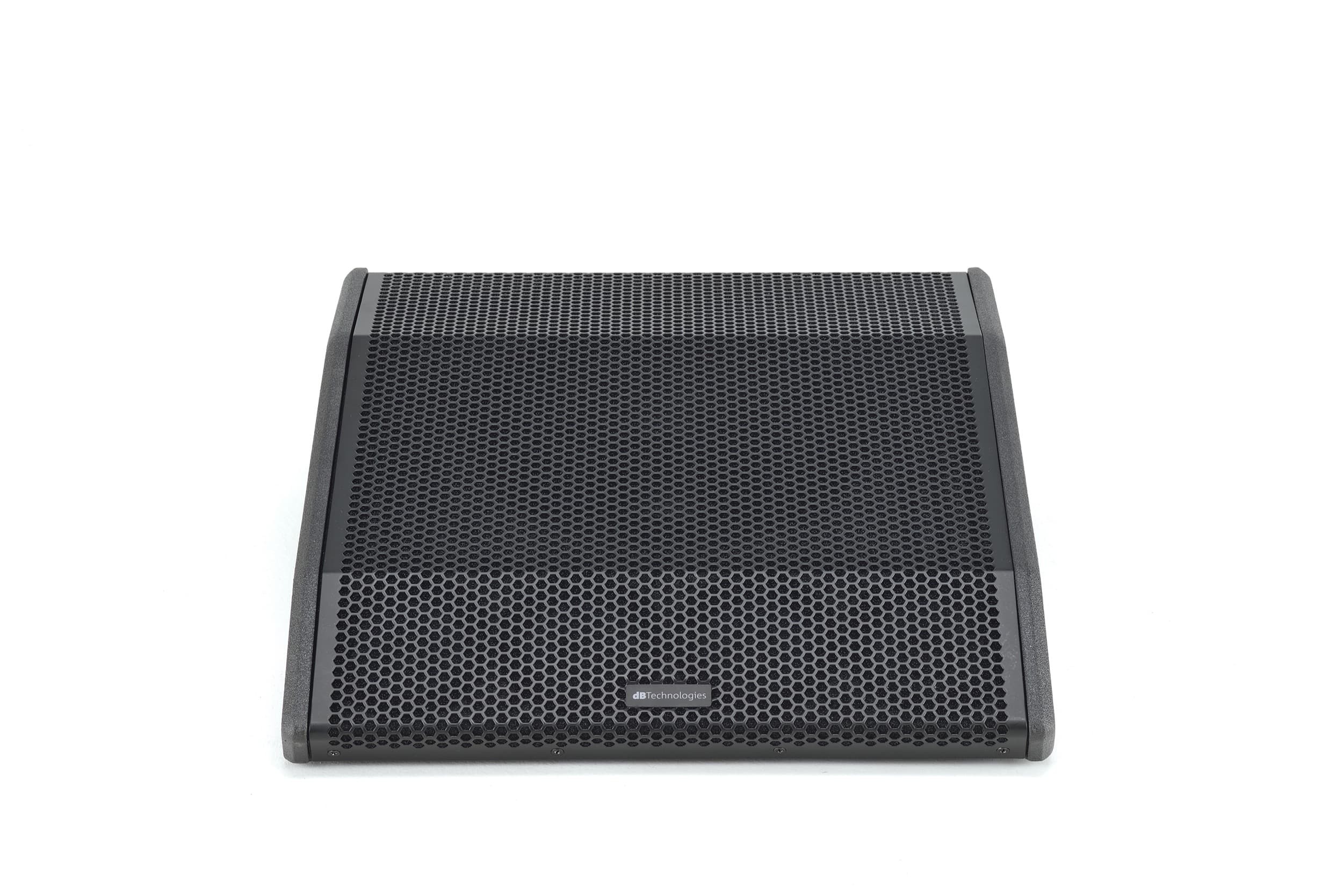

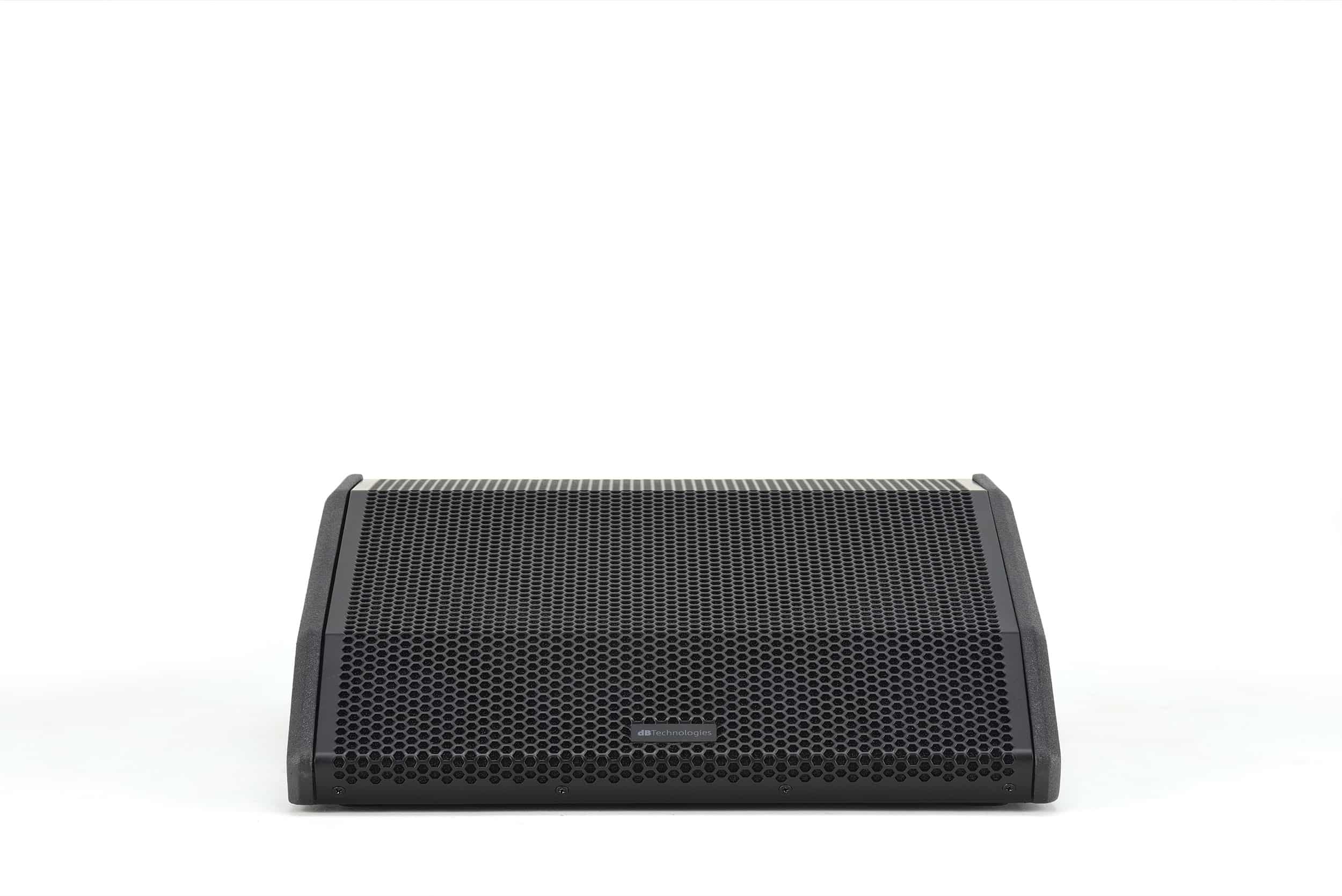

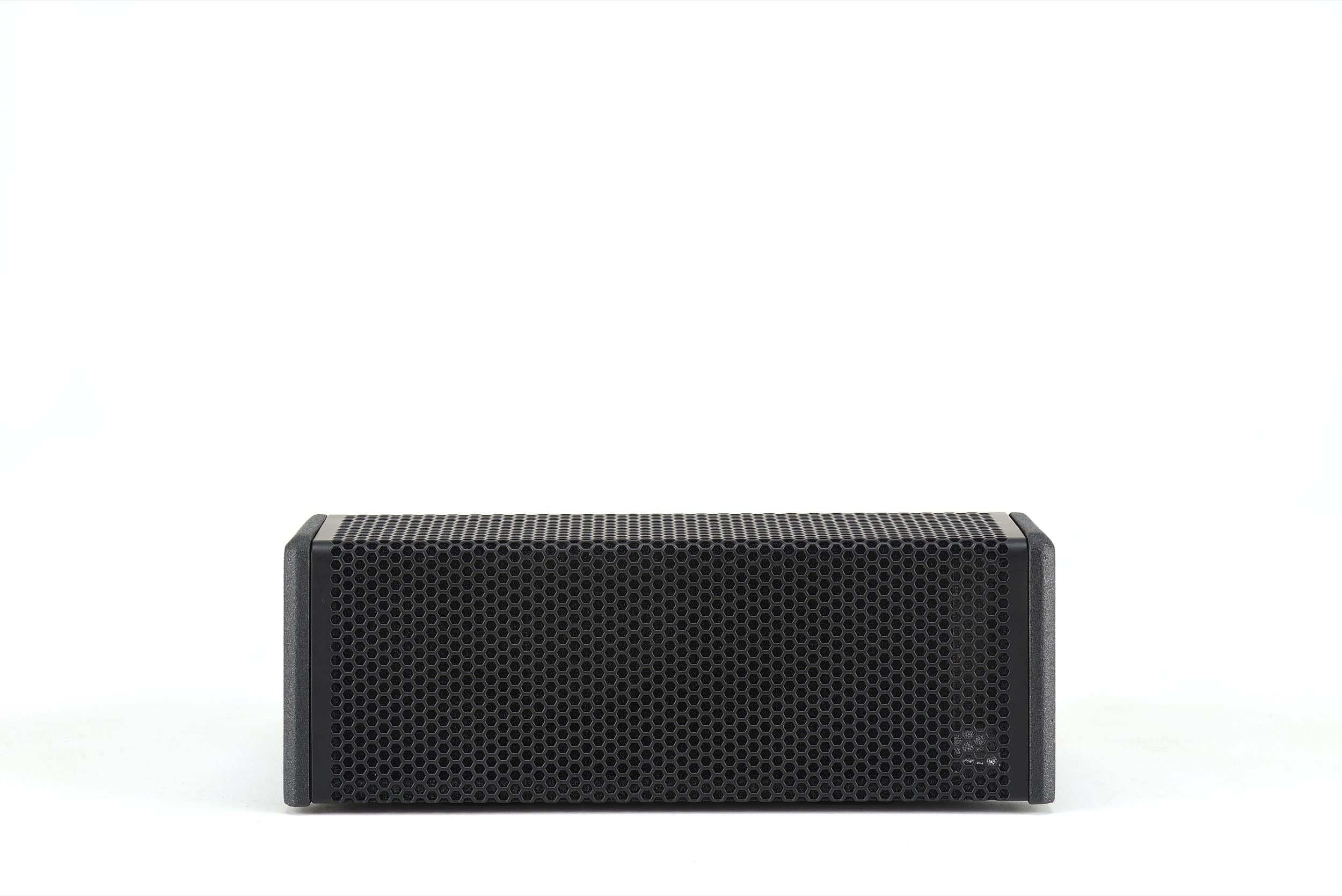

- Exclusive front-rear grille design
Technical Data
Speaker Type: 2-Way Active Wedge Monitor
Acoustical data
Usable Bandwith [- 10 dB]: 58 – 15,000 Hz
Frequency Response [- 6 dB]: 68 – 14,000 Hz
Max SPL: 126 dB

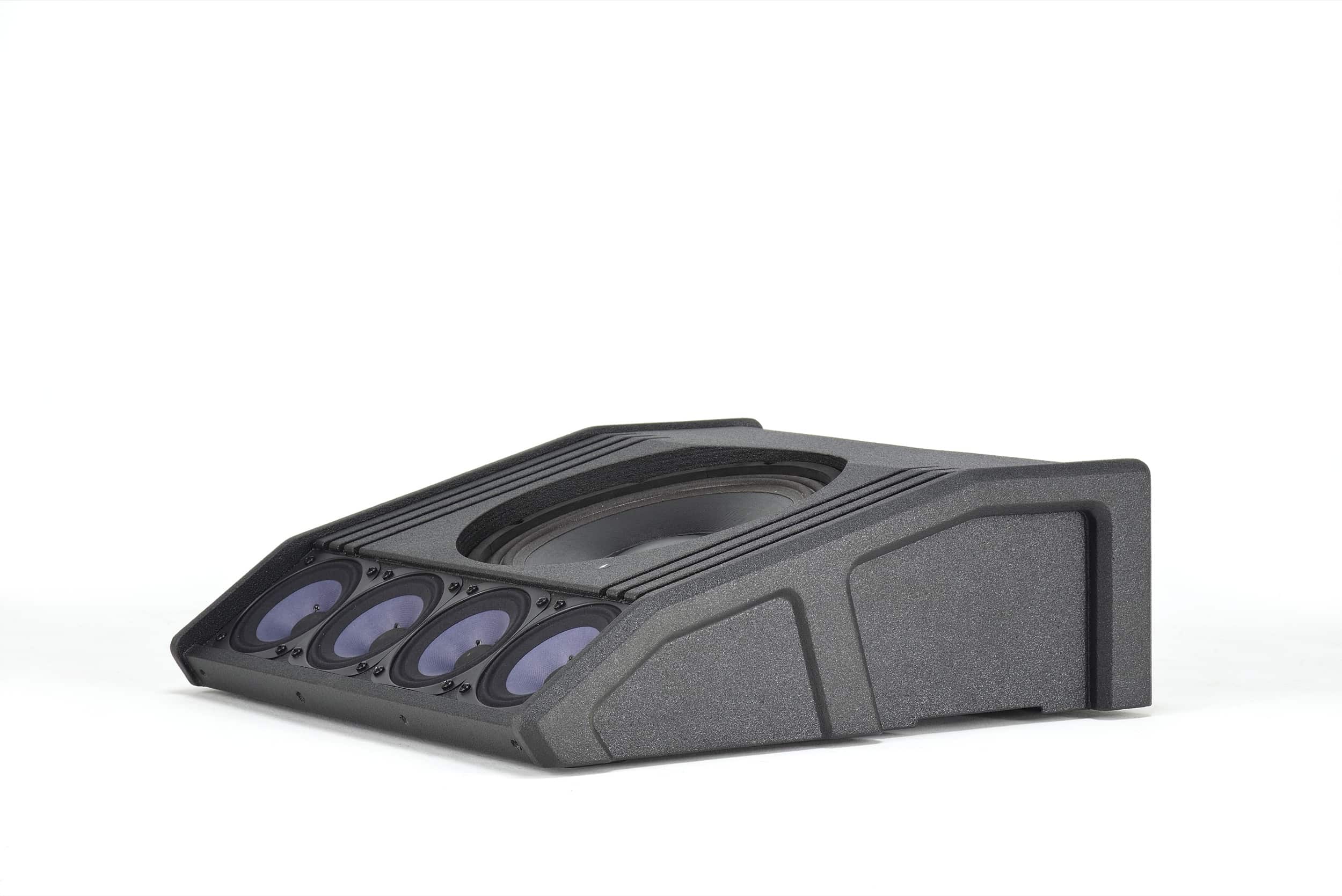

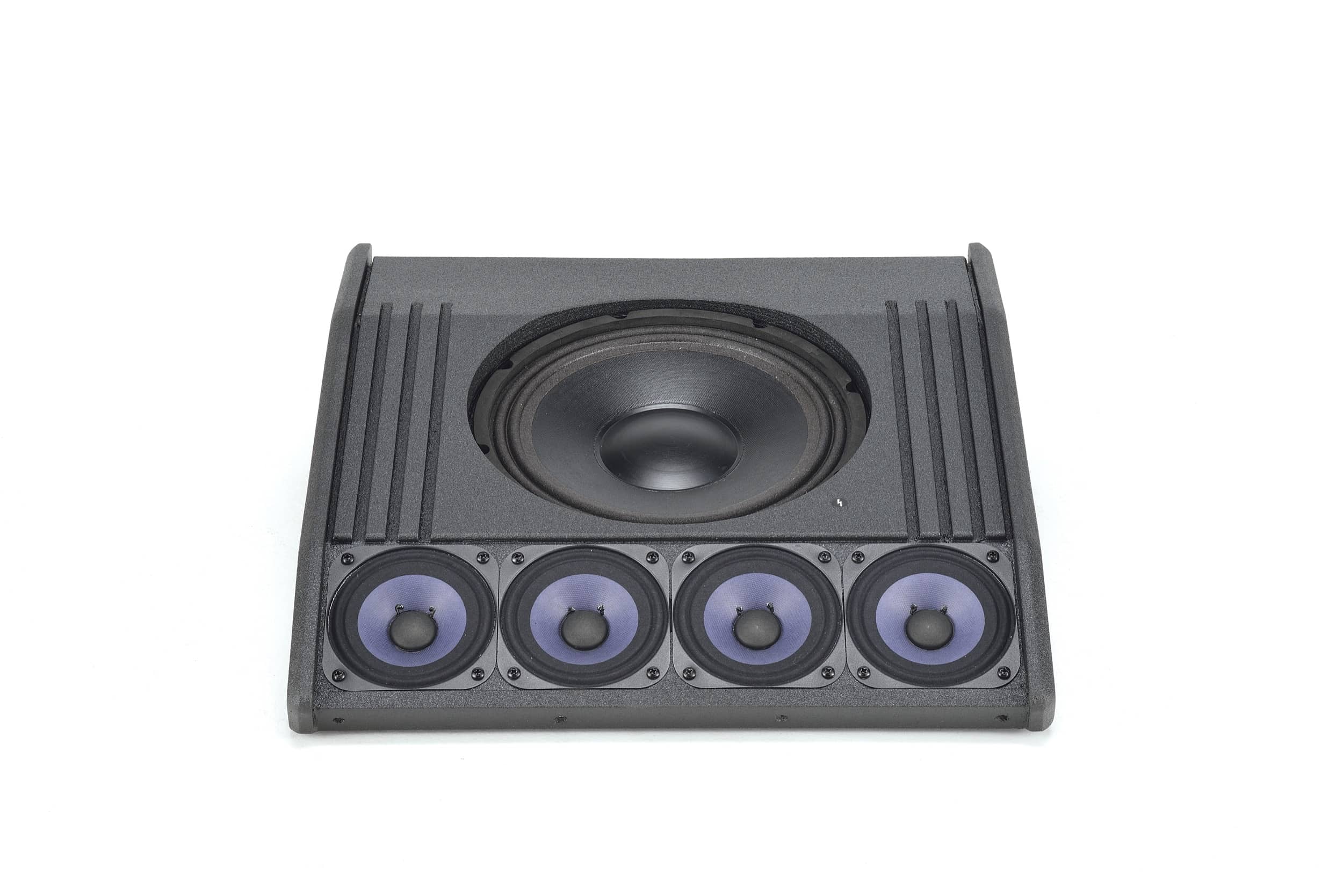

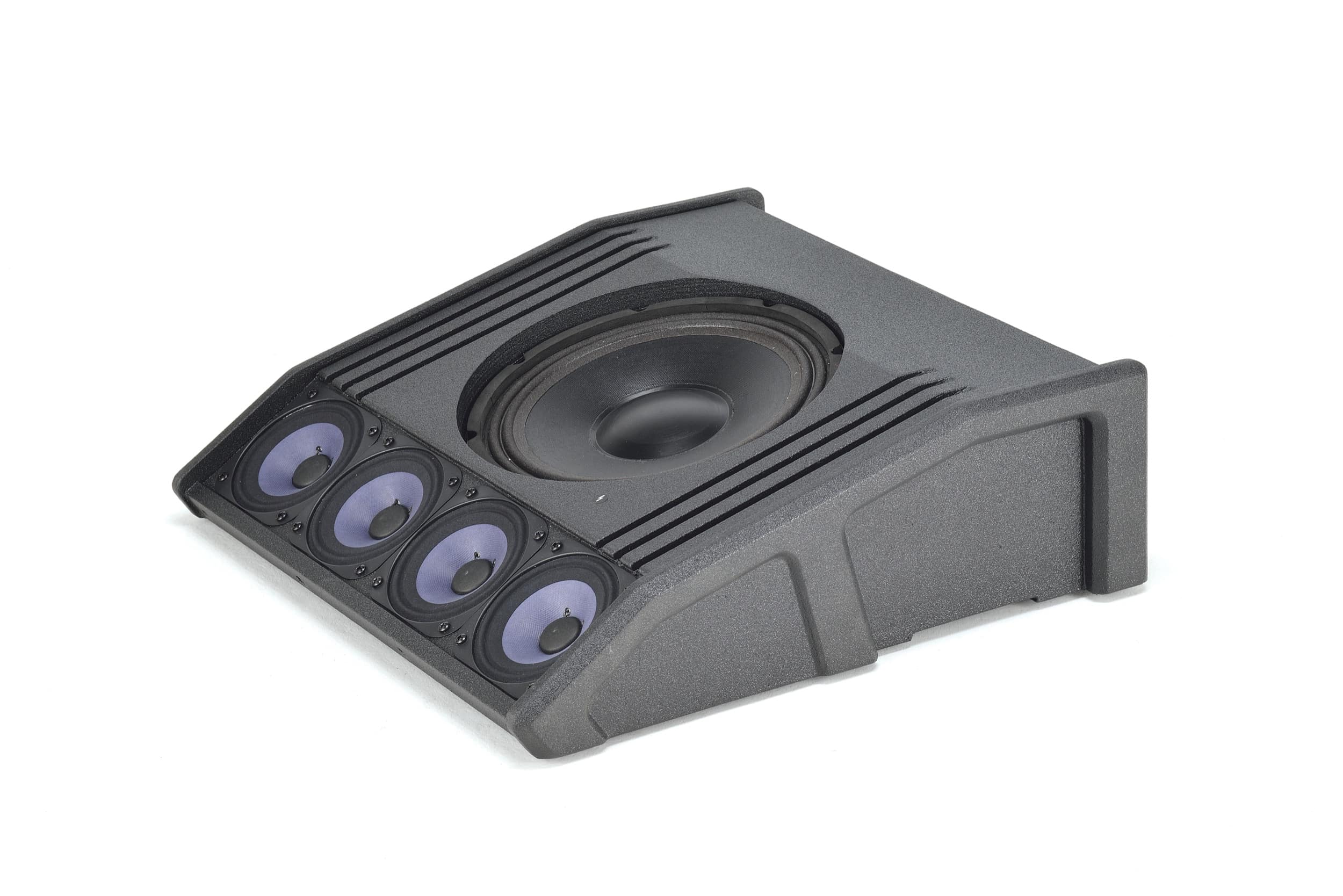

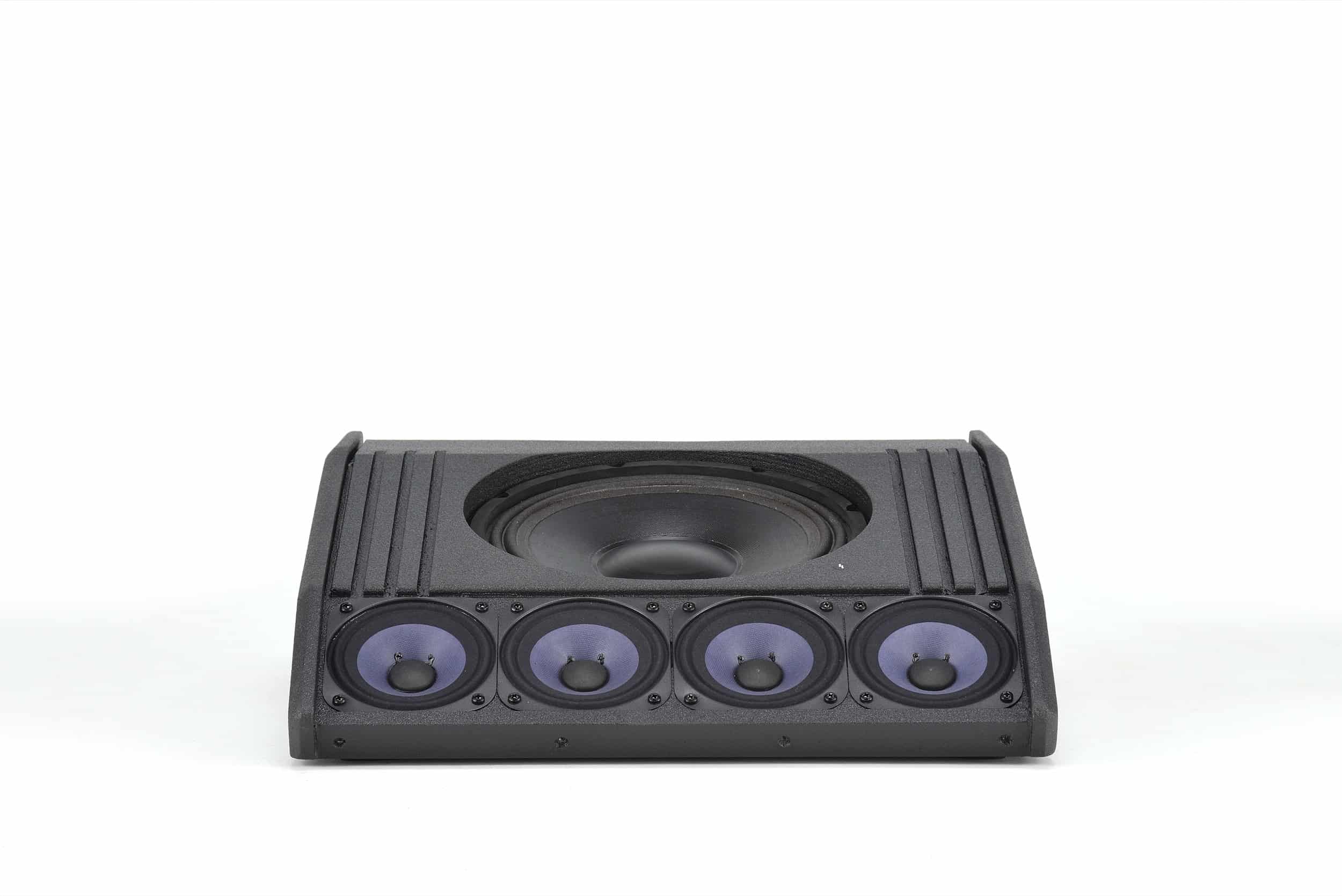

HF: 4x 4″ – 1″ v.c. Neodymium
LF: 1x 10″ – 2.5″ v.c.
Horizontal Directivity: Dependent on Focus Preset
Vertical Directivity: Dependent on Focus Preset
Amplifier
Amplifier: 400 W RMS Class D Digipro® G3
Cooling: Convection
Power Supply: Auto-range SMPS
Processor
Controller: DSP 28/56 bit
Converter AD/DA: 24 bit/48 kHz
Limiter: Peak, RMS, Thermal
Processing (filters): Linear Phase FIR Filters

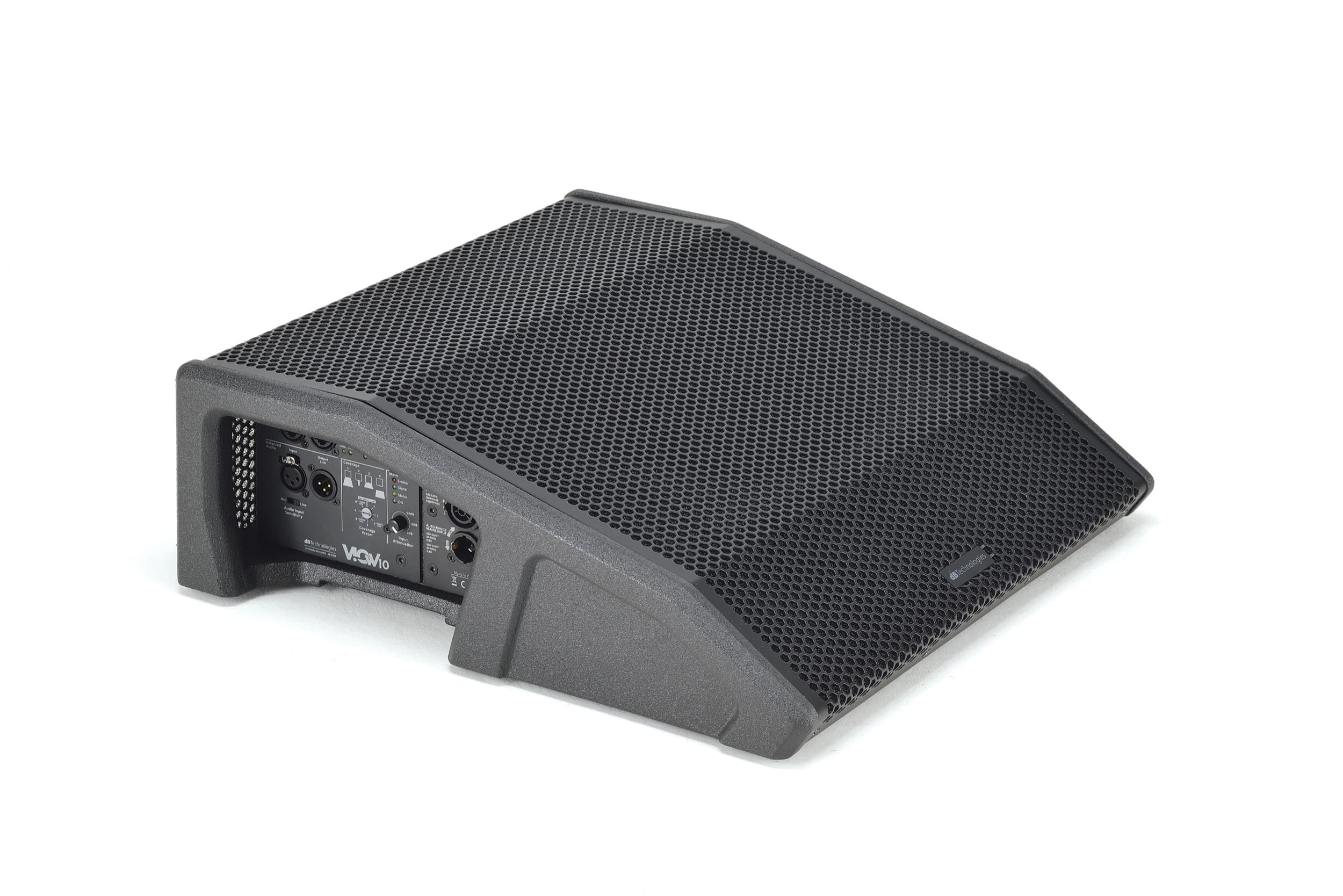

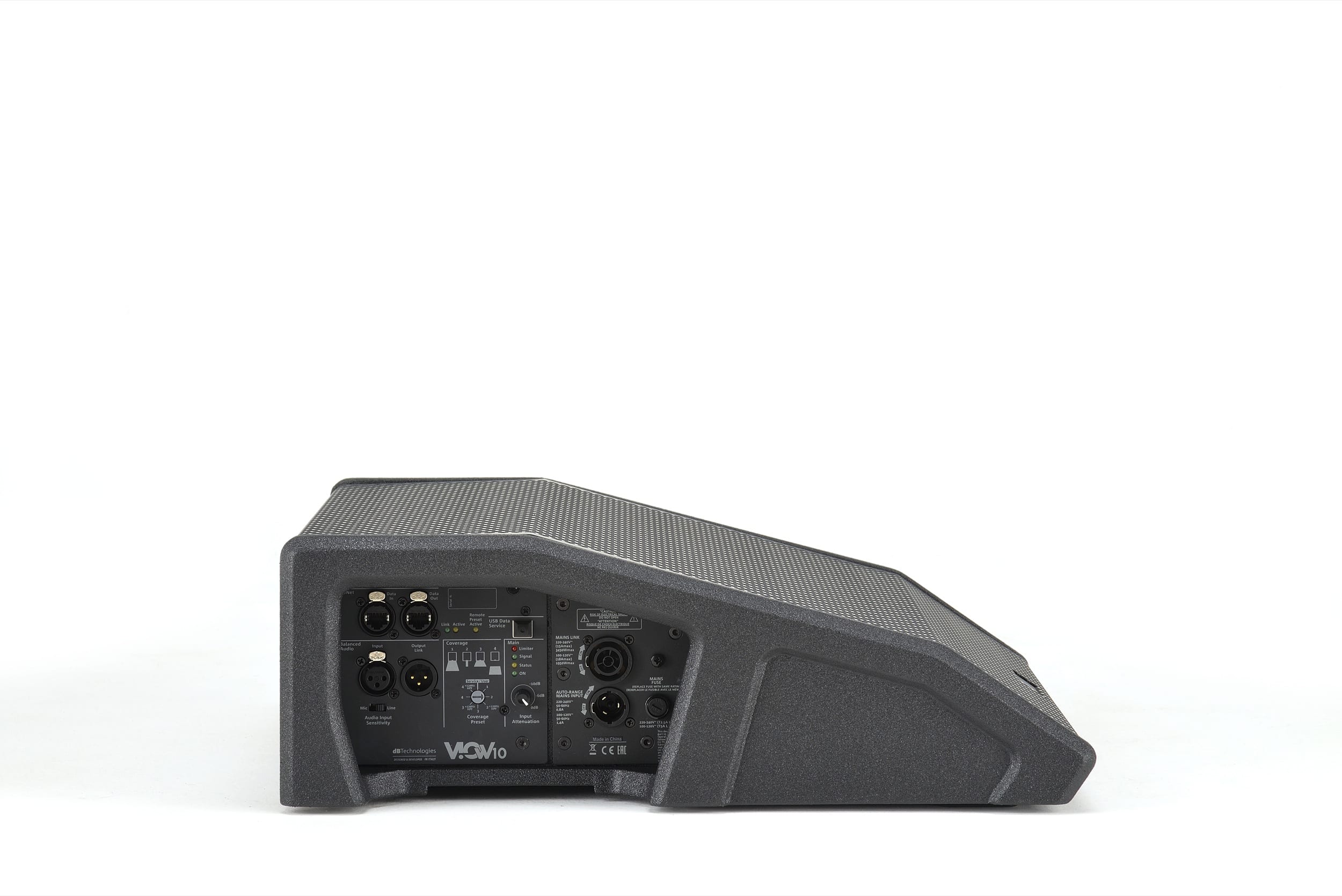

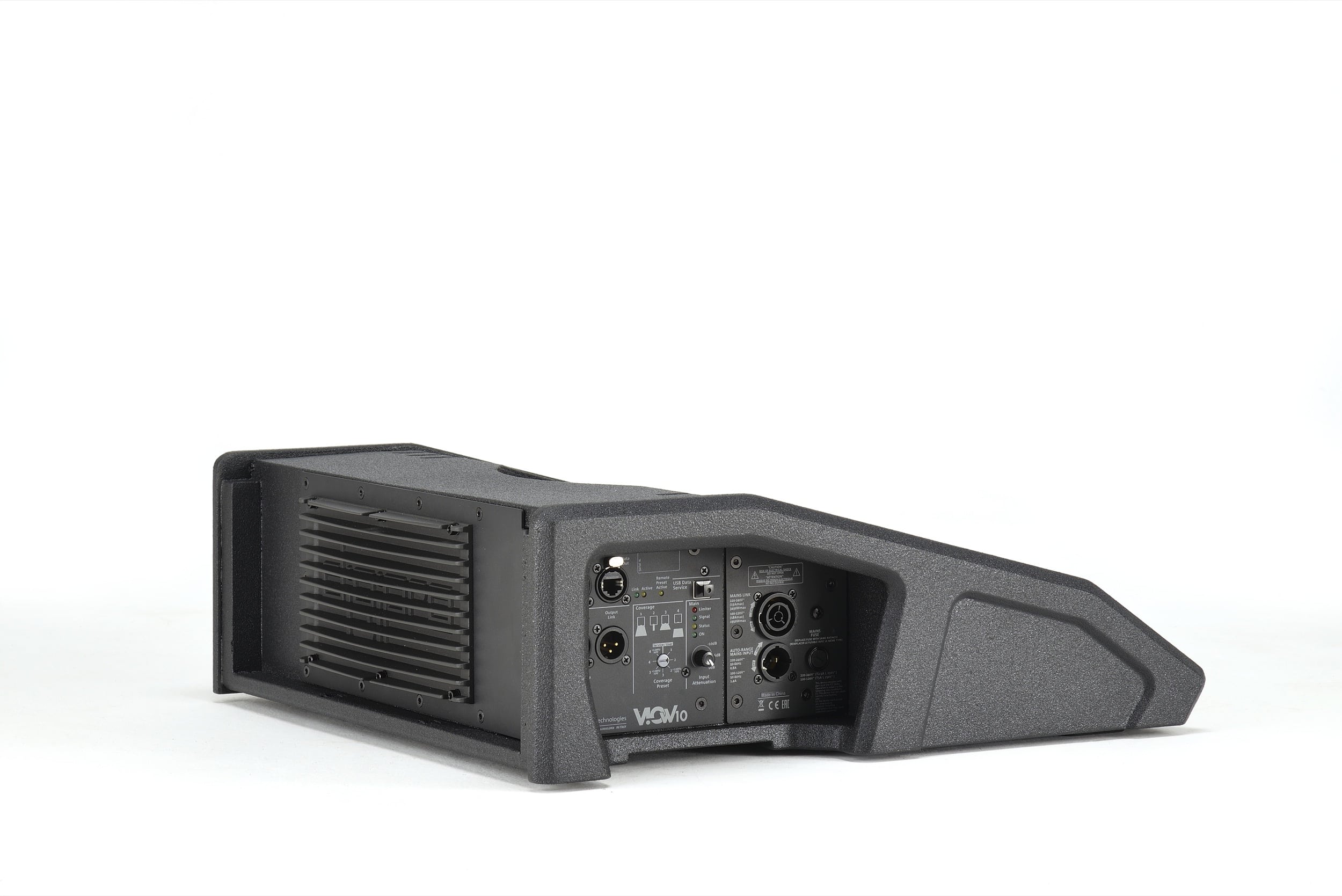

Input
Signal Input:
1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)
Signal Output:
1xXLR male, 1x RJ45 Link (RDNet)
Power Socket:
1x PowerCON TRUE1 In
1xPowerCON TRUE1 Out
1xPowerCON TRUE1 Out
Controls:
1x Rotary Encoder (8 presets)
1 x Input Sensitivity Encoder
1xMic /line switch
1x On LED
1x Status -LED
1x Signal LED
1x Limiter LED
1 x Input Sensitivity Encoder
1xMic /line switch
1x On LED
1x Status -LED
1x Signal LED
1x Limiter LED
Mechanics
Housing: Wooden cabinet, Polyurea painting
Handles: 1 on left side
Width: 450 mm (17.71 in)
Height: 165 mm (6.49 in)
Depth: 480 mm (18.89 in)
Weight: 13.7 kg (30.20 lbs)
