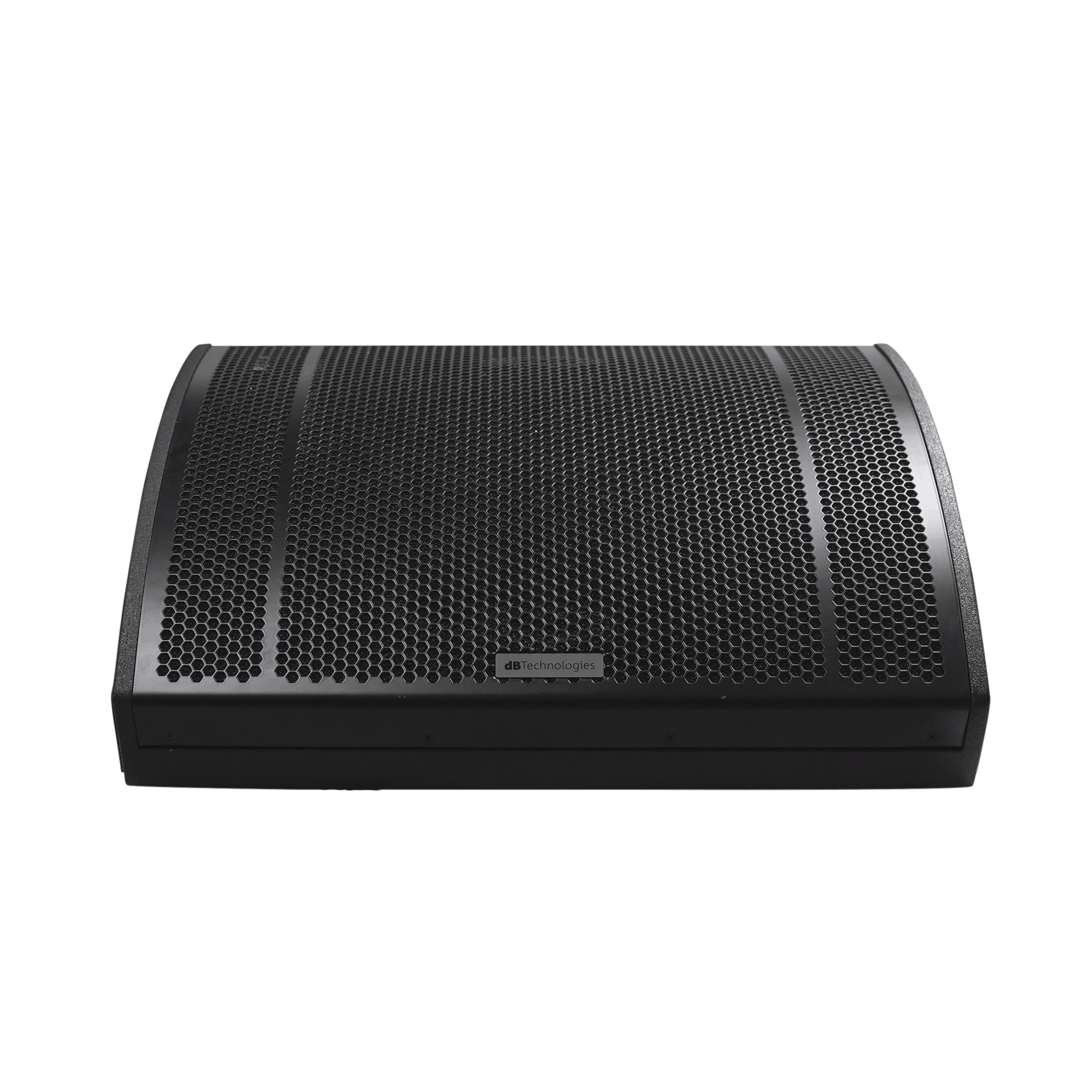

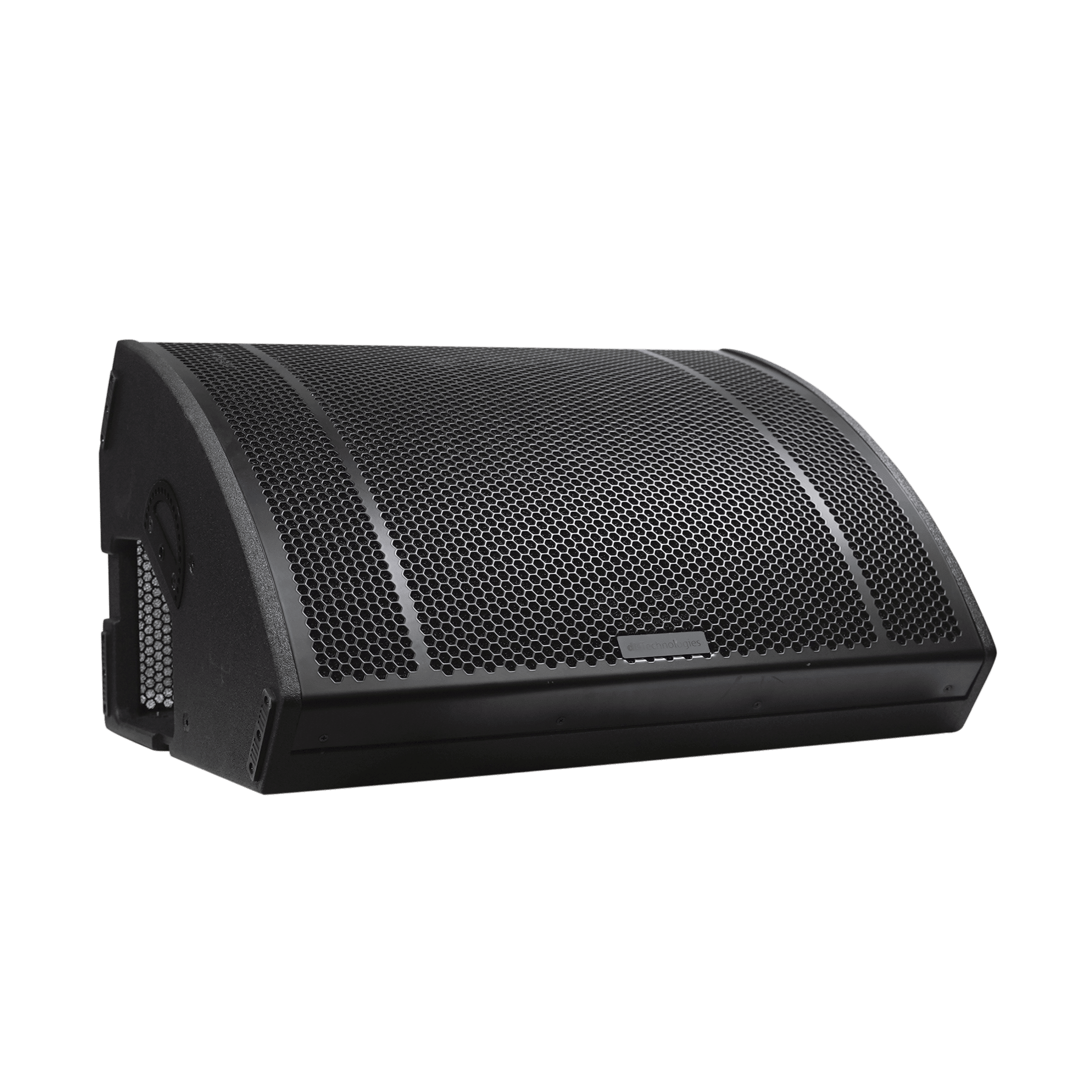

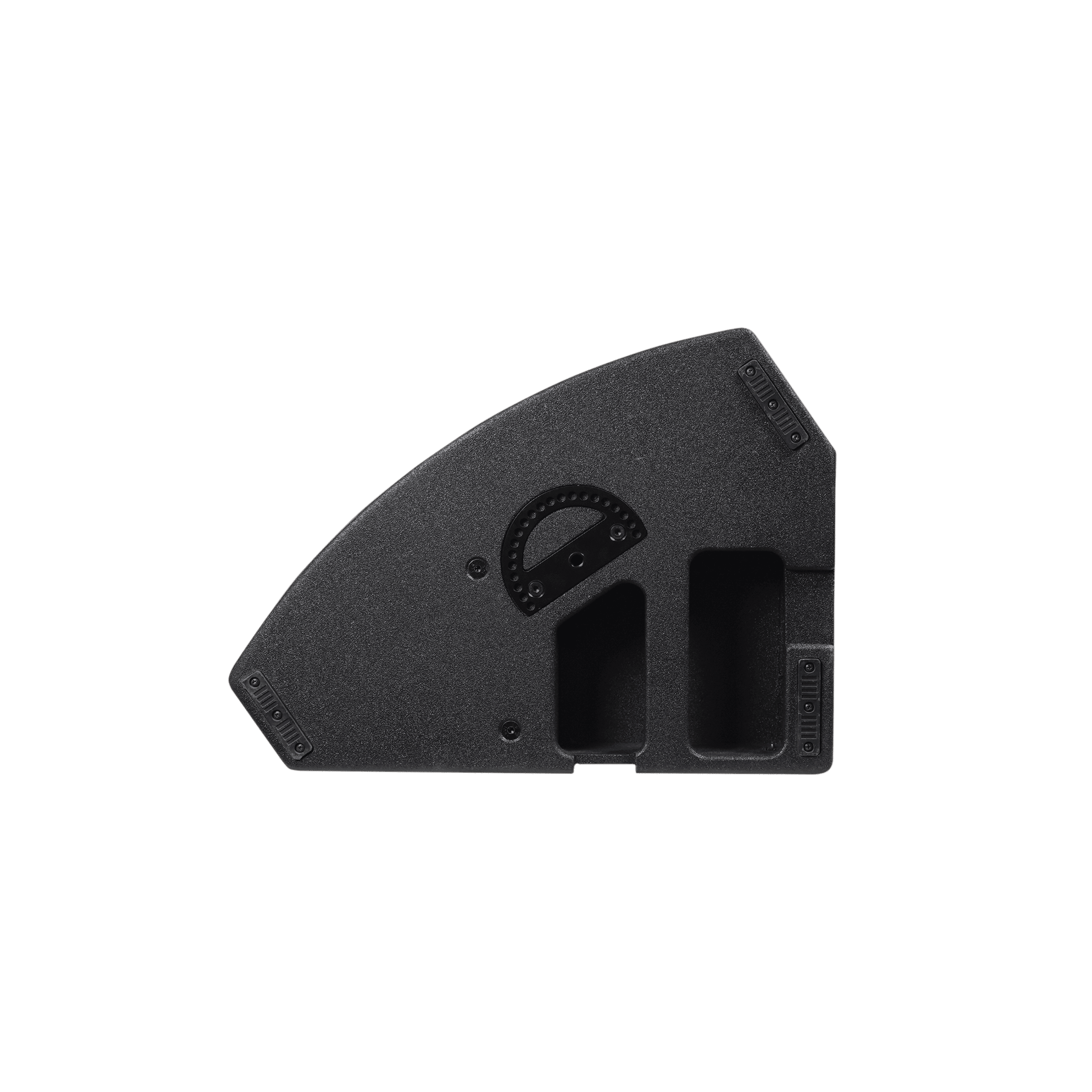

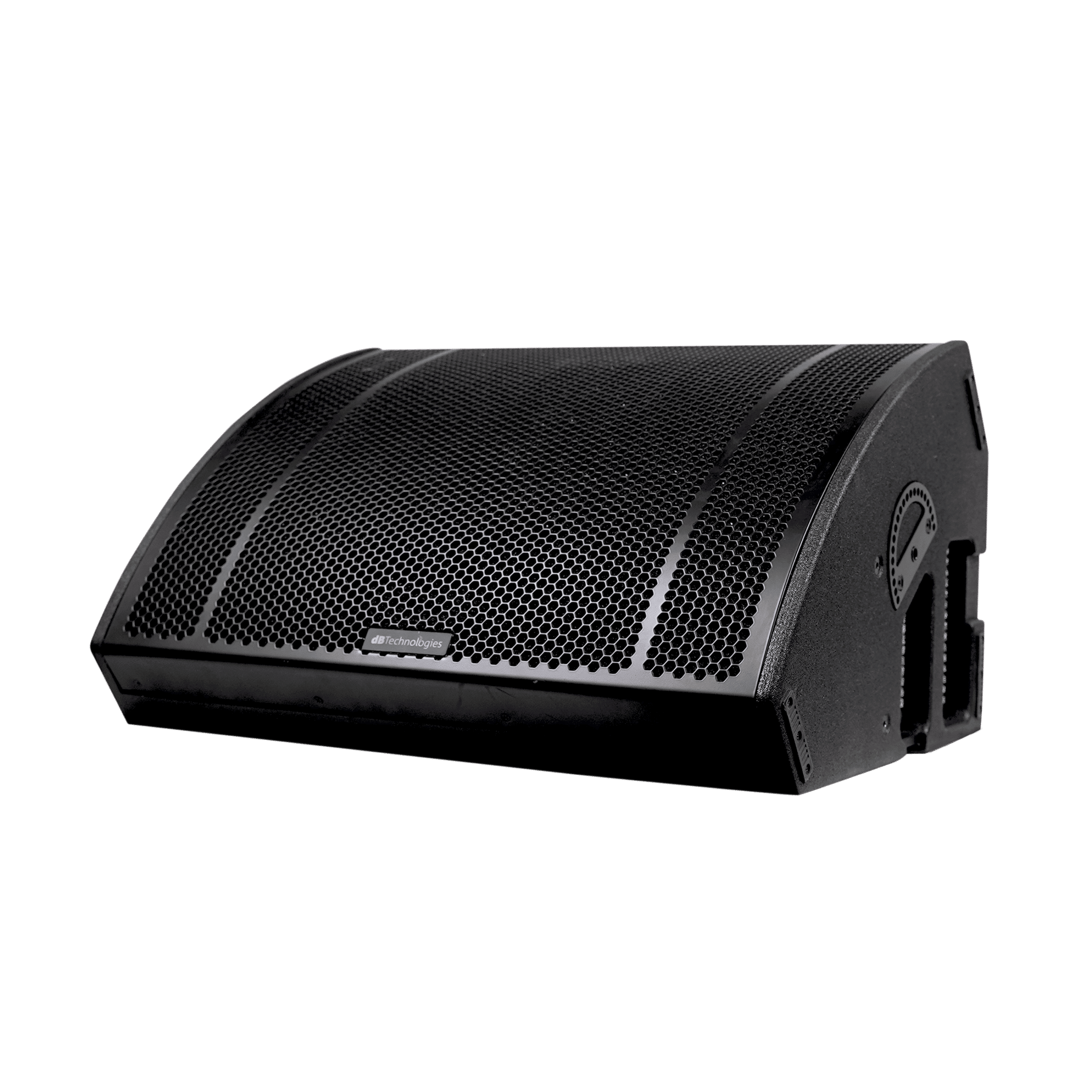

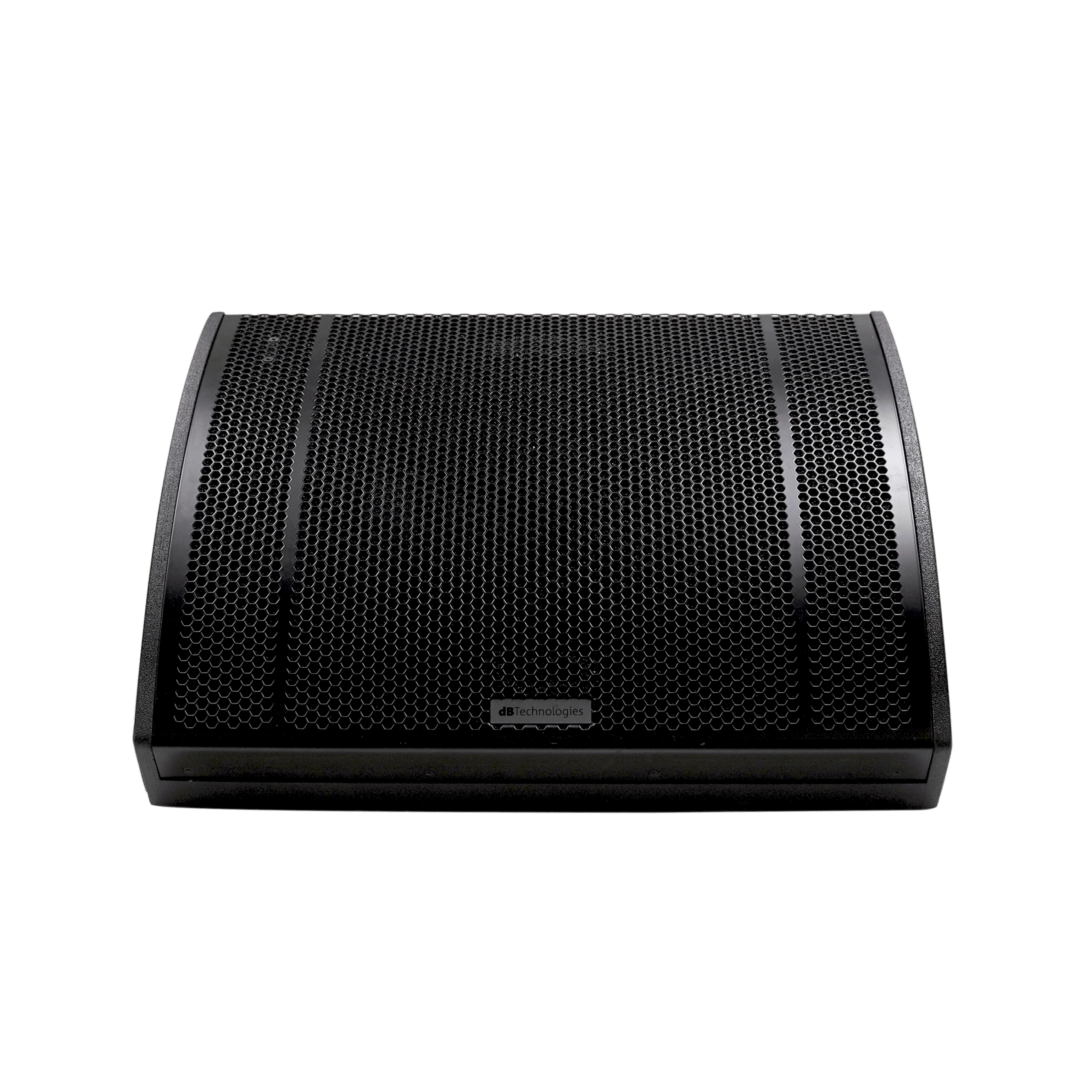

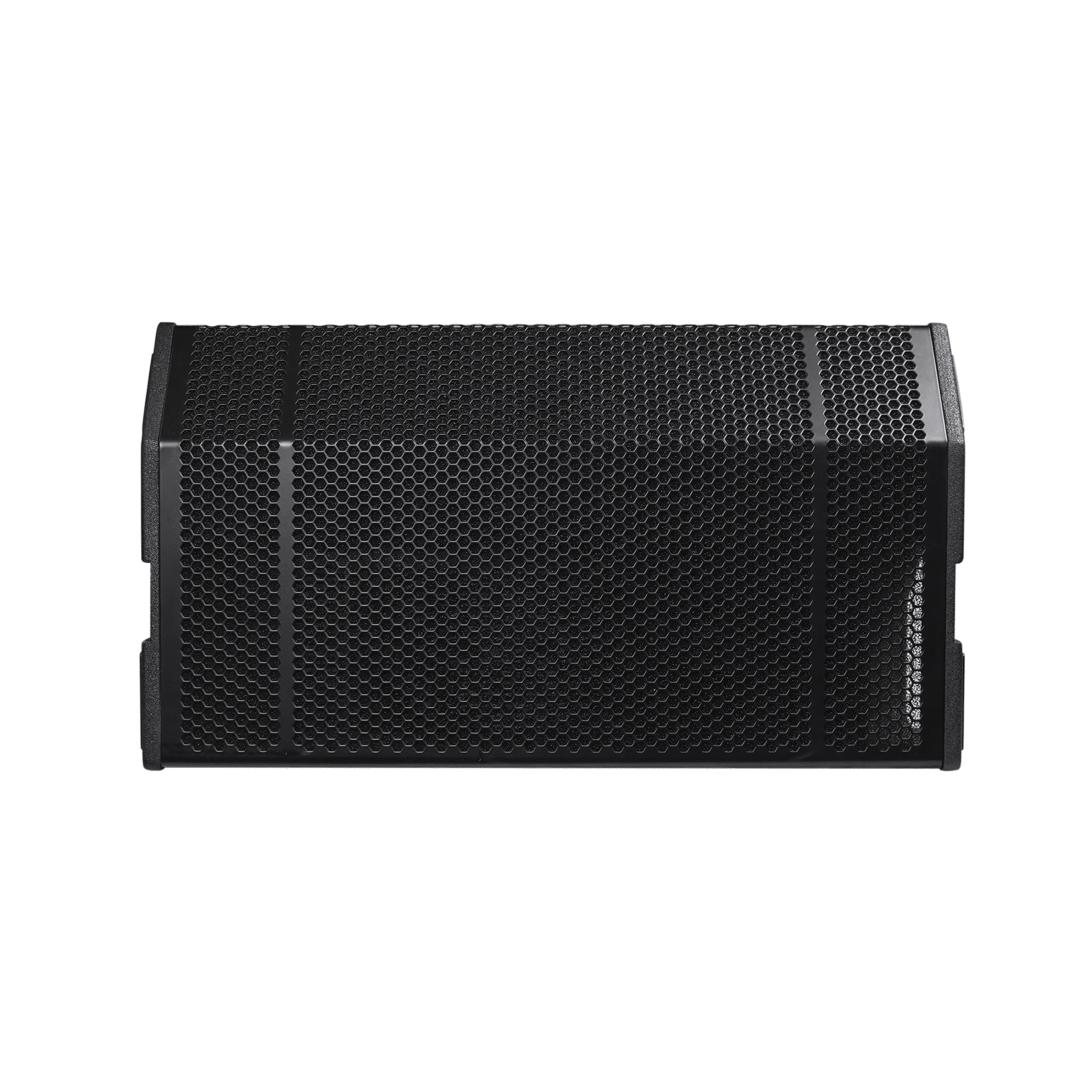

dBTechnologies VIO W15T active monitor

39.480,00 kr.

⚠️ Varen på fjernlager, leveringstid 8-14 dage

⚠️ Varen på fjernlager, leveringstid 8-14 dage

Varenr.: VIO W15TKategorier: Scene monitorBrand: dBTechnologies

Pdf: MANUAL VIO W15T

Pdf: DATABLAD VIO W15T

With this new VIO W15T the perfect touring wedge goes VIO. It is a powerful and versatile stage monitor able to keep up with our premium line array series.

Features
  • Active 2-way Coaxial Stage monitor
  • 1600W RMS Class-D amplifier

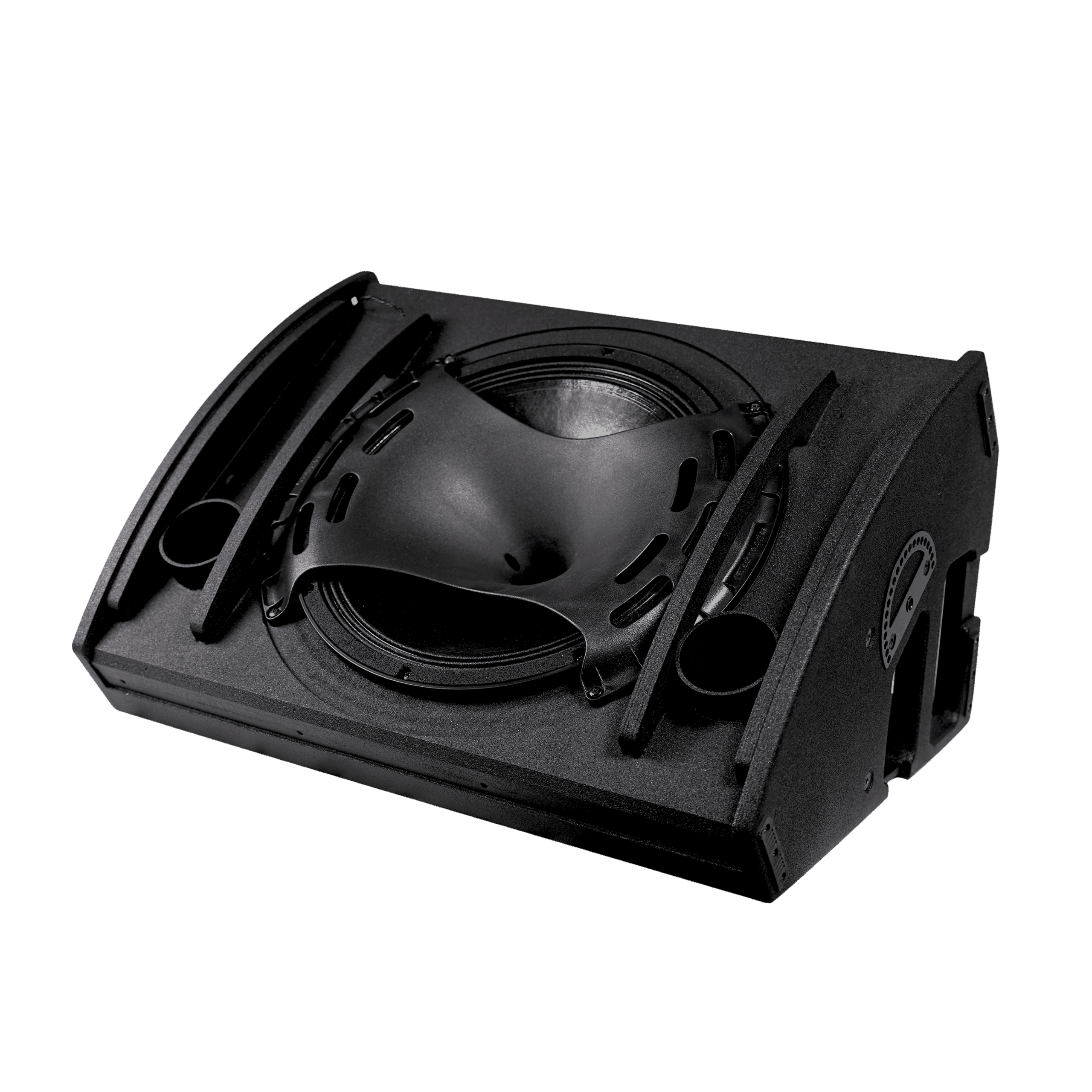

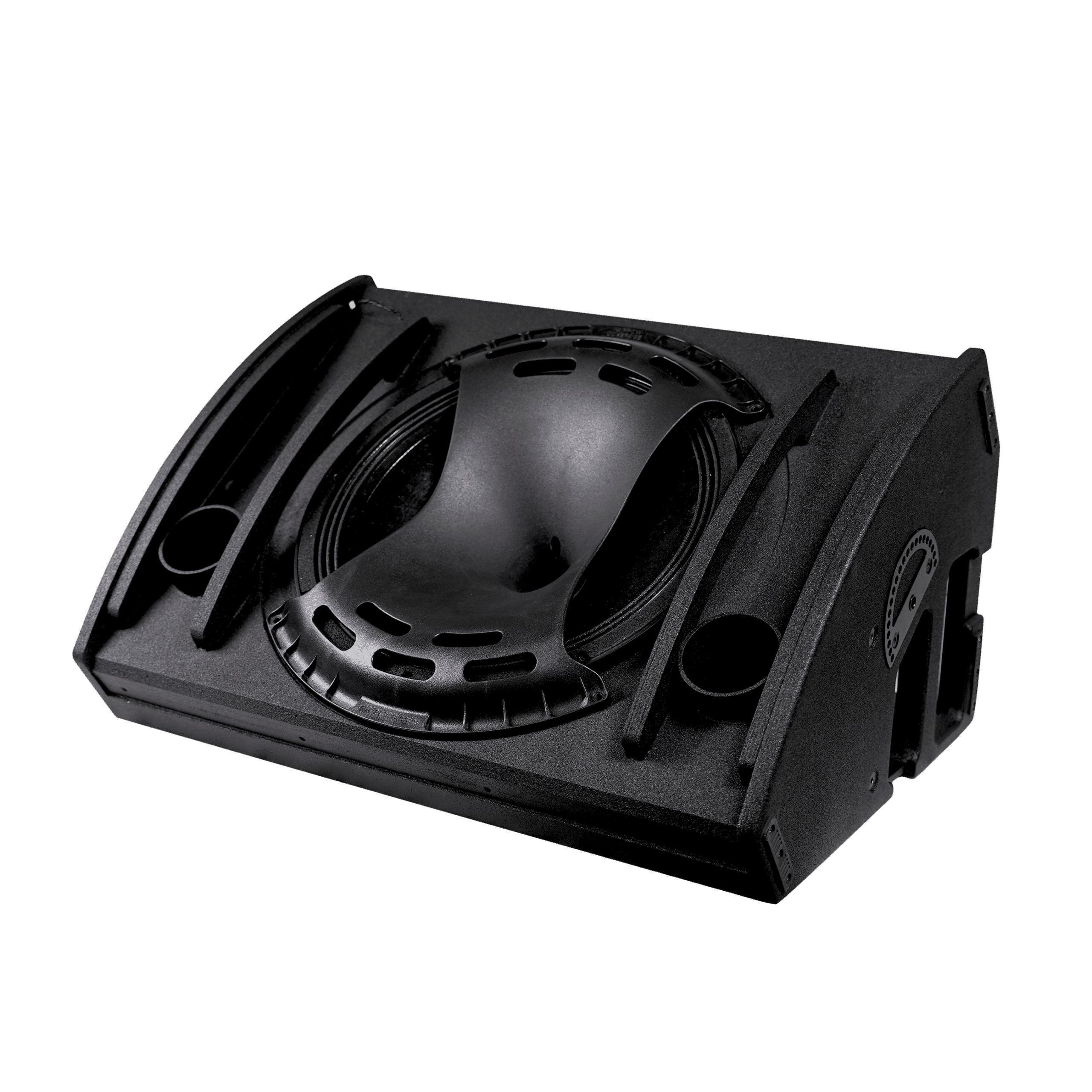

  • Rotatable horn
  • FULL RANGE SMPS WITH PFC
  • ADVANCED DSP FEATURING LINEAR PHASE FIR FILTERS
  • MODULAR SLOT FOR NETWORK AND DIGITAL AUDIO EXPANSION CARDS (RDNET CARD INSTALLED)
  • NFC™ + FRONT LED IDENTIFICATION SYSTEM
  • SYSTEM TEST FOR QUICK TRANSDUCERS DIAGNOSTICS
  • Exclusive front-rear grille design



Technical Data
Speaker Type
2-Way Active Coaxial Stage Monitor
Acoustical data
Usable Bandwith [- 10 dB]: 49 – 17,500 Hz
Frequency Response [- 6 dB]: 55 – 16,000 Hz
Max SPL: 137.5 dB
HF: 1x 1.3″ – 3″ v.c. Neodymium
LF: 1x 15″ – 3″ v.c. Neodymium
Directivity (HxV): 80° x 60° [rotatable]
Amplifier
Amplifier:1600 W RMS Class D Digipro® G4
Cooling: Convection + internal fan
Power Supply: Full-range SMPS with PFC (100V~-240V~, 50-60Hz)
Processor
Controller: DSP 32 bit
Converter AD/DA: 24 bit/96 kHz
Limiter: Dual Active Peak, RMS, Thermal
Processing (filters): Linear Phase FIR Filters

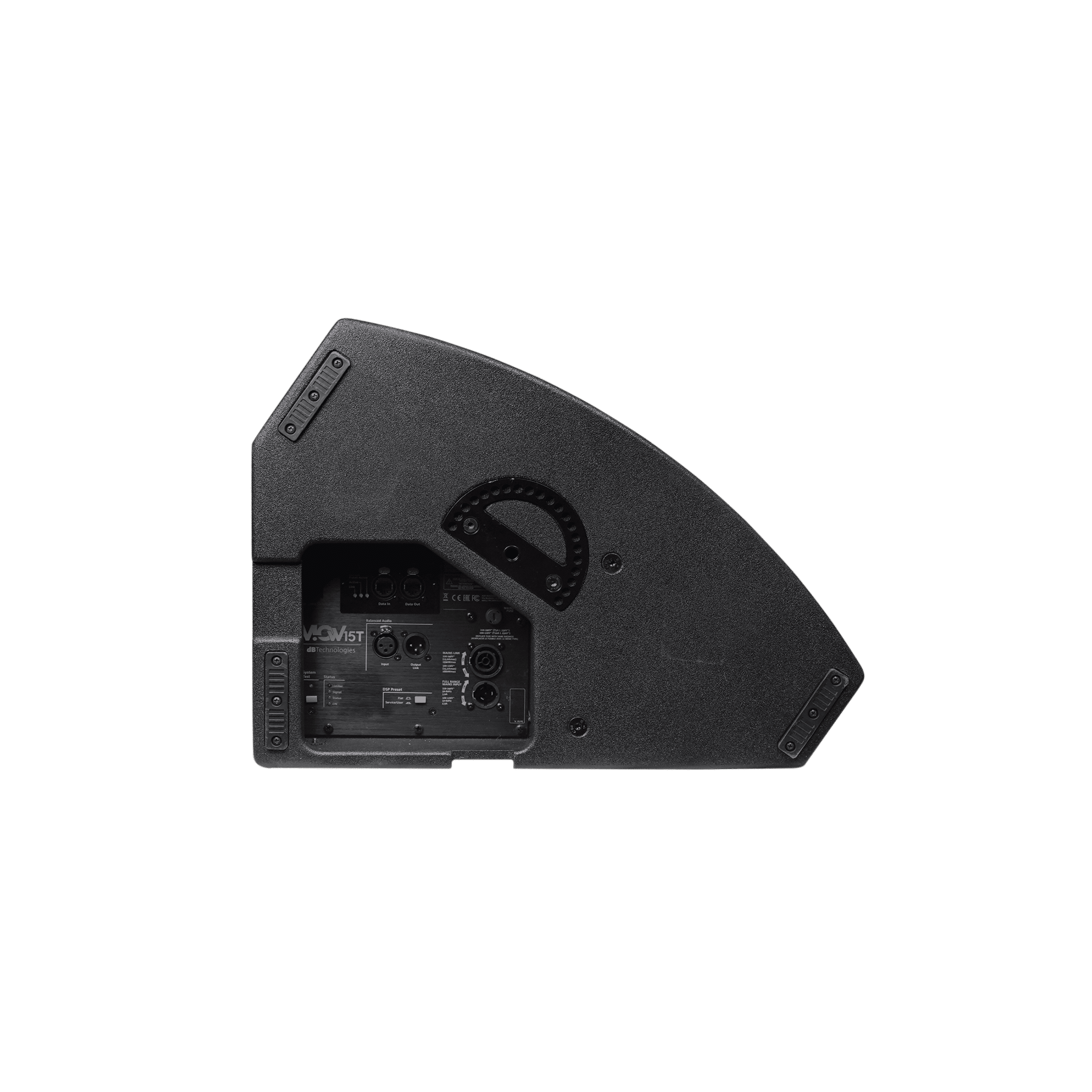

Input
Signal Input: 1x XLR female, 1 x USB (Data Service)
Signal Output: 1xXLR male
Expansion Card:
RDNet Card (1x RJ45 IN 1x RJ45 Link)
Dante Card [Optional]
Power Socket:
1x PowerCON TRUE1 In
1xPowerCON TRUE1 Out
Controls
1x switch Flat – service/user
1x switch System test
1x led ON
1x led STATUS
1x led SIGNAL
1x led LIMITER
1x LED TEST
1x frontal ID led
Special Features:
Frontal LED Identification System
380V Resistant SMPS
Opto-isolated floating pre-amp
System Test (transducers diagnostics)
Mechanics
Housing: Wooden cabinet, Polyurea painting
Handles: 1 + 2 recessions per side
Width: 650 mm (25.59 in)
Height: 360 mm (14.17 in)
Depth: 490 mm (19.29 in)
Weight: 29 kg (63.9 lbs)
