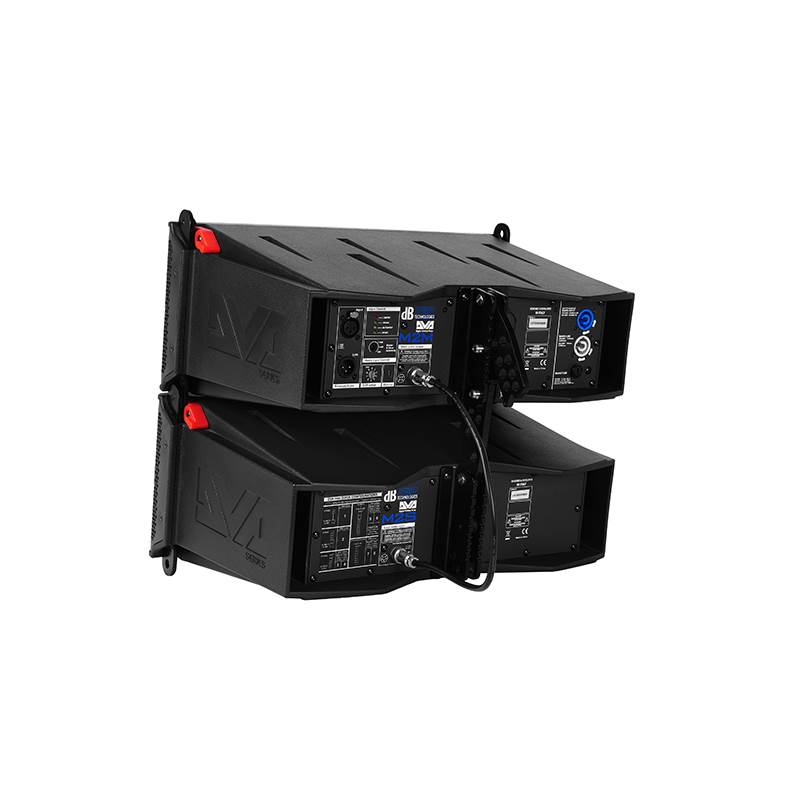

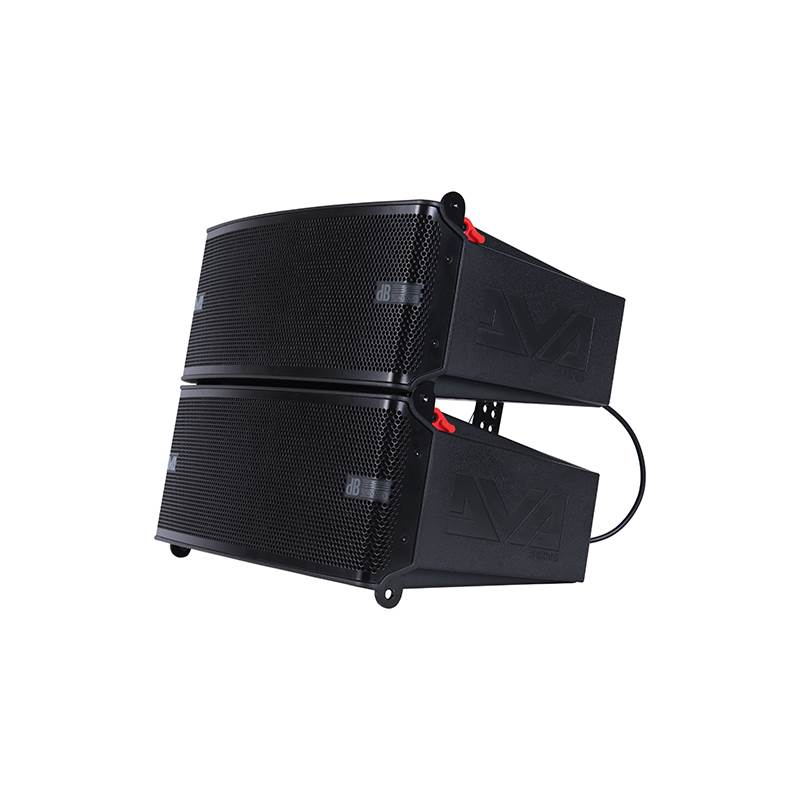

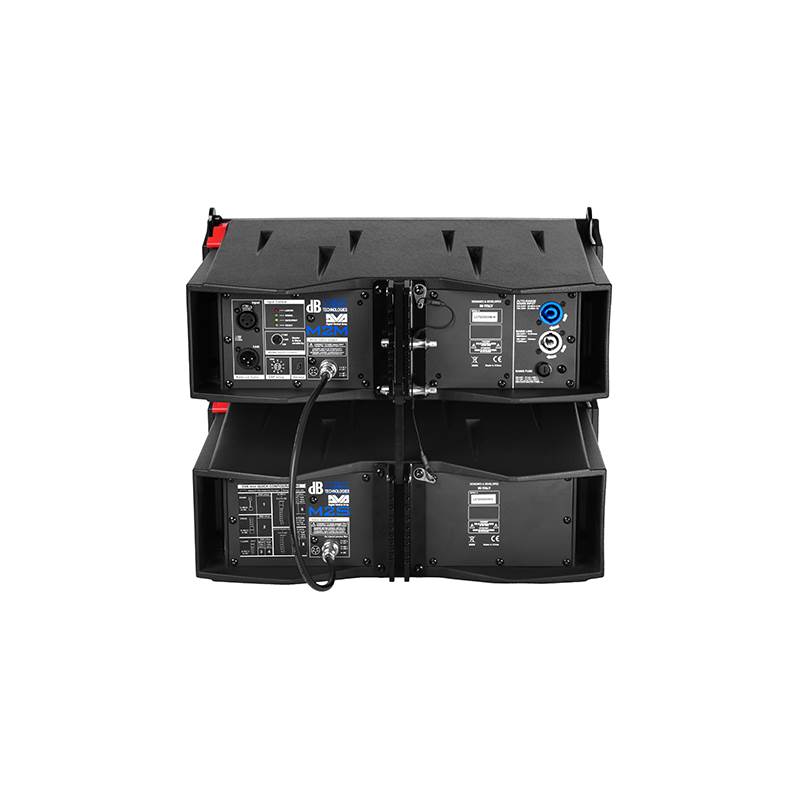

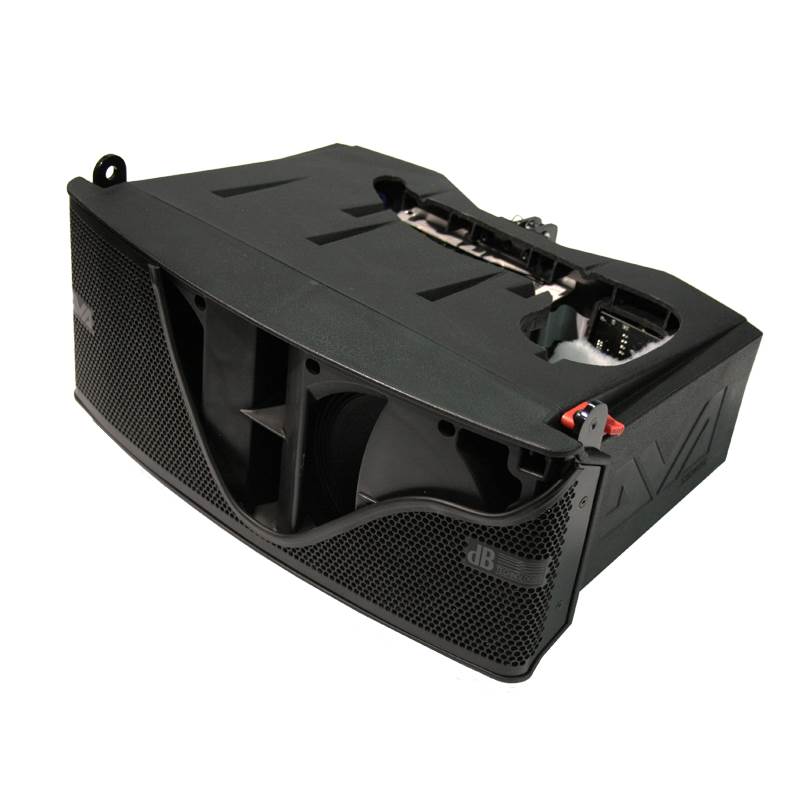

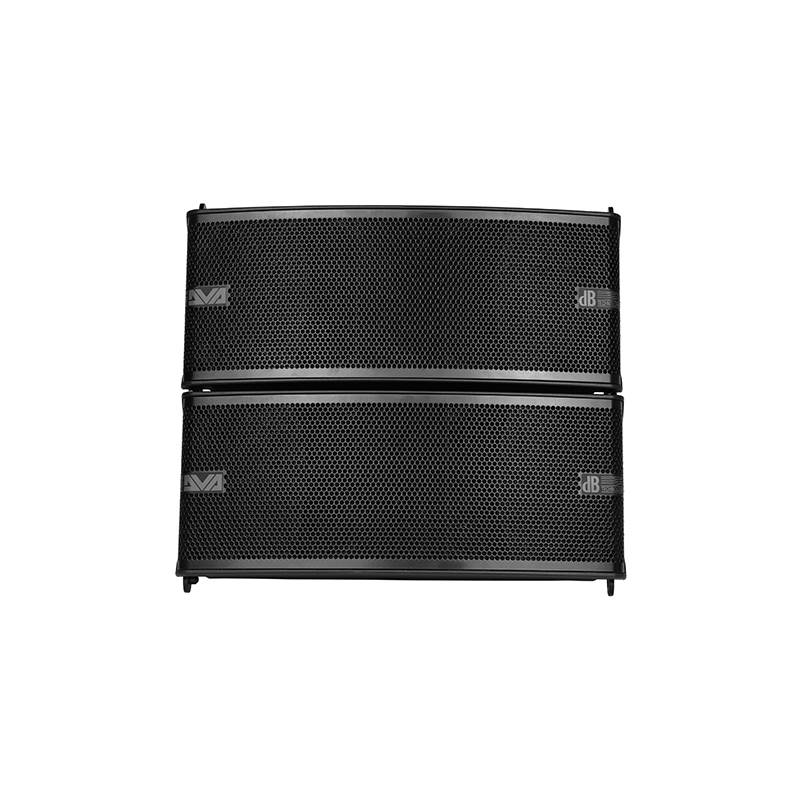

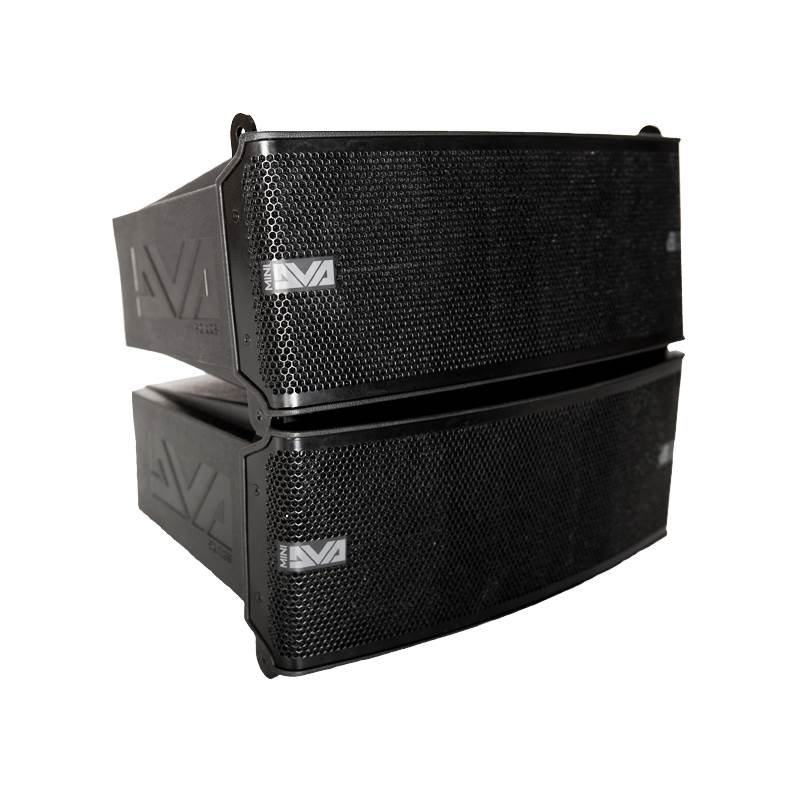

Each unit of DVA MINI system is comprised of two line array modules, each with two 6.5” neodymium woofers and two 1” high-frequency compression drivers. The M2M module is the master module that contains the 400-watt Digipro G3 amplifier that power both the M2M and M2S slave module. The system achieves 126 dB max SPL per unit. Constructed in solid Polipropilene reinforced with an internal anti-vibration structure, DVA MINI features a new fast-lock mechanic design: users simply place one module below the other and slide it towards one side until it locks in place. Moreover, every DVA MINI module has a back mechanic with incremental steps allowing different line array positioning angles.
FEATURES
- 2-WAY ACTIVE LINE ARRAY MODULE (MASTER+SLAVE)
- 400 W RMS DIGIPRO G3 AMP TECHNOLOGY
- 126 dB MAX SPL
- USABLE BANDWIDTH [- 6 dB]: 78 – 19.000 Hz
- HF: 2x 1″, 1” v.c. – NEODYMIUM
- LF: 2x 6.5″, 1.5” v.c. – NEODYMIUM
Technical Data
Speaker Type M2M: 2-Way Active Master Line Array Module
Speaker Type M2S: 2-Way Slave Line Array Module
Acoustical data
Frequency Response [-6dB]: 78 – 19.000 Hz
Frequency Response [-10dB]: 68 – 20.000 Hz
Max SPL: 126 dB per unit
HF: 2×1″
Type HF: Neodymium
Voice Coil HF: 1″
LF: 2×6.5″
Type LF: Neodymium
Voice Coil LF: 1.5″
Directivity: 90×15°
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class D
RMS Power HF Amp: 200 W (100 W + 100 W)
RMS Power LF Amp: 200 W (100 W + 100 W)
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 kHz
System Presets: 9 presets (8x HF and Low-Mid corrections and 1x for service use)
Limiter: Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF: 1800 Hz
Slope LF-HF: 24 dB/Octave
Input
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Power Supply: 400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket: 1x PowerCon In 1x PowerCon Out
Signal Input M2S: 1 Custom connector
Mechanics
Housing: Polypropylen PP
Handles: 2x back side
Fittings: Integrated hardware with fast lock mechanics
Splay Angles: 0°- 1,5°- 3°- 4,5° – 6°- 8°- 10°- 12,5°- 15°
Width: 460 mm
Height: 190 mm
Depth: 345 mm
Weight M2M: 7.6 kg
Weight M2S: 7.1 kg
