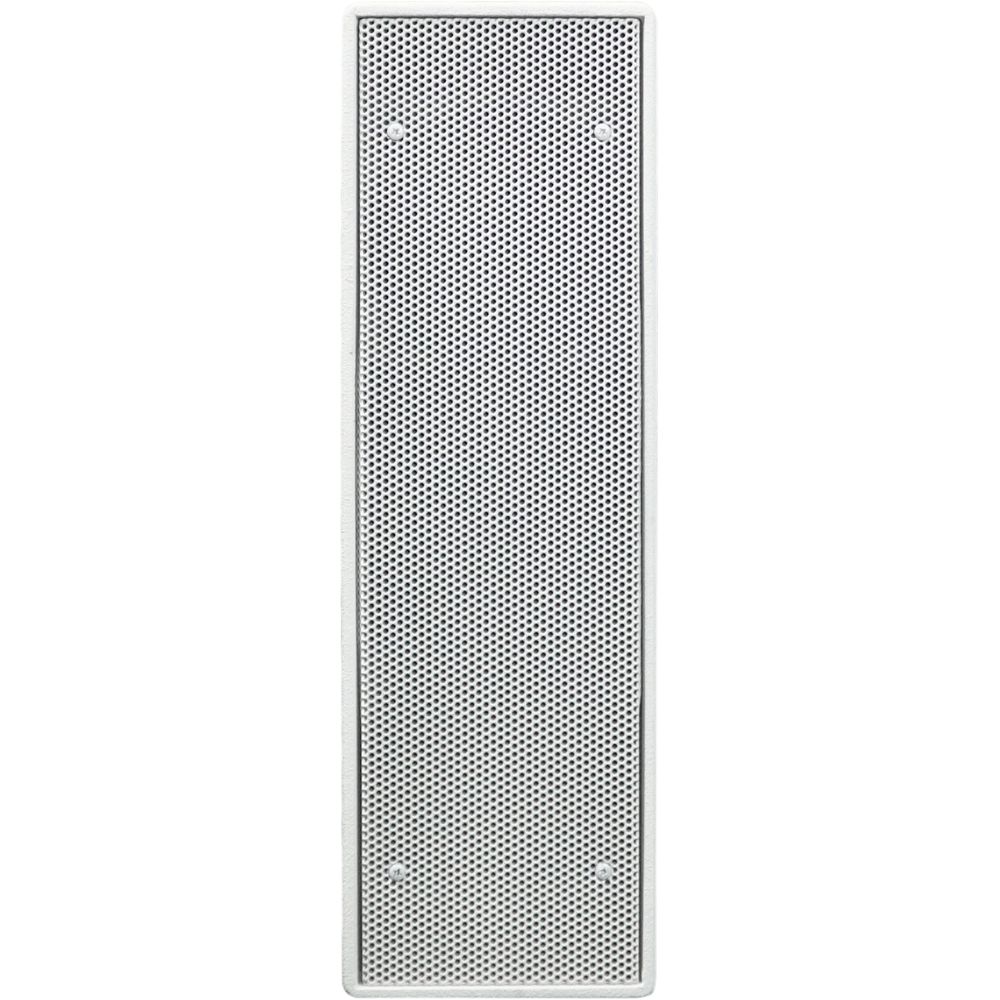

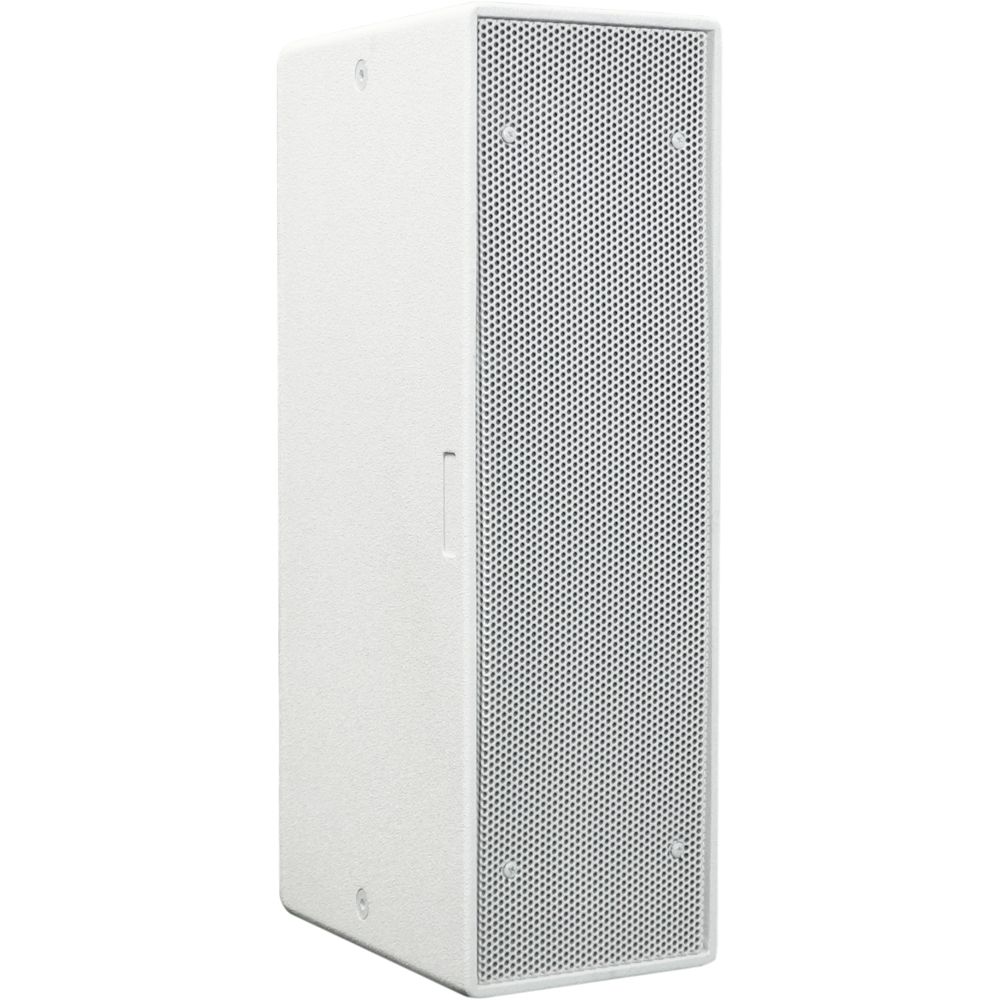

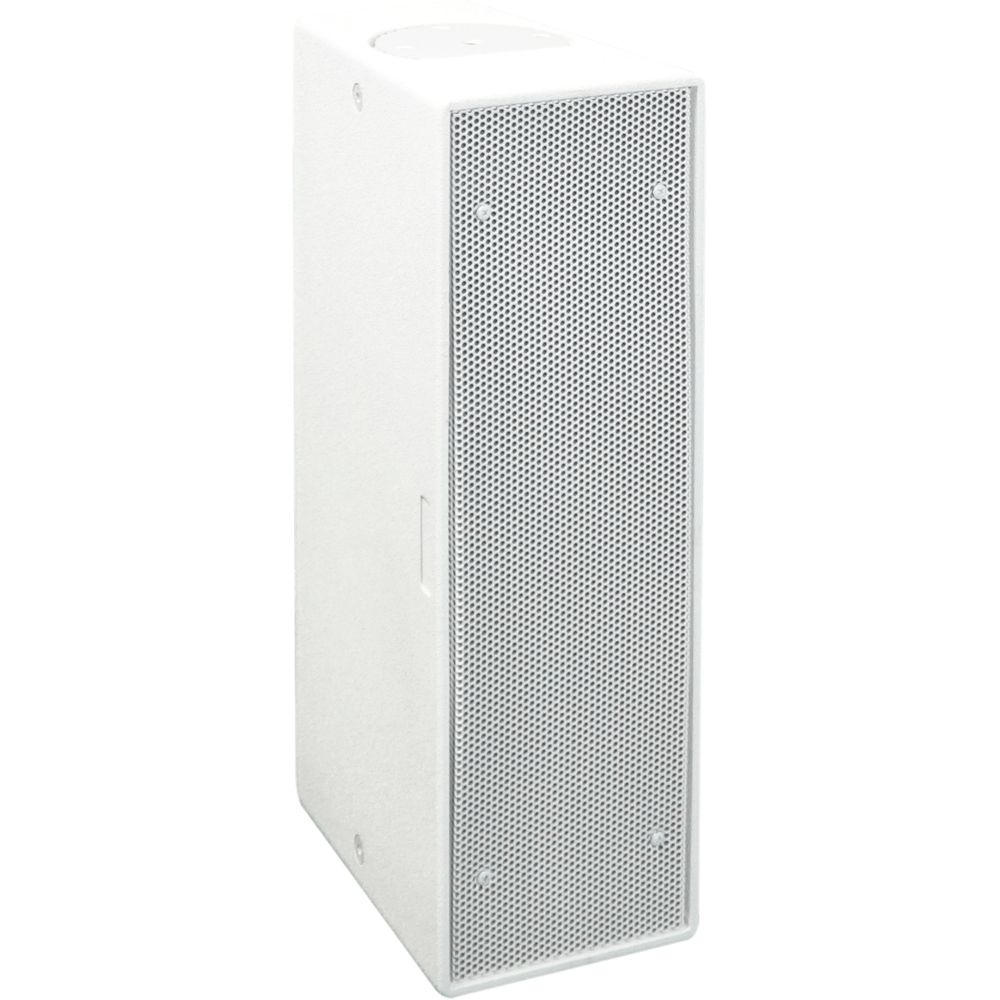

IS25T-WP is a 2-way passive speaker with two 5” woofers and a 1” compression driver for the high range.
This cabinet provides a constant dispersion of 60×100° and represents a rugged and performing solution for indoor and outdoor sound reinforcement, thanks to invisible mounting points and IP55 protection.
The rotatable horn allows for vertical and horizontal installations with high acoustic performance, using the same dedicated accessories as the VIO X205 system.
IS25T-WP retains the minimal design of the series, with the possibility of customizing the color finish of the white version by yourself.
Features
PASSIVE 2-WAY SPEAKER
MAX SPL 121.5 dB
FREQUENCY RESPONSE [-6dB]: 85 Hz – 20,000 Hz
HF: 1x 1″, 1.4″ v.c.
LF: 2x 5″, 1″ v.c.
IP55 CERTIFIED
ROTATABLE HORN
WEIGHT: 7 kg (15.4 lbs)
PASSIVE 2-WAY SPEAKER
MAX SPL 121.5 dB
FREQUENCY RESPONSE [-6dB]: 85 Hz – 20,000 Hz
HF: 1x 1″, 1.4″ v.c.
LF: 2x 5″, 1″ v.c.
IP55 CERTIFIED
ROTATABLE HORN
WEIGHT: 7 kg (15.4 lbs)
Technical Data
Speaker Type: Passive 2-way Speaker
Acoustical data
RMS Power: 120 W
Peak Power: 480 W
Frequency Response [-6 dB]: 85 Hz – 20,000 Hz
Impedance: 8 Ohm
Sensitivity 1W@m: 94.5 dB
Max SPL: 121.5 dB
HF: 1x 1″, 1.4″ v.c.
LF: 2x 5″, 1″ v.c.
Dispersion: 100×60° [Rotatable Horn]
X-Over Frequency: 1500 Hz (internal X-Over)
Input
Connections: Screw terminal block (IN+ | IN- | OUT+ | OUT-)
Mechanics
Housing: Plywood, polyurea finish
Rigging points: 2x M10 threaded nut (top and bottom)
IP rating: IP 55
Width: 152 mm
Height: 485 mm
Depth: 240 mm
Weight: 7 kg
