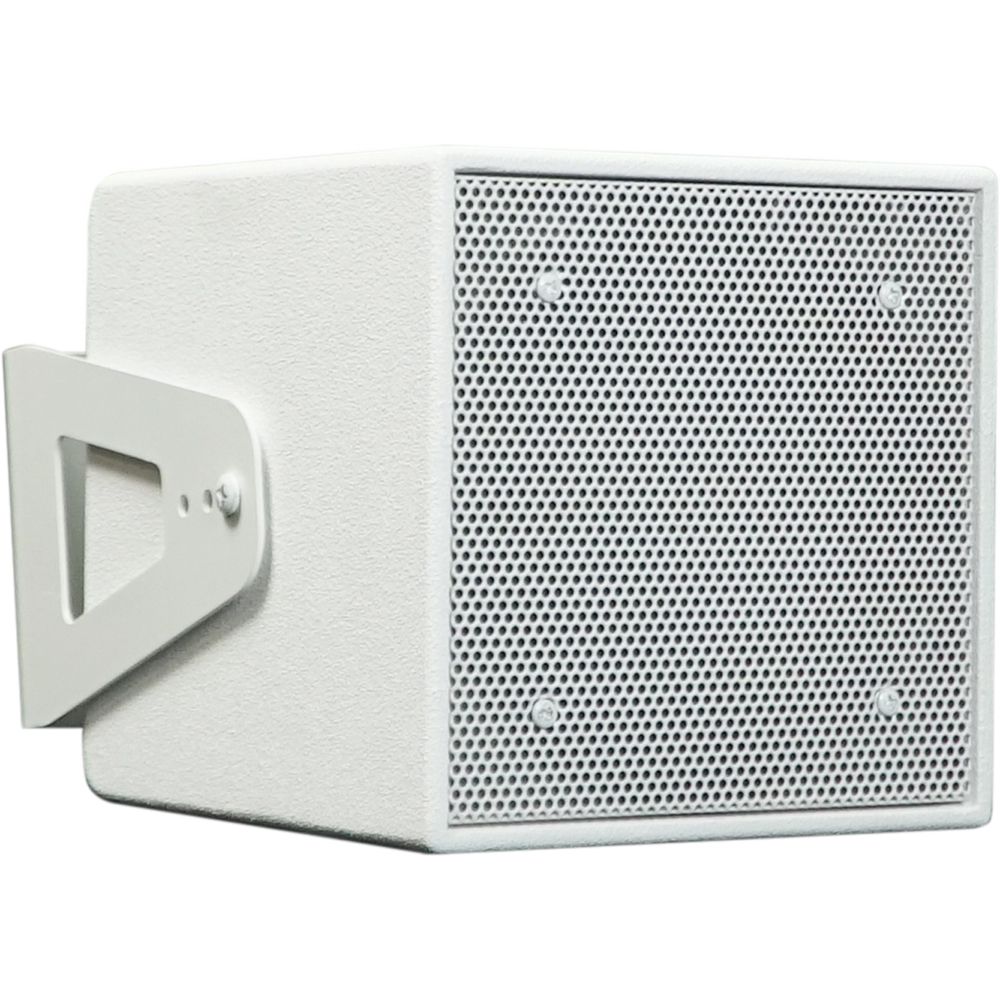

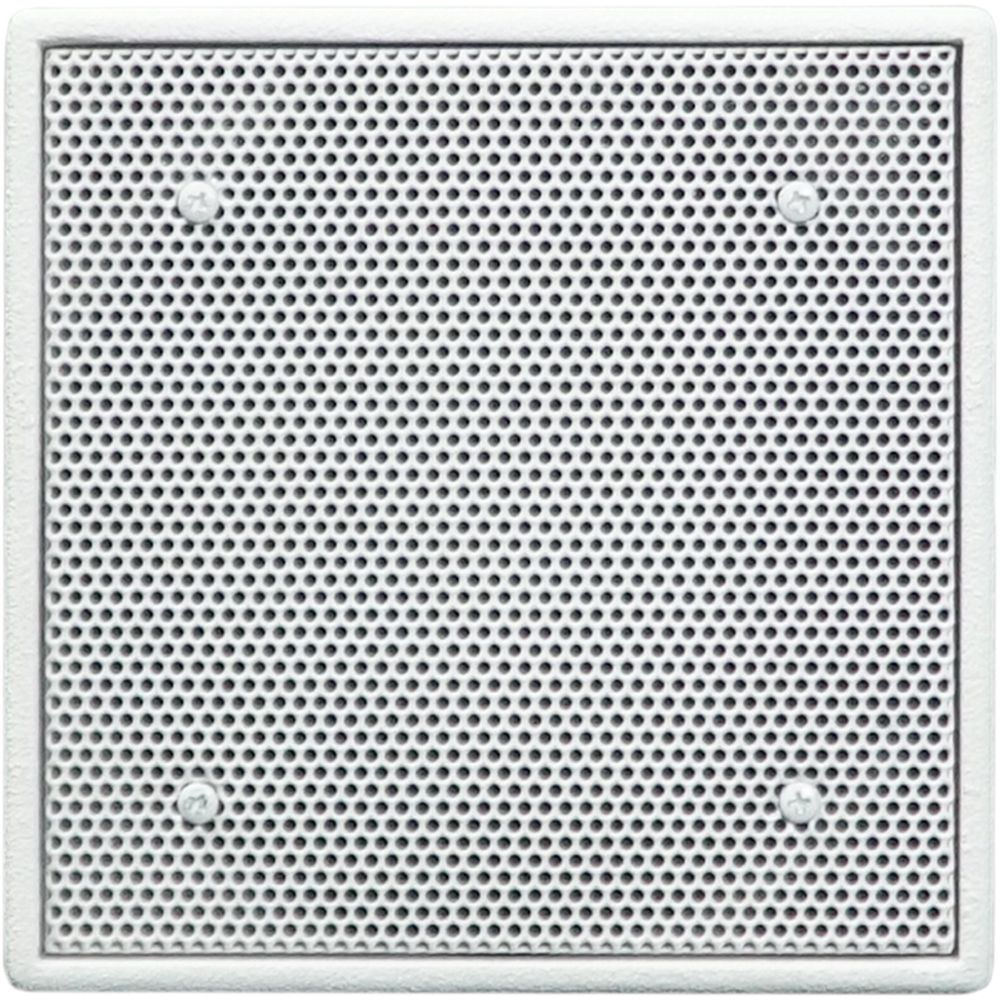

IS6T-WP is the compact and rugged coaxial speaker for indoor and outdoor installations.
Equipped with a 6.5” coaxial component, it is a compact, highly versatile cabinet designed primarily for background music.
Simple and robust, it is an optimal solution for indoor and outdoor sound reinforcement through a quick installation guaranteed by the included bracket, invisible mounting points, and a IP55 protection. Additional connection versatility is supported by various dedicated accessories.
IS6T-WP retains the minimal design of the series, with the possibility of customizing the color finish of the white version by yourself.
Features
PASSIVE 2-WAY COAXIAL SPEAKER
MAX SPL 119 dB
FREQUENCY RESPONSE [-6dB]: 85 Hz – 20,000 Hz
HF: 1x 0.75″, 1″ v.c. NEODYMIUM
LF: 1x 6.5″, 1.5″ v.c. COAXIAL WOOFER
IP55 CERTIFIED
BRACKET INCLUDED
WEIGHT: 4.8 Kg (10.6 lbs)
PASSIVE 2-WAY COAXIAL SPEAKER
MAX SPL 119 dB
FREQUENCY RESPONSE [-6dB]: 85 Hz – 20,000 Hz
HF: 1x 0.75″, 1″ v.c. NEODYMIUM
LF: 1x 6.5″, 1.5″ v.c. COAXIAL WOOFER
IP55 CERTIFIED
BRACKET INCLUDED
WEIGHT: 4.8 Kg (10.6 lbs)
Technical Data
Speaker Type: Passive 2-way Coaxial Speaker
Acoustical data
RMS Power: 100 W
Peak Power: 400 W
Frequency Response [-6 dB]: 85 Hz – 20,000 Hz
Impedance: 8 Ohm
Sensitivity 1W@m: 93 dB
Max SPL: 119 dB
HF: 1x 0.75″, 1″ v.c. Neodymium
LF: 1x 6.5″, 1.5″ v.c. Coaxial woofer
Dispersion: 100×100°
X-Over Frequency: 2100 Hz (internal X-Over)
Input
Connections: Screw terminal block (IN+ | IN- | OUT+ | OUT-)
Mechanics: Housing
Plywood, polyurea finish:
Rigging points: 2x M6 threaded nut
Accessories: bracket included
IP rating: IP 55
Width: 195 mm (7.7 in)
Height: 195 mm (7.7 in)
Depth: 210 mm (8.3 in)
Weight: 4.8 kg (10.6 lbs)
