To complete the extension of low frequencies, the IS series offers two passive subwoofers, each equipped with a single 8” or 12” woofer.
The compact dimensions and standard design that characterize the two complements guarantee discreet, non-intrusive applications with high durability.

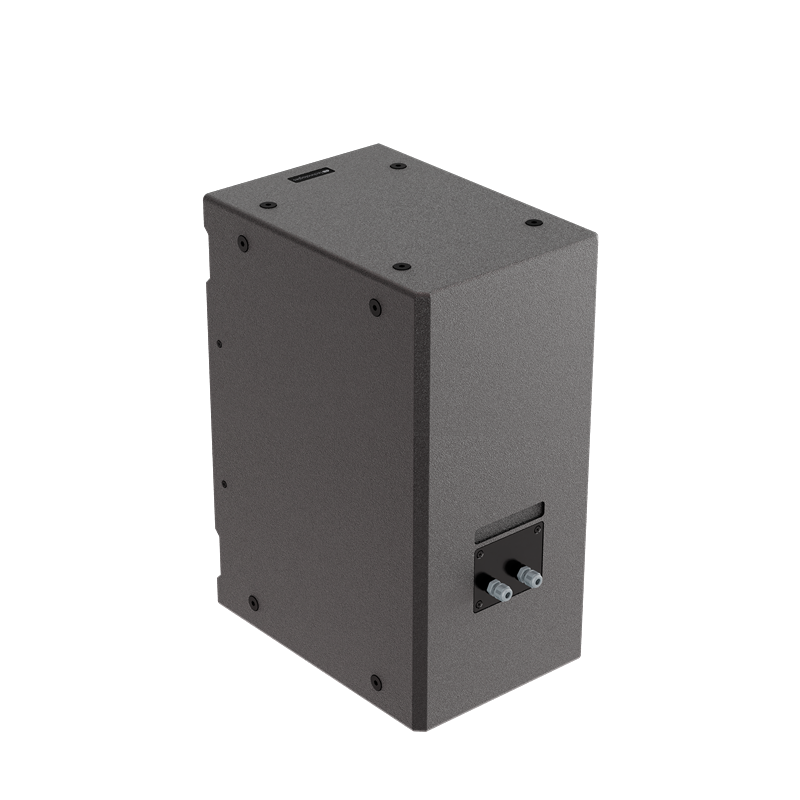

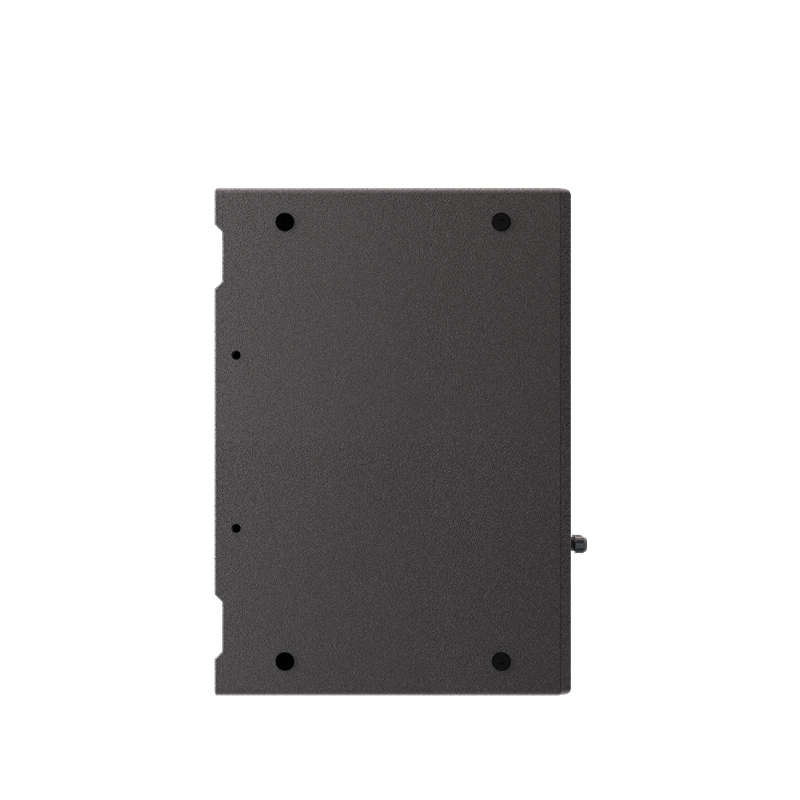

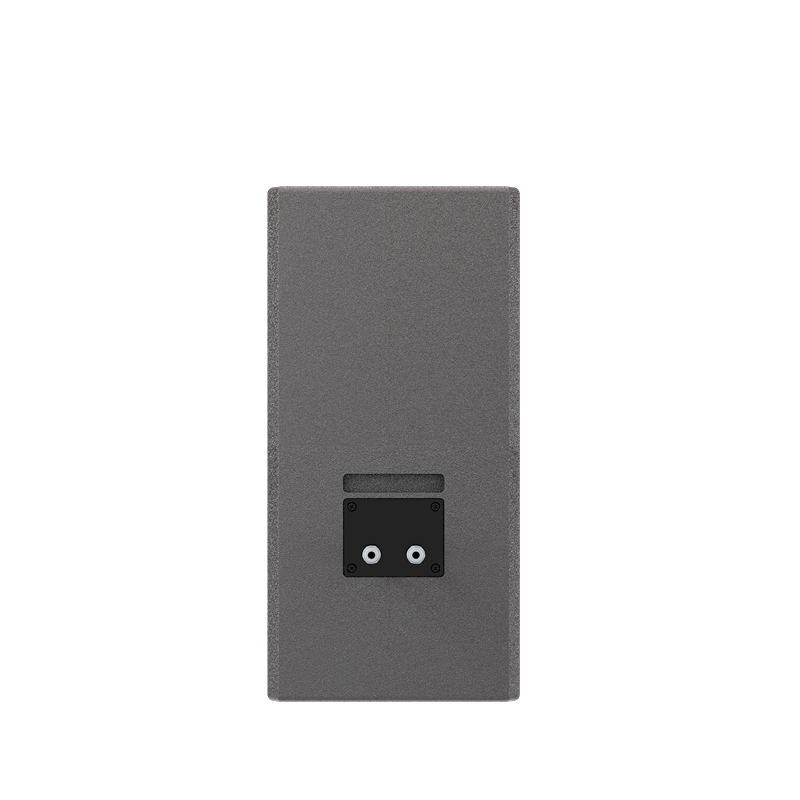

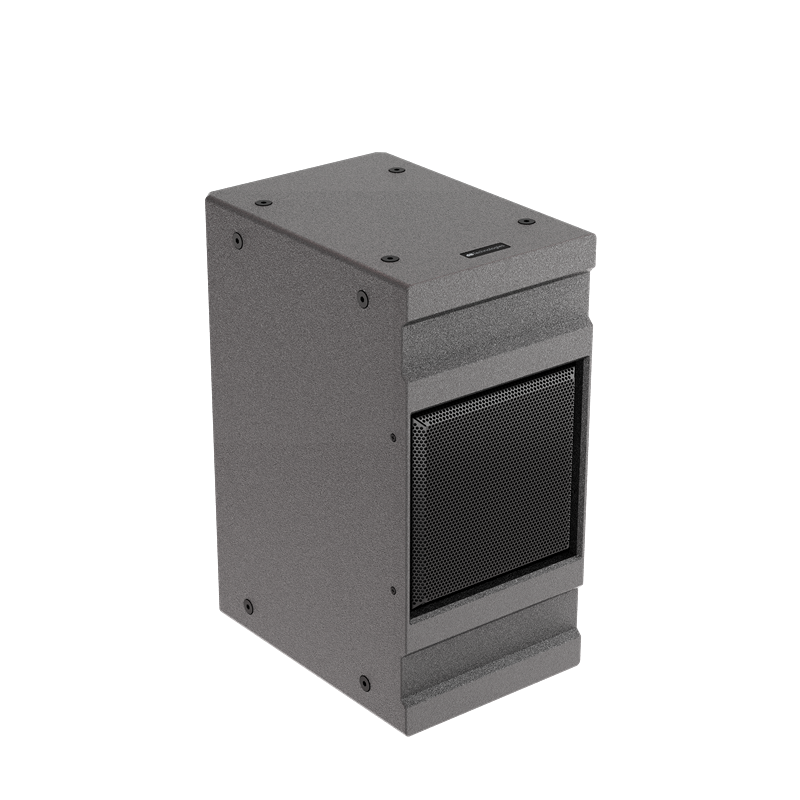

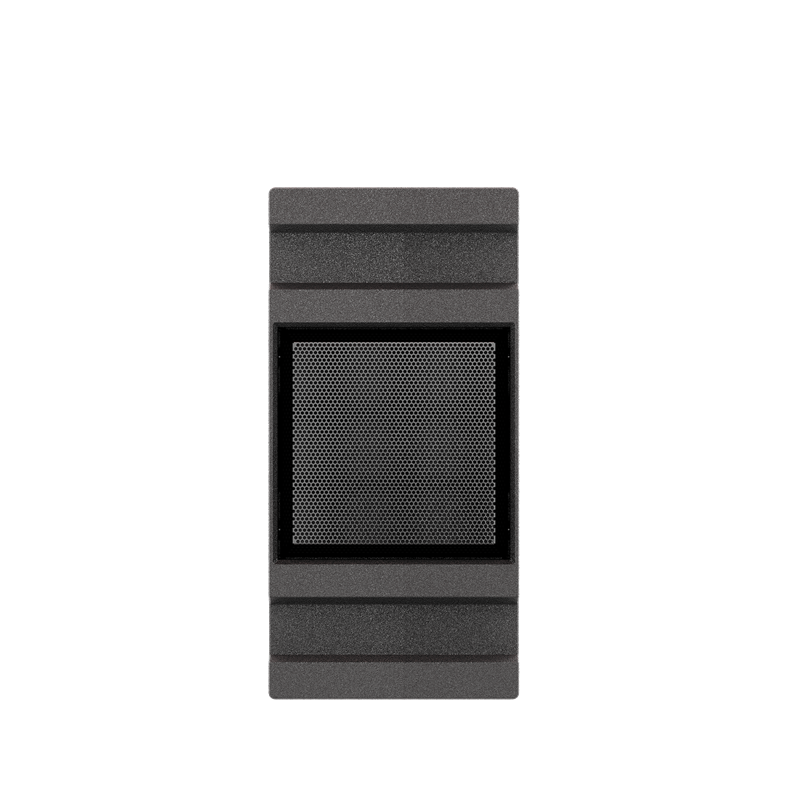

IS8S-WP retains the minimal design of the entire series, with the possibility of customizing the color finish of the white version by yourself.
Features
PASSIVE SUBWOOFER
MAX SPL 116 dB
FREQUENCY RESPONSE [-6dB]: 50 Hz – custom LPF
LF: 1x 8″, 2″ v.c.
IP55 CERTIFIED
PASSIVE SUBWOOFER
MAX SPL 116 dB
FREQUENCY RESPONSE [-6dB]: 50 Hz – custom LPF
LF: 1x 8″, 2″ v.c.
IP55 CERTIFIED
WEIGHT: 10 kg (22 lbs)
Technical Data
Speaker Type: Passive Subwoofer
Acoustical data
RMS Power: 200 W
Peak Power: 800 W
Frequency Response [-6 dB]: 50 Hz – custom LPF
Impedance: 8 Ohm
Sensitivity 1W@m: 87 dB
Max SPL: 116 dB
LF: 1x 8″, 2″ v.c.
Input
Connections: Screw terminal block (IN+ | IN- | OUT+ | OUT-)
Mechanics
Housing: Plywood, polyurea finish
Rigging points: 16x M8 pickup point
IP rating: IP 55
Width: 230 mm (9.1 in)
Height: 470 mm (18.5 in)
Depth: 330 mm (13 in)
Weight: 10 kg (22 lbs)
