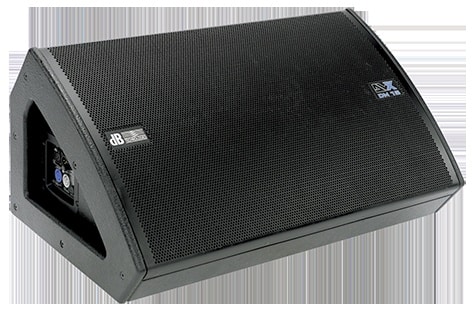

The DVX DM15 is a low-profile stage monitor. Unobtrusive yet very muscular, it is designed for sound reinforcement applications that require powerful low-end performance without added subwoofers. It sports a high-performance 15“ neodymium woofer and a 1.4“ neodymium compression driver, coupled to an aluminum“ CD horn.
Technical Data
Speaker Type: 2-Way Active Stage Monitor
Acoustical data
Frequency Response [-10dB]: 50 – 20.000 Hz
Frequency Response [+/- 3dB]: 59 – 19.000 Hz
Max SPL: 132 dB
HF: 1.4 “
Type HF: Neodymium Compression Driver
Voice Coil HF: Titanium 2.5 “
Directivity: 60×40 °
Horn: CD Horn Aluminium
Rotatable Horn: YES
LF: 15 “
Type LF: Neodymium
Voice Coil LF: 3.5 “
Amplifier
Amp Technology: Digipro®
Amp Class: Class D
Power RMS: 750 W
Peak Power: 1500 W
Cooling: Convection
Processor
Controller: DSP 24 Bit/48 kHz
System Presets: Flat, Monitor
System Presets: Flat, Monitor
Limiter: RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF: 1320 Hz
Slope MF-HF: 24 dB/Octave
Mechanics
Housing: Multiplex plywood
Housing Design: Low Profile Multifunctional
Angles Up: 35, 55 °
Rigging Points: 6x M8
Width: 734 mm (29.36 in)
Height: 338 mm (13.52 in)
Depth: 442 mm (17.68 in)
Weight: 21 kg (46.3 lbs)
