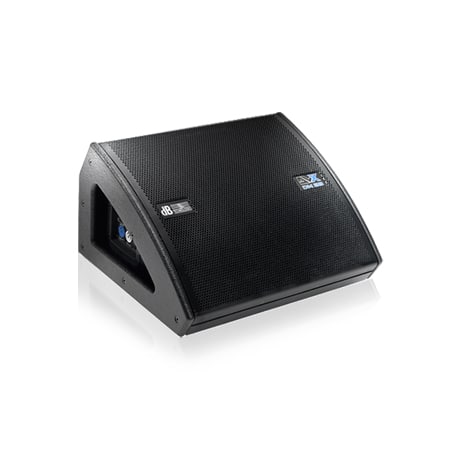

The DVX DM28 excels at rendering speech and vocals. Users’ search for natural response, dynamic balance, and high SPL in a compact, inconspicuous package ends with this stage monitor. The ultra low-profile enclosure sports two 8“ neodymium woofers with large 2.5“ voice coils that go about their business of rendering signals with impressive precision.
Technical Data
Speaker Type:2-Way Active Stage Monitor
Acoustical data
Frequency Response [-10dB]: 60 – 20.000 Hz
Frequency Response [+/- 3dB]: 70 – 19.000 Hz
Max SPL: 130 dB
HF: 1 “
Type HF: Neodymium Compression Driver
Voice Coil HF: Titanium 1.75 “
Directivity: 90×60/40 °
Horn: Aysmmterical
LF: 2×8 “
Type LF: Neodymium
Voice Coil LF: 2.5 “
Amplifier
Amp Technology:Digipro®
Amp Class: Class D
Power RMS: 750 W
Peak Power: 1500 W
Cooling: Convection
Processor
Controller. DSP 24 Bit/48 kHz
System Presets: Flat, Monitor
Limiter: RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF: 1600 Hz
Slope MF-HF: 24 dB/Octave
Mechanics
Housing: Multiplex plywood
Housing Design: Low Profile Multifunctional
Angles Up: 30, 60 °
Width: 480 mm (19.2 in)
Height: 265 mm (10.6 in)
Depth: 418 mm (16.72 in)
Weight: 14 kg (30.86 lbs)
