A new generation for flagship wedge Flexsys; FMX series encompasses a range of tailored monitoring solutions featuring coaxial design, precise dispersion pattern, last-generation sound processing with linear phase FIR Filters and maximum adaptability to the needs of every performer.
Features
- Active 2-way stage monitor
- Coaxial configuration
- Linear phase FIR Filters
- Ultra-precise directivity
- Rotatable horn (90°x60° or 60°x90° dispersion)

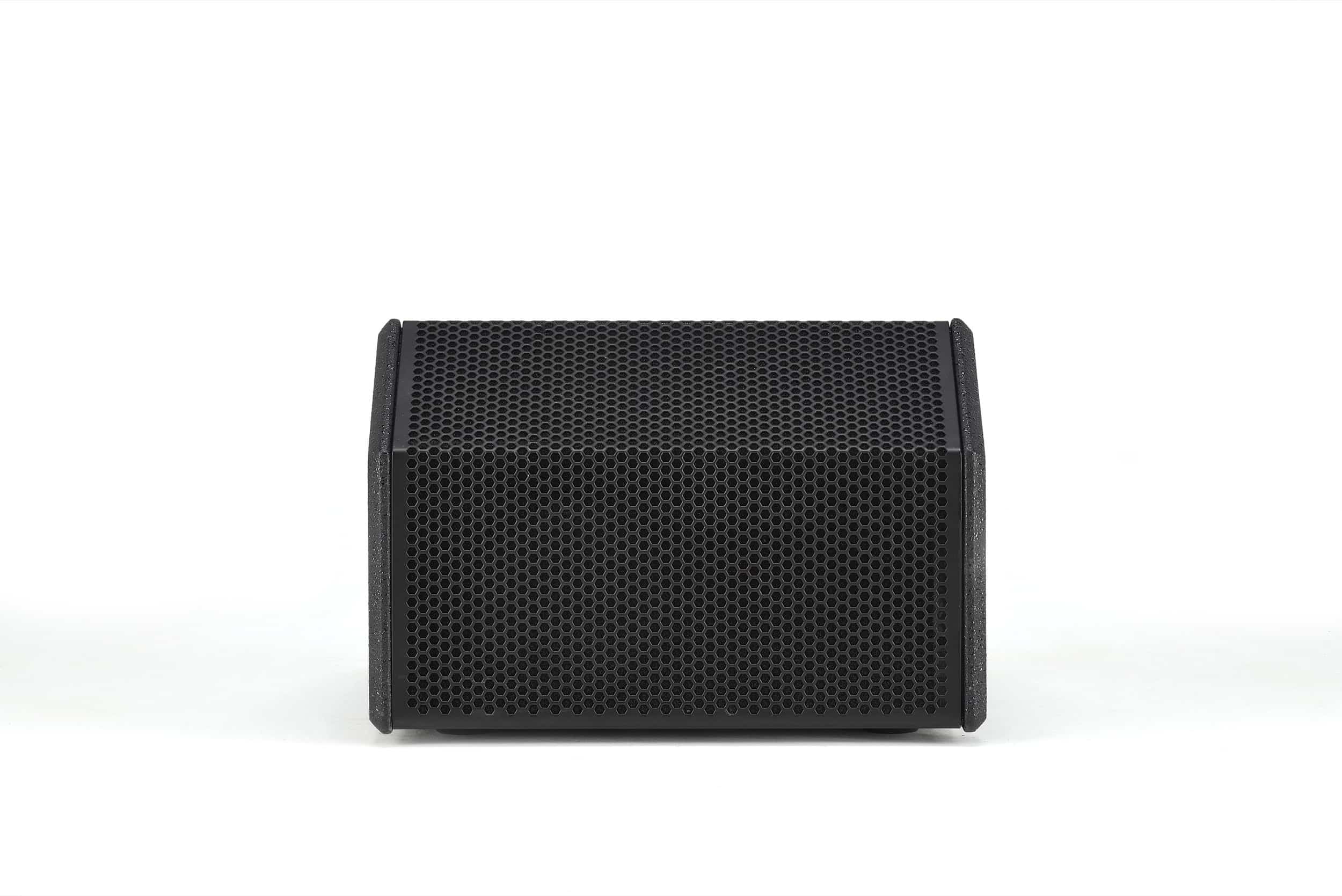

- Front-rear grille design
- Integrated handle on bottom side
Technical Data
Speaker Type: 2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [- 10 dB]: 57 – 19.000 Hz
Max SPL: 125 dB
HF: 1″, 1″ v.c.
Directivity: 60°X90°
Horn: Rotatable
LF: 10″, 2″ v.c.
Amplifier
Amp Class: Class D
Peak Power: 800 W
Processor
Controller: DSP 28/56 bit
AD/DA Converter: 24 bit/48 kHz
System Presets: 8 presets
Limiter: Peak, RMS, Thermal
Advanced DSP Function: FIR Filters
Crossover Frequency: 1800 Hz
Slope LF/HF: 24 dB/oct
Mechanics
Housing: Plywood
Housing Design: Multifunctional
Handles: 1 integrated on bottom side
Pole mount: 36 mm
Width: 390 mm (15.35 in)
Height: 268 mm (10.55 in)
Depth: 411 mm (16.18 in)
Weight: 11.3 kg (24.9 lbs)
