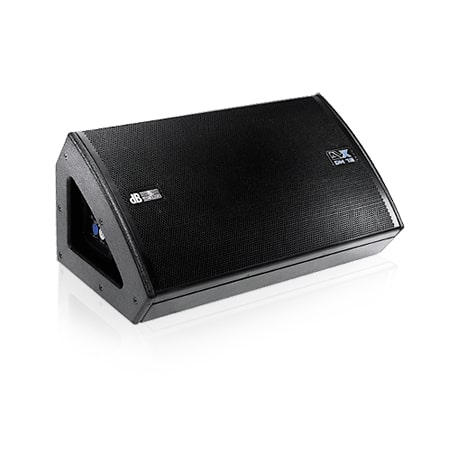

The DVX DM12 is an active bi-amped stage monitor. Powerful, assertive, and engineered for professional applications, it is the perfect choice for midsized to large stages.
Technical Data
Speaker Type: 2-Way Active Stage Monitor
Acoustical data
Frequency Response [-10dB]: 55 – 20.000 Hz
Frequency Response [+/- 3dB]: 68 – 19.000 Hz
Max SPL: 131 dB
HF: 1.4 “
Type HF: Neodymium Compression Driver
Voice Coil HF: Titanium 2.5 “
Directivity: 40×90 °
Horn: CD Horn Aluminium
Rotatable Horn: YES
LF: 12 “
Type LF: Neodymium
Voice Coil LF: 3 “
Amplifier
Amp Technology: Digipro®
Amp Class: Class D
Power RMS: 750 W
Peak Power: 1500 W
Cooling: Convection
Processor
Controller: DSP 24 Bit/48 kHz
System Presets: Flat, Monitor
Limiter: RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF: 1320 Hz
Slope MF-HF: 24 dB/Octave
Mechanics
Housing: Multiplex plywood
Housing Design: Low Profile Multifunctional
Angles Up: 35, 55 °
Rigging Points: 6x M10 4x Quick-Relase Pins
Width: 660 mm (25.9 in)
Height: 305 mm (12 in)
Depth: 378 mm (14.8 in)
Weight: 17.5 kg (55.12 lbs)
