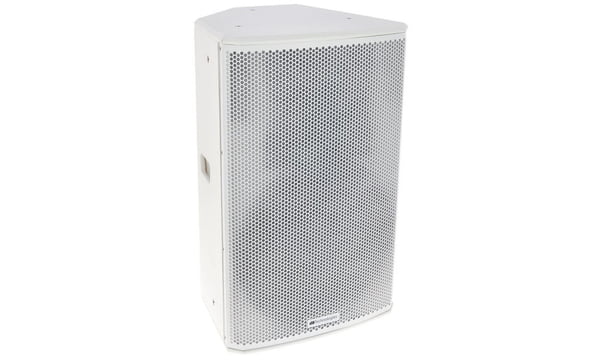

Born as an evolution of wooden LVX active series, the new LVX P family moves into the installation world with a passive selection of cabinets where a clean, essential design merges with a very detailed and coherent audio performance.
Features
- Clean design
- Available in black or white
- M8-thread rigging points
- Rotatable horn for vertical or horizontal use
- Wooden lightweight enclosure
Technical Data
Speaker Type: 2-Way Passive Speaker
Acoustical data
Peak Power: 800 W
Impedance: 8 Ohms
Frequency Response [- 10 dB]: 58- 21.000 Hz
Max SPL: 129 dB
HF: 1 “, 1.35″ v.c.
Directivity: 90×60°
Horn: Rotatable
LF: 15“, 2.5″ v.c.
Input
Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing:Plywood
Pole Mount: 36 mm
Angle Up: Monitor use 40°
Rigging Points: 12 x M8
Handles: 2 (1X side)
Width: 420 mm (16.53 in)
Height: 680 mm (26.77 in)
Depth: 430 mm (16.92 in)
Weight: 19.7 kg (43.4 lbs)
