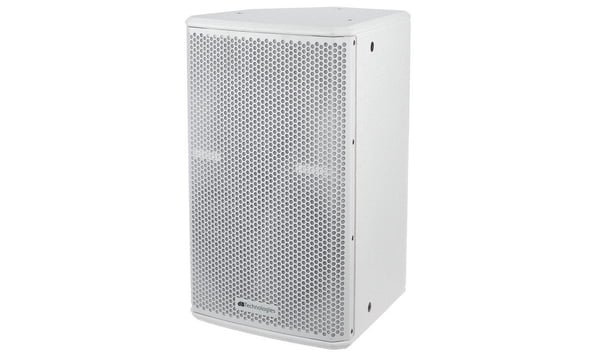

Born as an evolution of wooden LVX active series, the new LVX P family moves into the installation world with a passive selection of cabinets where a clean, essential design merges with a very detailed and coherent audio performance.
Features
- 2-way passive speaker
- Clean design
- Available in black or white
- M8-thread rigging points
- Rotatable horn for vertical or horizontal use
- Wooden lightweight enclosure
Technical Data
Speaker Type: 2-Way Passive Speaker
Speaker Type: 2-Way Passive Speaker
Acoustical data
Peak Power: 600 W
Impedance: 8 Ohms
Frequency Response [- 10 dB]: 73- 19.000 Hz
Max SPL: 125 dB
HF: 1 “, 1″ v.c.
Directivity: 90×70 °
Horn: Rotatable
LF: 10“, 1.5″ v.c.
LF: 10“, 1.5″ v.c.
Input
Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing: Plywood
Pole Mount: 36 mm
Angle Up: Monitor use 40°
Rigging Points: 12 x M8
Handles: 1 on back side
Width: 300 mm (11.81 in)
Height: 496 mm (19.52 in)
Depth: 298 mm (11.73 in)
Weight: 9.3 kg (20.5 lbs)
