ES family grows stronger with ES 1203, a complete stereo sound system encompassing its predeccessors’ versatility with striking SPLs (the system features a 2400W last-generation power amp) and an impressively coherent throw pattern.
Features
- TRI-AMPED ACTIVE STEREO PA SYSTEM
- 2400 W POWER
- LATEST GENERATION DIGIPRO G4 AMP TECHNOLOGY
- USER-FRIENDLY DSP INTERFACE

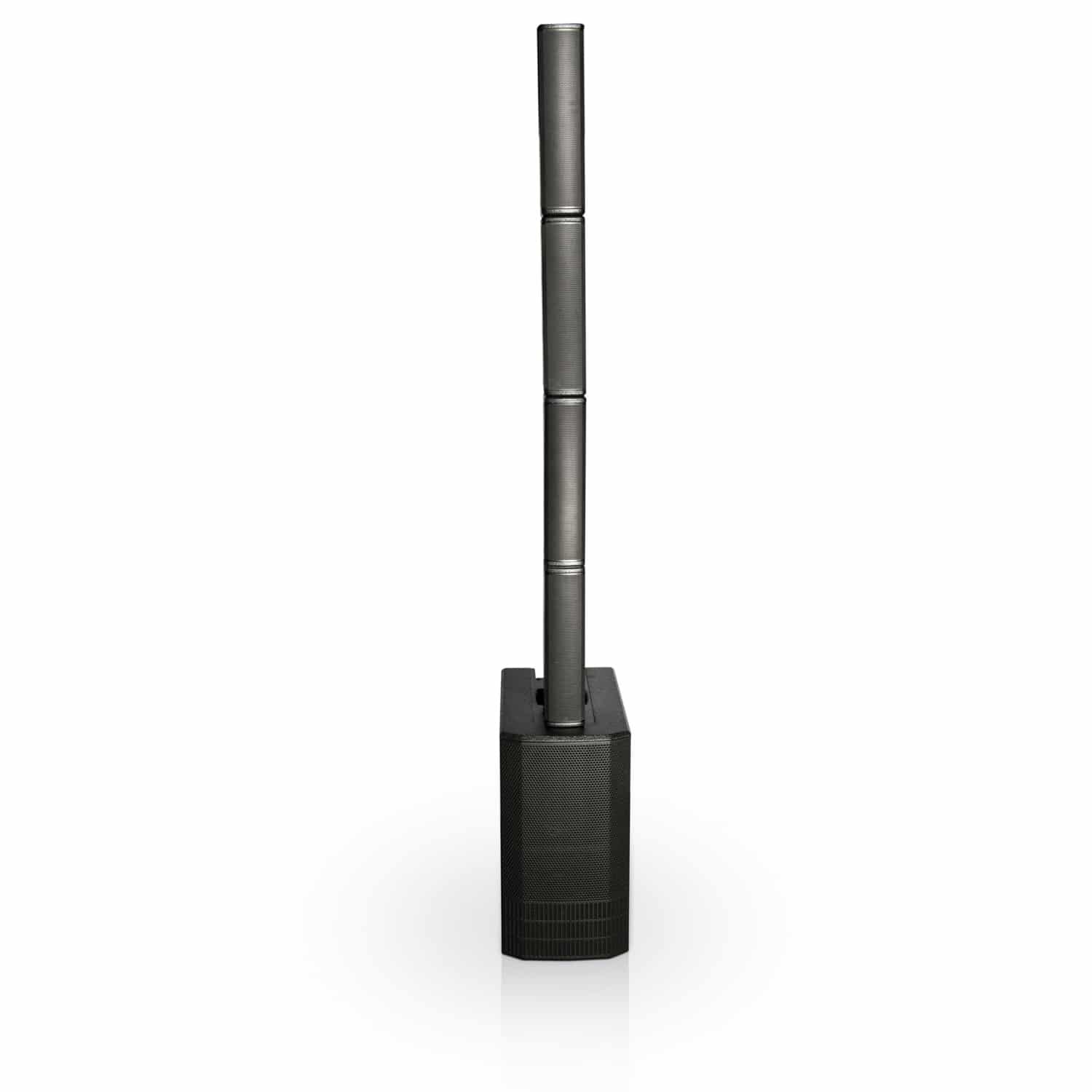

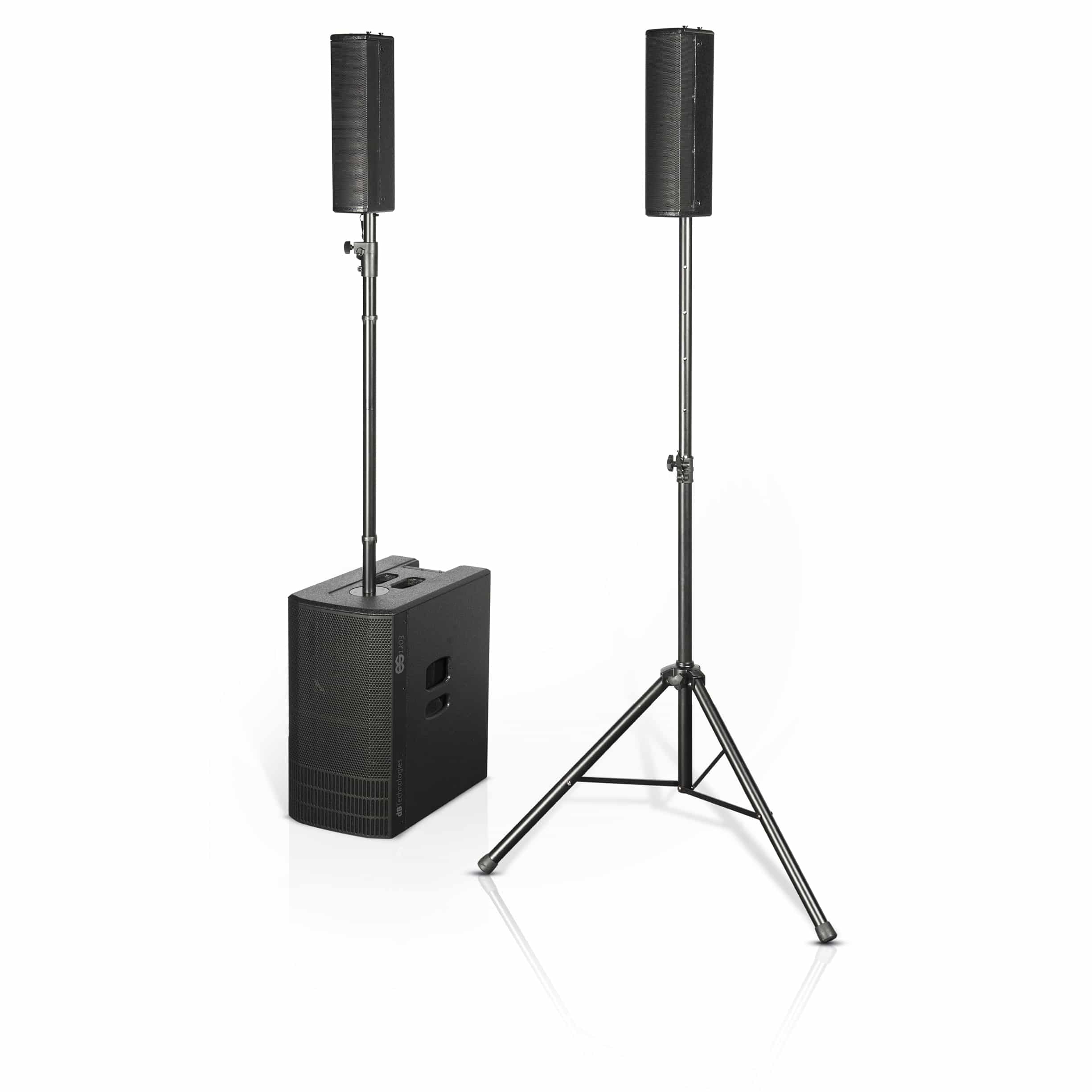

- 3 CONFIGURATION MODES (MONO, STEREO OR DOUBLE COLUMN)
- ON-BOARD 5 CHANNEL MIXER
- BLUETOOTH® AUDIO RECEIVER
- 3 INPUT CHANNEL MODES (MIC/INSTR/LINE)
- CUSTOMIZABLE BALANCED OUTPUT CHANNEL (MIX/MONITOR/AUX)
- ULTRA WIDE COVERAGE

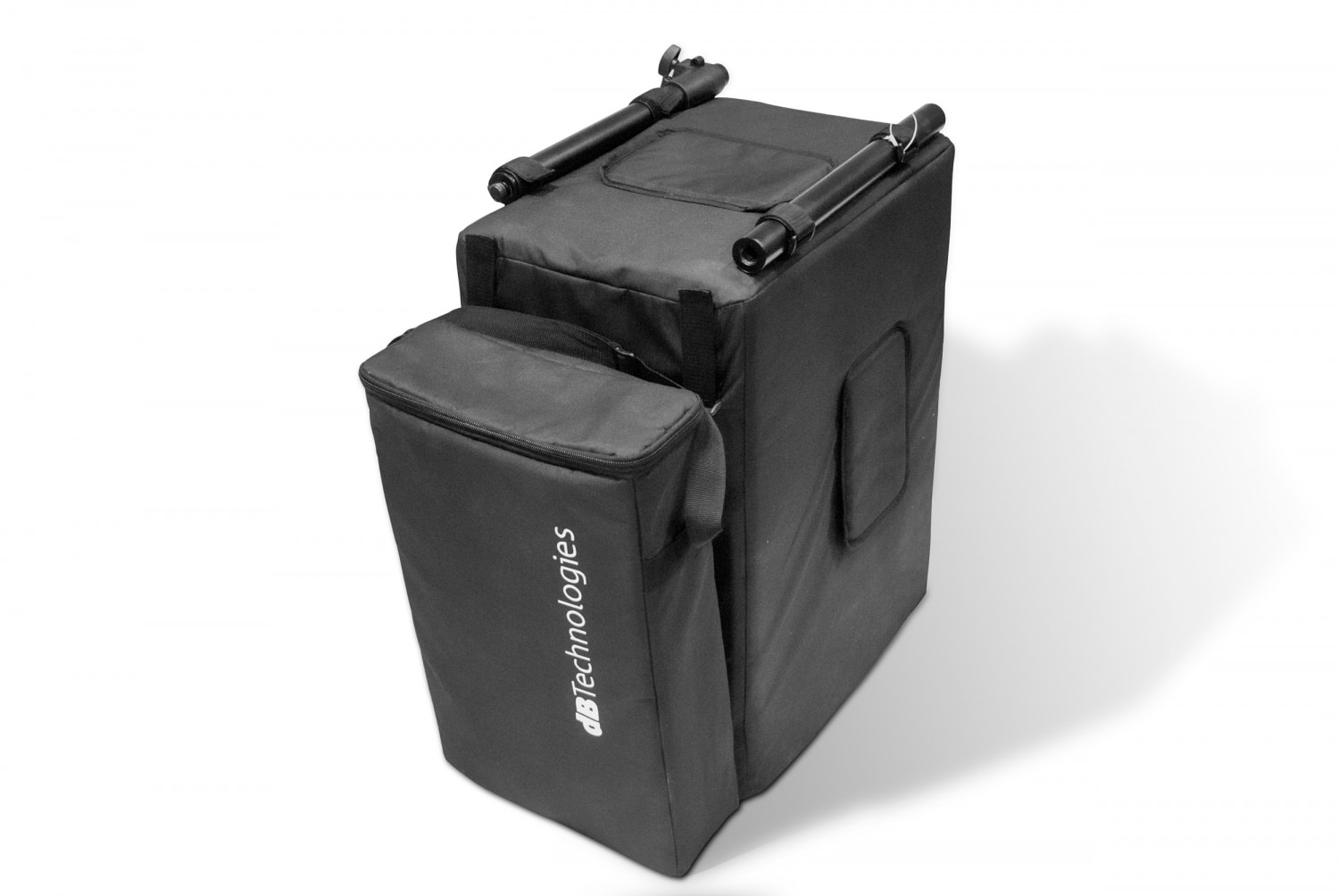

- BAG FOR SUB AND TOPS INCLUDED
- AVAILABLE IN WHITE
Technical Data
Speaker Type: 3-amped Stereo System with two full-range tops and one subwoofer
Acoustical data
Frequency Response [-10dB]: 35 – 20.000 Hz
Max SPL: 132 dB

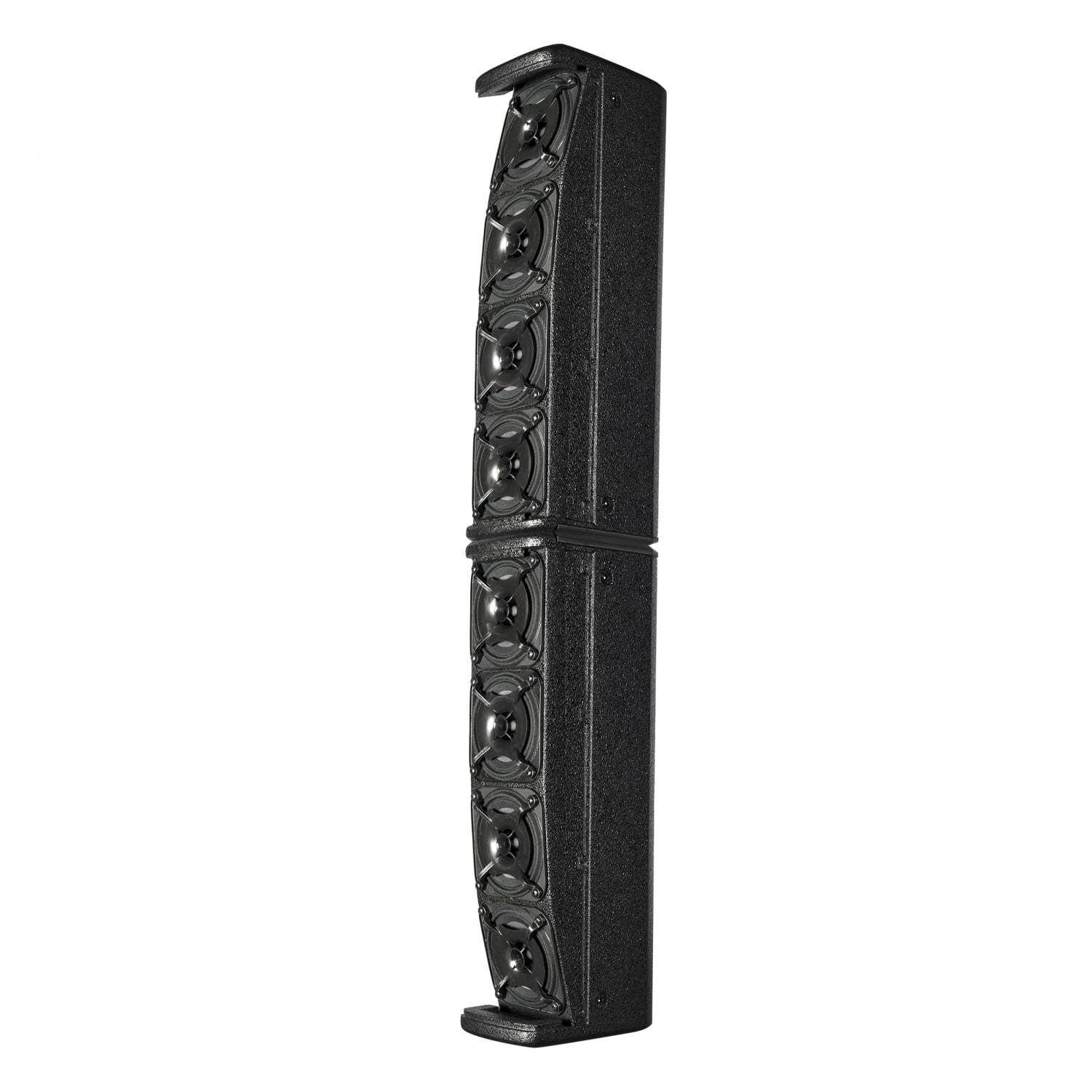

MF – HF: 8×4″, v.c. 1″
Type MF – HF: Neodymium

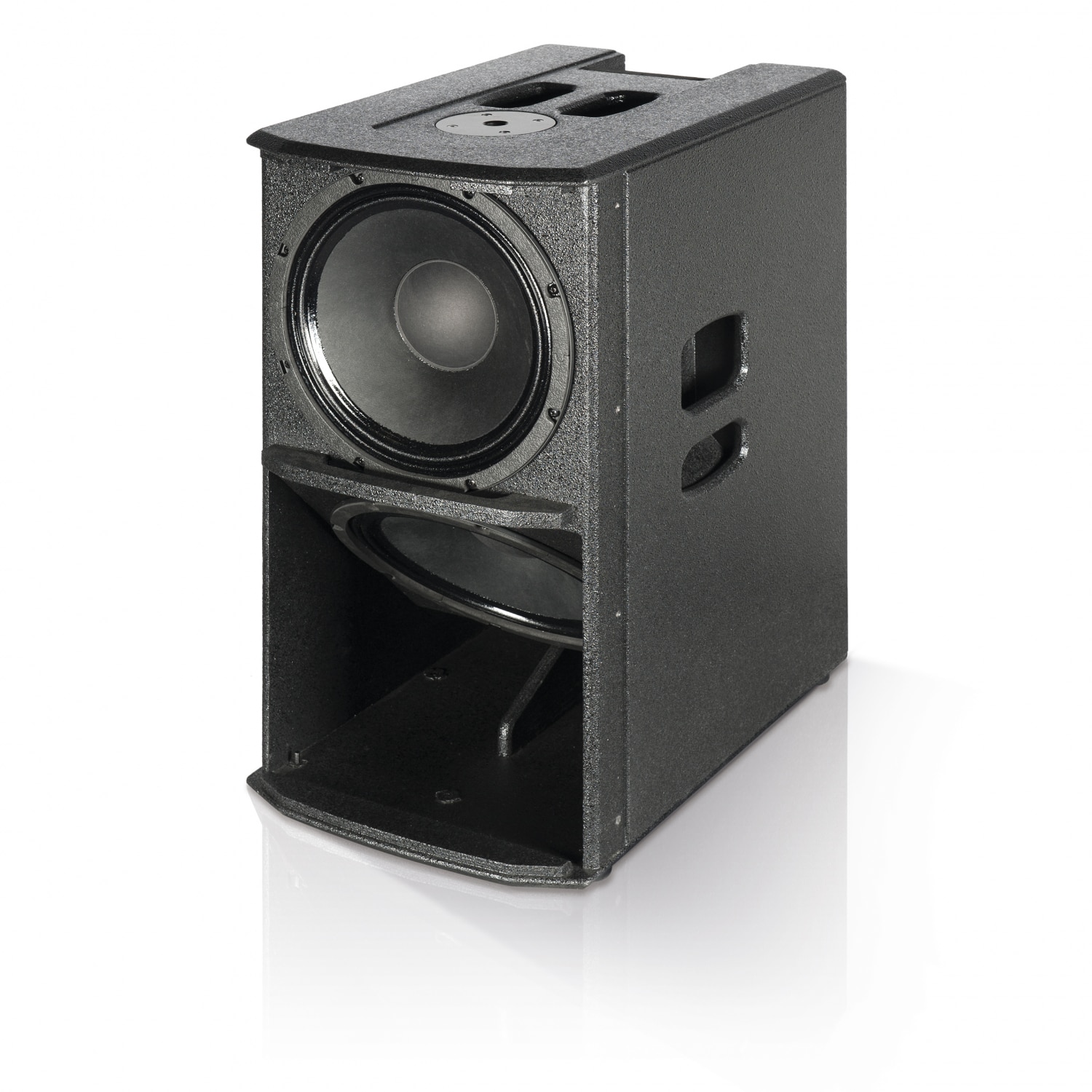

LF: 2X12″
Directivity: 97×60°
Amplifier
Amp Technology: Digipro® G4
Amp Class: Class-D
Power Amp Peak: 2400 W
Controls:

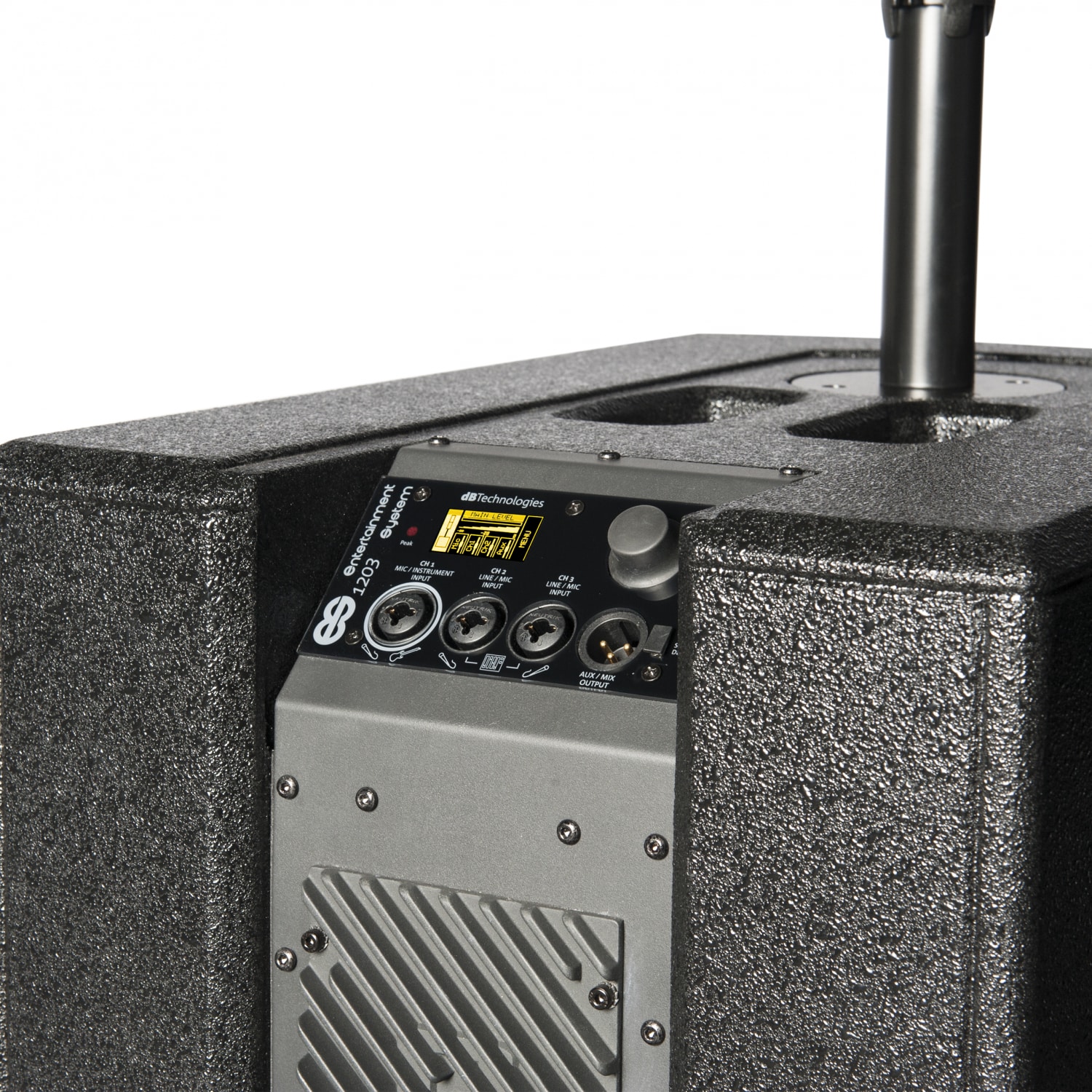

1xOLED Display with rotary encoder w/button
1x Audio signal monitoring LED
1XUSB port (service data)
1xOLED Display with rotary encoder w/button
1x Audio signal monitoring LED
1XUSB port (service data)
Power Supply: Fullarange with PFC
Power connection: VDE Socket
Cooling: Convection
Processor
Controller: DSP 56 Bit
Converter AD/DA: 24 Bit/48 Hz
Limiter: Peak, RMS, Thermal
Crossover Frequency LF-MF: 160 Hz
Digital Steering: Up/Down/Far
Input
Input Channels:
1x Mic/Instrument Combo (XLR/Jack)
2xMic/Line Combo (XLR/Jack)
1XBluetooth built-in receiver
1x Mic/Instrument Combo (XLR/Jack)
2xMic/Line Combo (XLR/Jack)
1XBluetooth built-in receiver
Mix Output: 1x XLR balanced output
Mechanics
Housing (Subwoofer): Plywood with full metal grille

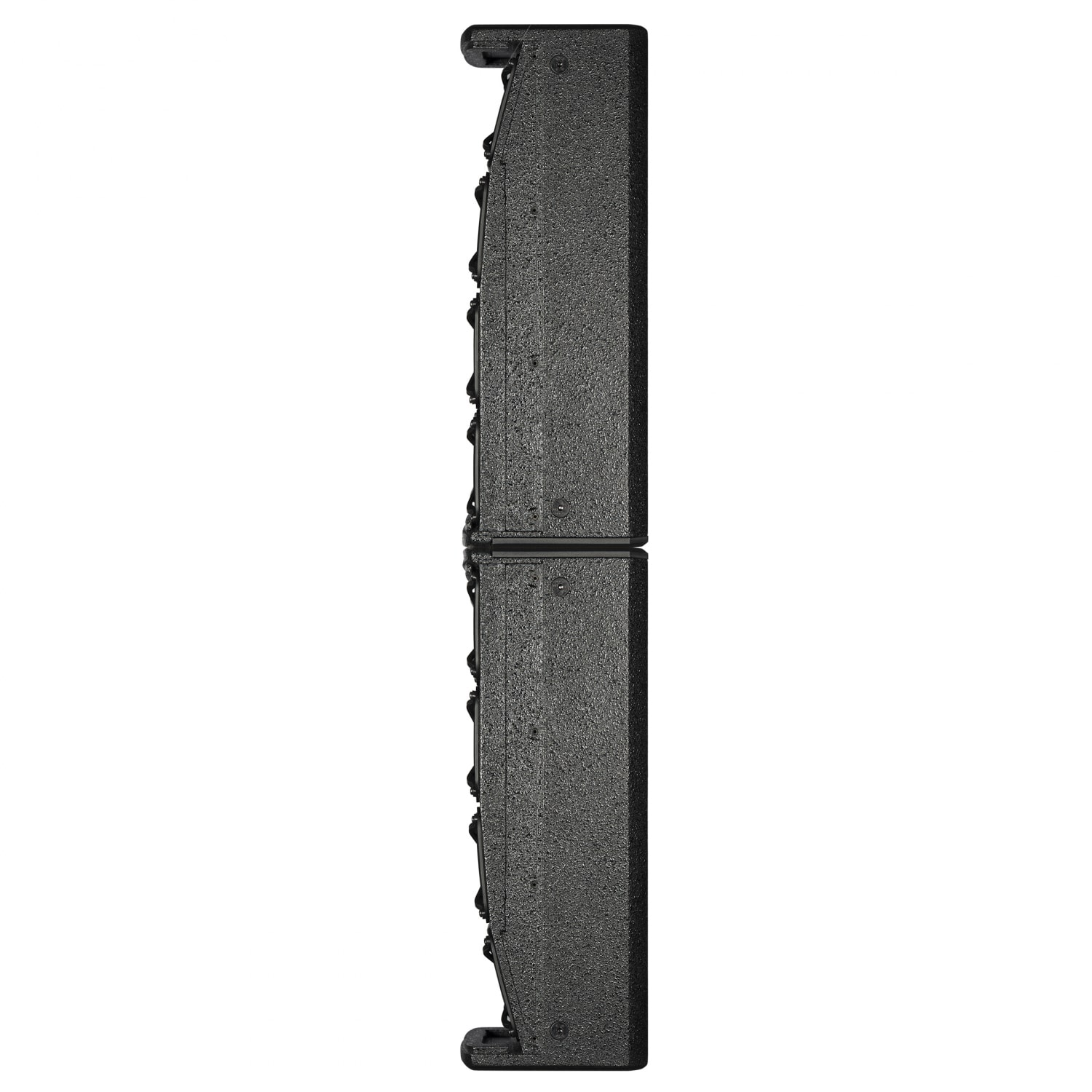

Housing (Tops): Plywood with full metal grille
Pole Mount: 36 mm (M20 Thread)
Handles (subwoofer): 1xtop 1x lateral side
Width (Top): 110 mm (4.33 in)
Height (Top): 460 mm (18.11in)
Depth (Top): 160 mm (6.30 in)
Width (Subwoofer): 360 mm (14.17 in)
Height (Subwoofer): 680 mm (26.77 in)
Depth (Subwoofer): 545 mm (21.46 in)
Weight (Top): 3.3 Kg – 7.27 lbs.
Weight (Subwoofer): 29.3 Kg – 64.59 lbs.
