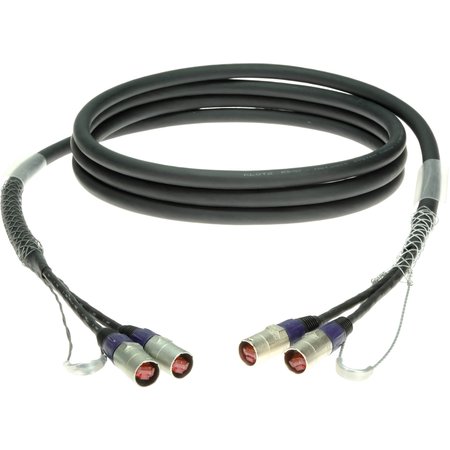

RCB2EEA flexible, double shielded duplex Ram CAT network cable with AWG24 solid conductor
- SF/UTP (overall foil + braid shield)
- EtherSound tested by Digigram up to 120 m
- MADI tested by soundCraft / Studer up to 120 m including two breakout panels and safety margin
- GLD and iLive ACE/dSnake tested by Allen&Heath up to 120 m
- Dante tested by YAMAHA UK up to 120 m, recommended up to 100 m – incl. extended error safety margin at 1 Gbit/s
- 2x RamCAT data cables 4x 2x 0.52 mm (AWG24/1) solid bare copper, PVC jacket, 6.6mm Ø
| Length | 80 m |
| Outer jacket | PVC |
| Colour | black |
| Weight | 01,3778 kg |
| Cable | |
| Cable typ | RC5SB2 – 2x RamCAT data cables 4x 2x 0.52 mm (AWG 24/1) solid bare copper |
| Max. data transmission rate | 100 MHz |
| Pinout | TIA / EIA 568-B |
| Connectors | |
| Connector 1 | 2x etherCON M |
| Connector 2 | 2x etherCON M |
