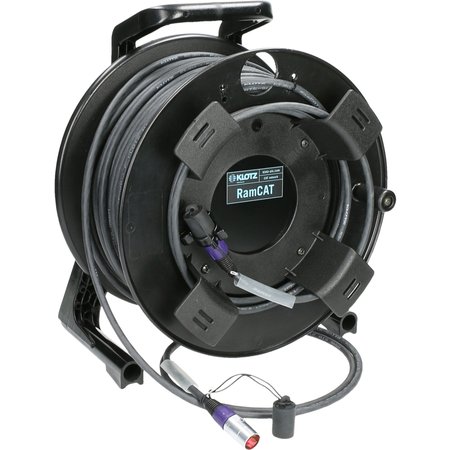

RCBEEW flexible, double shielded RamCAT network cable drum system with AWG24 solid conductor and etherCON connectors
- SF/UTP (overall foil + braid shield)
- robust PUR jacket
- EtherSound tested by Digigram up to 120 m
- MADI tested by Soundcraft / Studer up to 120 m including two breakout panels and safety margin
- GLD and iLive ACE/dSnake tested by Allen&Heath up to 120 m
- Dante tested by YAMAHA UK up to 120 m, recommended up to 100 m – incl. extended error safetu margin at 1 Gbit/s
| Length | 100 m |
| Outer jacket | PUR |
| Colour | black |
| Cable drum | GT310 |
| Weight | 7,9212 kg |
| Cable | |
| Cable typ | RC5SB – 4x 2x 0.52 mm (AWG 24/1) solid bare copper, PUR jacket, Ø 6.6 mm |
| Outer jacket | PUR |
| Max. data transmission rate | 100 MHz |
| Pinout | TIA/EIA 568-B |
| Cable drum | GT310 |
| Connectors | |
| Conenctor 1 | etherCON M |
| Connector 2 | etherCON M |
