HDMI 2.0 Fiber Extender Kit, Single Mode

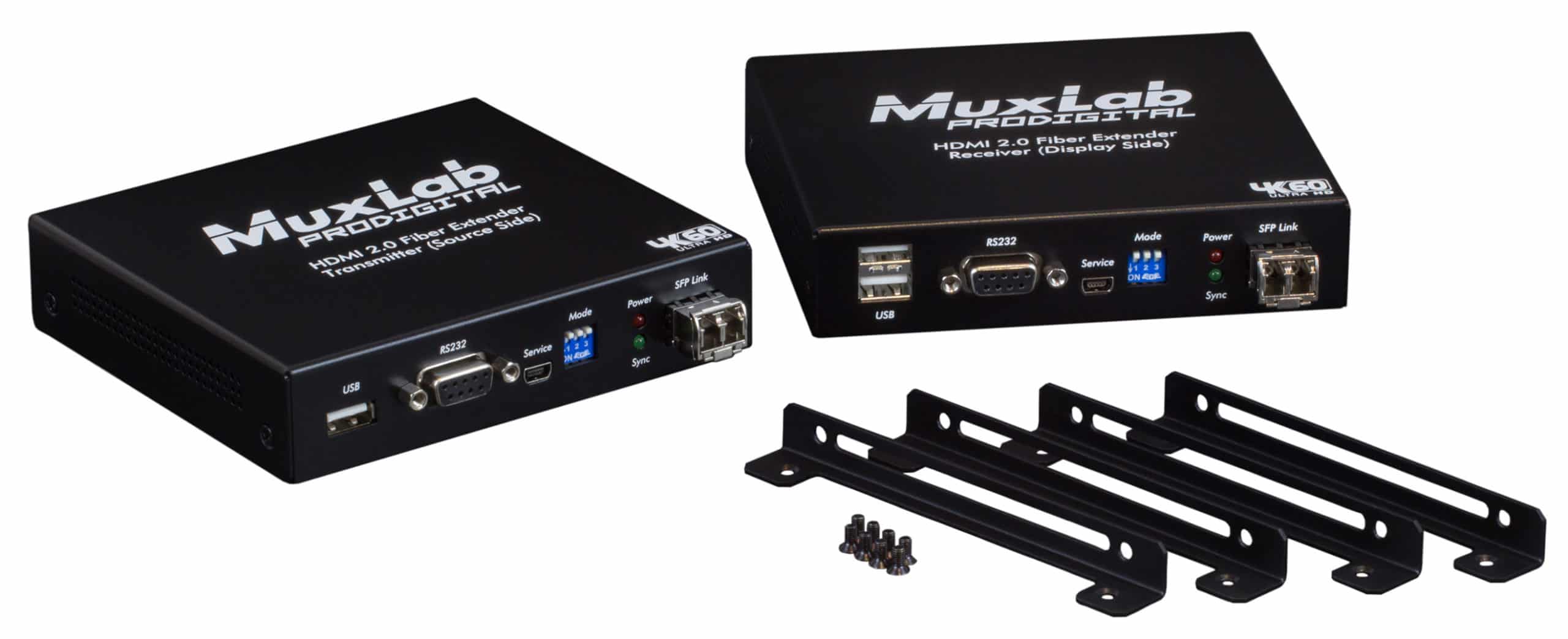

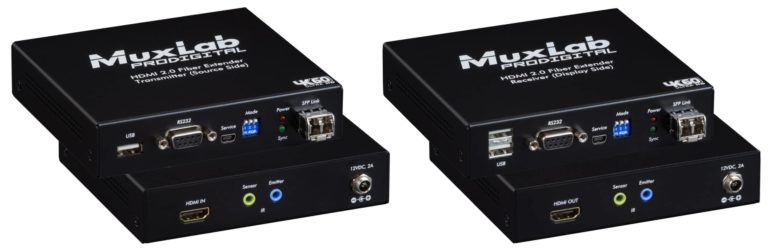

The HDMI 2.0 Fiber Extender Kit, Single Mode (model: 500485) allows one HDMI 2.0 and one USB 1.1 channel to be transmitted up to 10km (6.25miles) at all resolutions up to 4K2K@60Hz over single mode fiber optic cable in a point-to-point configuration. In addition, the HDMI 2.0 Fiber Extender Kit, Single Mode is HDCP 2.2 compliant and supports IR and RS-232 pass-through and keyboard/mouse USB signal transmission.
Ideal for: KVM applications, commercial and residential AV systems, classroom projector systems, boardroom systems, collaborative PC systems, medical information systems.
FEATURES
- Supports HDMI 4K @ 60fps (4:4:4 8bits)
- Supports HDR, which is 4K @ 60fps (4:2:0 10bits)
- Supports HDCP 2.2
- Extends HDMI signals up to 10km over single mode fiber optic cable
- Supports USB 1.1 for keyboard and mouse only
- Bi-directional IR pass-through
- Supports full frequency IR signal from 20KHz to 60KHz
- Includes wall-mount bracket kit
