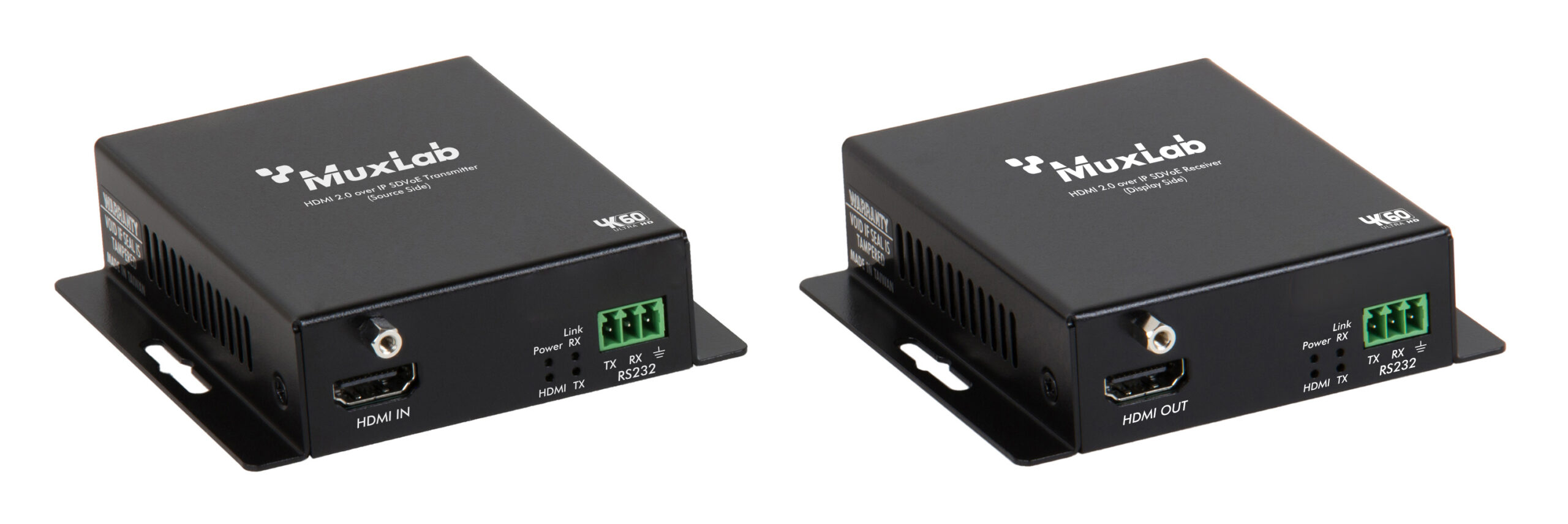

HDMI 2.0 over IP sdvoe Transmitter 10Gb, MM

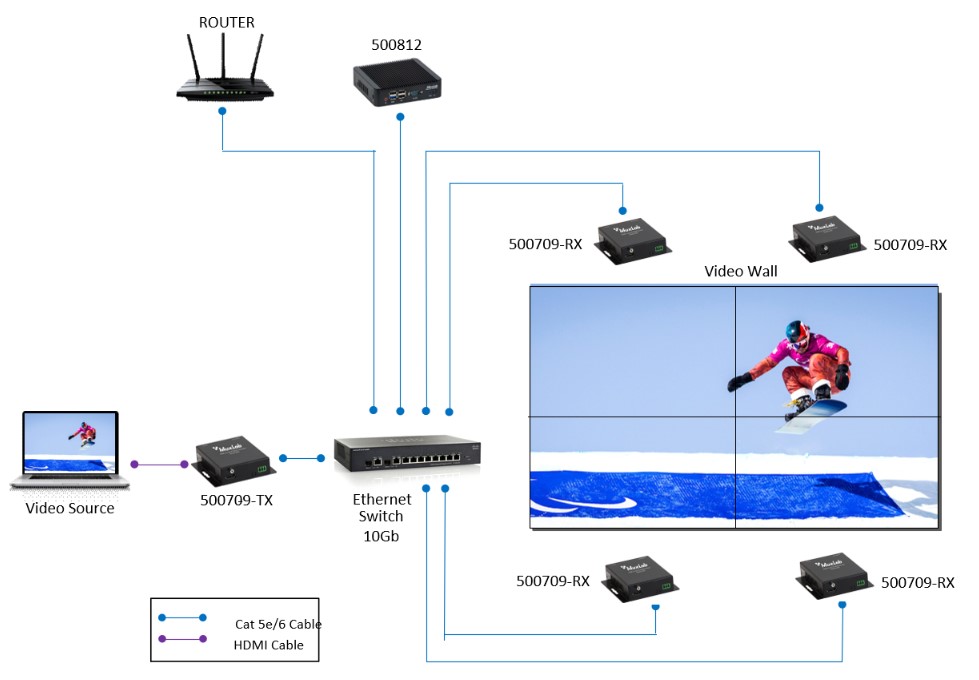

The HDMI 2.0 over IP sdvoe Transmitter and Receiver enables the distribution of content to an unlimited number of displays over a 10Gb Ethernet switch. it is a versatile solution for extending video and audio transmission over long distances. it can extend video and audio transmission distance up to 300m (990ft) (OM3) / 400m (1320ft) (OM4) over fiber and supports Ultra-HD 4K2K@60(4:4:4) format, providing high-quality visuals.
The HDMI 2.0 over IP sdvoe is a comprehensive solution for demanding applications that require reliable, high-quality Ultra-HD video broadcasting over an IP network, with added features such as RS-232 pass-through and video wall support.
Applications:
- Medical Imaging
- Military Control Rooms
- Broadcast Control Rooms
- Restaurants
- Conference Centers
FEATURES
- Supports HDMI resolutions up to 4K/60(4:4:4)
- sdvoe Technology
- Uncompressed up to 4K/60 (4:2:0), and light compression visually lossless at (4:4:4) (with zero latency)
- Extends the transmission over multi-mode optical cable up to 300m (990ft) (OM3) /400m (1320ft) (OM4)
- Full duplex RS-232 control up to 115,200 bps
- Managed via MuxLab Network Controller(500812) and Muximus Network Controller (500813)
