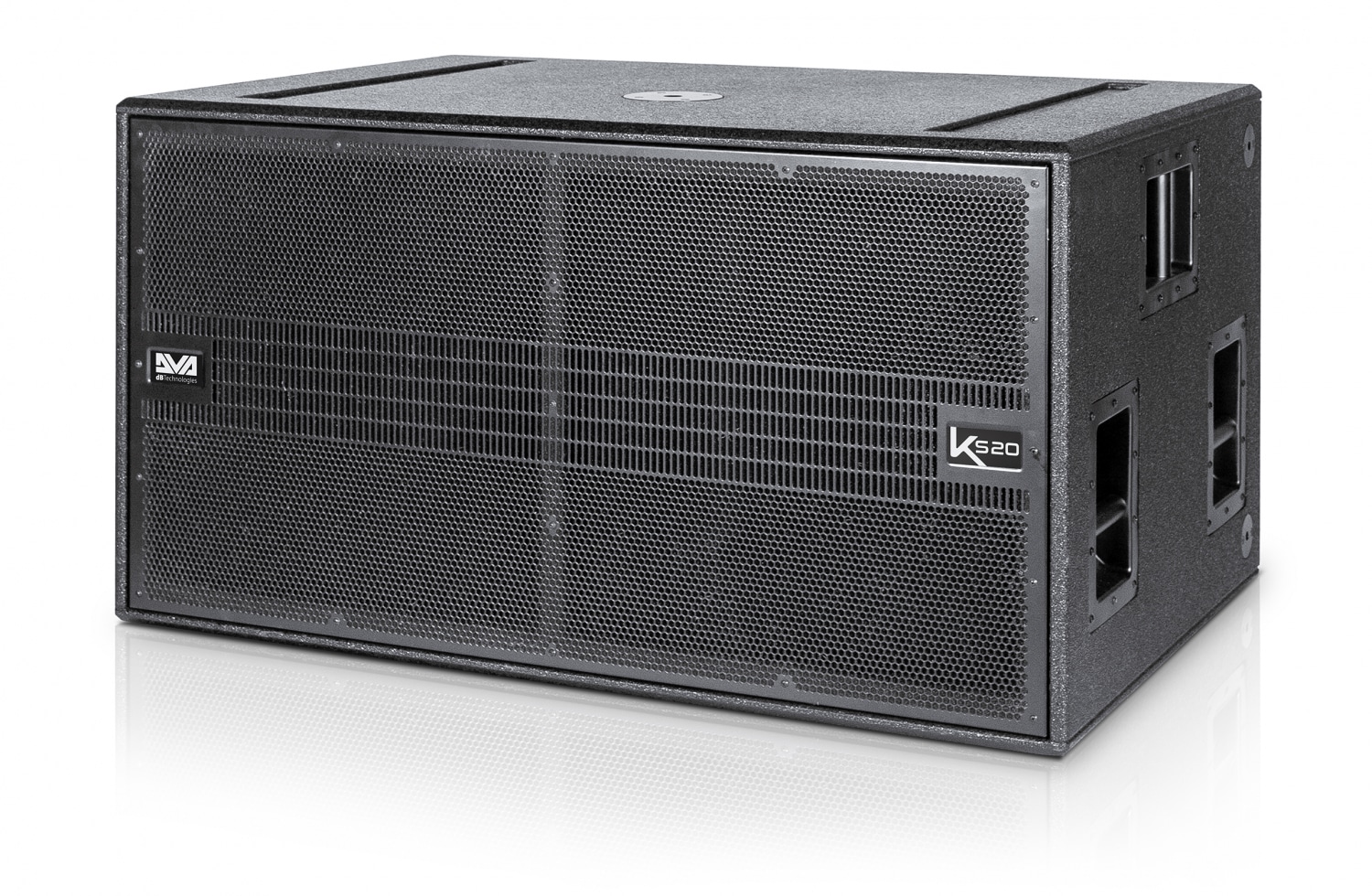

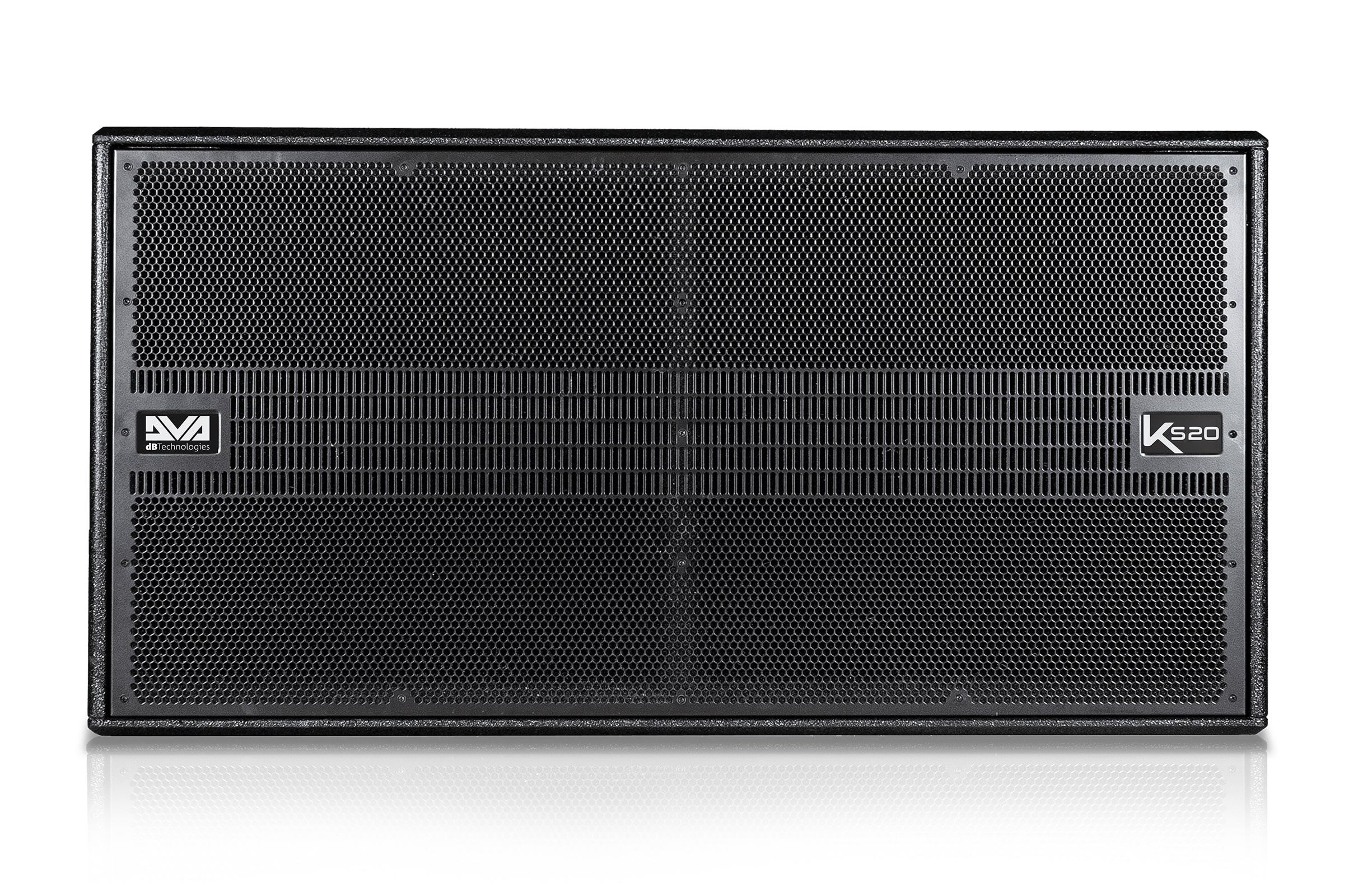

Featuring a double 18″ woofer pairing in a bass reflex housing, the DVA KS20 is equipped with two Digipro G3 Power Amplifiers delivering 4000 W Peak. The system’s internal design brings together the benefits of bass reflex and horn-loaded systems in a compact, sturdy housing covered with robust black laquer. The 56 Bit DSP manages limiters and delays for flawless system processing.
DVA KS20 is the perfect low-end complement for larger DVA K5 systems and can be used vertically in groundstacked configurations thanks to the DRK-20/10 pickpoints on top.
FEATURES
- ACTIVE BASSREFLEX HORN-LOADED SUBWOOFER
- 1800W RMS DIGIPRO G3 AMP TECHNOLOGY
- 138 dB MAX SPL
- FREQUENCY RESPONSE [-10 dB]: 41 Hz – 120 Hz
- LF: 2 x 18”, 4” v.c.
- Weight: 84 kg (185.19 lbs)
Technical Data
Speaker Type: Active Bassreflex-Horn loaded Subwoofer
Acoustical data
Frequency Response [- 10 dB]: 41 Hz – 120 Hz
Max SPL: 138 dB
Directivity: Omnidirectional
LF: 2×18 “
Voice Coil LF: 4 “
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class D
RMS Power: 1800 W
Peak Power: 3600 W
Cooling: Convection
Power Supply: 1800 W SMPS with auto range PSU
Processor
Controller: DSP 56 Bit
AD/DA Converter: 24 Bit /48 Hz
System Presets: X-Over, Delay
Limiter: Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency LF-HF: 90, 120 Hz (selectable)
Slope LF-HF: 24 dB/Octave

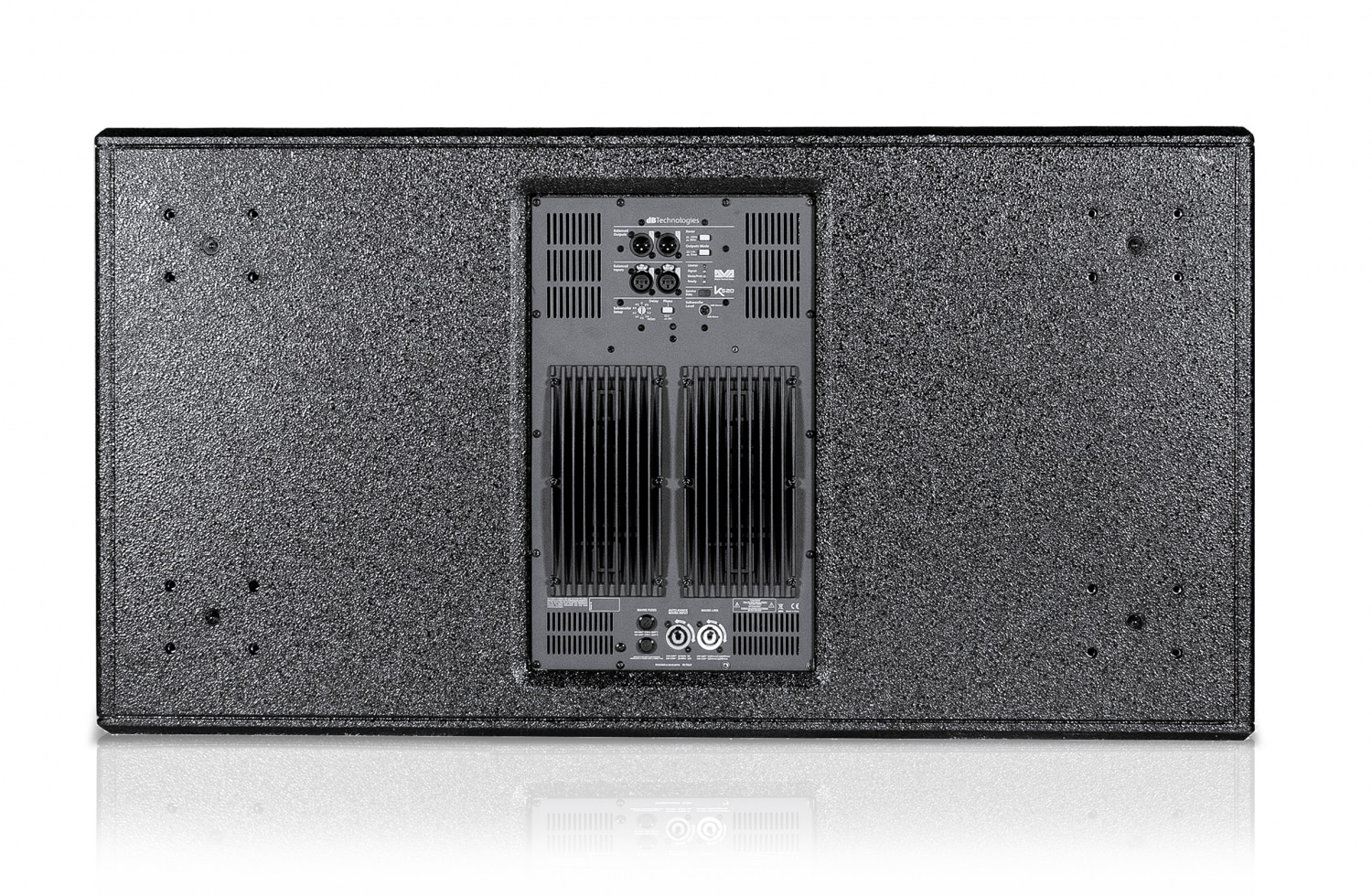

Input
Input Selection:2x XLR Balanced
Output Selection: 2x XLR Balanced
Power Socket:
1x PowerCON in + 1x PowerCON Out
Controls:
1 x Input Sensitivity Rotary Switch
1 x Setup Rotary Encoder (delay up to 4.5 ms on-board)
1 x Polarity Inversion Switch
1 x X-over Frequency Switch (90 Hz, 120 Hz)
1 x Output mode Switch (Link- X-Over)
1 x Setup Rotary Encoder (delay up to 4.5 ms on-board)
1 x Polarity Inversion Switch
1 x X-over Frequency Switch (90 Hz, 120 Hz)
1 x Output mode Switch (Link- X-Over)
Mechanics
Housing: Plywood

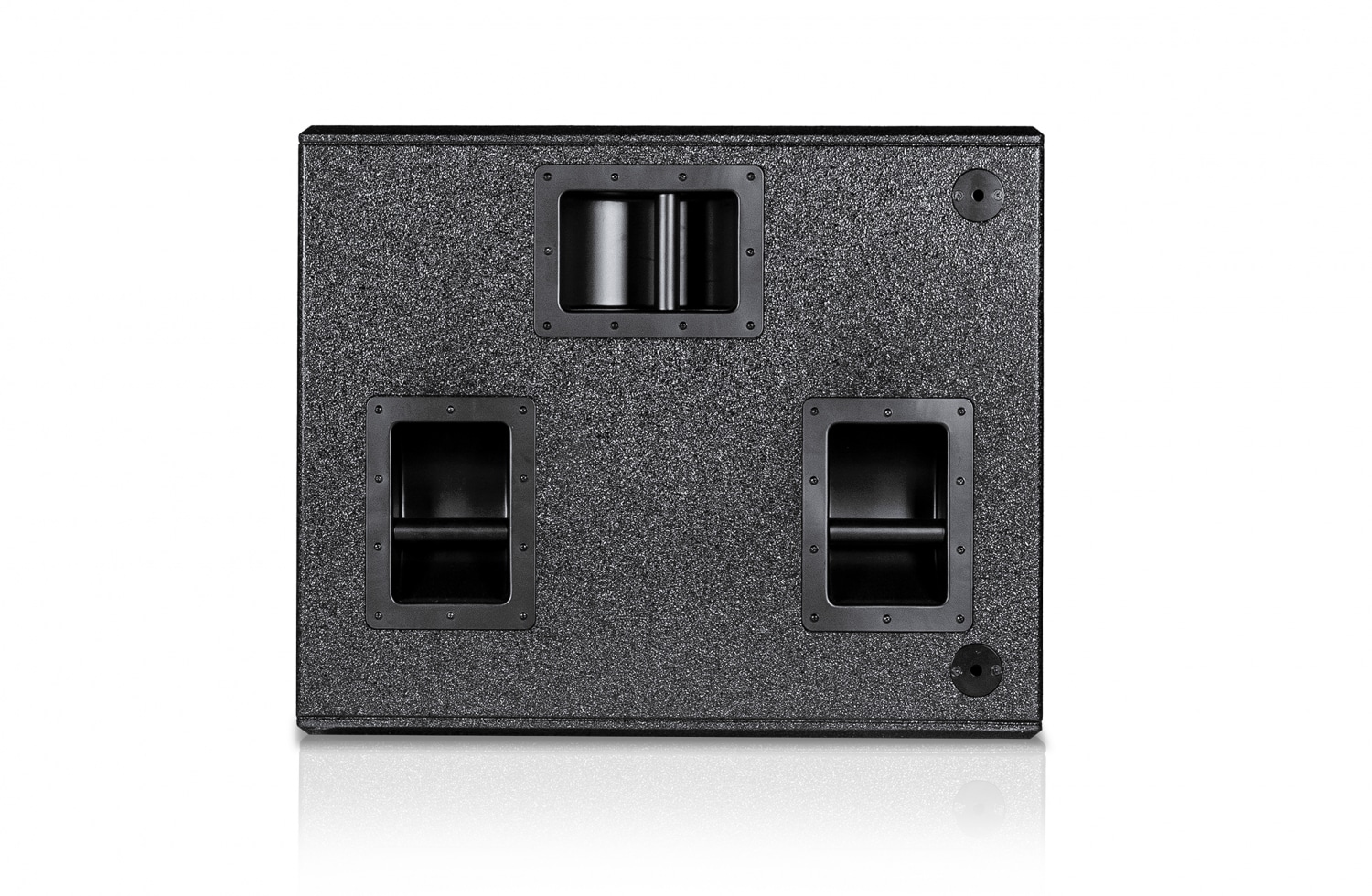

Handles: 3x Per Side
Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames
Pole Mount: 1 xM20 on top
Pole Mount: 1 xM20 on top
Width: 1100 mm (43.31 in)
Height: 580 mm (22.83 in)
Depth: 720 mm (28.53 in)
Weight: 84 kg (185.19 lbs)
