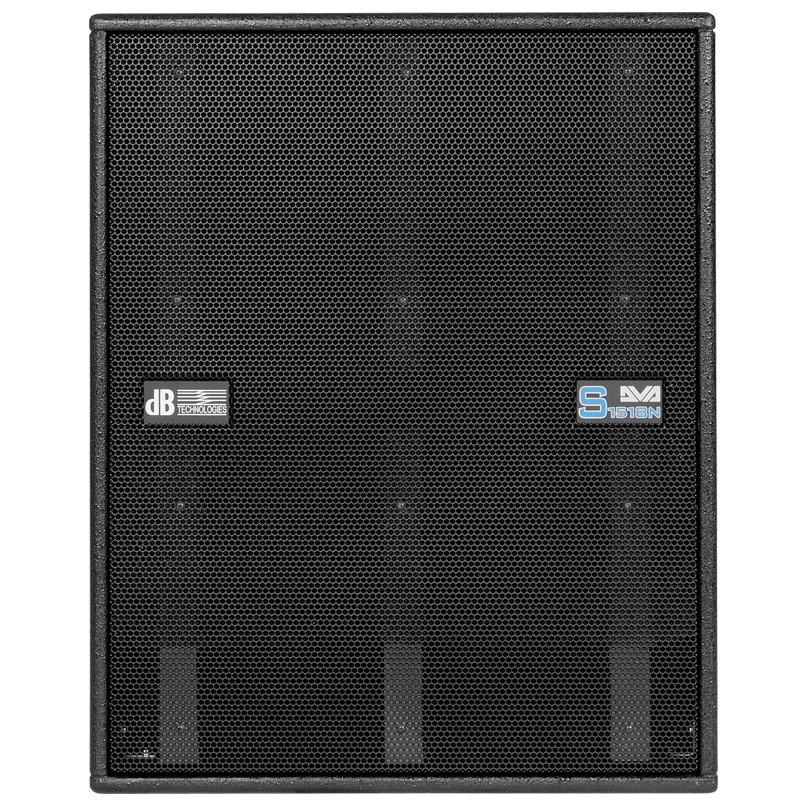

The DVA S1518N is a bandpass subwoofer based on the DVA S10, but with 50 percent higher power amp output, an integrated DSP, and an RDNet link. A remarkably versatile subwoofer, it delivers tight and punchy bass response that supports and transitions smoothly to satellites’ lower midrange frequencies.
Features
- VARIABLE CROSSOVER FREQUENCIES
- PRECISE LIMITER FUNCTIONS
- ON BOARD DELAY FOR PERFECT TIME ALIGNMENT
- PRESET FOR CONFIGURING CARDIOD SYSTEMS
- SETTINGS ACCESSIBLE VIA ROTARY ENCODER
- X-OVER OUT
- RDNET NETWORK PORT
Technical Data
Speaker Type:Active Bandpass Subwoofer
Acoustical data
Frequency Response [+/- 3dB]: 39 – 120 Hz
Max SPL: 138 dB
Directivity: Omnidirectional, Cardiod Option with DSP setup
LF: 18 “
Voice Coil LF: 4 “
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
Power Supply: 1.5 kW SMPS
LF Amp: 1500 W RMS
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: 24bit/ 96 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope:24 dB/Octave
Mechanics
Housing: Multiplex plywood
Housing Design: Rectangular
Handles: 3x Per Side
Accessory:
Dolly, Wheels 100mm,
Dust Cover, Rain Cover
Dust Cover, Rain Cover
Pole Mount: M20
Rigging Points:
integrated for SRK10 fly kit
2xPick Points on top to fix
DRK10/20 rigging frames
2xPick Points on top to fix
DRK10/20 rigging frames
Width: 515 mm (20.6 in)
Height: 640 mm (25.6 in)
Depth: 720 mm (28.8 in)
Weight: 46 kg (101.41 lbs)
