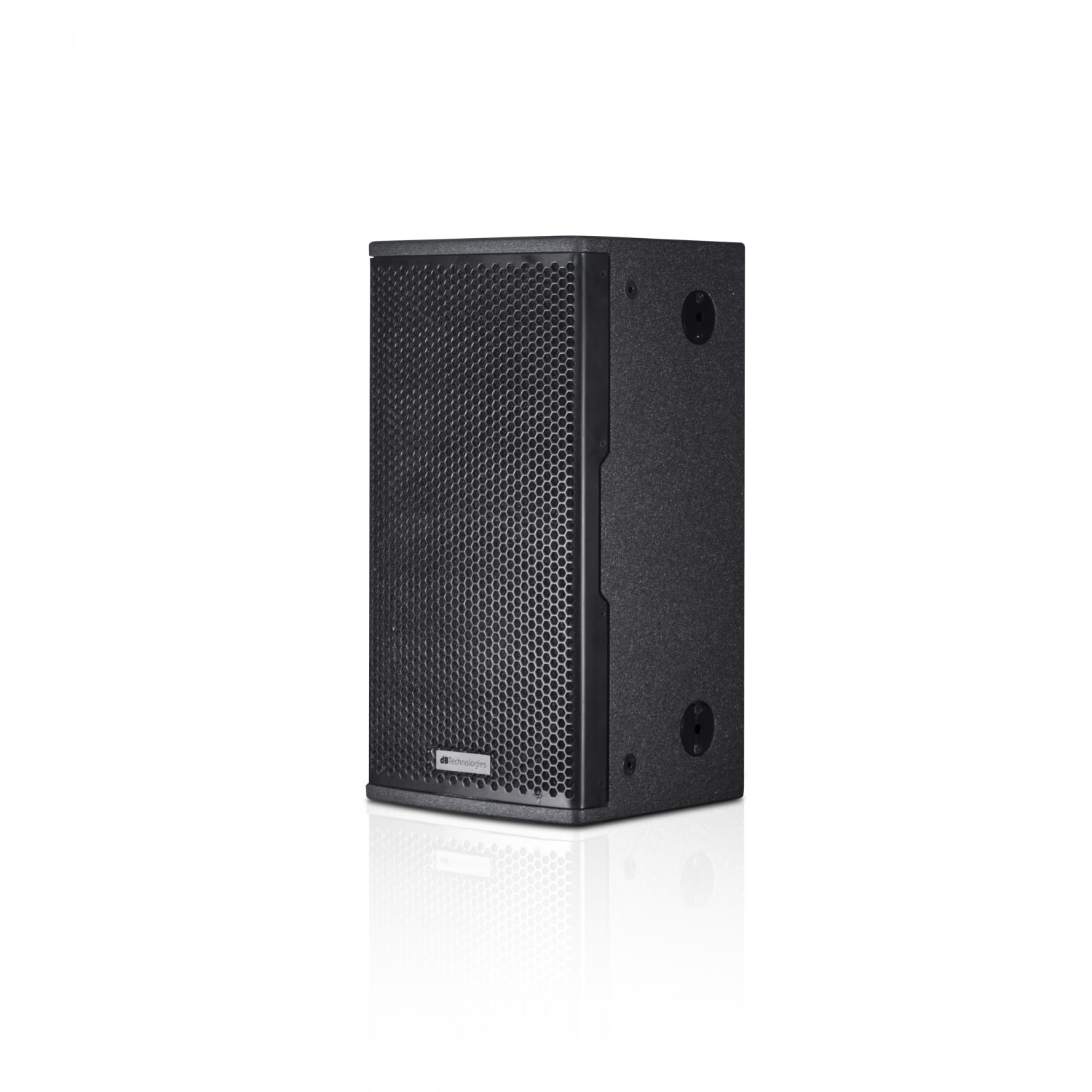

A feature-mix boosting high-end audio performance as well as advanced versatility. As a matter of facts, VIO X cabinets serve impressively as a stand alone PA system that can be stacked, flown or wall-mounted, as a full range PA or in combination with VIO S118 and VIO 118R subwoofers, but also act as the perfect side-fill, delay or stage monitoring system in larger VIO sound reinforcement applications.
The robust wooden enclosure allows horizontal use for monitoring purposes and is provided with a 36mm pole mount, and rigging points facilitating fixed installations with dedicated vertical and horizontal brackets.
All VIO X cabinets are powered by on board Digipro G3 900 W RMS providing majestic sound pressure levels in compact size and very limited weight. Advanced sound processing featuring Linear Phase FIR Filters allows VIO Xs to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position.
On board presets let users adapt High Pass Filters to the chosen application, as well as dedicated EQ presets for Wedge or Fullrange mode. Last but not least, VIO X is equipped with RDNet port allowing monitoring and full remote control in real time via Aurora Net software (Windows and Mac).
FEATURES
- 2-WAY ACTIVE LOUDSPEAKER
- 900 W RMS CLASS-D DIGIPRO® G3 AMPLIFIER
- MAX SPL 130 dB
- FREQUENCY RESPONSE [-6dB]: 82 – 20.000 Hz
- AURORA NET READY
- HF: 1x 1” v.c. 1.75″
- LF: 1x 10”, v.c. 2.5″ NEODYMIUM
Technical Data
Speaker Type: 2 Way Active Loudspeaker
Acoustical data
Frequency Response [-10dB]: 73 – 21.400 Hz
Frequency Response [-6dB]: 82 – 20.000 Hz
Max SPL: 130 dB
HF: 1x 1” v.c. 1.75″
LF: 1x 10”, v.c. 2.5″ Neodyium
Directivity: 90° x 40°
Horn: Rotatable CD Horn
Amplifier
Amplifier: 900 W RMS Class-D Digipro® G3
Cooling: Convection
Power Supply: Auto-range SMPS
Processor
Controller: DSP 28/56 bit
AD/DA Converter: 24 bit/48 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters
Input

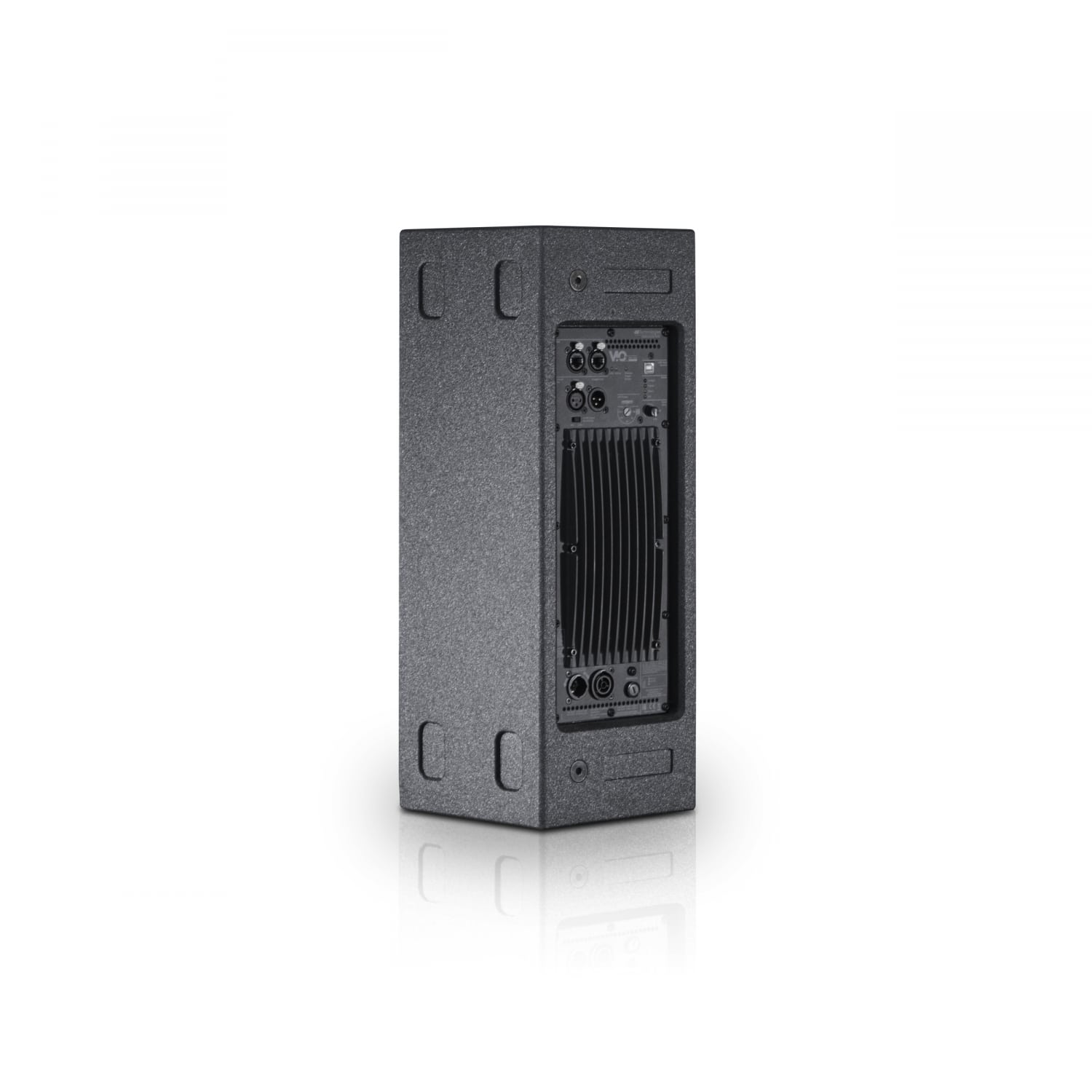

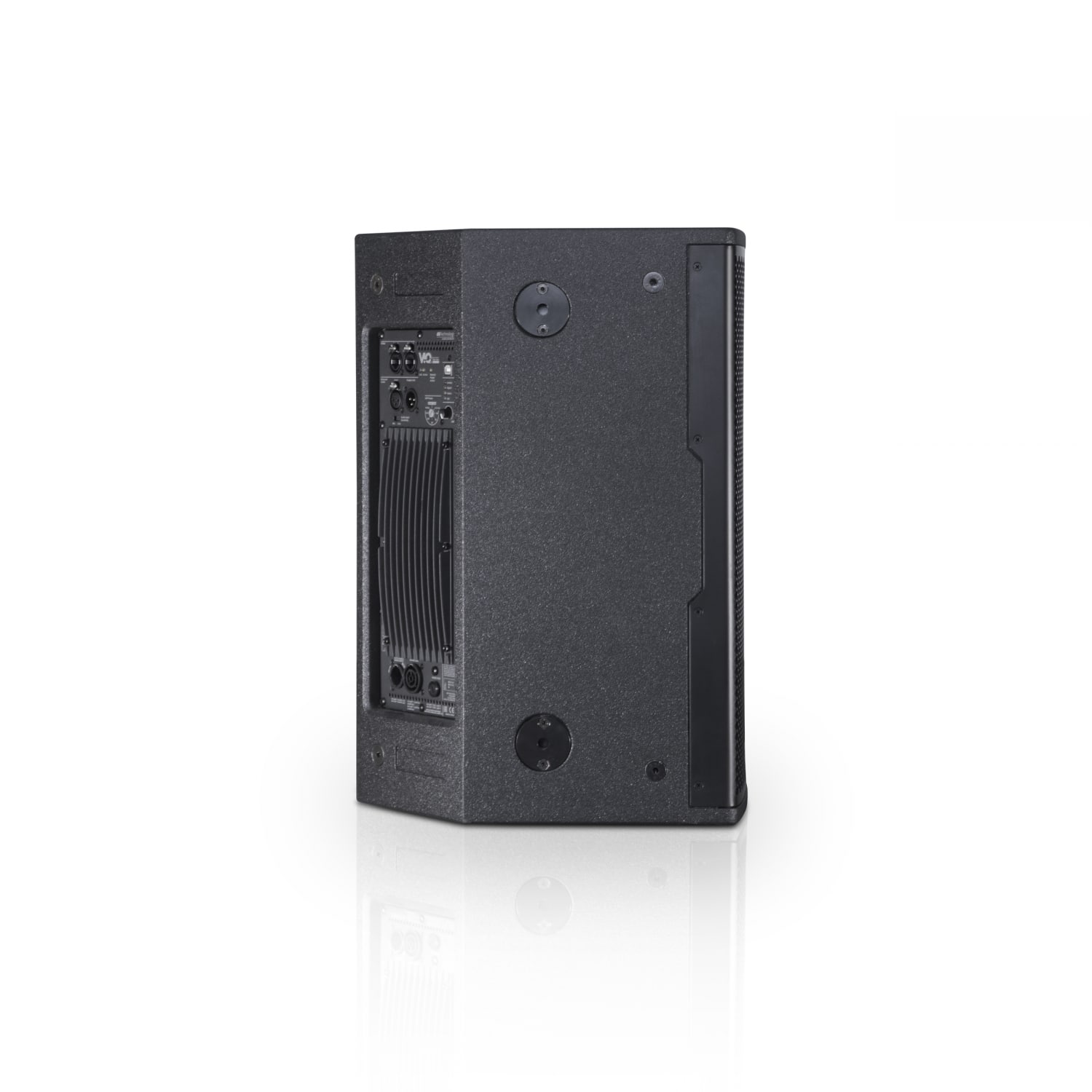

Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet)
Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket: 1x PowerCON TRUE1 In – 1x PowerCON TRUE1 Out
Controles: 1x Rotary Encoder (8x EQ, HPF presets) – 1x Input sensitivity potentiometer – 1x Mic / line switch
Special Features: Opto-isolated floating pre-amp
Mechanics
Housing: Wooden Cabinet, Polyurea painting

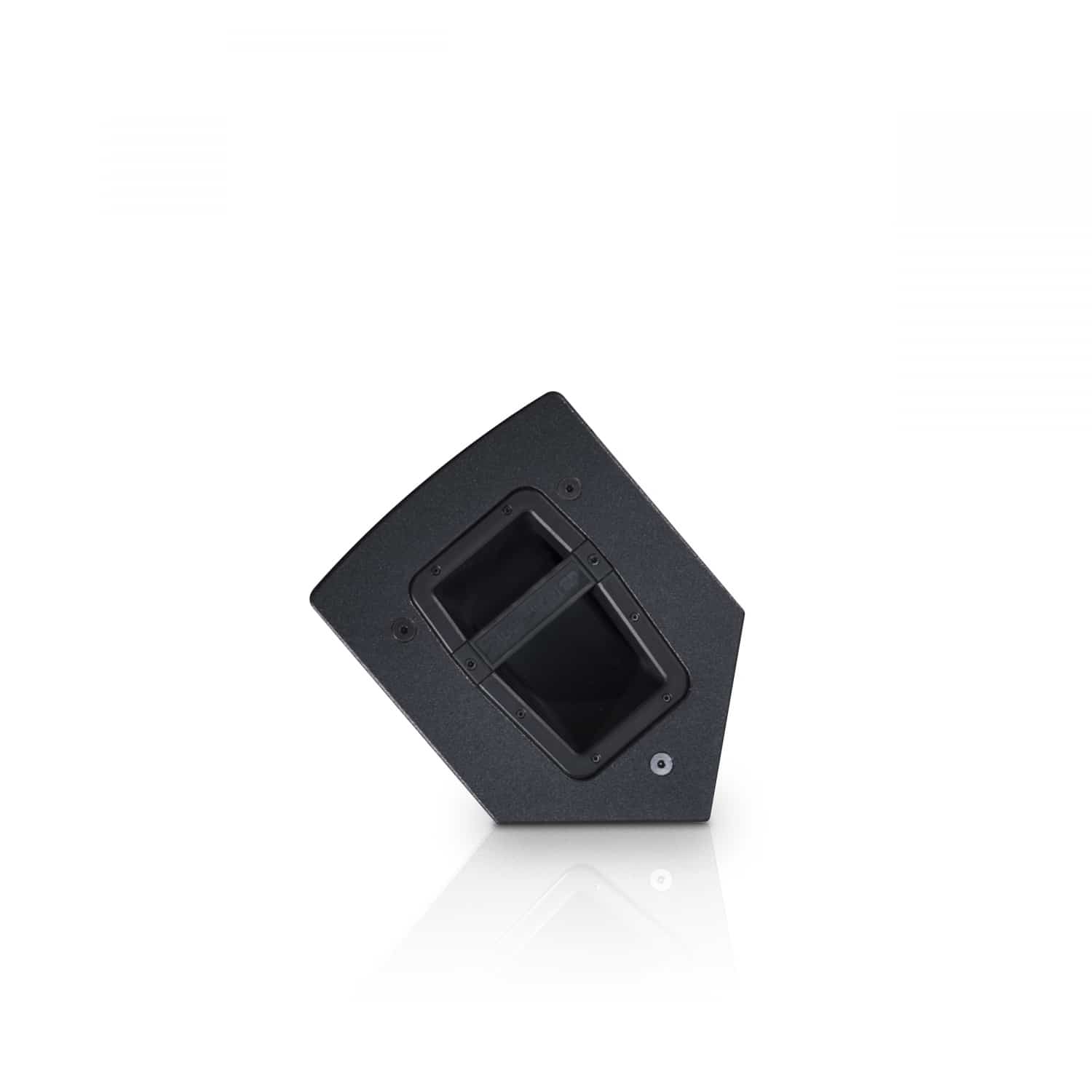

Handles: 1x (top)
Wedge Angle: Monitor Use 50°

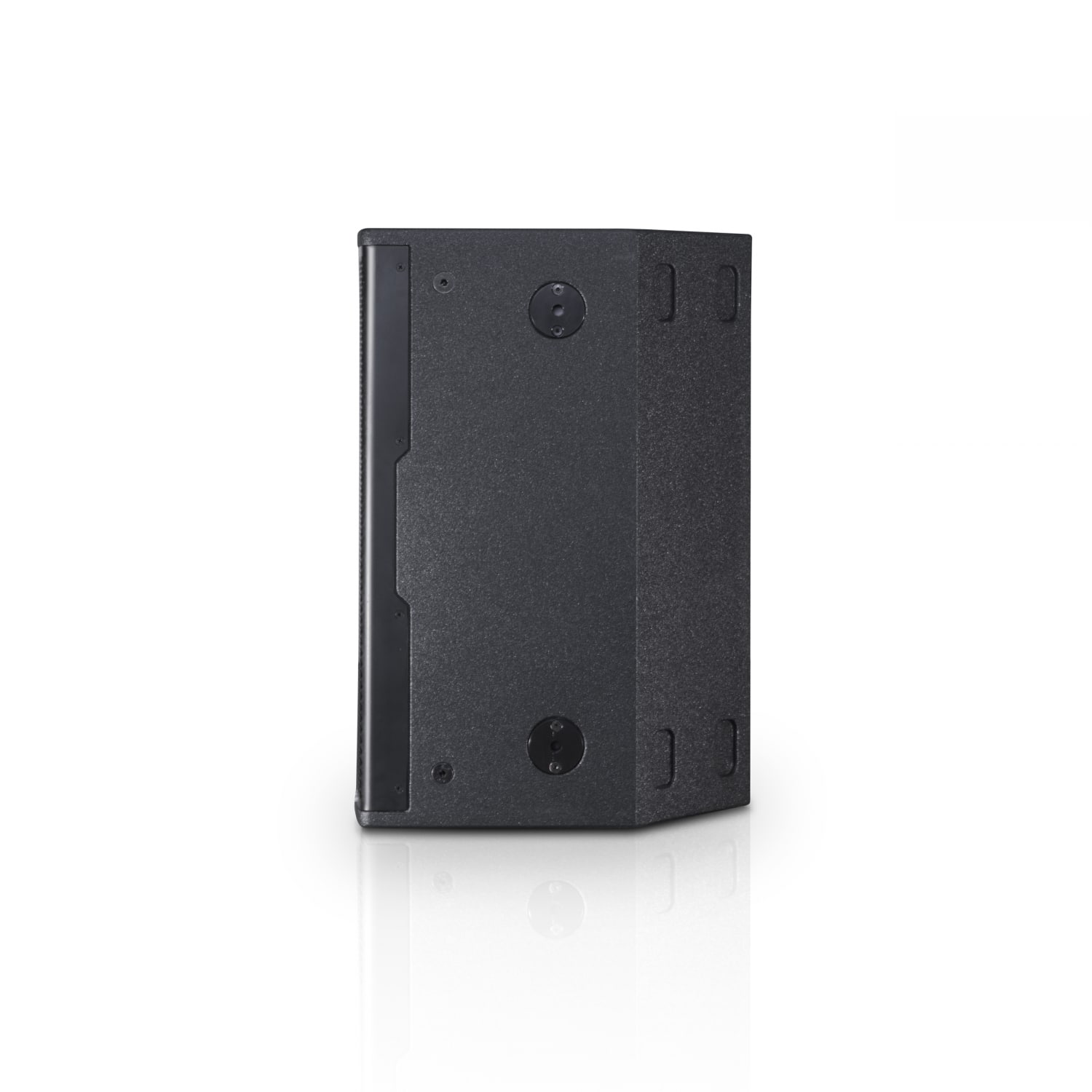

Rigging points: 12x M10 Thread + 4x Fast lock pins

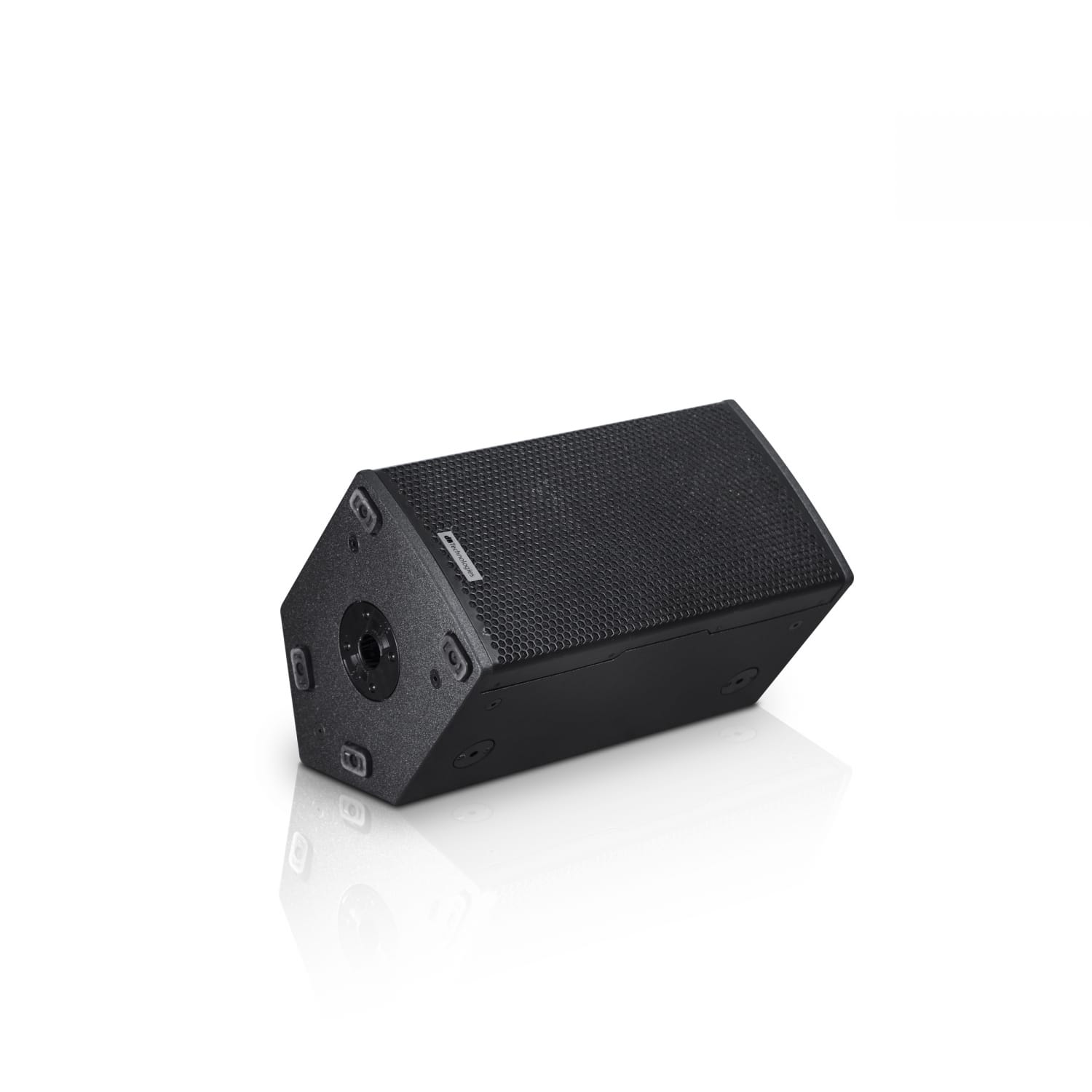

Pole Mount: Ø36 mm
Width: 280 mm
Height: 550 mm
Depth: 375 mm
Weight: 16.6 kg
