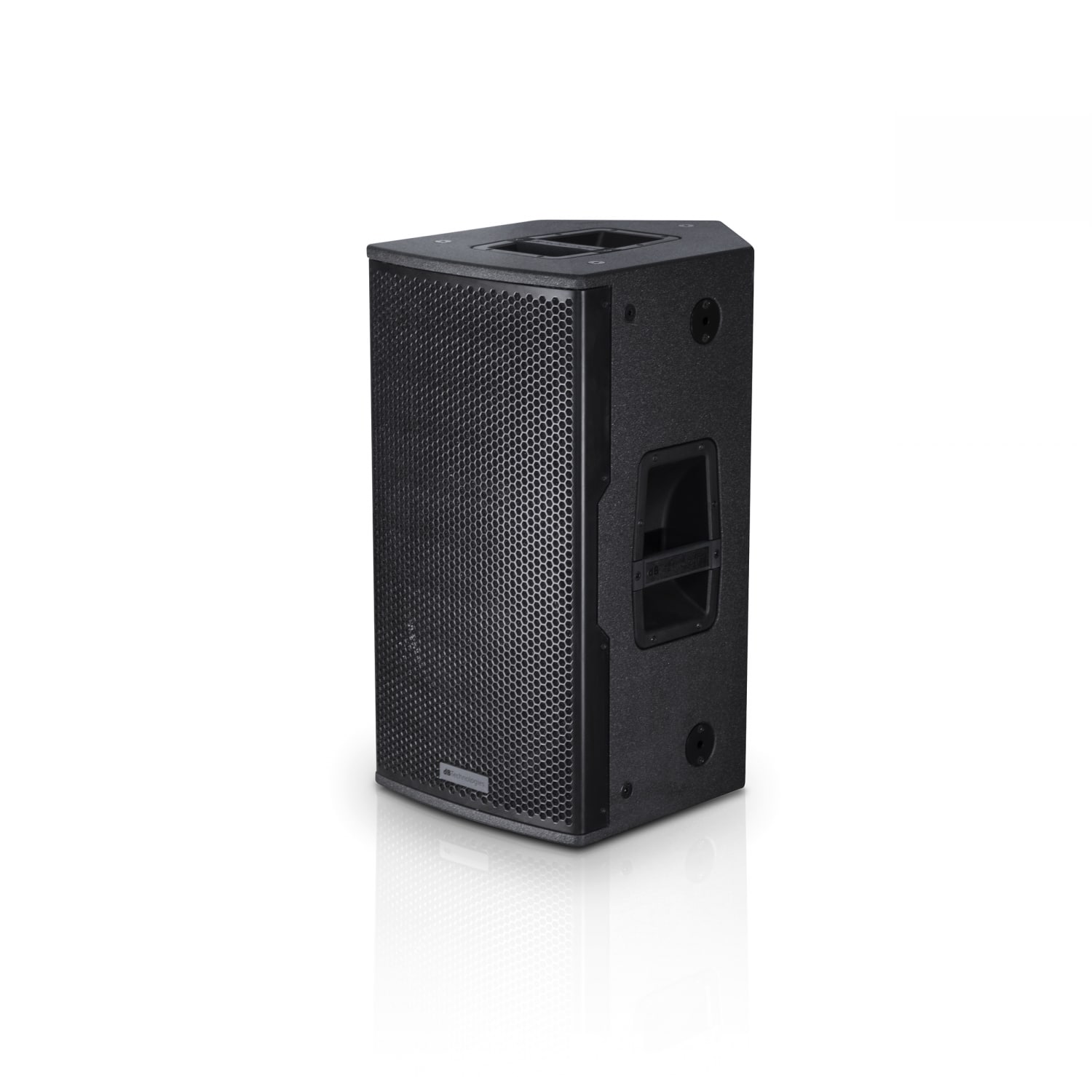

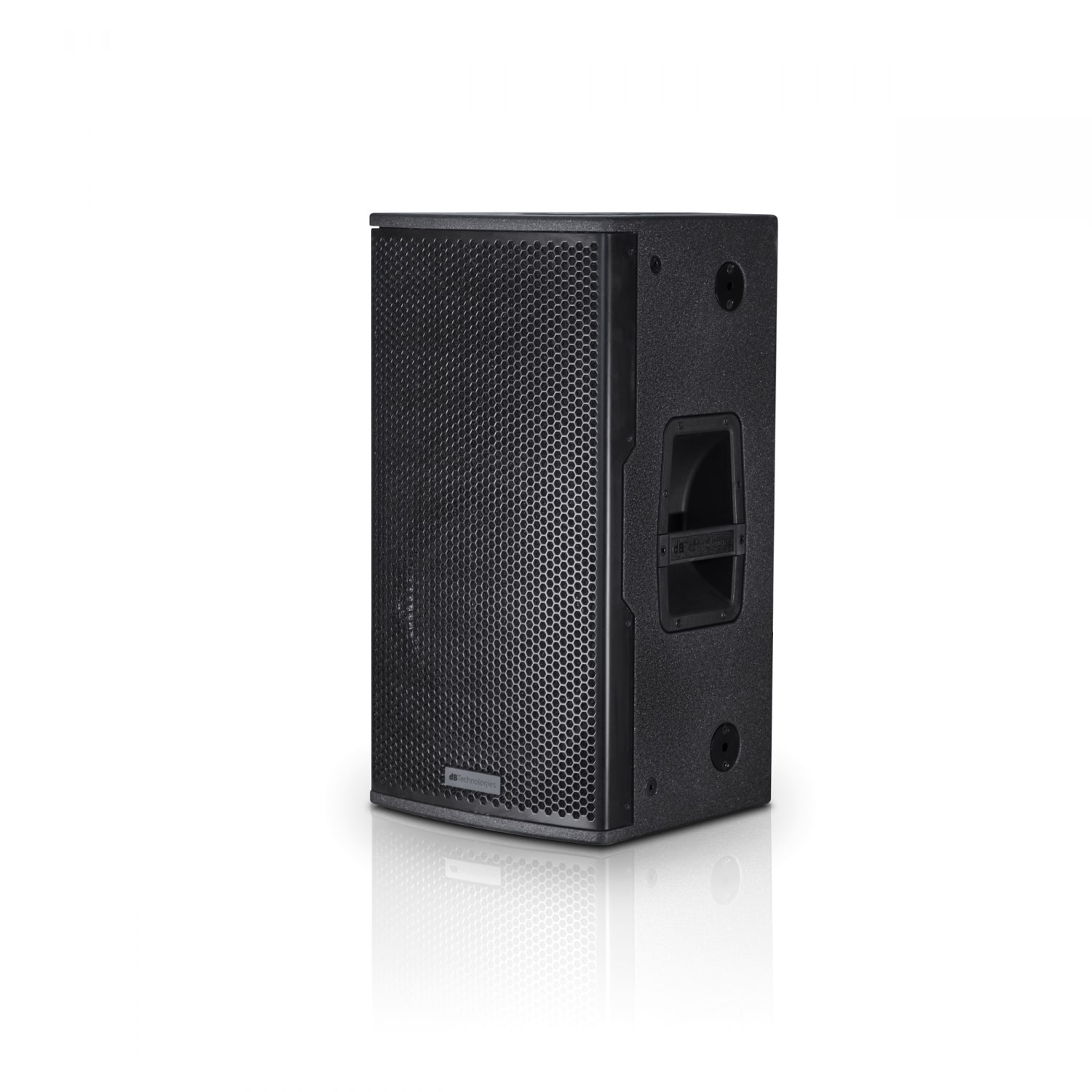

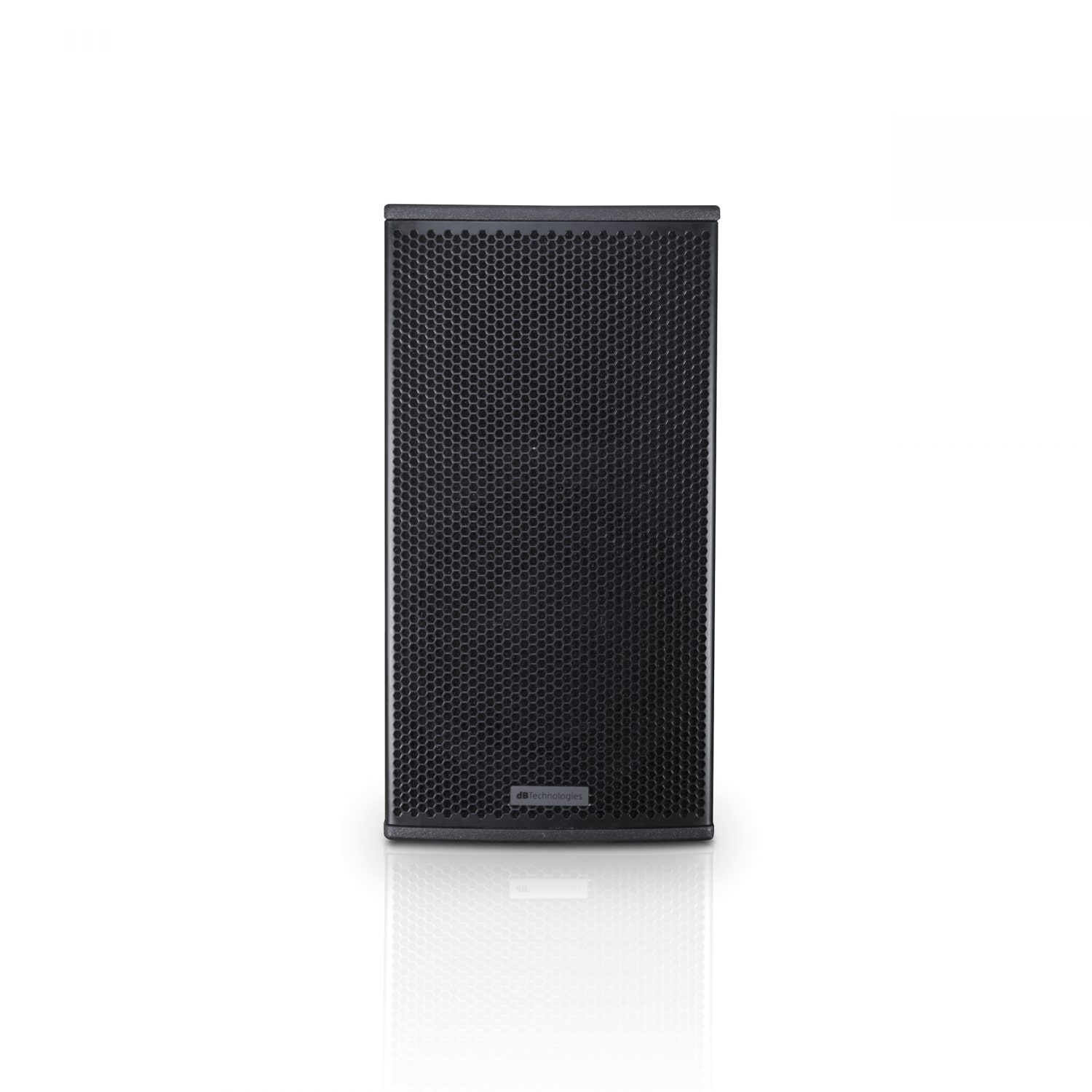

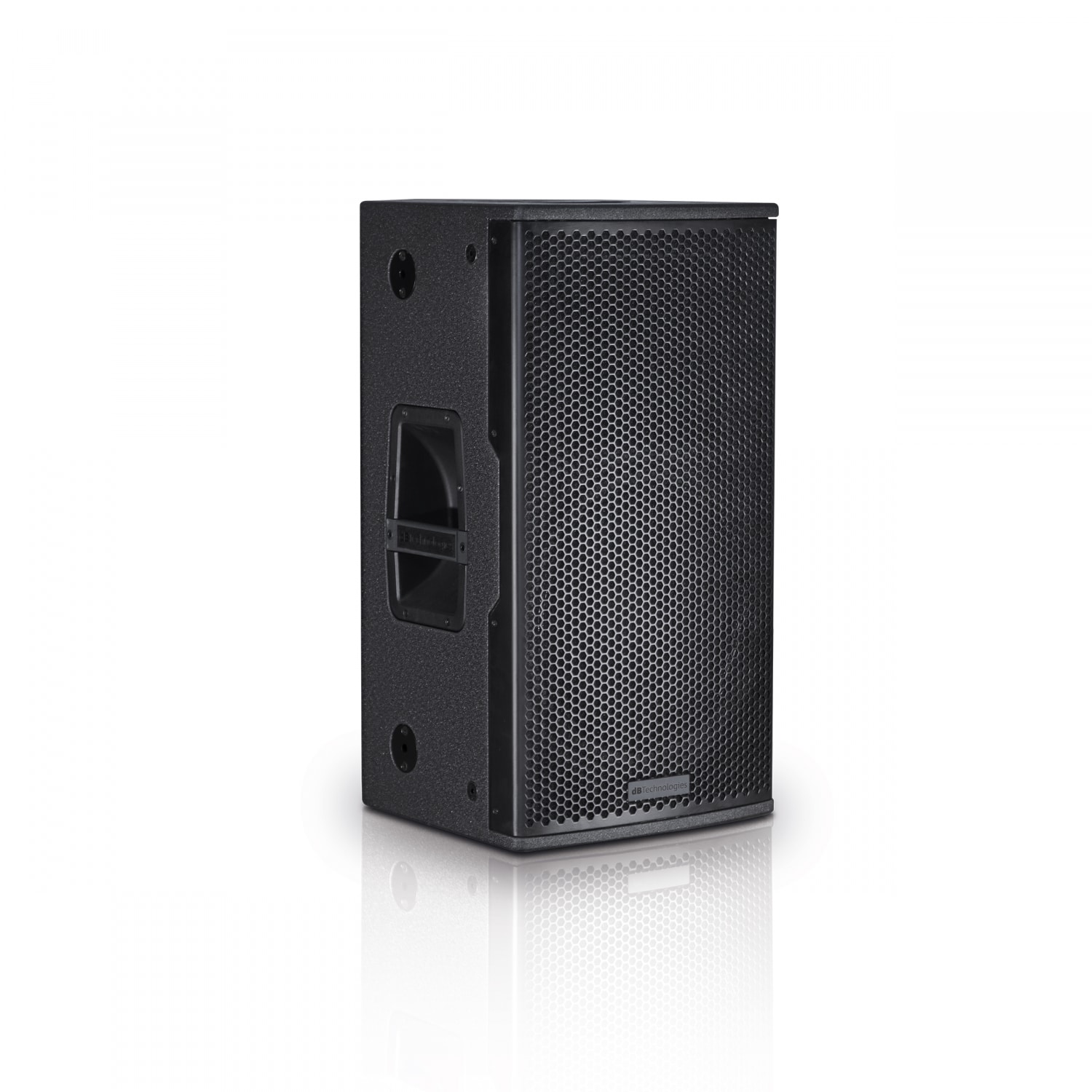

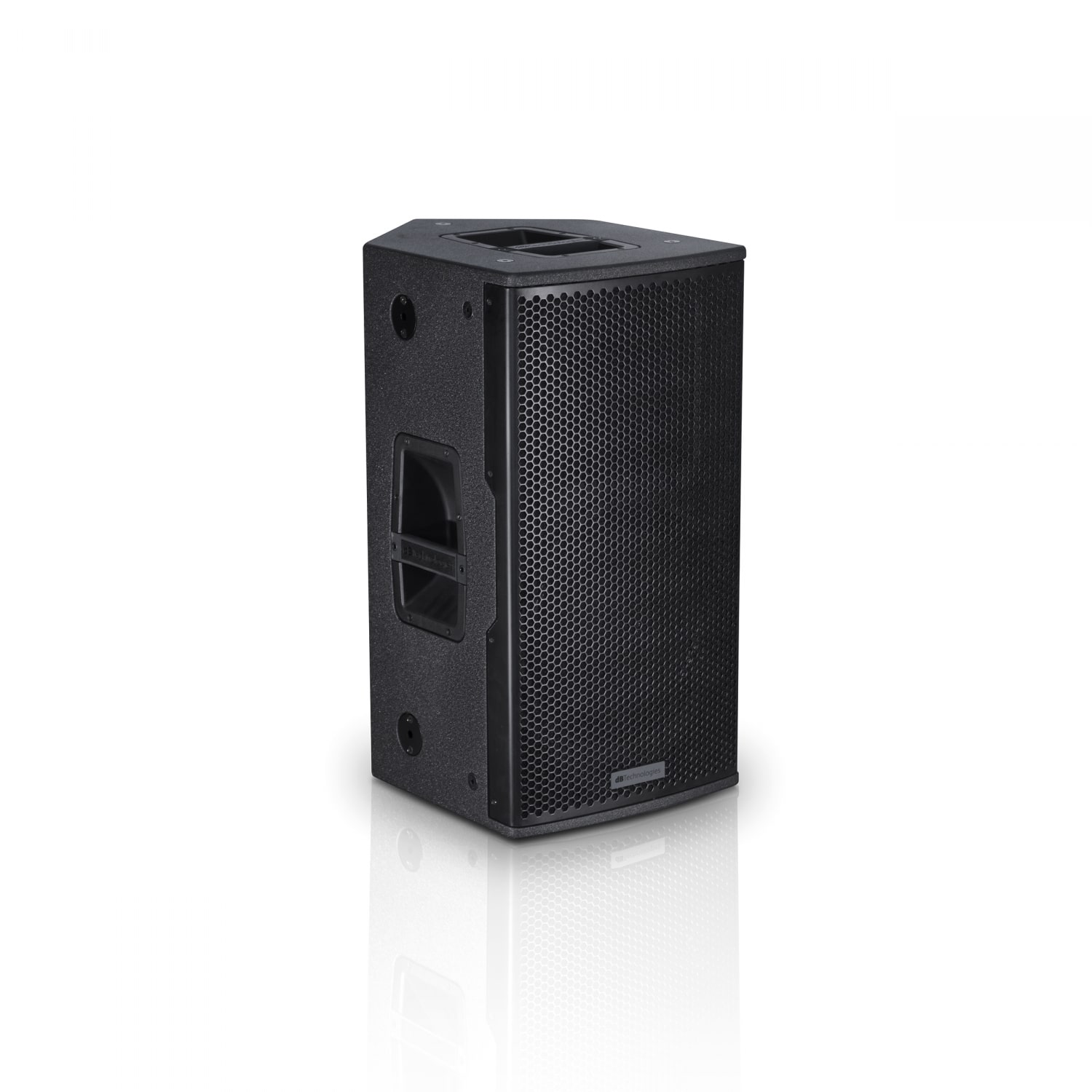

VIO X is an original series of professional active 2-way speakers. A point-source completion for the VIO family, combining impressive output, advanced DSP features and complete networkability via Aurora Net software.
Features
- Neodymium components
- 900W RMS
- Advanced DSP featuring Linear Phase FIR Filters
- Fully networkable via Aurora Net
- On board HPF and EQ presets
- Multifunctional design
Technical Data
Speaker Type: 2 Way Active Loudspeaker
Acoustical data
Frequency Response [-10dB]: 62 – 22.000 Hz
Frequency Response [-6dB]: 79 – 21.000 Hz
Max SPL: 132 dB
HF: 1 x1.4”, 2.5″ Neodymium
LF: 1x 12”, 3″ Neodymium
Directivity: 60° x 40°
Horn: Rotatable Horn
Amplifier
Amplifier: 900 W RMS Class-D Digipro® G3
Cooling: Class-DConvection
Power Supply: Auto-range SMPS
Processor
Controller: DSP 28/56 bit
AD/DA Converter: 24 bit/48 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters

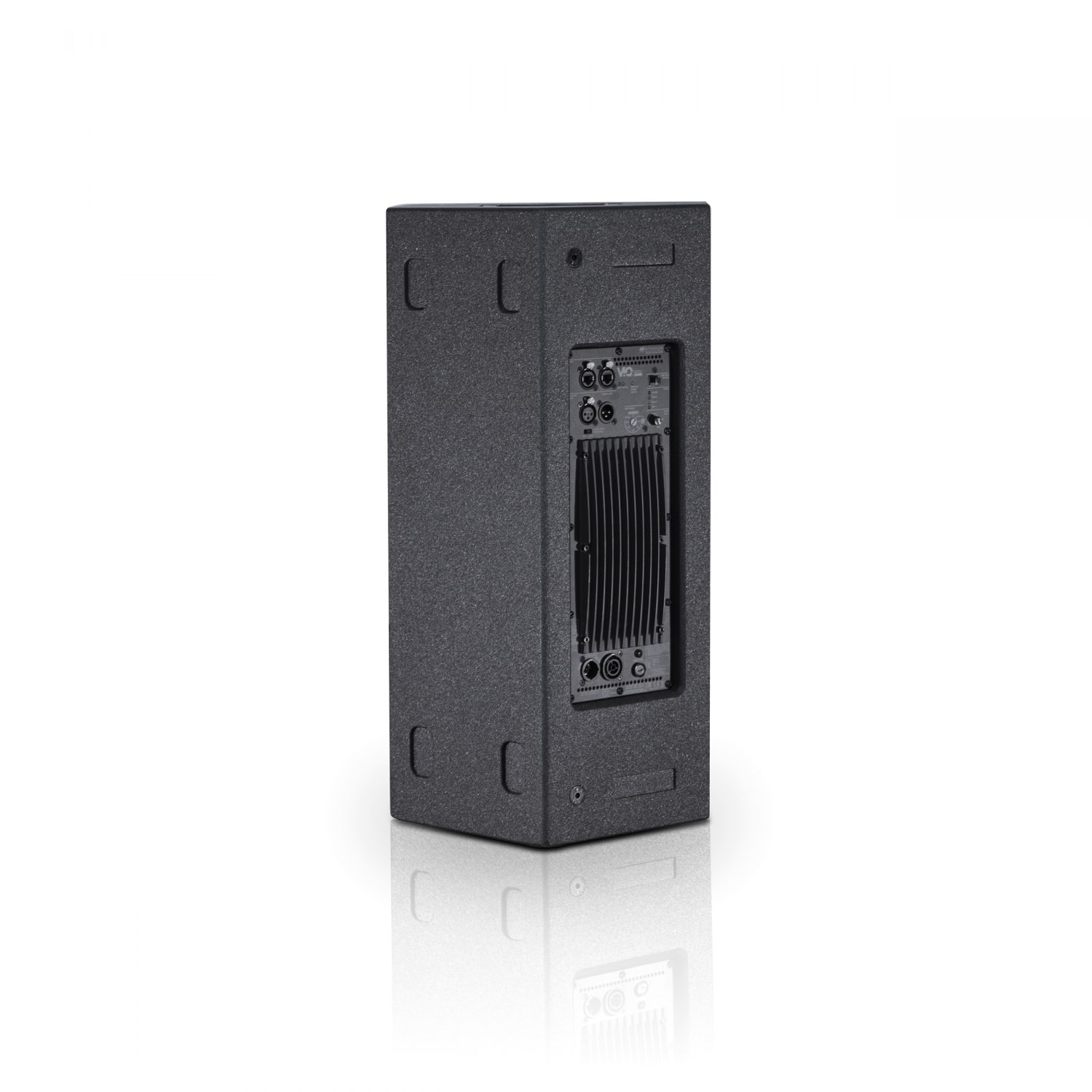

Input
Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet)
Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket:
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
1x PowerCON TRUE1 Out
Controles:
1x Rotary Encoder (8x EQ, HPF presets)
1x Input sensitivity potentiometer
1x Mic / line switch
1x Input sensitivity potentiometer
1x Mic / line switch
Special Features: Opto-isolated floating pre-amp
Mechanics
Housing: Wooden Cabinet, Polyurea painting

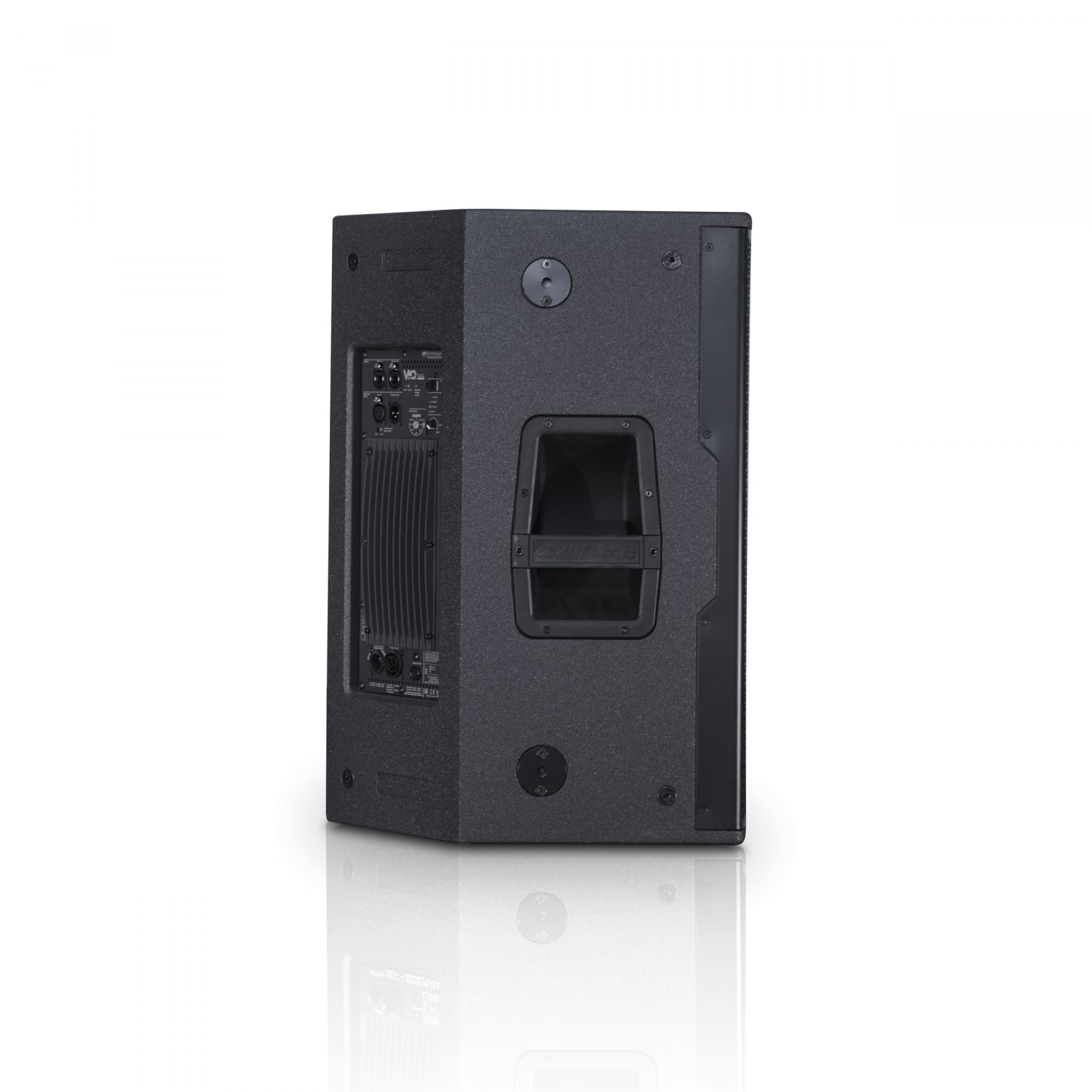

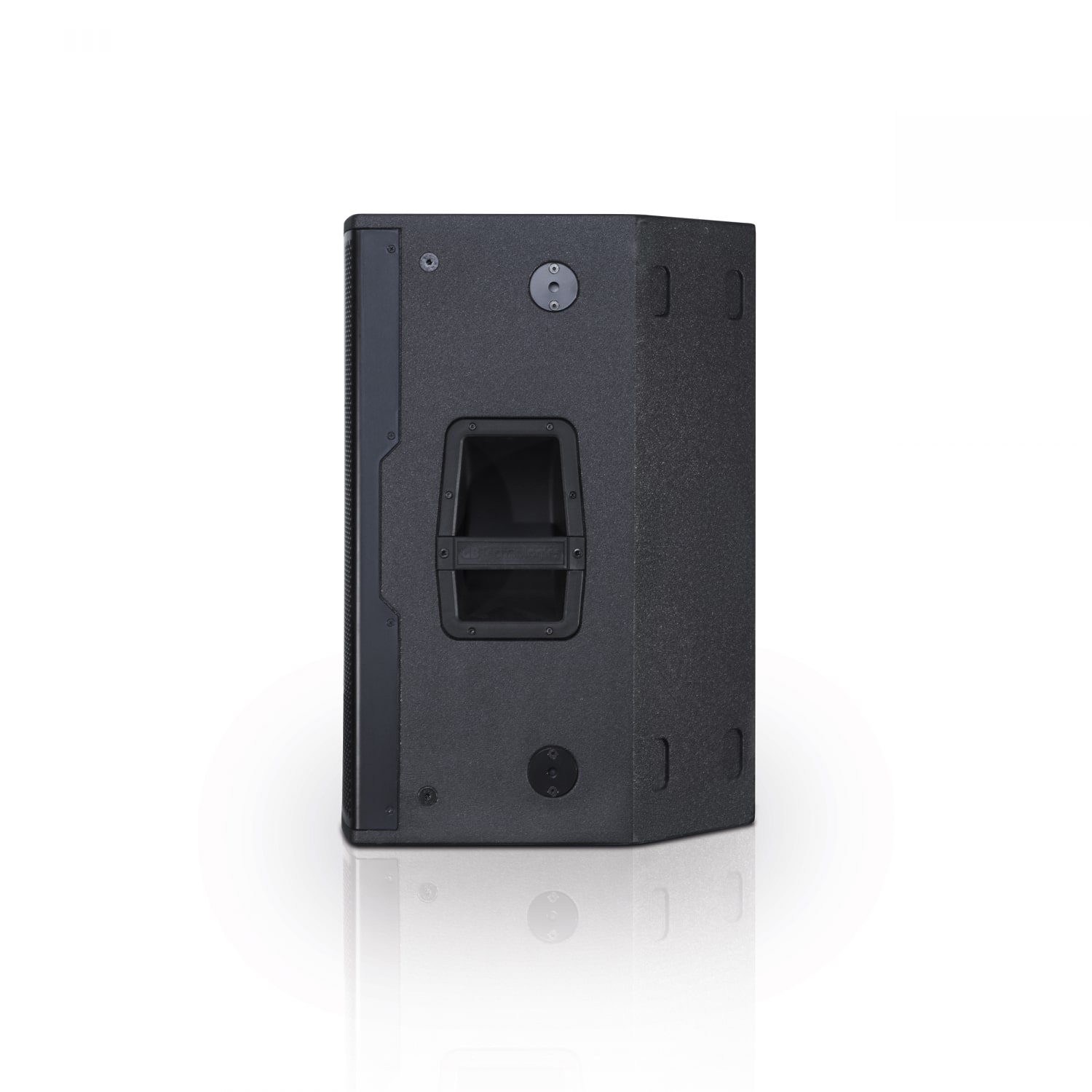

Handles: 1x (top), 2x (side)

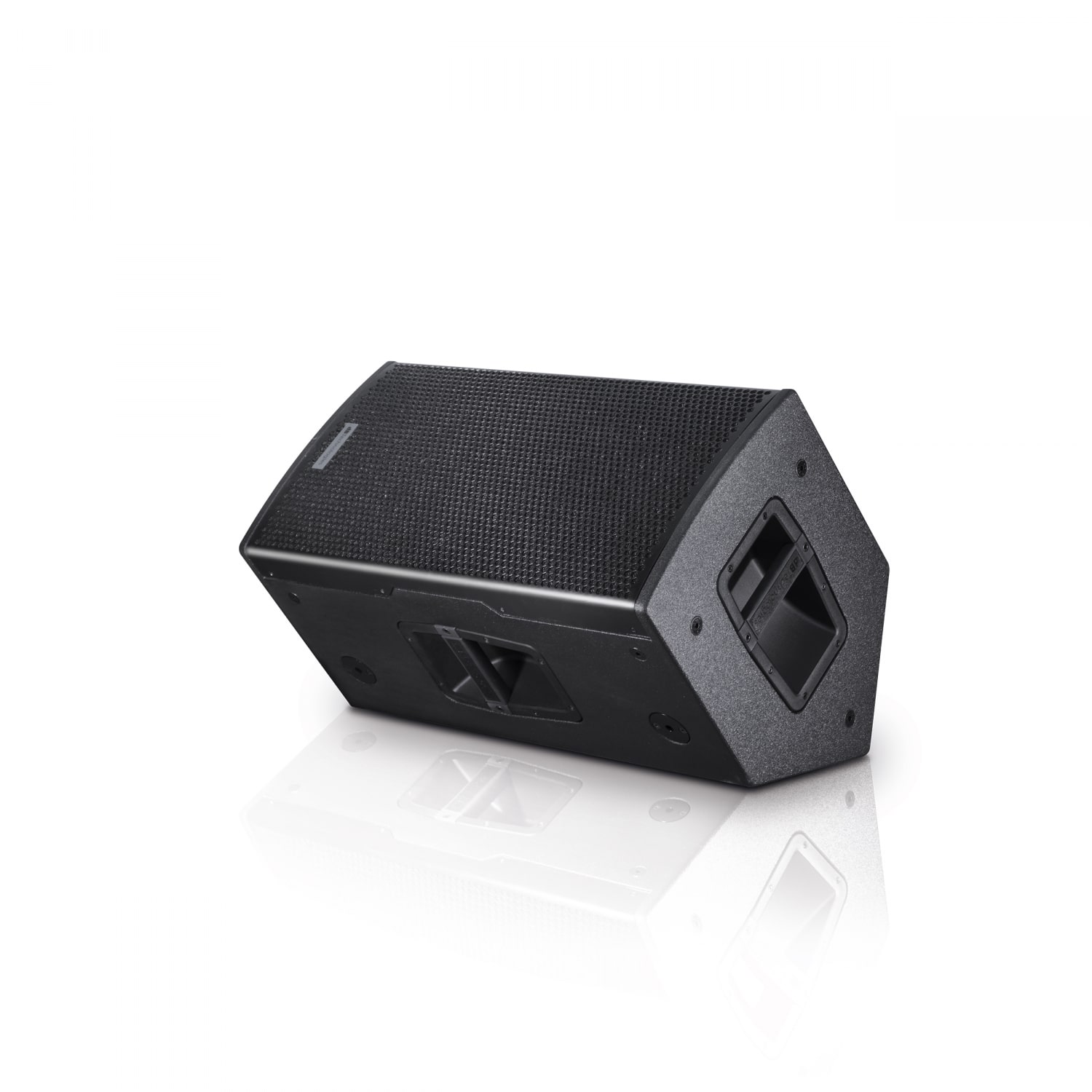

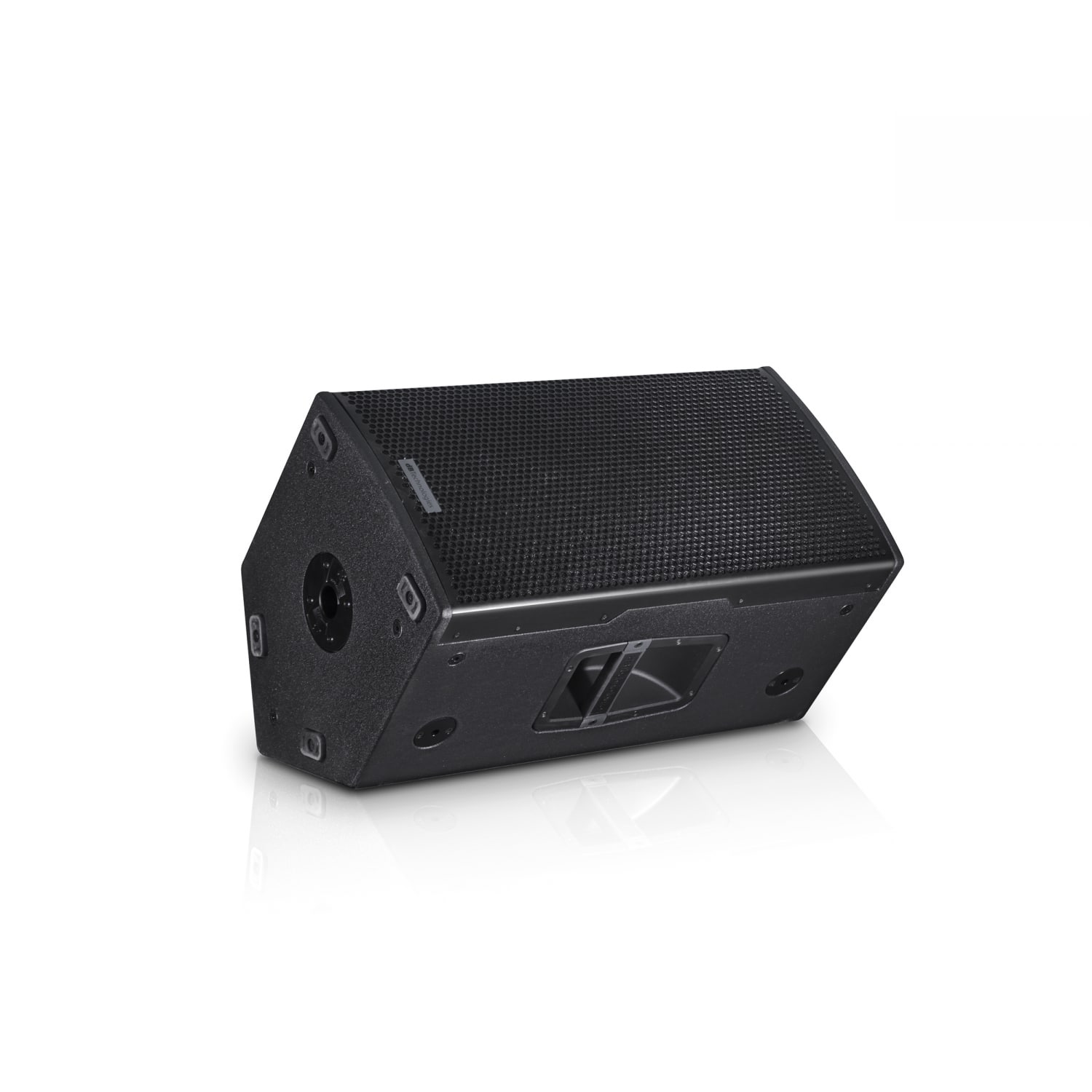

Wedge Angle: Monitor Use 50°
Rigging points: 12x M10 Thread + 4x Fast lock pins
Pole Mount: Ø36 mm
Width: 340 mm (13.38 in)
Height: 650 mm (25.5 in)
Depth: 445 mm (17.51 in)
Weight: 20.7 kg (45.63 lbs)
