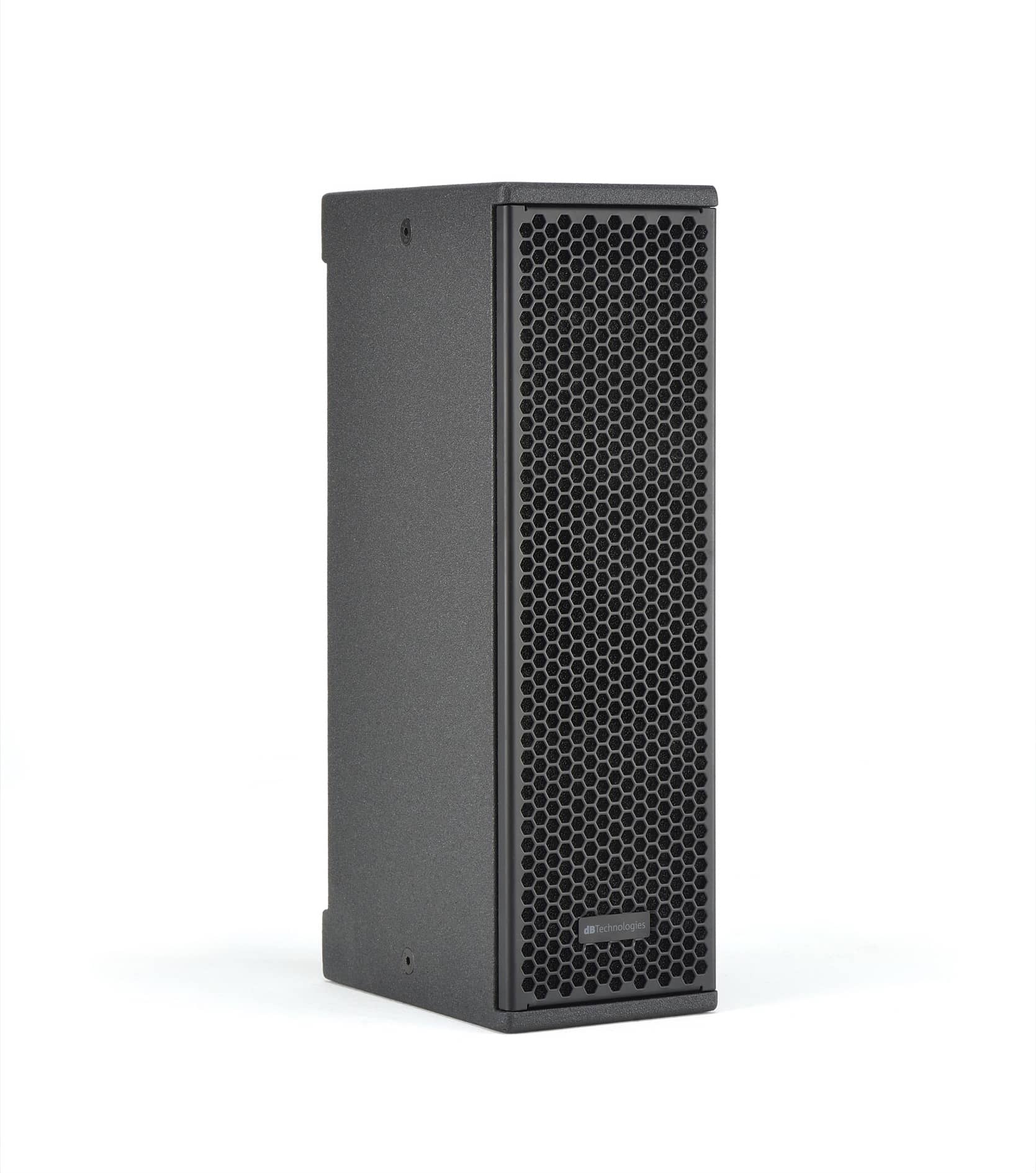

VIO X205 is a 2-way speaker equipped with 2×5” (1” voice coil) and 1×1” driver (1.4” voice coil). The 400 W RMS DigiproG3 amplifier powers a cabinet able to deliver up to 126 dB despite its very compact dimensions: only 150x 485×240 mm (WxHxD).
Advanced sound processing featuring Linear Phase FIR Filters allows VIO X205 to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. On board presets let users adapt High Pass Filters to the chosen application.

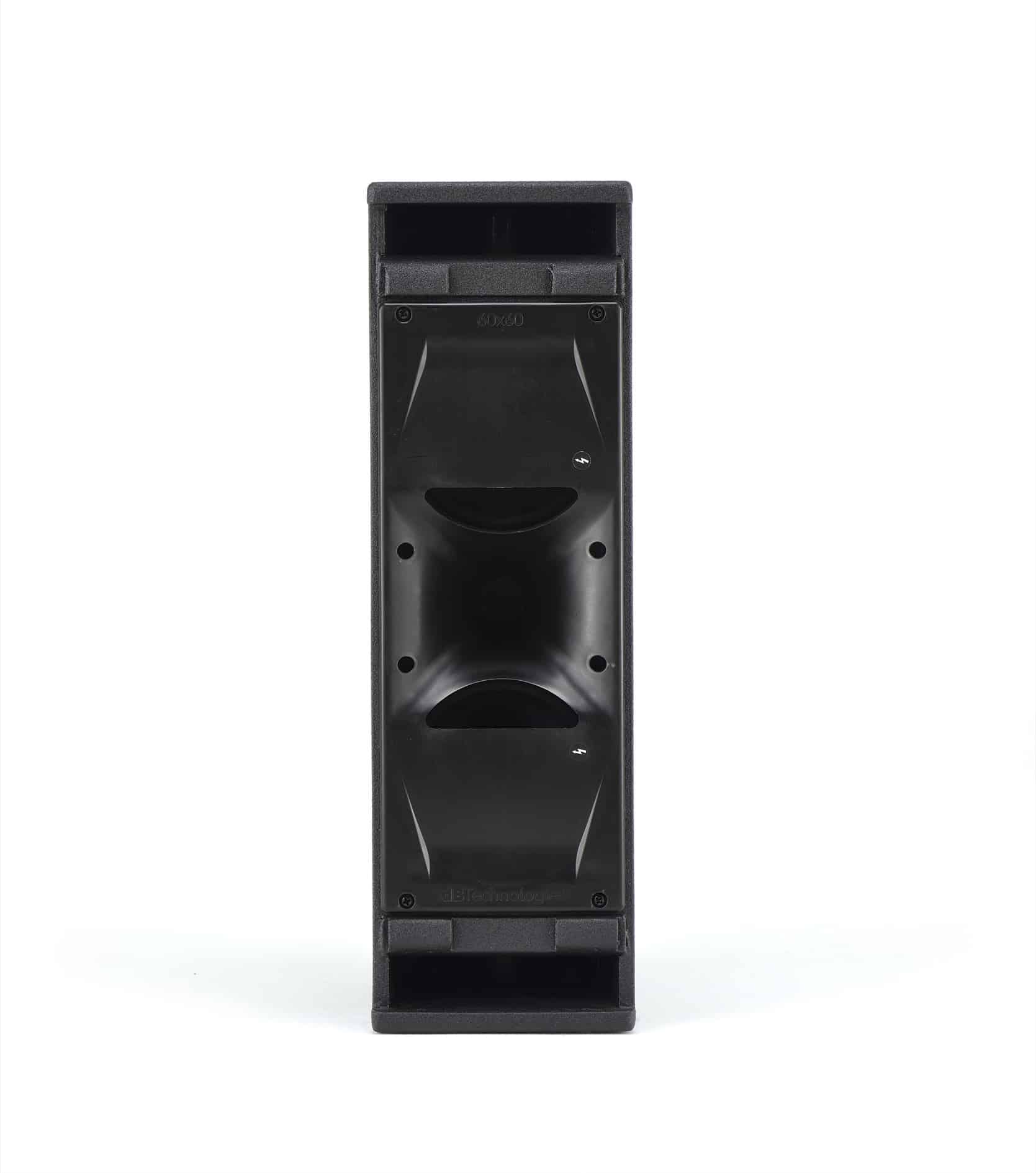

Keeping in mind the needs of the most demanding professionals, VIO X205 is available in 2 models featuring 2 different constant directivity horns allowing a 60°x60° (for VIO X205 60) or 100°x100° (for VIO X205 100) dispersion pattern. This means that each user will be able to choose the model that best fits his project as full-range PA, fixed installation, FOH monitoring, front-fill in large sound reinforcement systems, etc.
Just like other cabinets in the VIO X family, 205 is enabled for real time monitoring and remote control via RDNet protocol and Aurora Net software (Windows and Mac).
The cabinet is also provided with on board controls to set High Pass Filters as well as INPUT sensitivity.

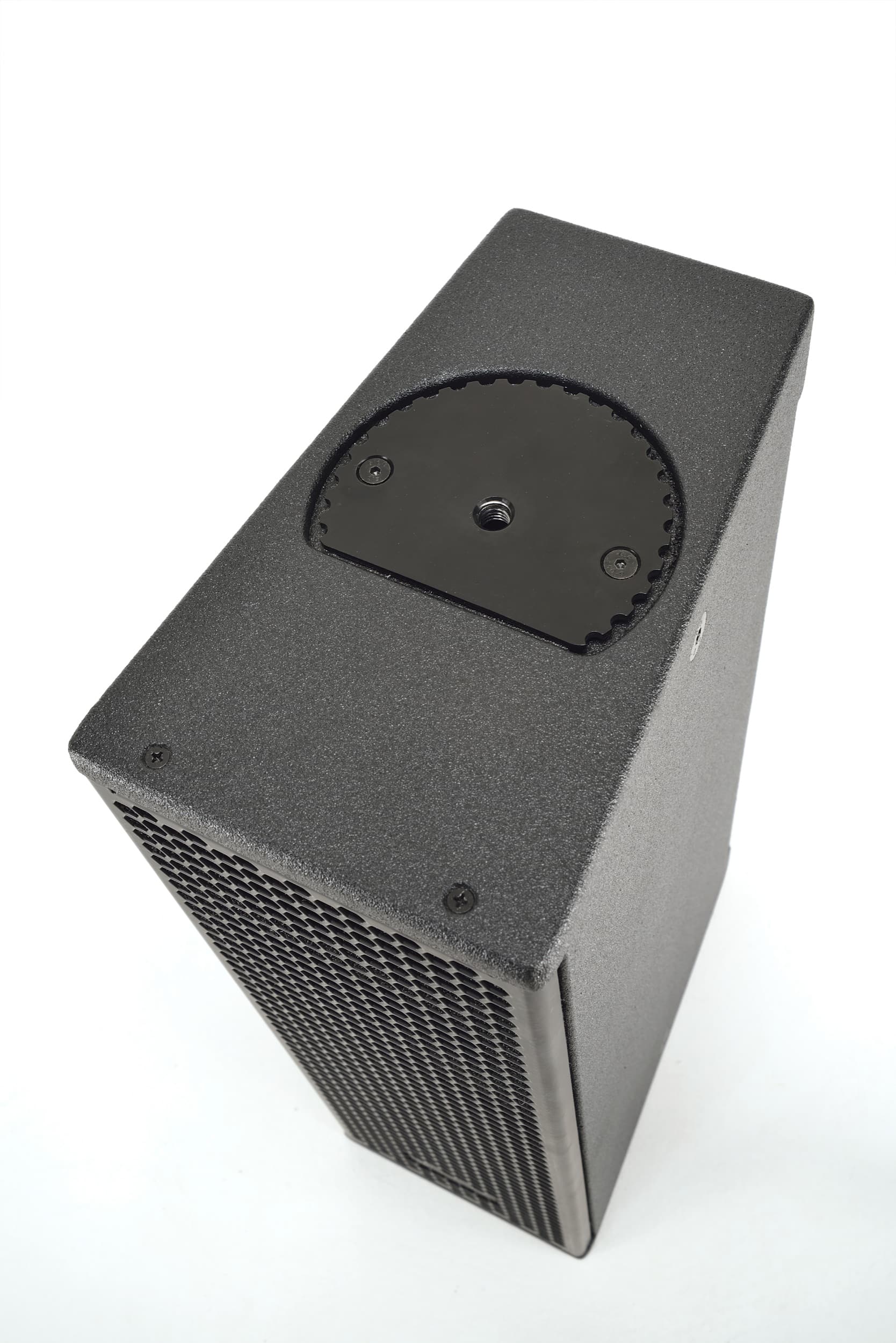

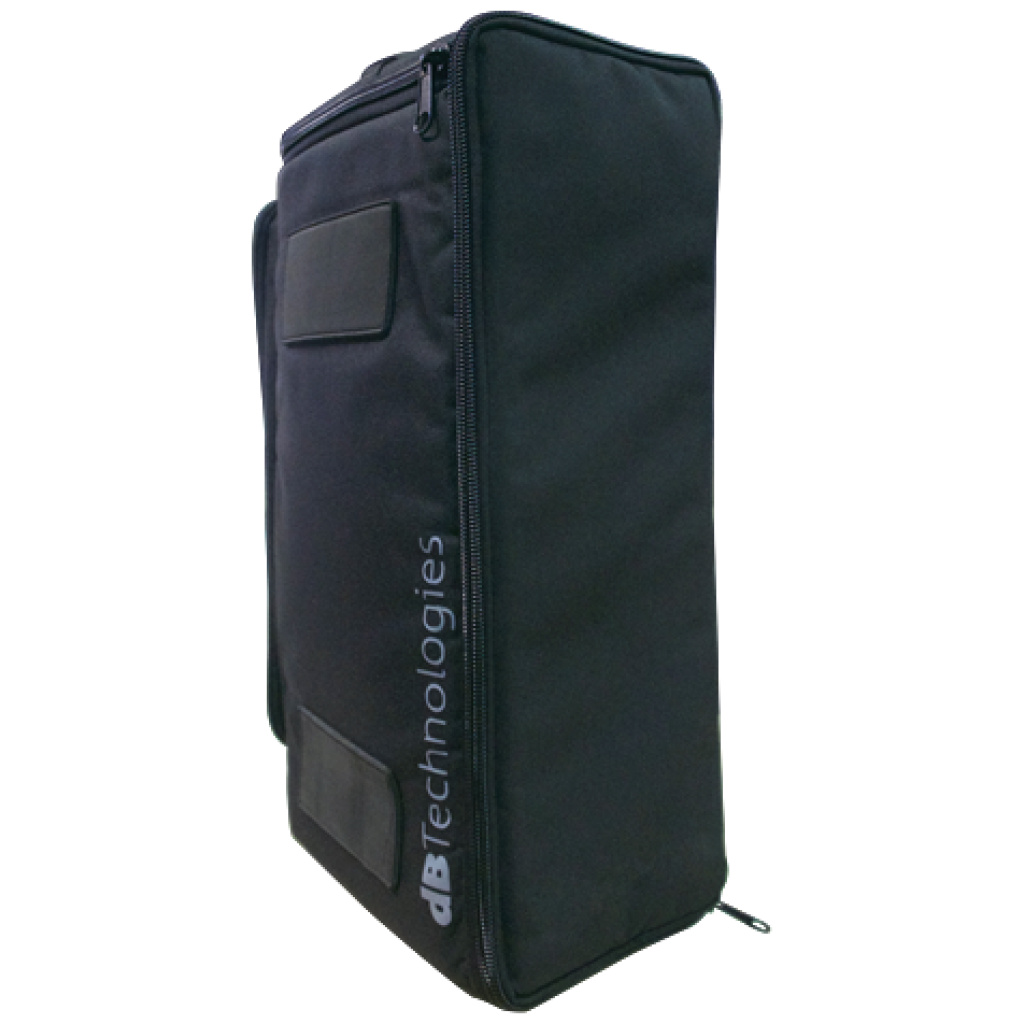

This solid wooden cabinet is reinforced with a polyurea finish and features M10 threaded nuts on top and bottom allowing installation with accessories WB-VIOX205 H (horizontal bracket) or WB-VIOX205 V (vertical bracket). The cabinet can be easily installed on pole thanks to SA-VIOX205 pole mount adaptor (35mm) allowing 2 tilt options. Functional cover FC VIOX 205 is also available as an accessory.
FEATURES
2-WAY ACTIVE LOUDSPEAKER
400 W RMS CLASS-D DIGIPRO® G3 AMPLIFIER
MAX SPL126 dB
FREQUENCY RESPONSE [-6dB]: 80 – 20.000 Hz
AURORA NET READY
HF: 1x 1”, 1.4 v.c.
LF: 2x 5”, 1″ v.c.
TECHNICAL DATA
Speaker Type: 2 Way Active Loudspeaker
Acoustical data
Usable bandwidth [-10dB]: 75 – 21.000 Hz
Frequency Response [-6dB]: 80 – 20.000 Hz
Max SPL: 126 dB
HF: 1x 1”, 1.4 v.c.
LF: 2x 5”, 1″ v.c
VIO X205-60 Directivity: 60° x 60°
VIO X205-100 Directivity: 100° x 100°
Amplifier
Amplifier: 400 W RMS Class-D Digipro® G3
Cooling: Convection
Power Supply: Auto-range SMPS
Processor
Controller: DSP 28/56 bit
AD/DA Converter: 24 bit/48 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters
Input
Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket: 1x PowerCON TRUE1 In – 1x PowerCON TRUE1 Out
Controls: 1x Rotary Encoder (8x EQ presets) – 1x Input Attenuation Rotary Switch – 1x On LED – 1x Status LED – 1x Signal LED – 1x Limiter LED
Mechanics
Housing: Wooden Cabinet, Polyurea painting
Handles: 1x (top)
Wedge Angle: Monitor Use 5°
Rigging points: 2x M10 Threaded Nuts (top and bottom)
Width: 150 mm
Height: 485 mm
Depth: 240 mm
Weight: 7.8 kg
