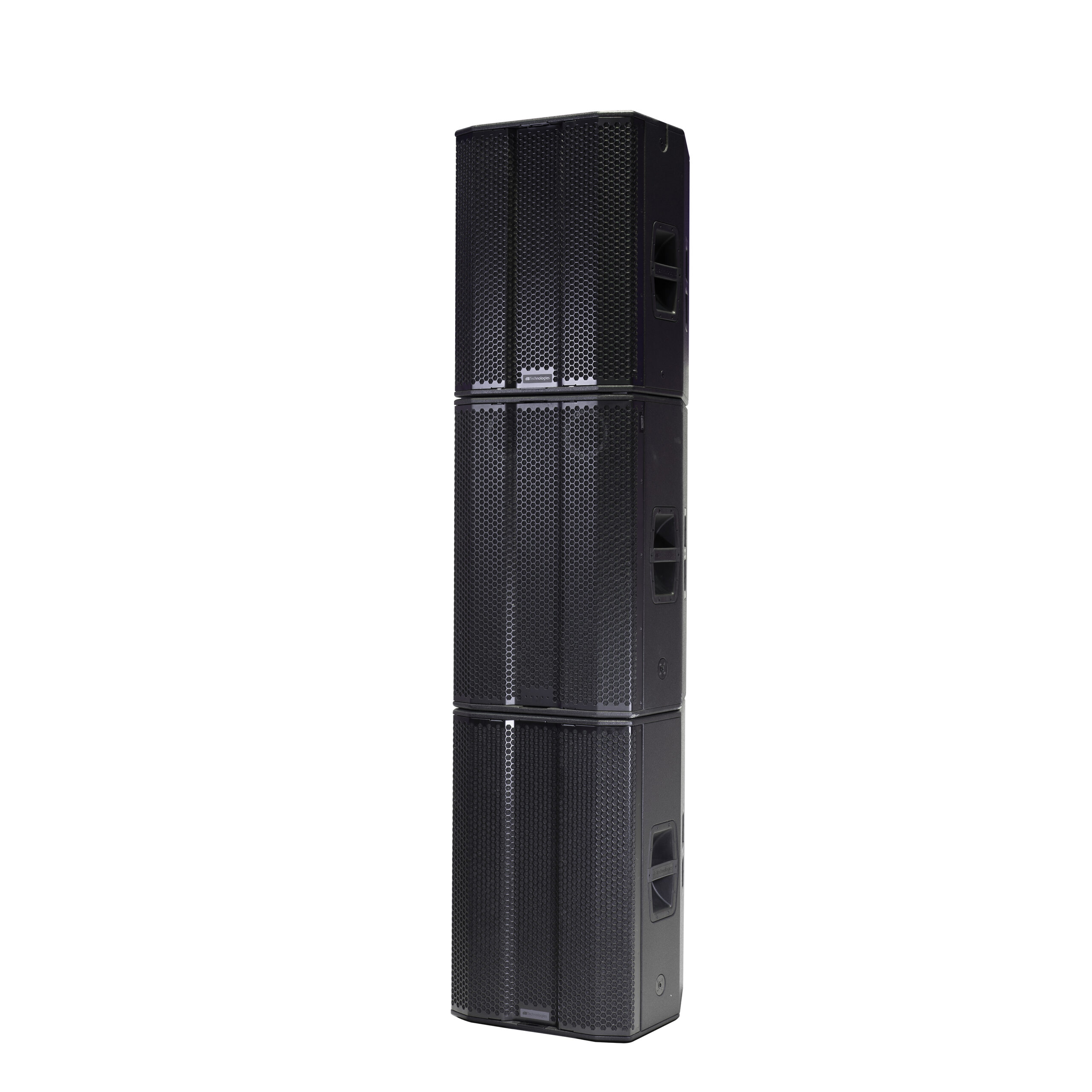

Fifty Line is one of our most straightforward systems: easy transport options, smooth deployment with scalable options, outstanding final result.

Technical Data
Speaker Type: 2-Way Active Full-range Speaker

Acoustical data
Frequency Response [-6dB]: 65 – 19.300 Hz
Max SPL: 137 dB
HF: 2x 1.4″ exit
HF Voice Coil: 3″
Directivity (HxV): 60 x +15°/- 35°
Crossover Frequency: 760 Hz
LF: 4x 10″
LF Voice Coil: 2″

Amplifier
Amp Technology: PSC1 with PFC
Amp Class: Class-D
Peak Power: 3200 W
RMS Power: 1600 W
Cooling: Passive Convection

Processor
Controller: DSP 32 bit
AD/DA Converter: 24bit/96kHz

Input
Signal Input: 1 x XLR female
Signal Out: 1 x XLR male
USB connector: Type B – Data Service
Controls: 1 rotary encoder (Preset) 4 System LED (Limiter, Signal, Mute/Prot, Ready) 3 RDNet LED (Link, Active, Remote Active)
Power socket: 1xPowerCon TRUE1 Mains 1xPowerCon TRUE1 Link

Mechanics
Housing: Plywood
Grille: Full metal grille

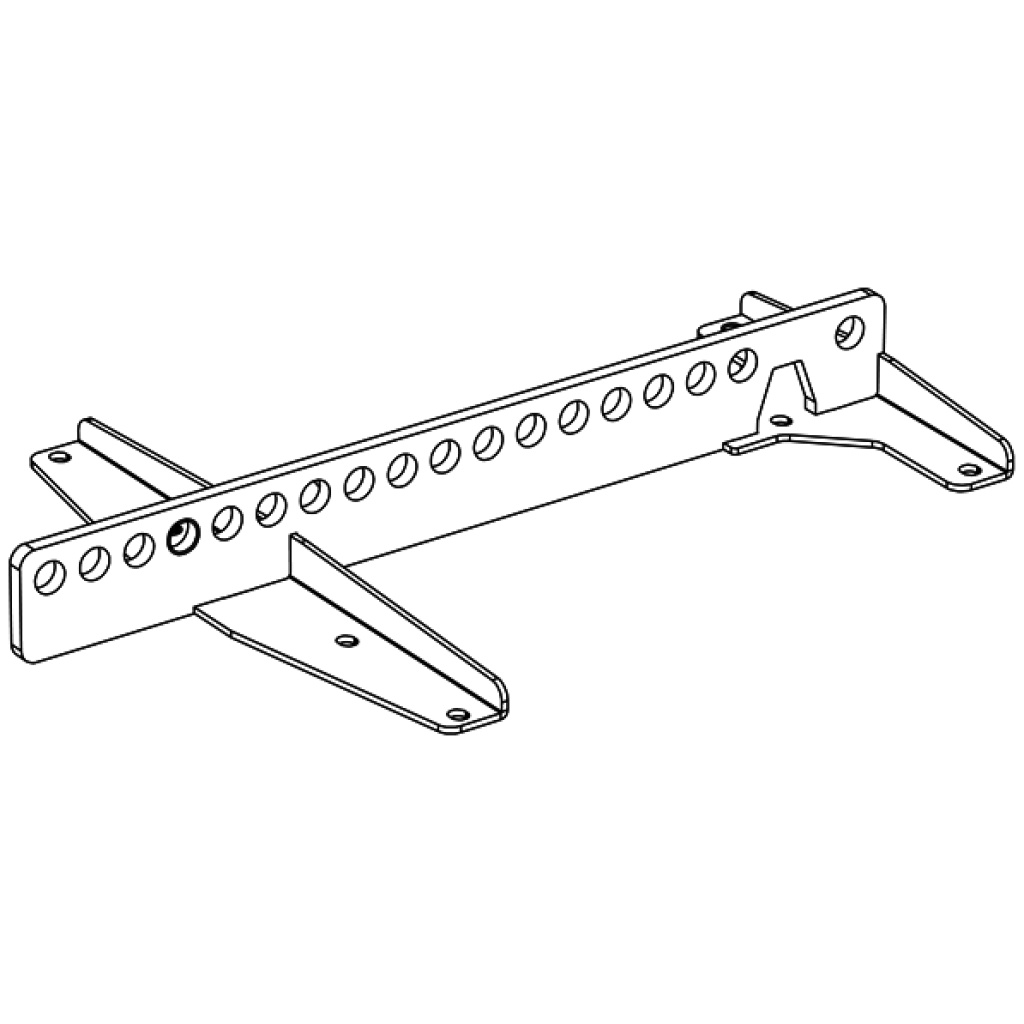

Rigging point: Flyable with accessories

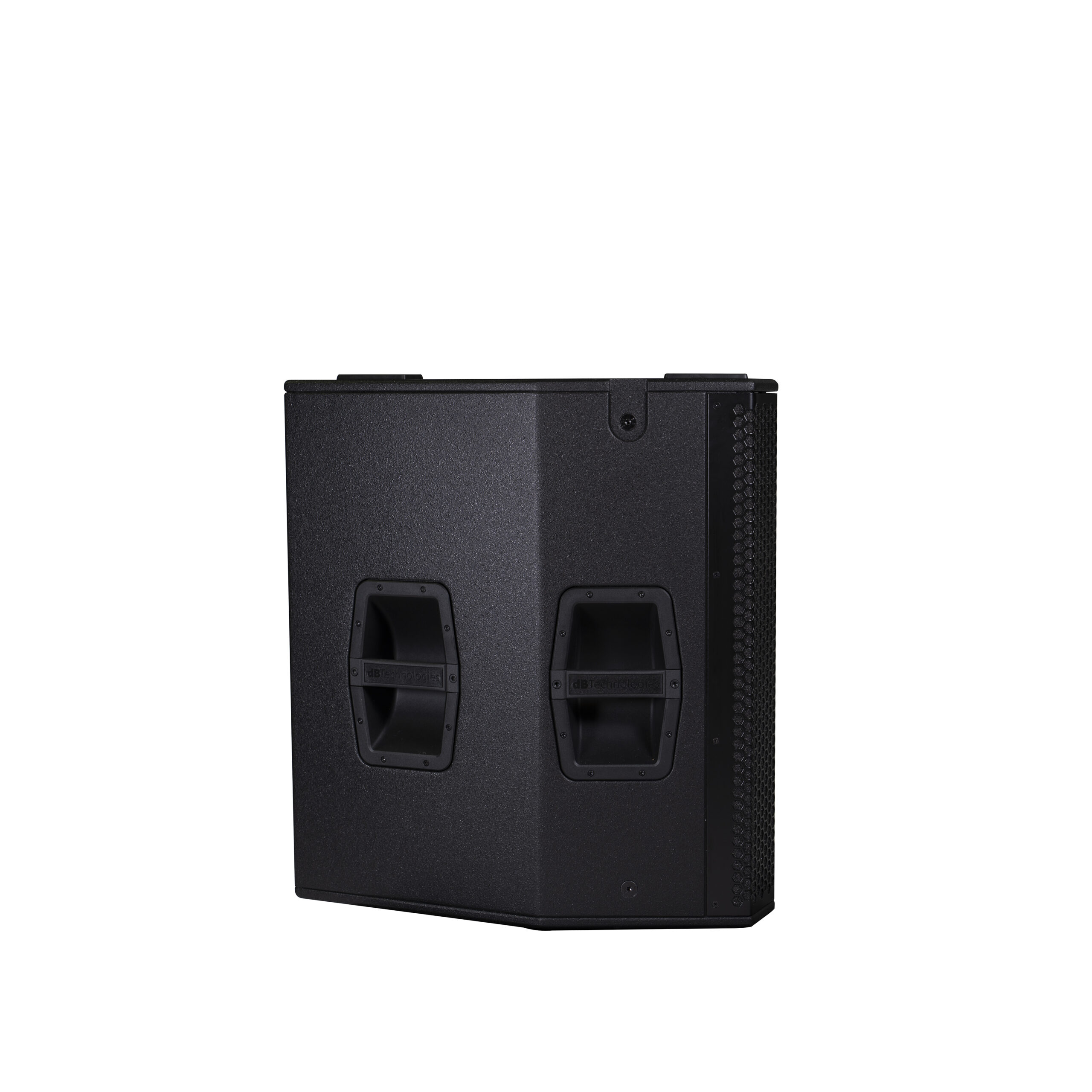

Handles: 2x side
Width: 500 mm (19.7 in)
Height: 650 mm (25.6 in)
Depth: 600 mm (23.6 in)
Weight: 38.1Kg (84 lbs.)
