The 3-way tri-amped design.
The MF-HF coaxial component mounted in both VIO X310 and VIO X315 utilize the same transducer used in the VIO L1610 line array module: it’s a 4” voice coil plus 2.5” voice coil coaxial driver, an heavy-duty and high-fidelity transducer reproducing from 500Hz up.
When it comes down to detailed mid-range reproduction, a compression driver diaphragm is much quicker and more accurate than a similar sized woofer. Furthermore, because of the compact dimensions, this content can be easily dispersed through a horn, just like you would do with an HF driver, for improved control over the sonic pattern.
These characteristics result in an incredibly faithful and meticulous reproduction of the most critical frequency range, essential for clear-cut intelligible vocals and instrument separation in your mix.
Since a great portion of the frequency content is horn loaded, not only is the sound pressure level impressive due to the acoustic loading, but also directivity control is maximized.
Last but not least, the sum of all these acoustic design choices combined with cutting edge class-D amplifiers and DSP processing result in remarkable sound pressure levels, as high as 137dB.
The two speakers share the same coaxial MF-HF transducer but differ in size due to the different components handling the low-end reproduction.

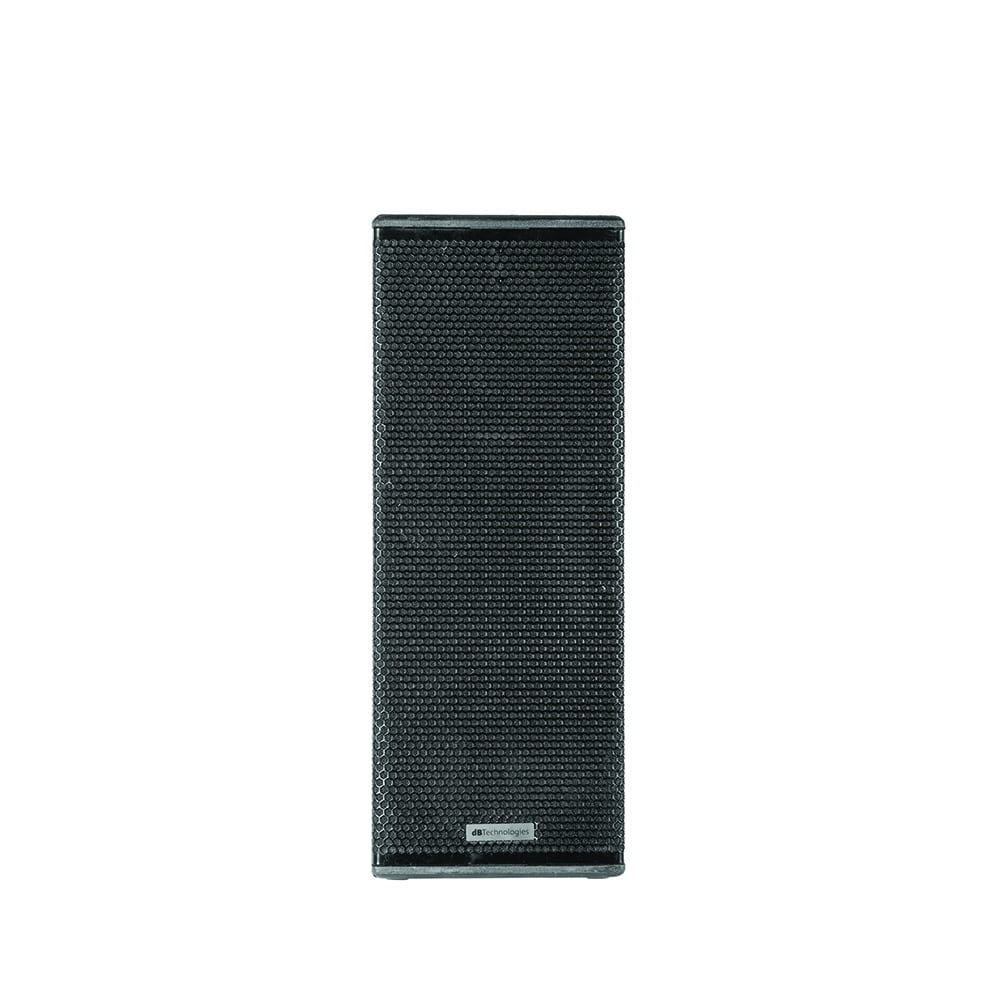

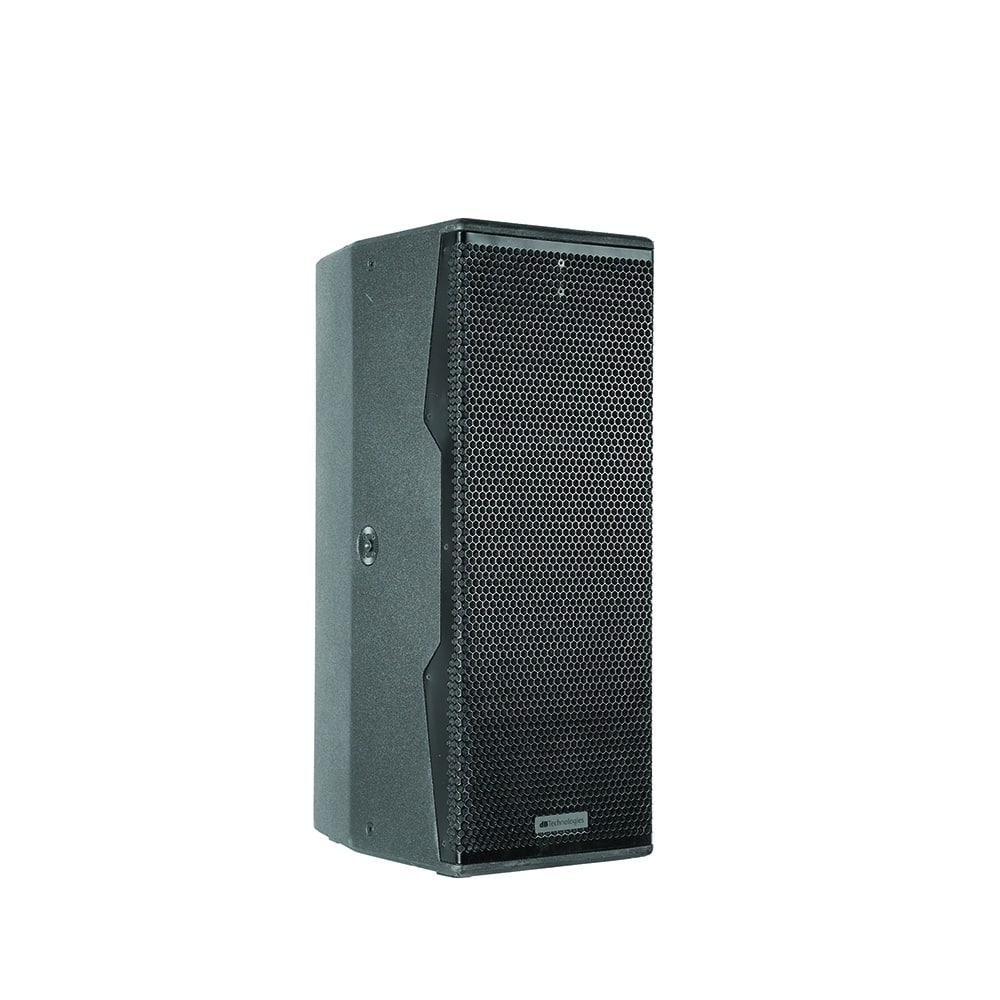

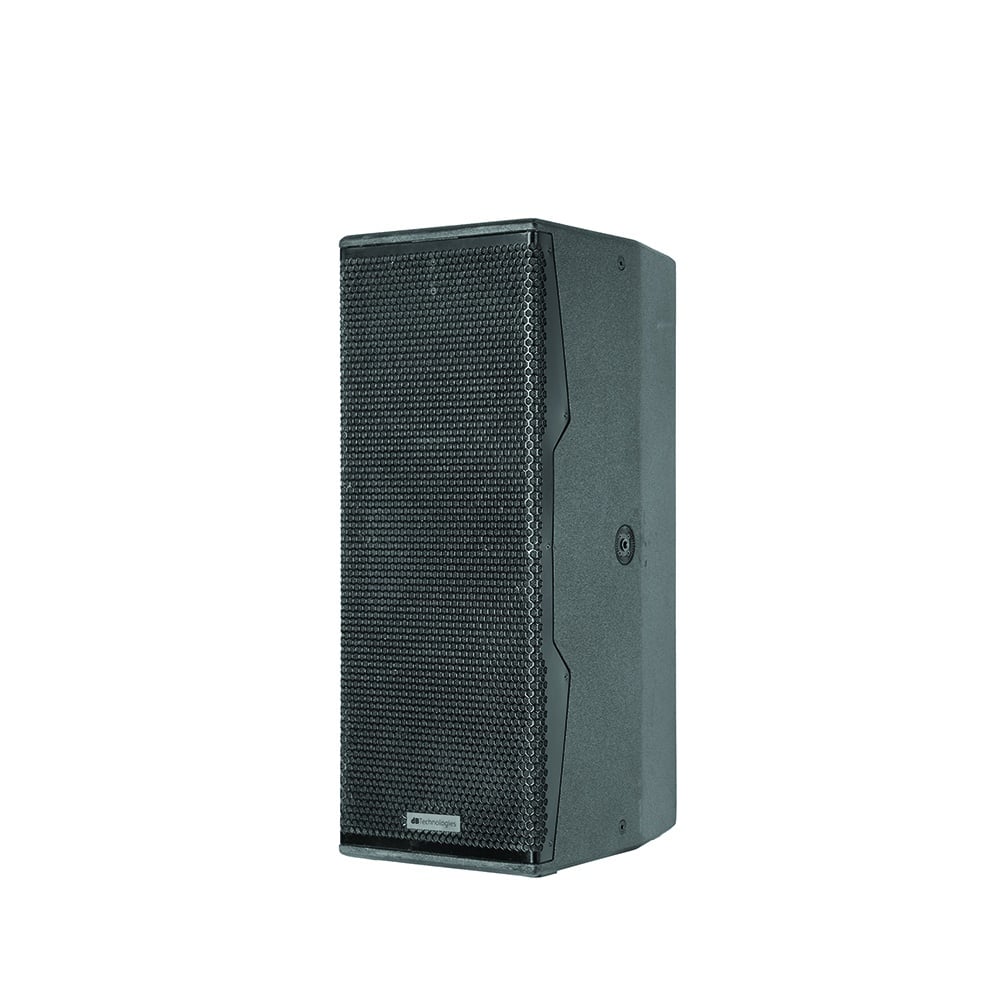

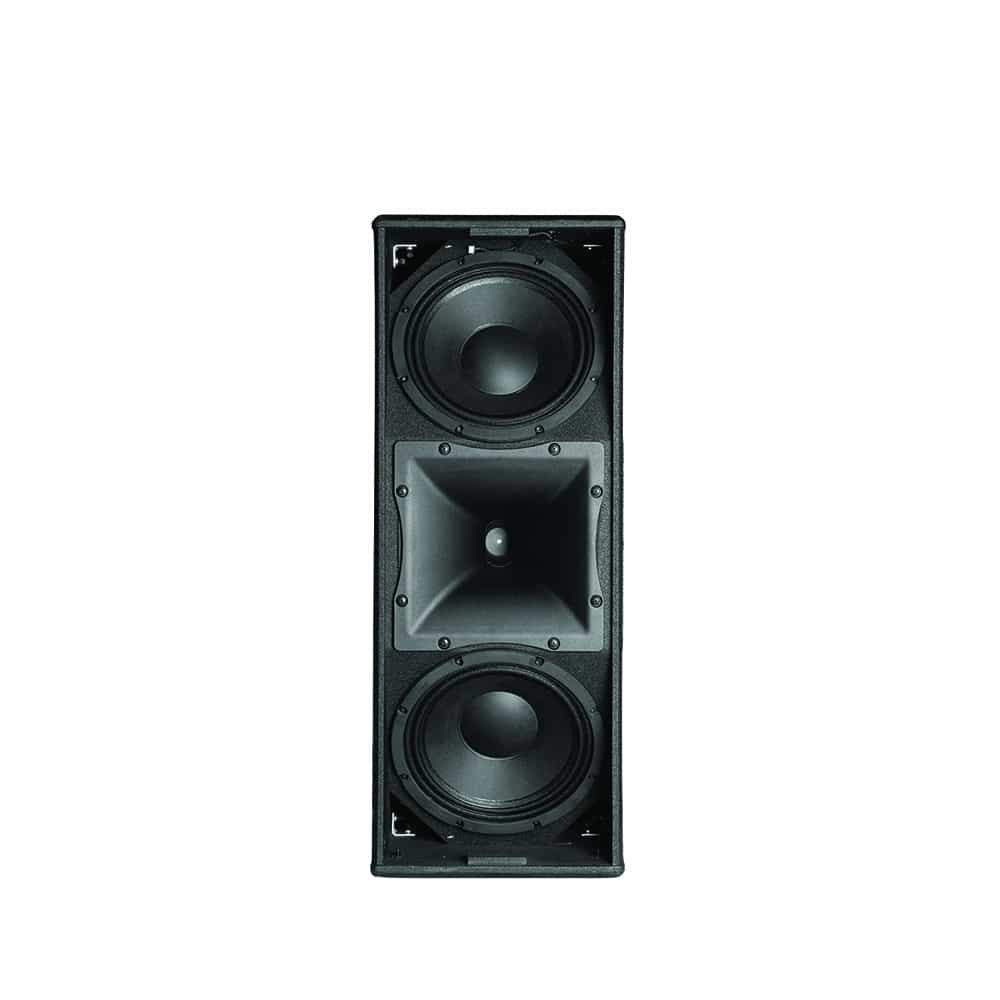

VIO X310 is equipped with 2x 10″ neodymium woofers in a dipole configuration, so the speaker benefits from all the advantages of this arrangement such as a very prominent directivity control for low-mids and a precise, fast, and extended response of the bottom end.
The Coaxial mid-high frequency compression driver is mounted behind a 90° by 40° rotatable horn, and all the components are arranged around the center of this point source, resulting in a symmetrical dispersion.
FEATURES
- 3-WAY ACTIVE LOUDSPEAKER
- 1400 W RMS CLASS-D DIGIPRO® G4 AMPLIFIER
- MAX SPL138 dB
- FREQUENCY RESPONSE [-6dB]: 57 – 19.200 Hz
- DANTE & A2NET READY
- HF/MF: 1x 1.4”, 4″- 2.5″ v.c. COAXIAL NEODYMIUM
- LF: 2x 10”, 2.5″ v.c NEODYMIUM
Technical Data
Speaker Type: 3 Way Active Loudspeaker
Acoustical data
Usable bandwidth [-10dB]: 53 – 19.800 Hz
Frequency Response [-6dB]: 57 – 19.200 Hz
Max SPL: 138 dB
HF/MF: 1x 1.4”, 4″- 2.5″ v.c. Coaxial Neo
LF: 2x 10”, 2.5″ v.c Neo
Directivity: 90° x 40° [H x V]
Amplifier
Amplifier: 1400 W RMS Class-D Digipro® G4
Cooling: Convection
Power Supply: Full range SMPS with PFC
Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters

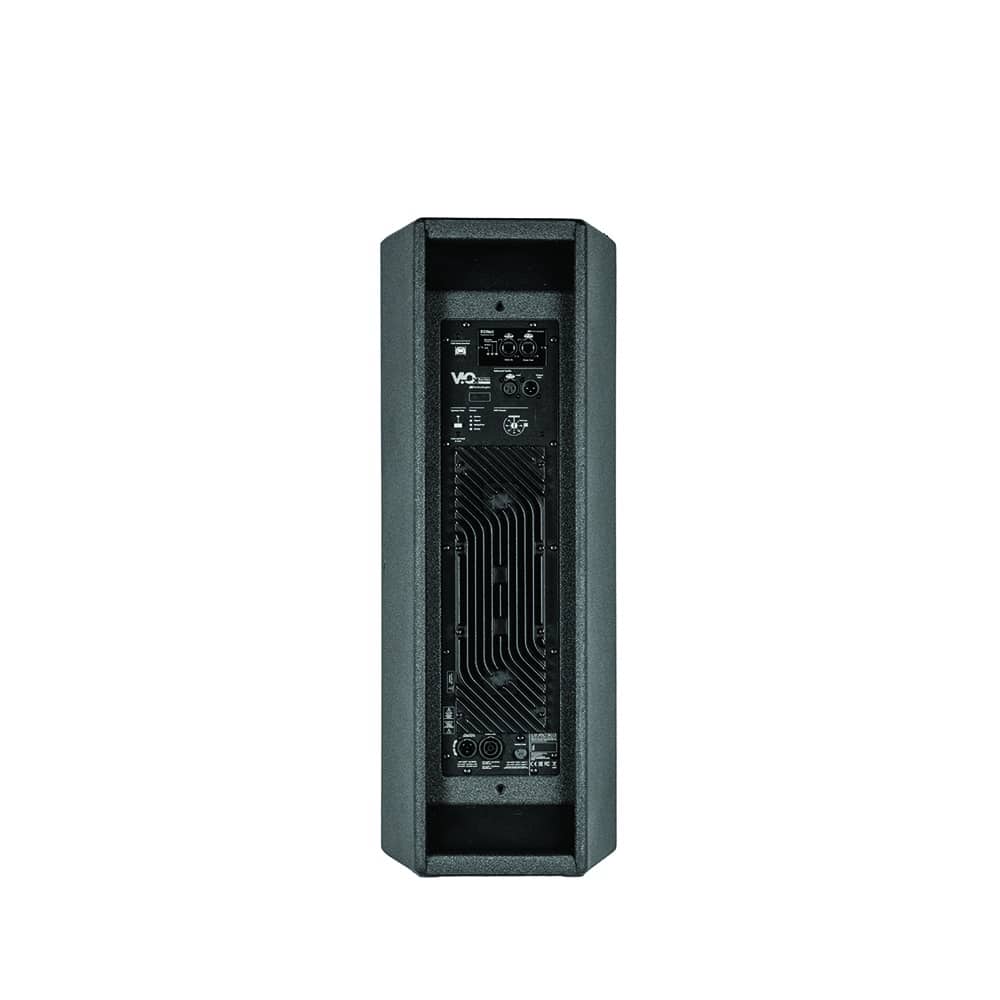

Input

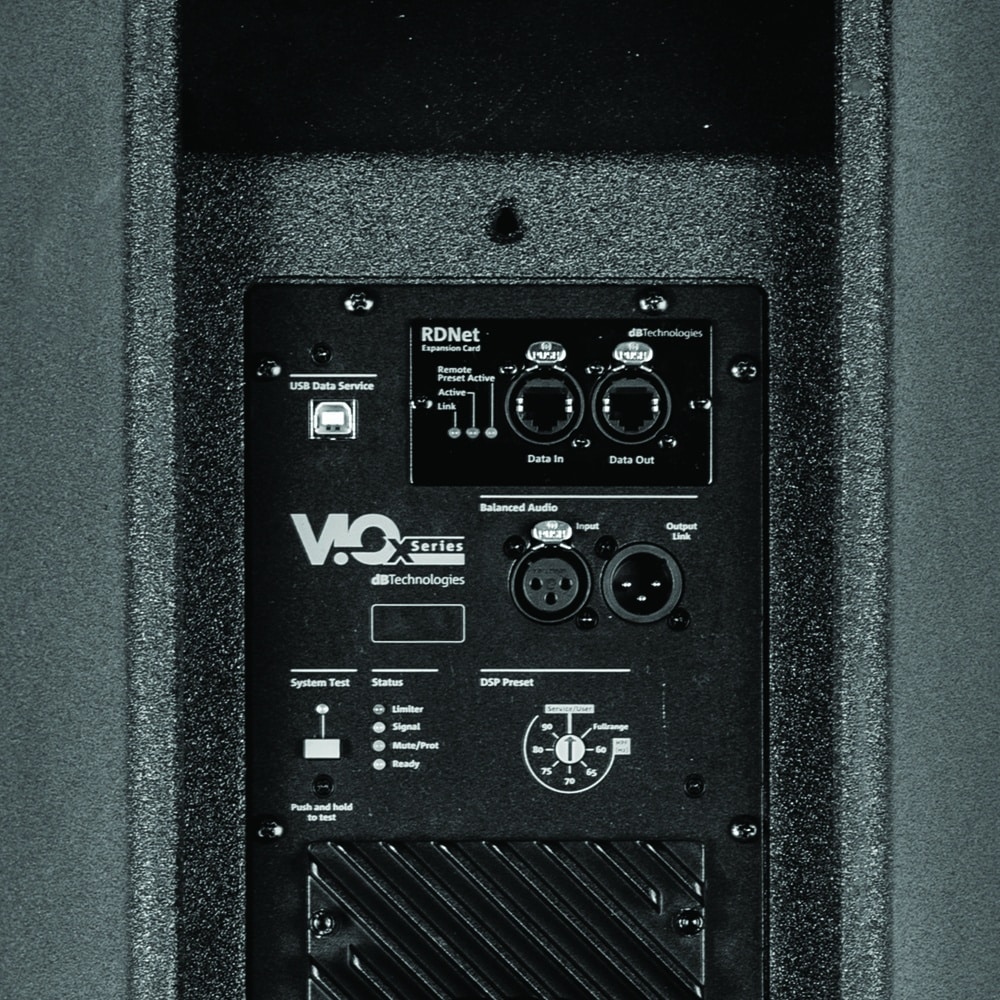

Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket: 1x PowerCON TRUE1 In 1x PowerCON TRUE1 Out
Controls: 1x input Rotary Encoder (8x presets) 1x Ready LED 1x Mute/Prot LED 1x Signal LED 1x Limiter LED 1x Frontal LED 1x Button and 1x LED System Test
Mechanics

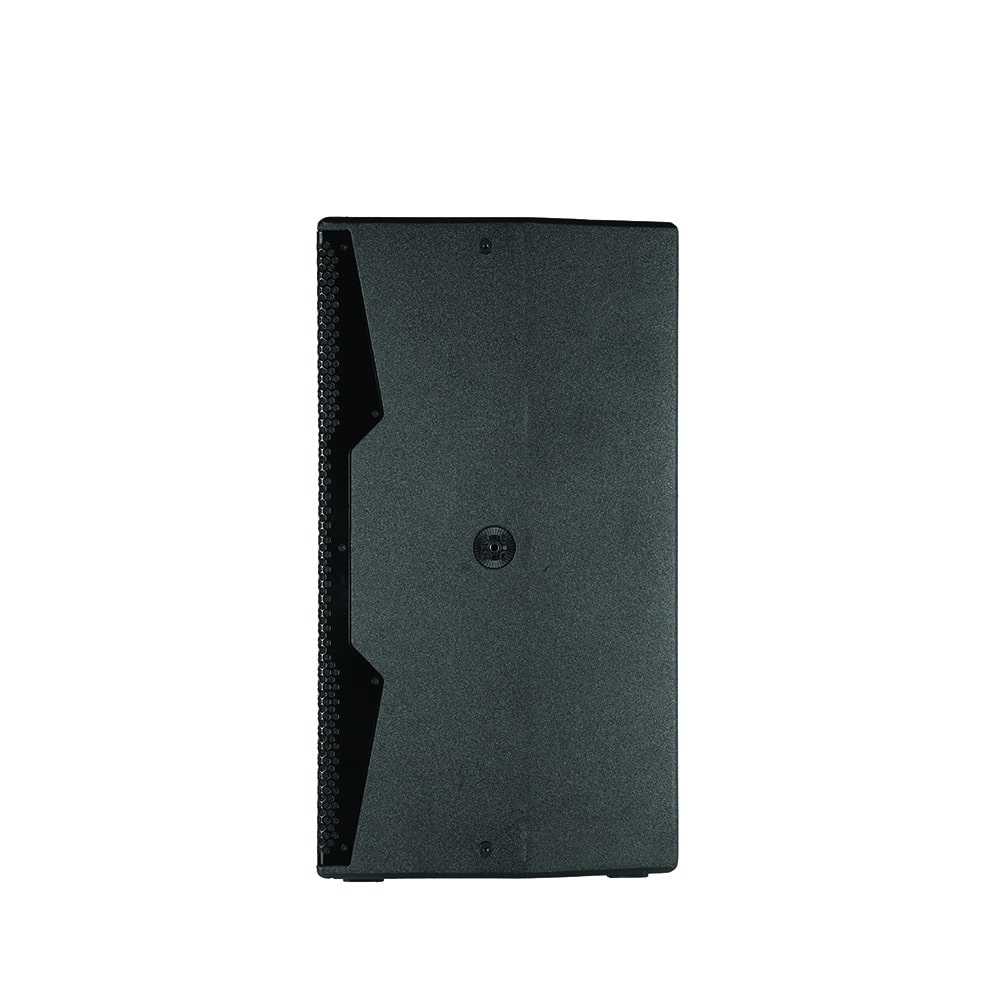

Housing: Wooden Cabinet

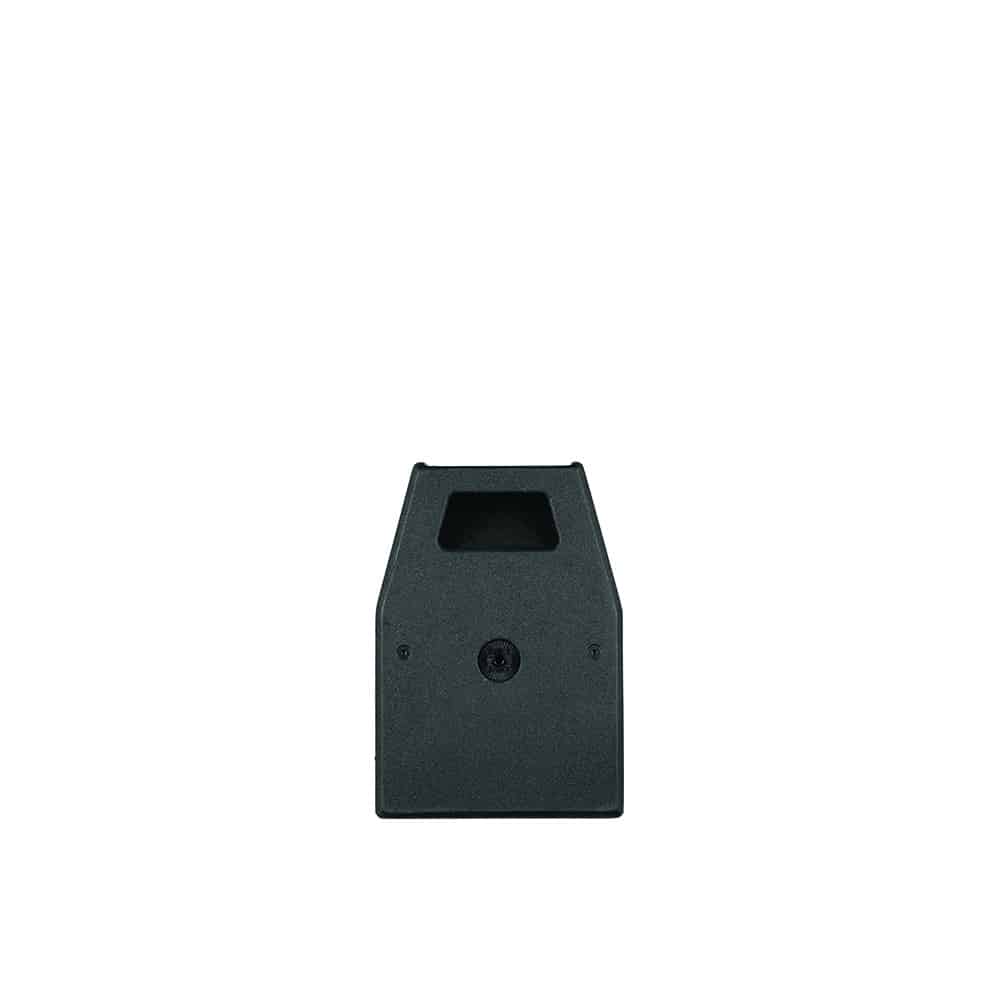

Handles: 1x on top / 1x on bottom

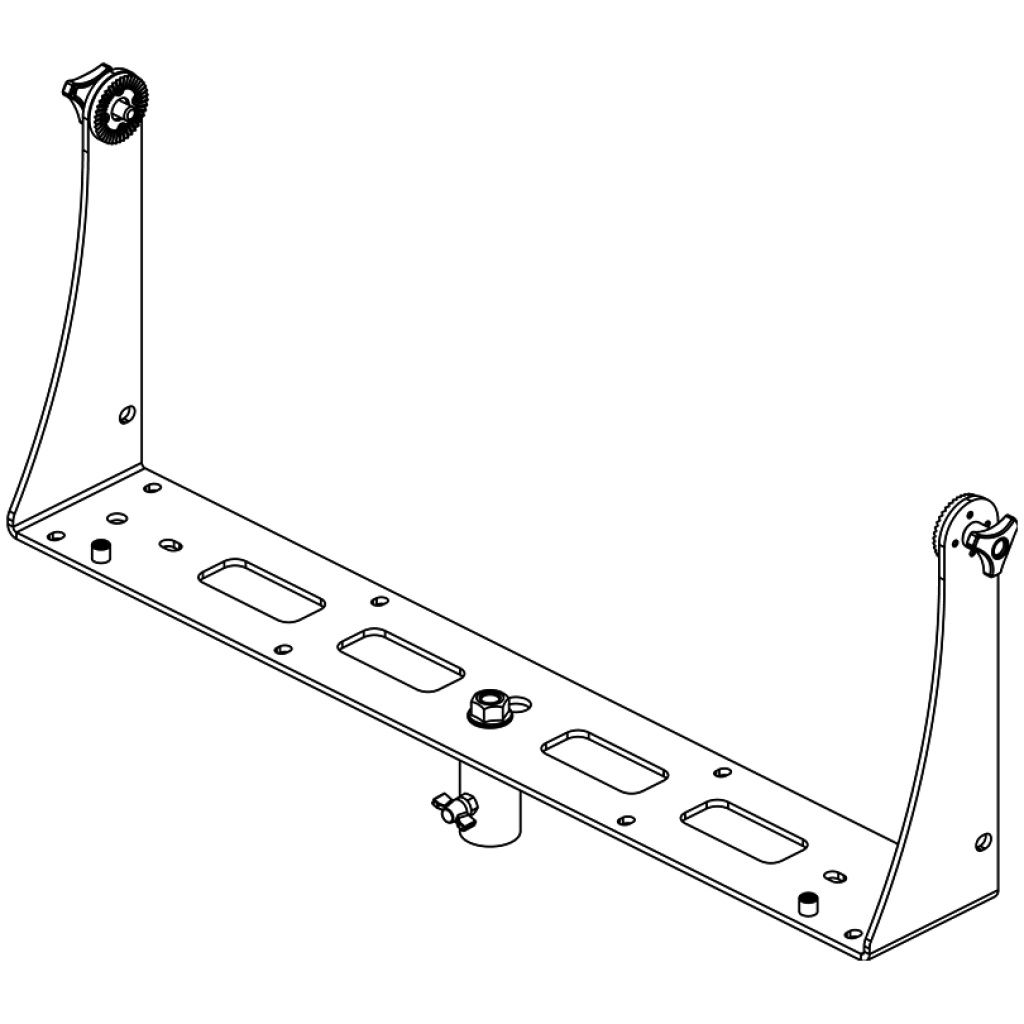

Rigging points: flyable with bracket
Width: 300 mm
Height: 780 mm
Depth: 430 mm
Weight: 28 kg
