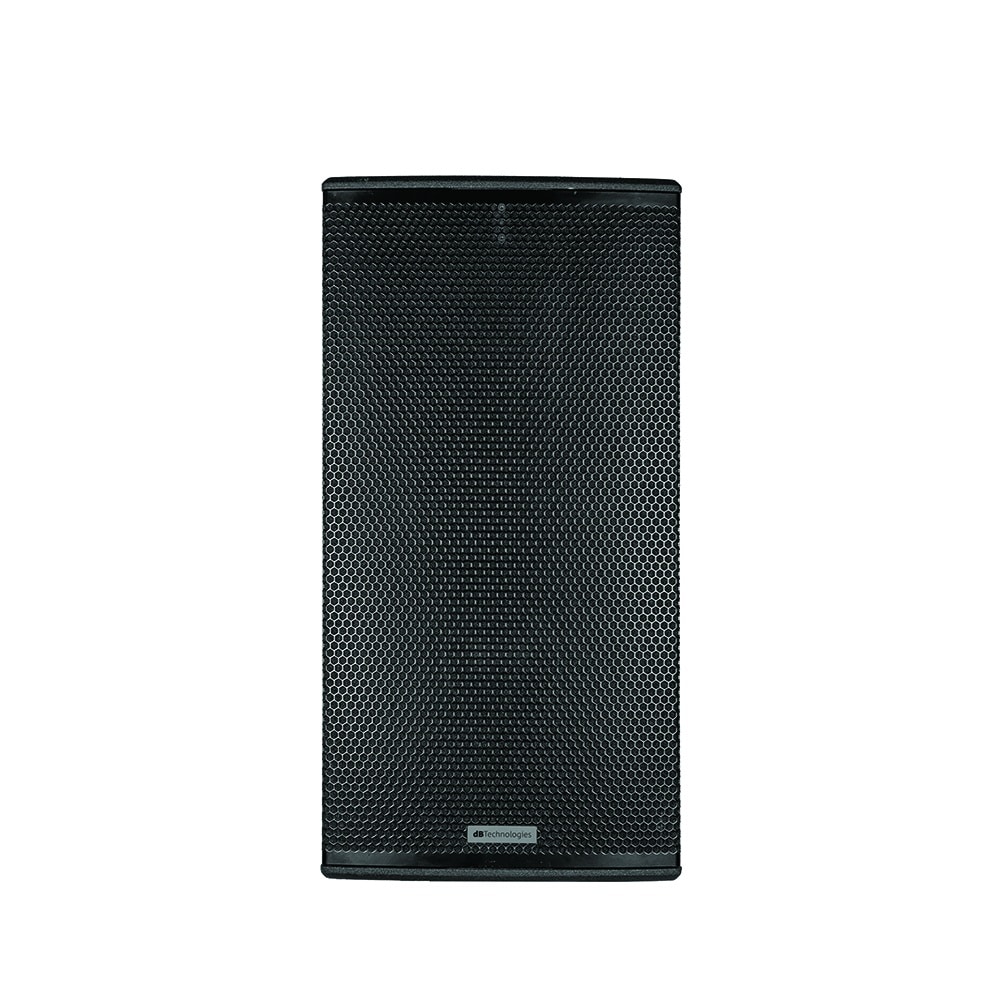

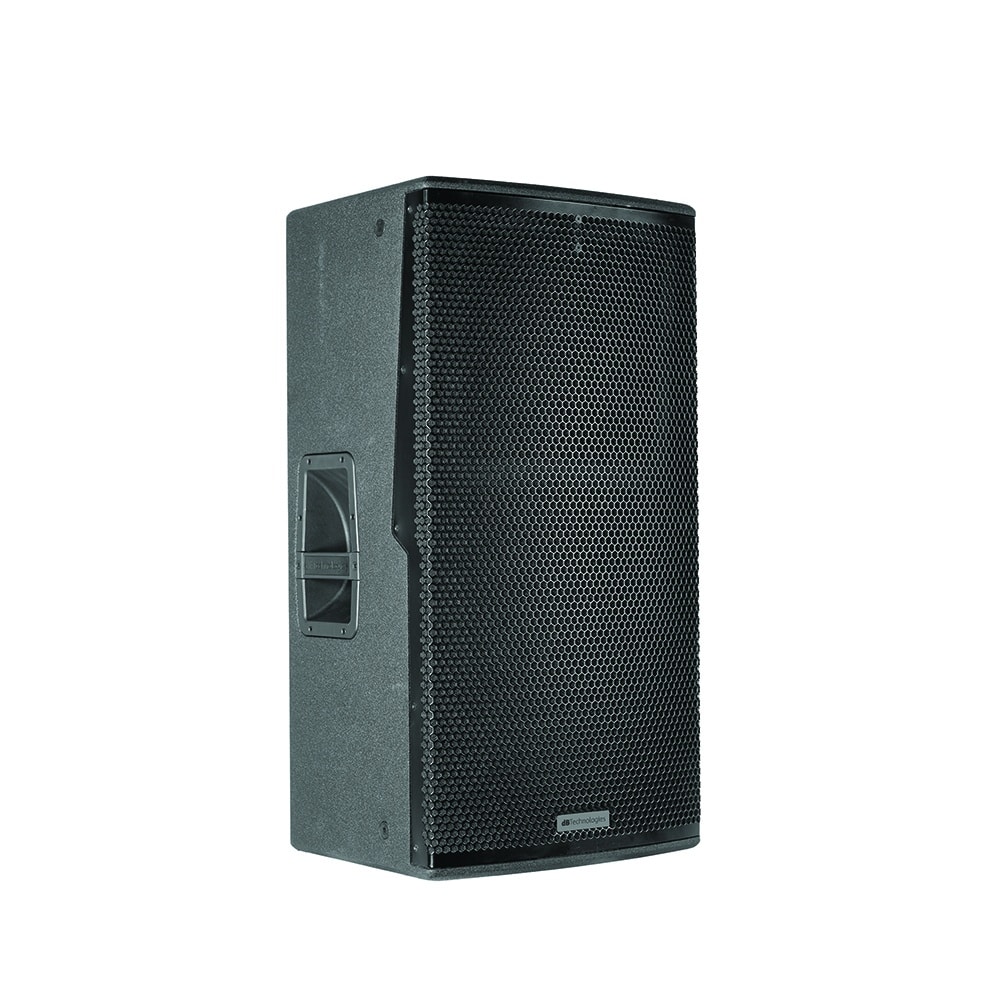

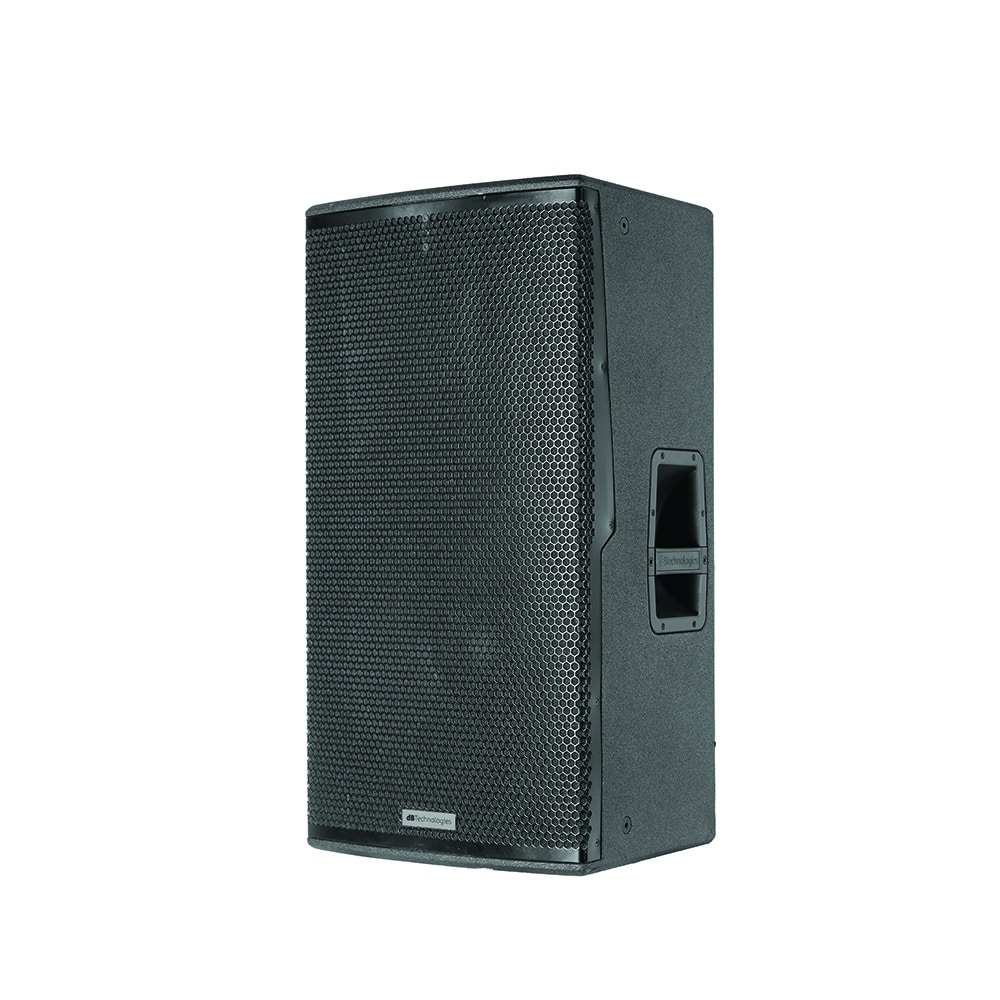

Introducing VIO X300 series, the evolution of our premium line VIO X: powerful, tour-grade, three-way tri-amped point source speakers for public address in large venues. VIO X315 is a self-powered point source speakers capable of delivering outstanding sound pressure levels for the size, thanks to premium components, a three-way tri-amplified design and state of the art electronics.
FEATURES
- 3 Way Tri-amp Active Point Source
- Coaxial Mid-High Transducer
- 1400 W RMS Digipro G4 Amp Technology
- 137 dB SPL
- Extended Low-end Response
- Flyable with accessories
- Neodymium Components
- Linear Phase FIR Filters
- Full-range SMPS with PFC
- Modular Slot for Network and Digital Audio Expansion Cards (RDNet card installed)
- System Test for Quick Transducers Diagnostics
Technical Data
Speaker Type: 3 Way Active Loudspeaker
Acoustical data
Usable bandwidth [-10dB]: 34 – 19.200 Hz
Frequency Response [-6dB]: 37 – 18.000 Hz
Max SPL: 137 dB

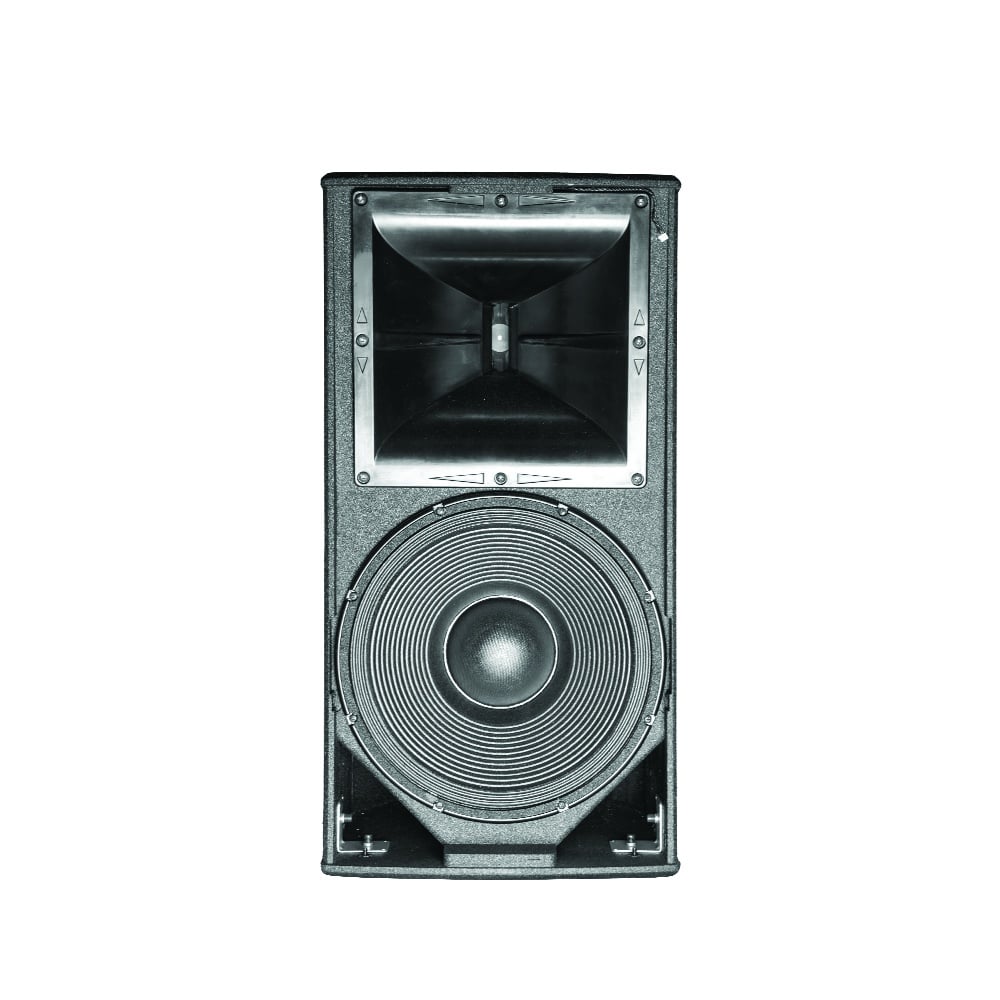

HF: 1x 1.4”, 4″- 2.5″ v.c. Coaxial Neo
LF: 1x 15”, 4″ v.c Neo
Directivity: 90° x 50° – 5° tilted down [H x V]
Amplifier
Amplifier: 1400 W RMS Class-D Digipro® G4
Cooling: Convection
Power Supply: Full range SMPS with PFC
Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters
Input

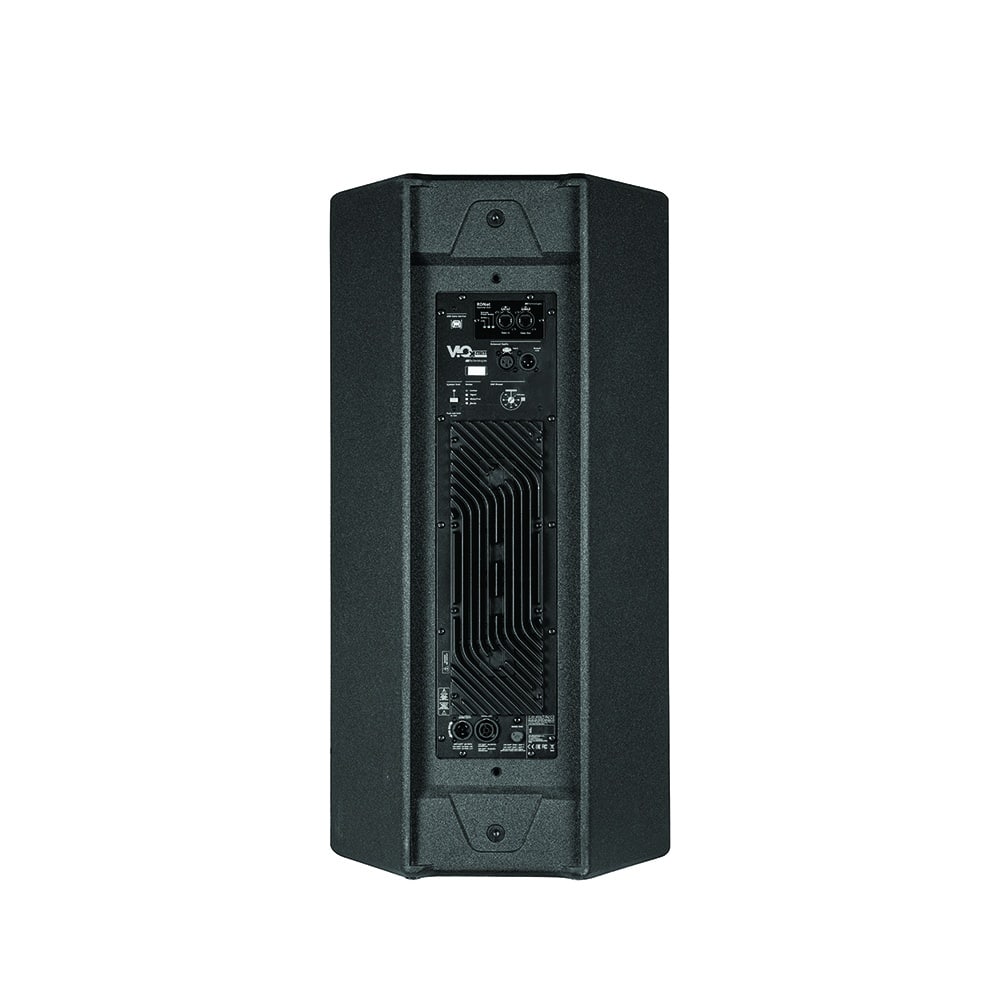

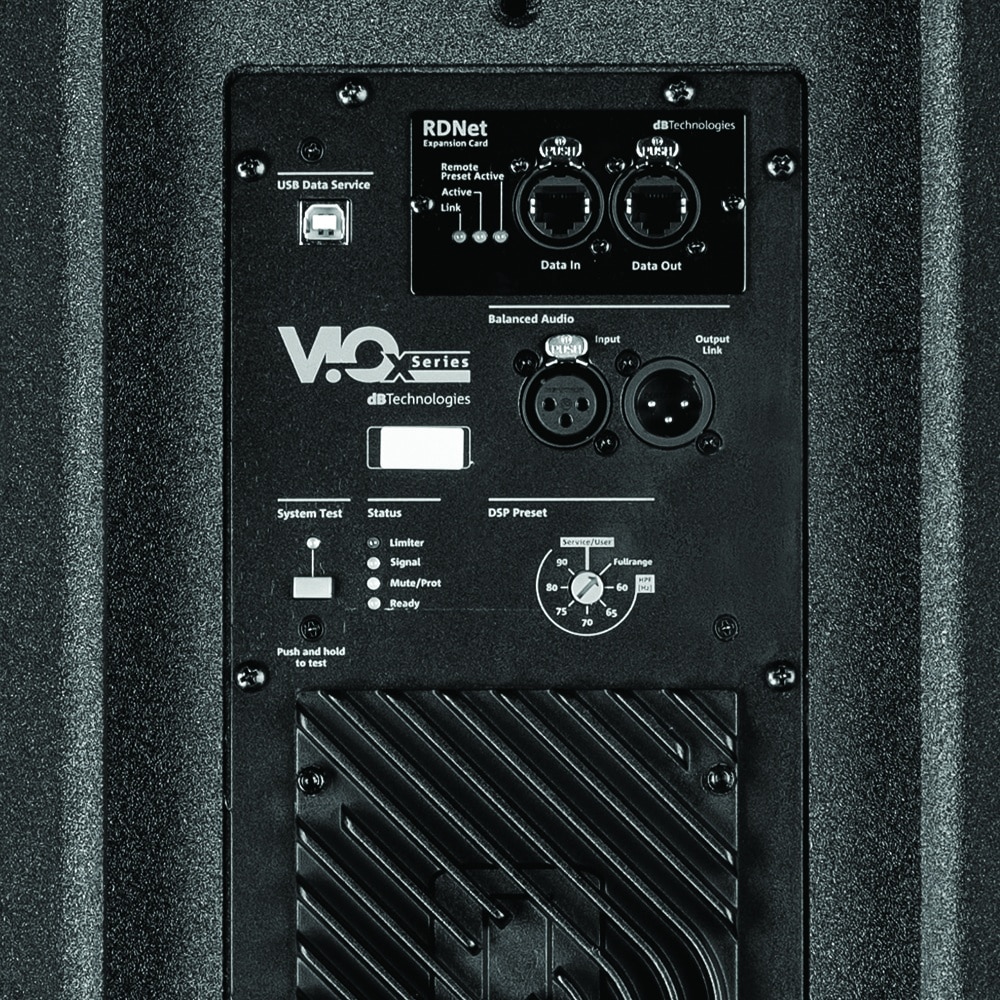

Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket: 1x PowerCON TRUE1 In 1x PowerCON TRUE1 Out
Controls: 1x input Rotary Encoder (8x presets) 1x Ready LED 1x Mute/Prot LED 1x Signal LED 1x Limiter LED 1x Frontal LED 1x Button and 1x LED System Test
Mechanics
Housing: Wooden Cabinet

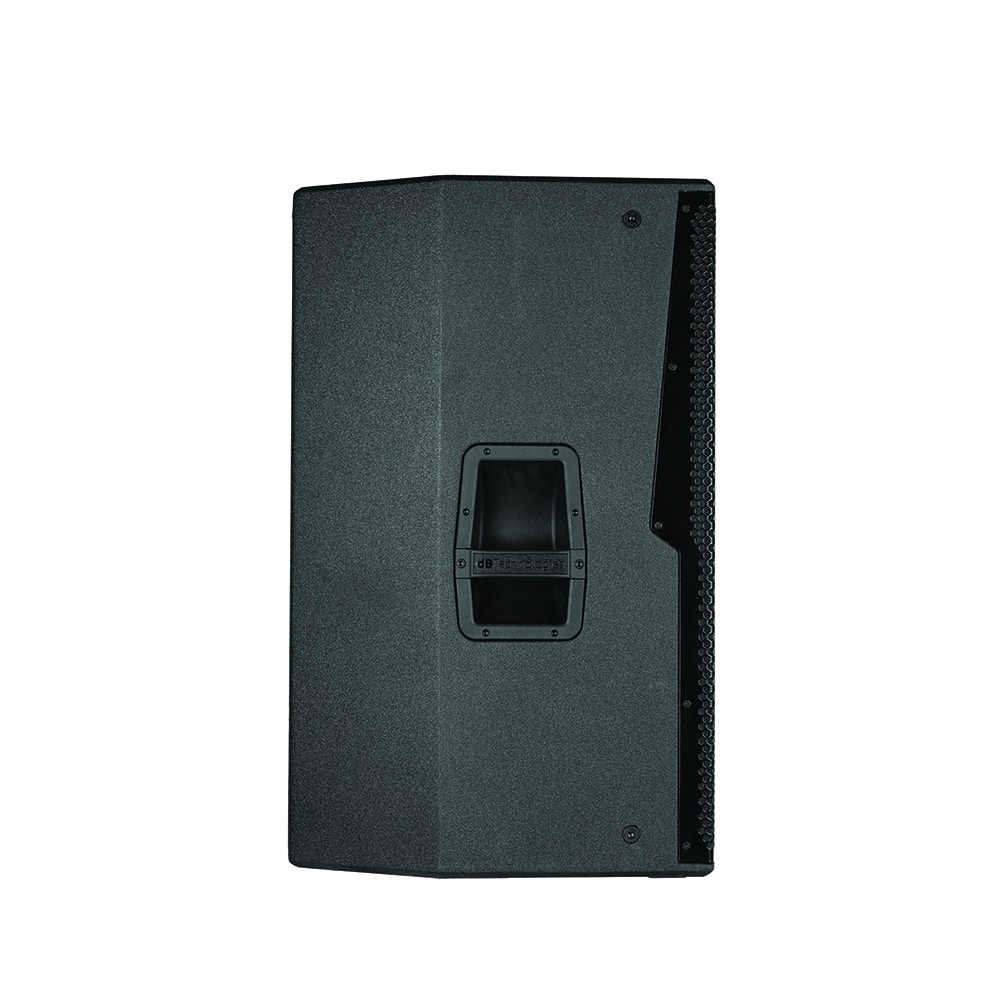

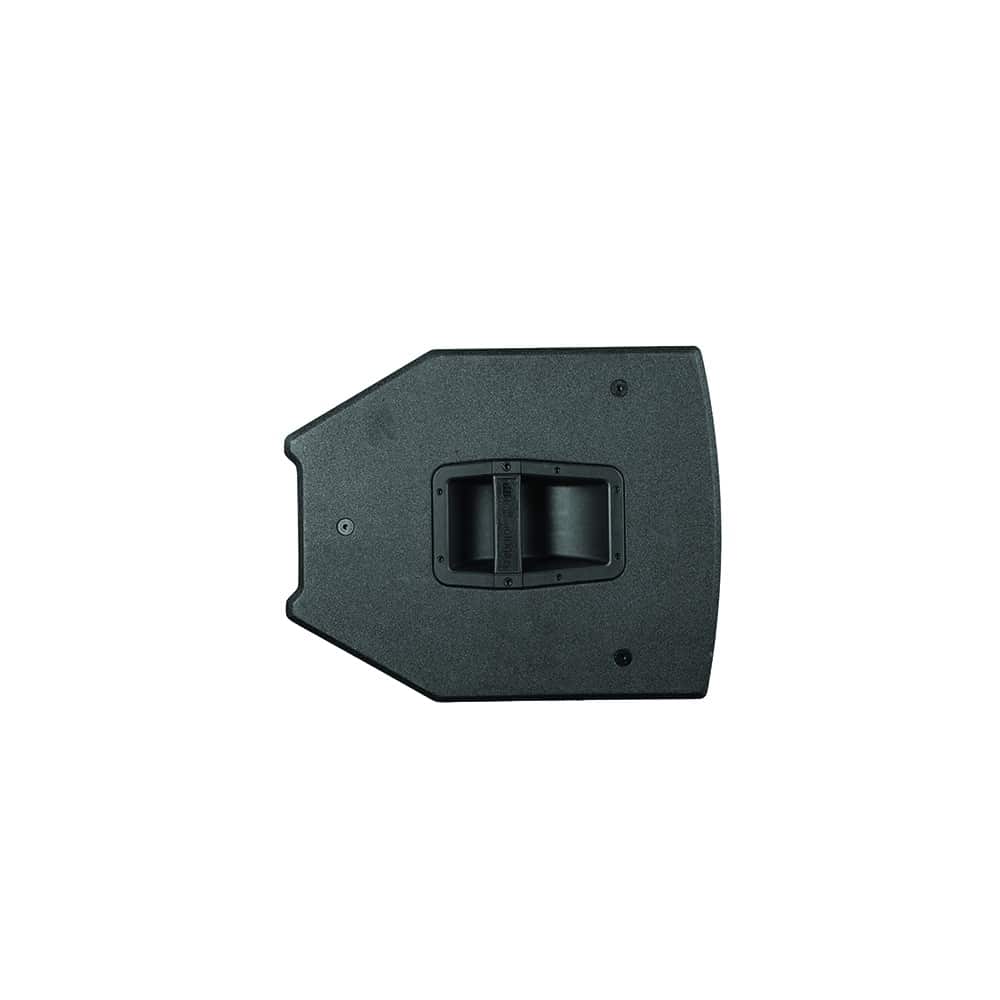

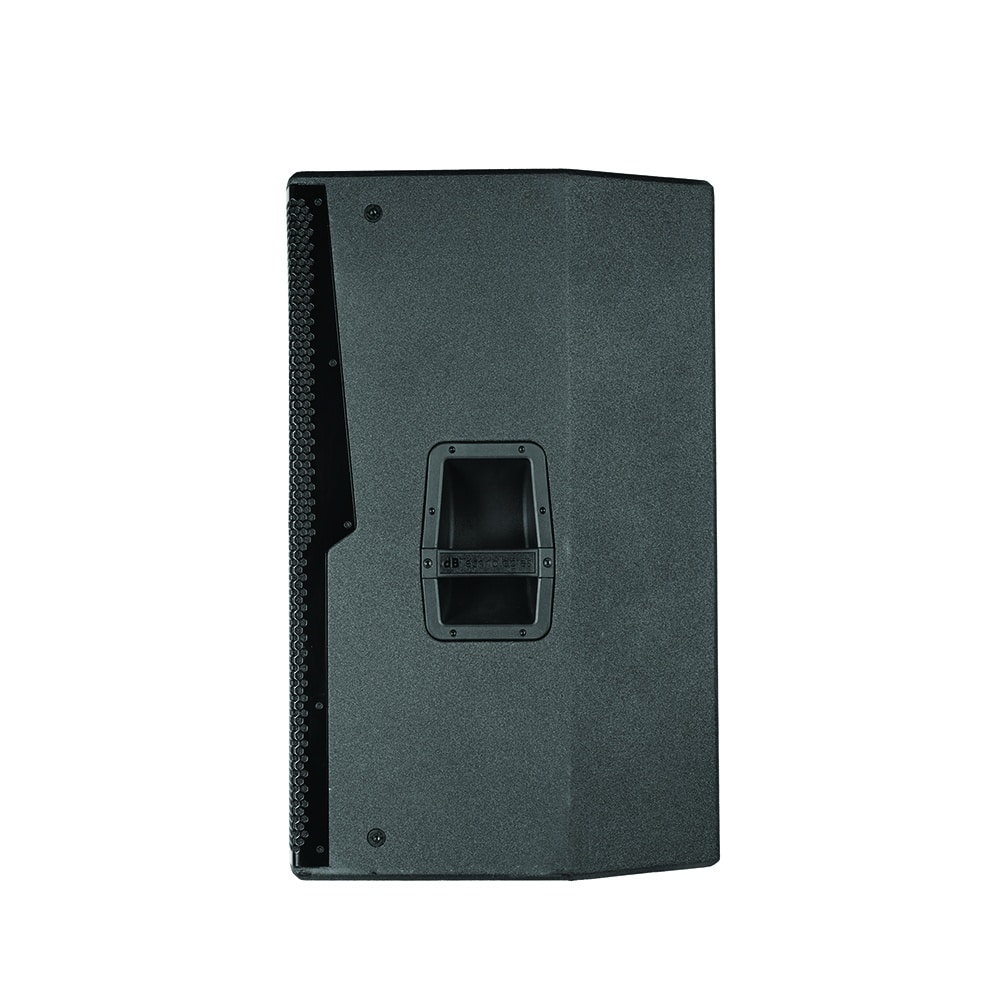

Handles: 3 (1x side, 1 on top)
Rigging points: 12x M10 Thread

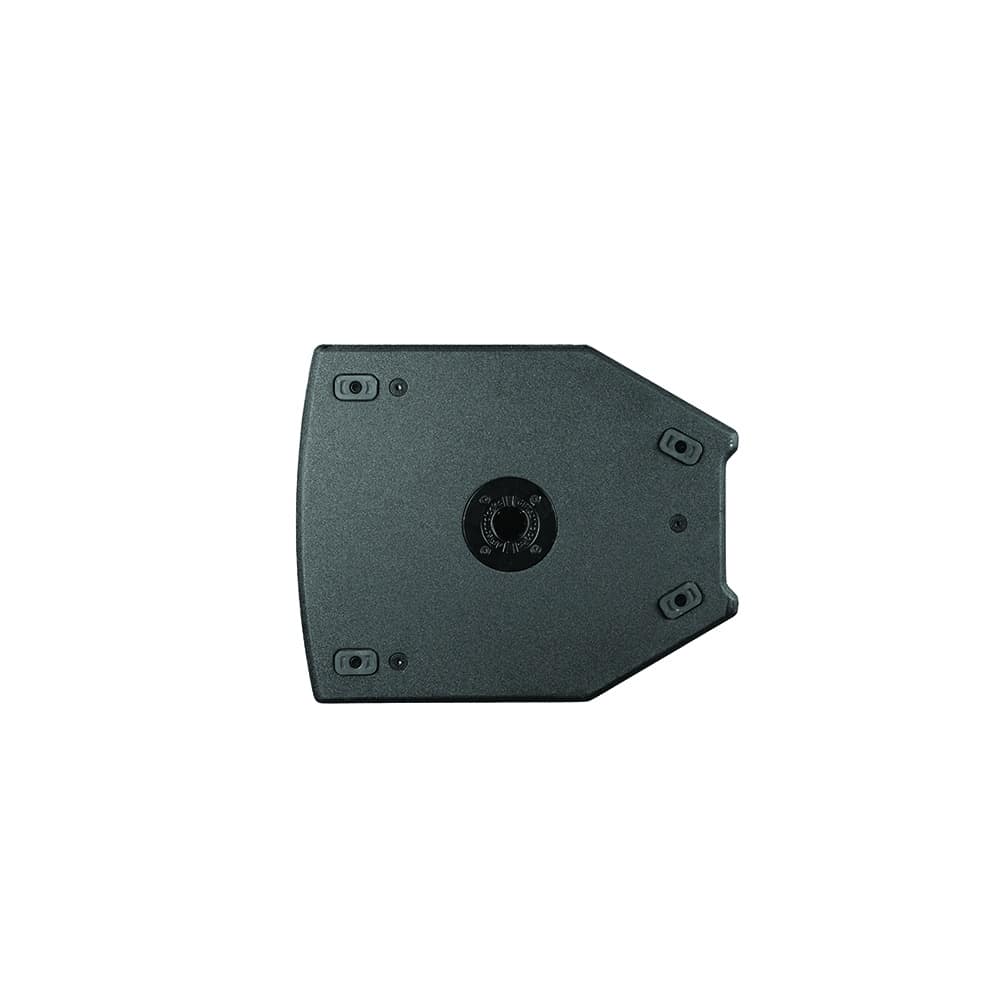

Pole mount: D36mm
Width: 420 mm (16.5 in)
Height: 820 mm (32.3 in)
Depth: 520 mm (20.5 in)
Weight: 39.5 kg (87.1 lbs)
