Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet accurate audio performance, successfully adaptable to both playback and live music applications.
FEATURES
- 1200 W PEAK POWER
- 600 W RMS POWER
- NEWLY DESIGNED ASYMMETRICAL HORN
- ADVANCED DSP WITH FIR FILTERS
- 2 INPUT CHANNELS (MIC-LINE/MIC-INSTR)
- SELECTABLE OUTPUT CHANNEL (LINK CH1/MIX CH 1+2)
- 8 EQ PRESETS
- FRESH FULL GRILLE DESIGN
- STAGE MONITOR USE
Technical Data
Speaker Type: 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 50 – 20.000 Hz
Frequency Response [- 3dB]: 56 – 19.000 Hz
Max SPL: 130 dB
HF: 1″ Exit, 1.4 v.c.
Type HF: MCompression driver
Horizontal Directivity: 100° (85° up/120° down)
Vertical Directivity: 85° (+ 25°/-60°)
Horn: Asymmetrical Horn
LF: 15″, 2″ v.c.
Amplifier
Amp Technology: Amp SMPS Power supply dual range
Amp Class: Class D
RMS Power: 600 W
Peak Power: 1200 W
Processor
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 KHz
System Presets: Rotary Encoder (8 Presets)
X-Over Frequency: 1800 Hz
Limiter: Peak, RMS, Thermal
Advanced DSP Functions: Linear Phase FIR Filters
Input

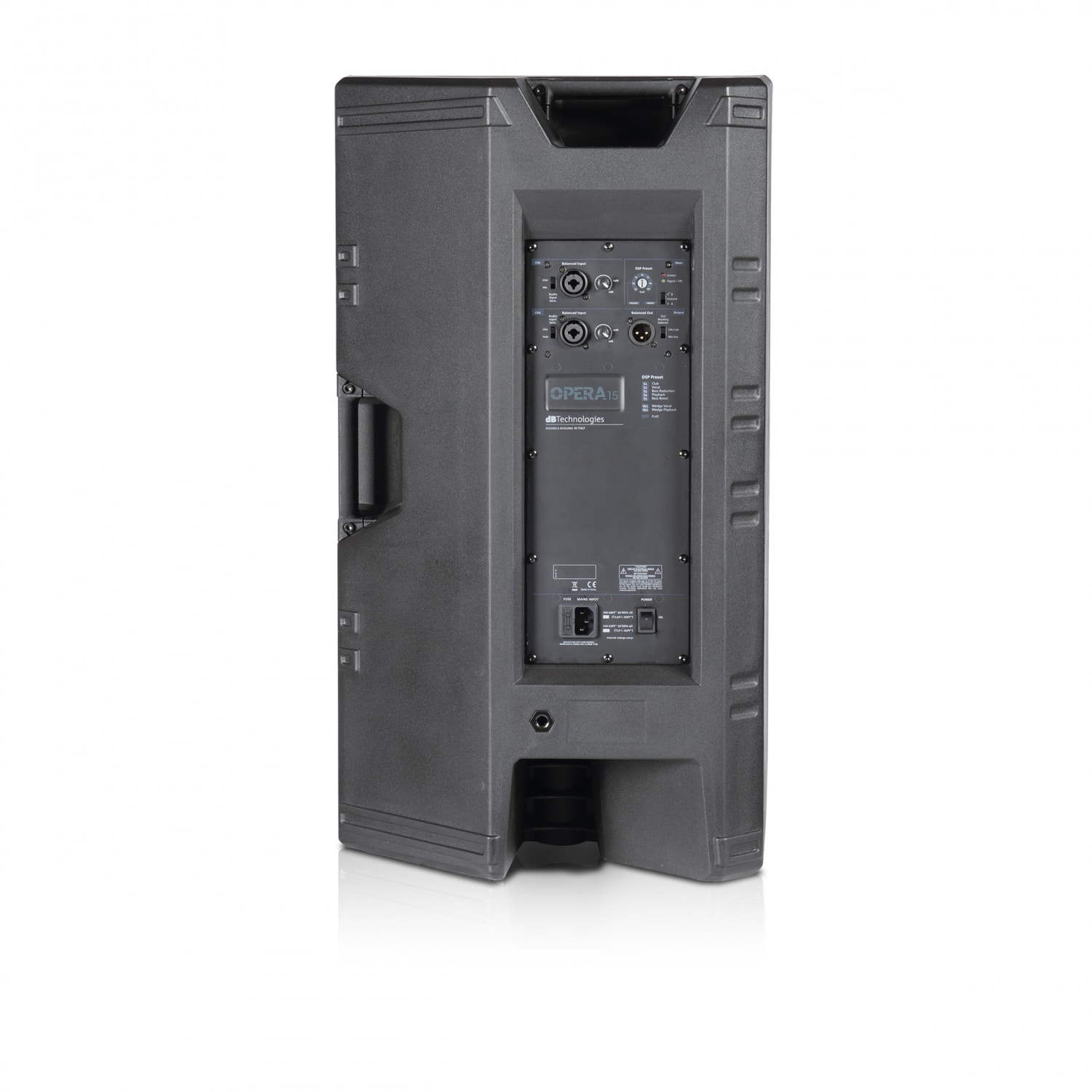

Signal Input: 1xCombo (XLR/Jack 6.3 mm) MIC/Line 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output: 1x XLR Male (CH1 Link/Mix OUT) Selectable
Mechanics
Housing: Polypropylene with internal frame

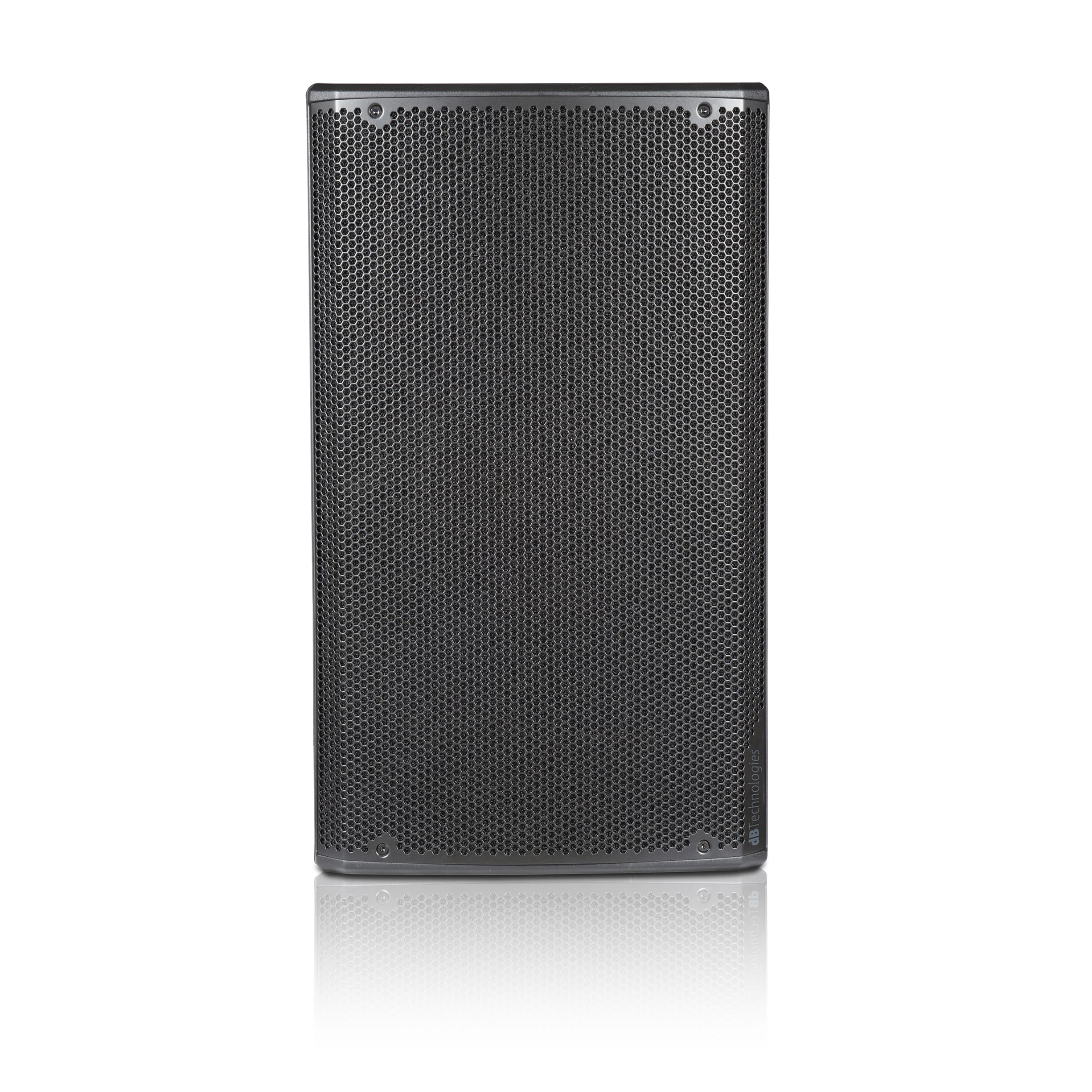

Grille: Full grille

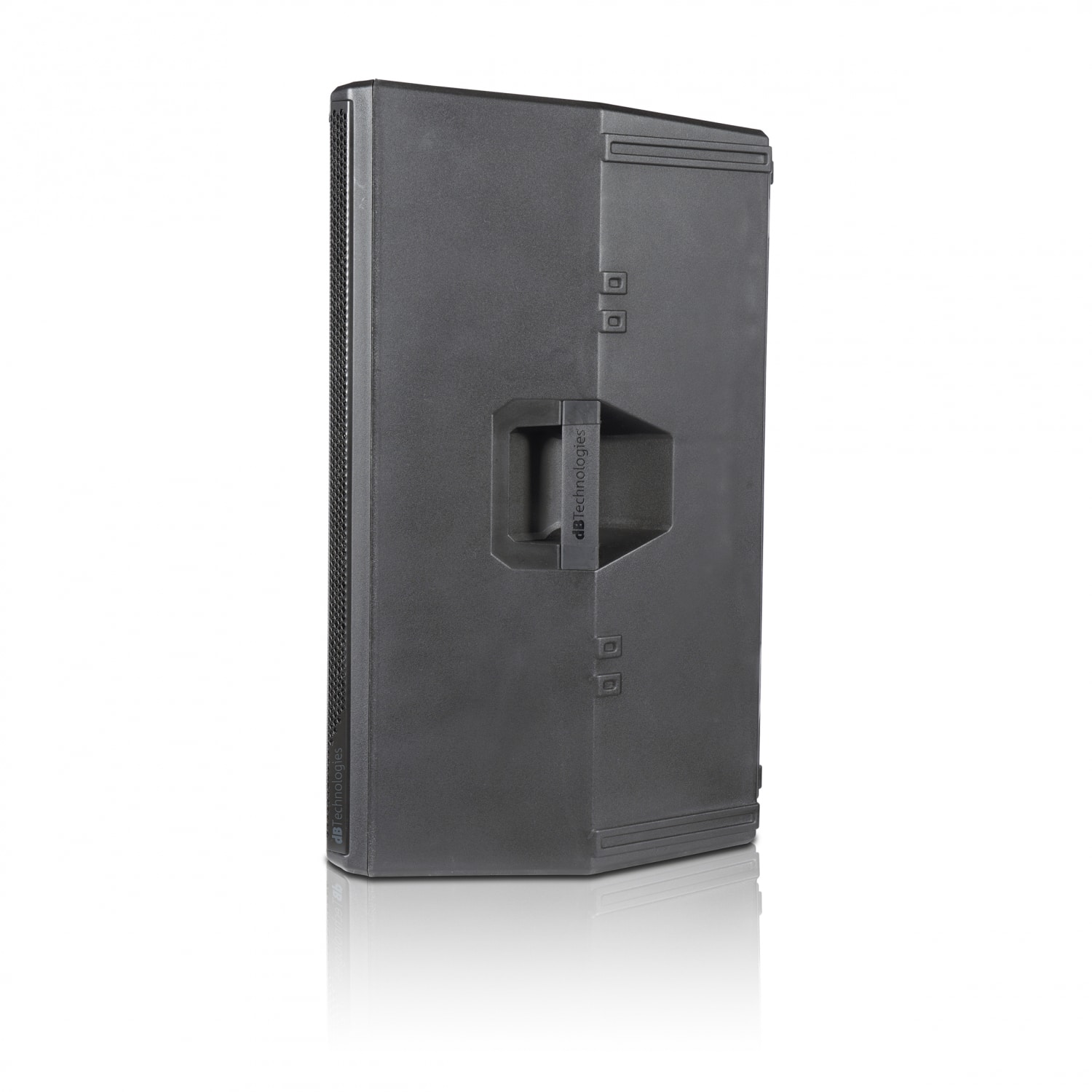

Handles: 1 on left Side, 1 on Top
Rigging Points: 2XM10 on Top + 1x M10 on Back
Pole Mount: D36 mm

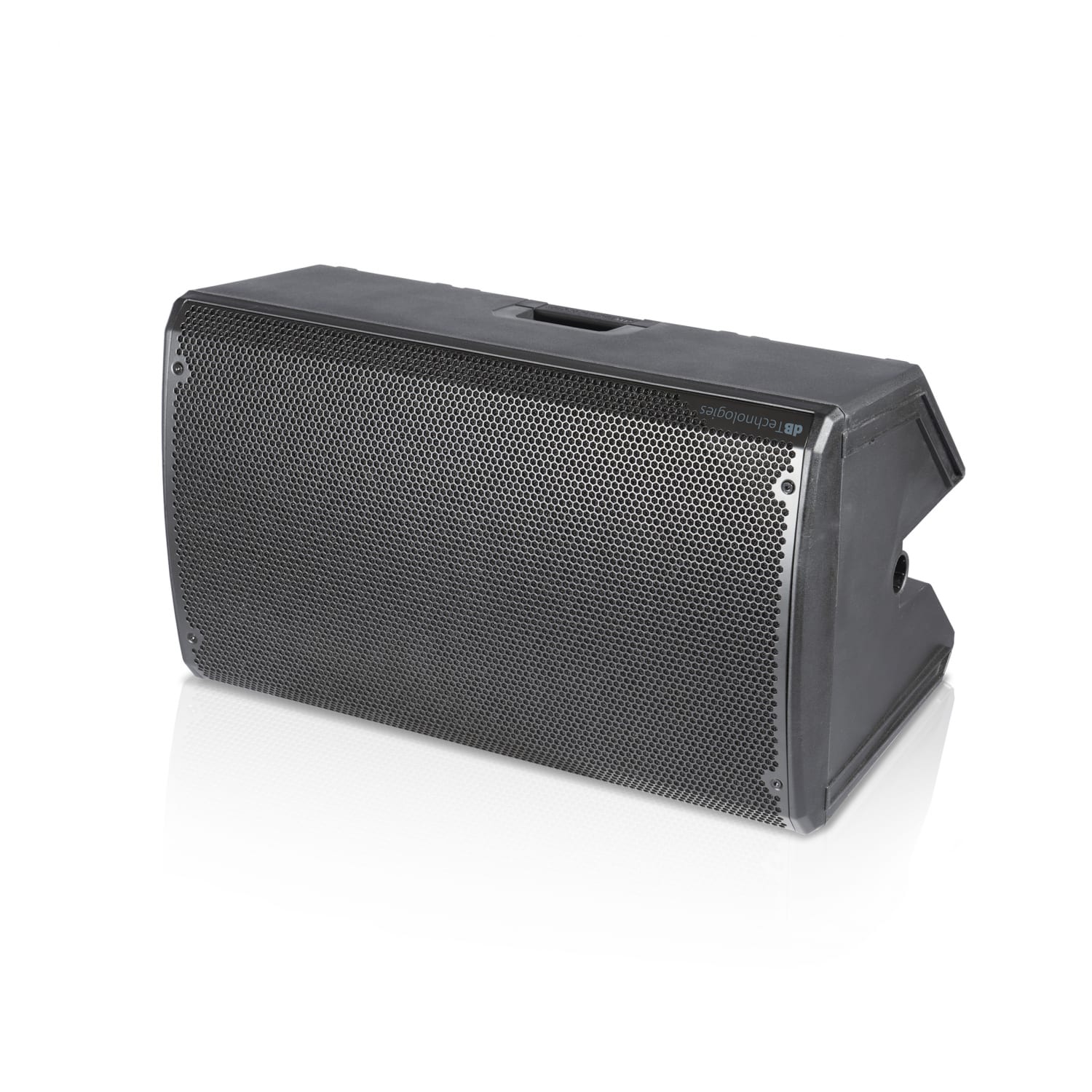

Angles up: Monitor use 45°

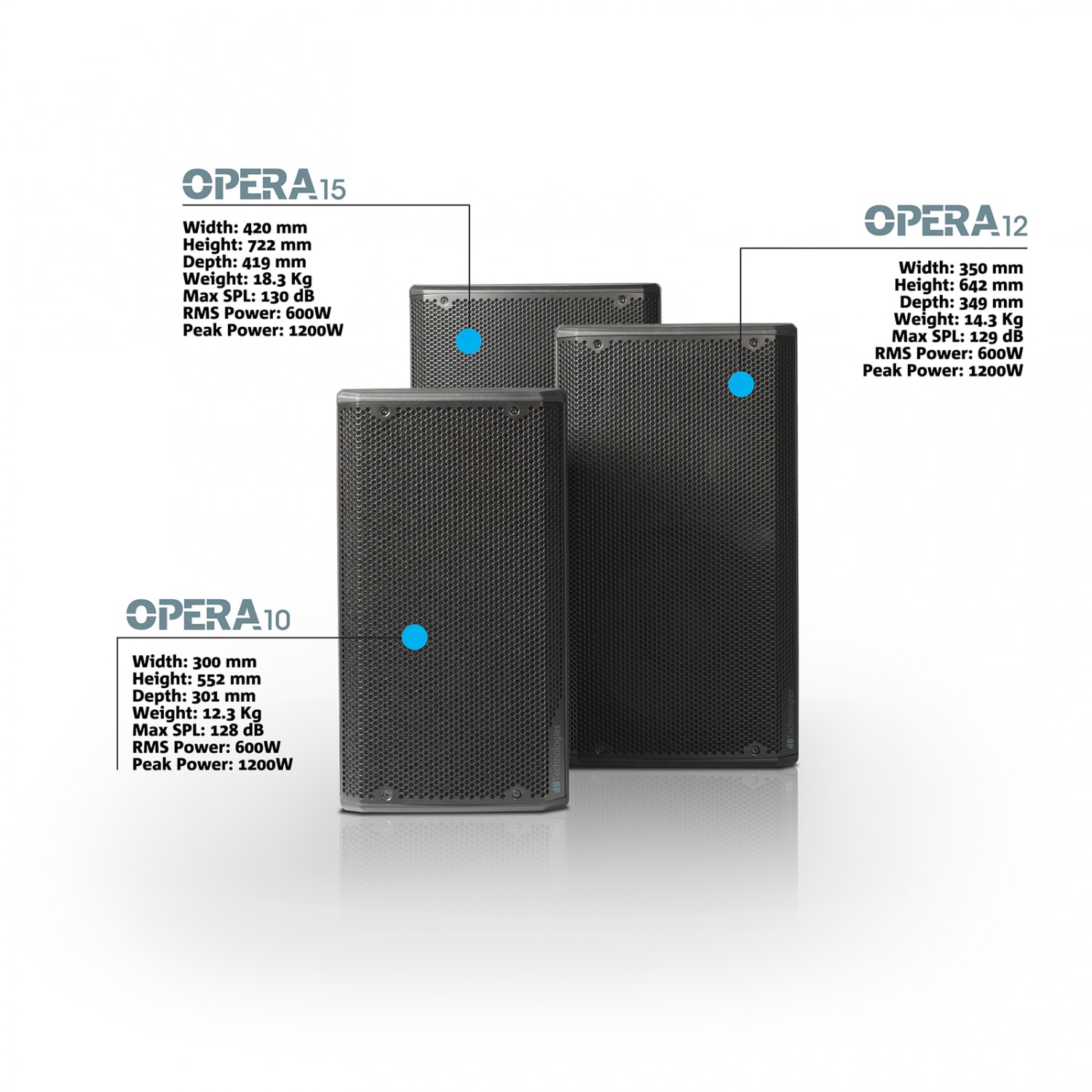

Width: 420 mm (16.54 in)
Height: 722 mm (28.43 in)
Depth: 419 mm (16.50 in)
Weight: 18.3 kg (40.34 lbs)
