FEATURES
- 3-WAY ACTIVE LINE ARRAY SYSTEM
- 3200W RMS DIGIPRO G4 AMP TECHNOLOGY
- FULL RANGE SMPS WITH PFC
- HORN-LOADED MIDRANGE FOR IMPROVED ACOUSTIC EFFICIENCY AND COVERAGE ACCURACY
- EXCLUSIVELY DESIGNED WAVEGUIDE FOR MAXIMUM HF DIRECTIVITY CONTROL
- ADVANCED DSP FEATURING LINEAR PHASE FIR FILTERS
- ACOUSTIC COMPATIBILITY WITH VIO L210 USED AS DOWN-FILL
- MODULAR SLOT FOR NETWORK AND DIGITAL AUDIO EXPANSION CARDS (RDNET CARD INSTALLED)
- NFC™ + FRONT LED IDENTIFICATION SYSTEM
- SYSTEM TEST FOR QUICK TRANSDUCERS DIAGNOSTICS
- IPOS INTELLIGENT POWER-ON SEQUENCE
- RUBBER MAGNETIC RAINCOVER INCLUDED
- ONLY 54.4 KG PER MODULE
- BUILT-IN INCLINOMETER
|
Technical Data |
|
|
Speaker Type |
3-way Active Line Array Module |
|
Acoustical data |
|
|
Usable Bandwidth (-6dB) |
55 Hz – 18.600 Hz |
|
Max SPL |
One Unit: 142 dB |
|

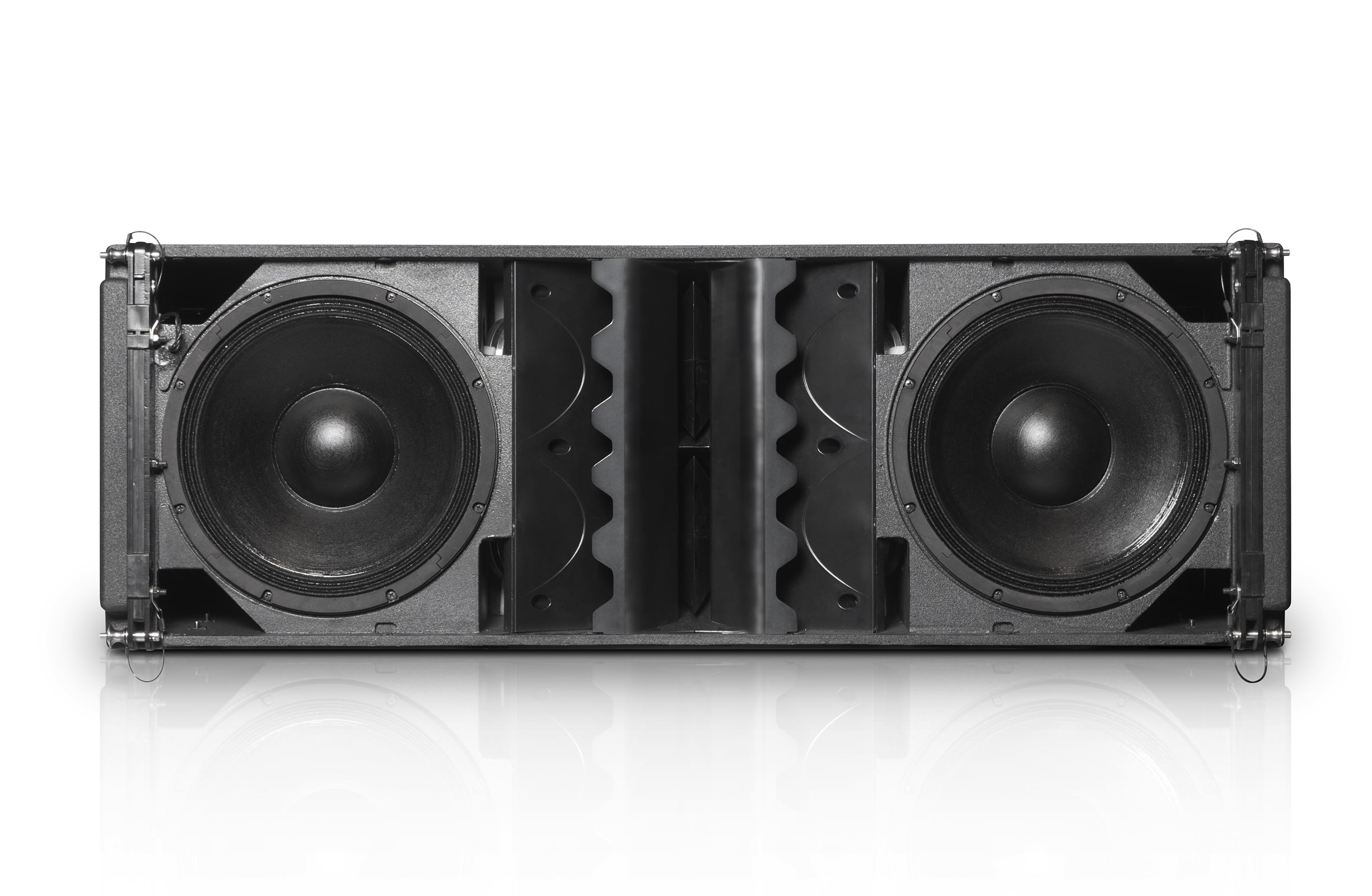

HF |
2 x1.4”, 3” v.c. – Neodymium |
|
MF |
4 x 6.5”, 2” v.c. – Neodymium |
|
LF |
2 x 12”, 3” v.c. – Neodymium |
|
Horizontal Directivity |
90° |
|
Vertical Directivity |
Depends on array size and configuration |
|
Amplifier |
|
|
Amplifier |
3200 W RMS (2x 1600 W RMS Class-D Digipro G4) |
|
Cooling |
Convection, Internal fan |
|
Power Supply |
Full-range SMPS with PFC (100V – 240V, 50-60Hz) |
|
Processor |
|
|
Controller |
DSP 32 bit |
|
AD/DA Converter |
24 bit/96KHz |
|
Limiter |
Dual Active Multiband Peak, RMS, Thermal |
|
Processing (filters) |
FIR Linear Phase Filters |
|

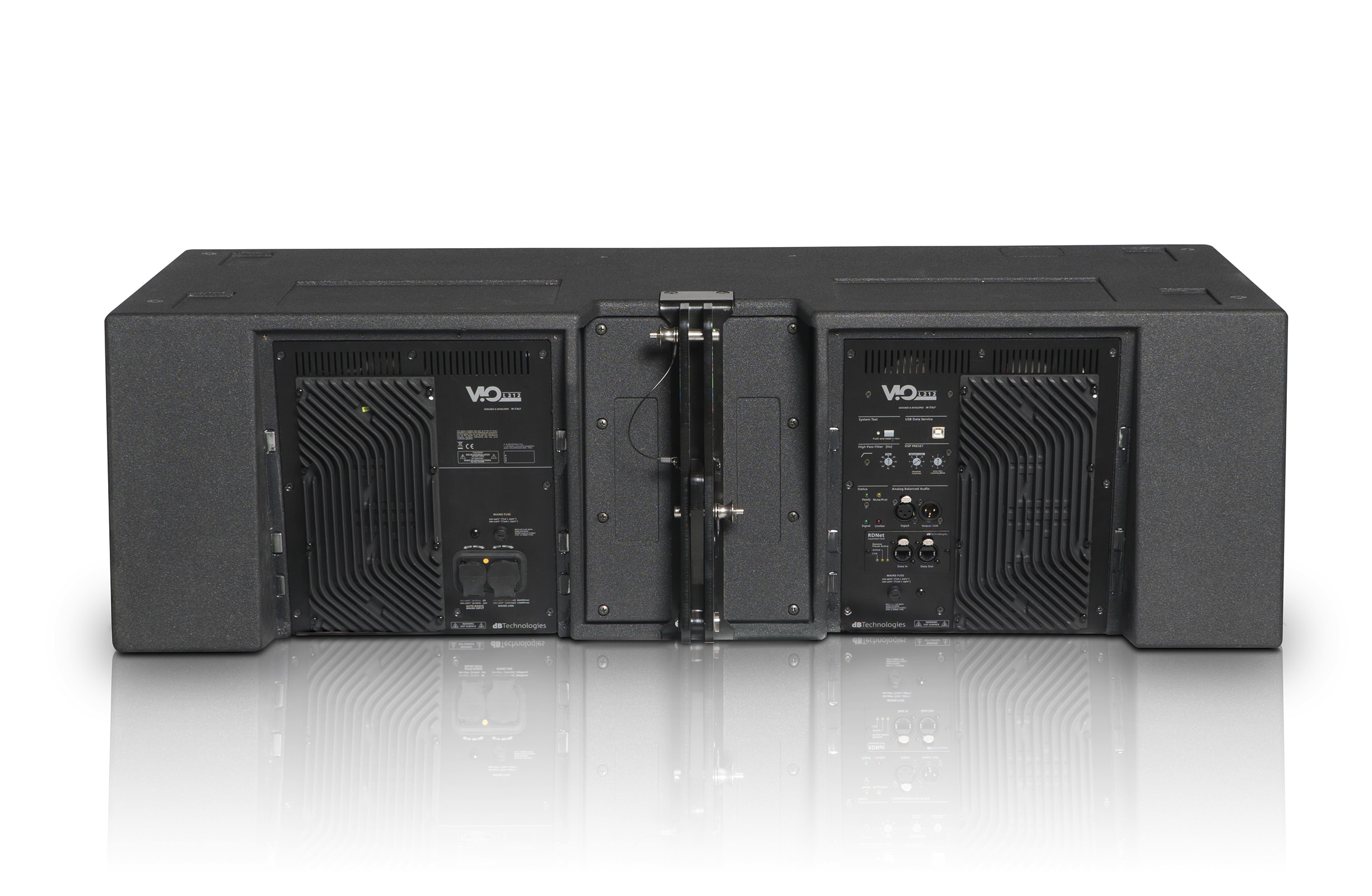

Input |
|
|
Signal Input |
1 x XLR fem, Balanced |
|
Signal Output |
1 x XLR male, Balanced |
|
Expansion Card |
RDNet Card (1 x RJ45 IN 1 x RJ45 Link) Dante Card (Optional) |
|
Power Socket |
1 x PowerCON TRUE1 IN 1 x PowerCON TRUE1 OUT |
|
Controls |
1 x Speakers Coupling (7 presets) 1 x High pass filter Rotary Encoder (8 presets) 1 x HF Compensation (8 presets) 1 x System Test Button |
|
Special Features |
NFCTM and Frontal LED Identification System 380V Resistant SMPS IPOS Intelligent Power-On Sequence Opto-isolated floating pre-amp System Test (transducers diagnostics) Indinometer |
|
Mechanics |
|
|
Housing |
Multiplex plywood Polyurea painted |
|
Housing Design |
Trapezoidal |
|

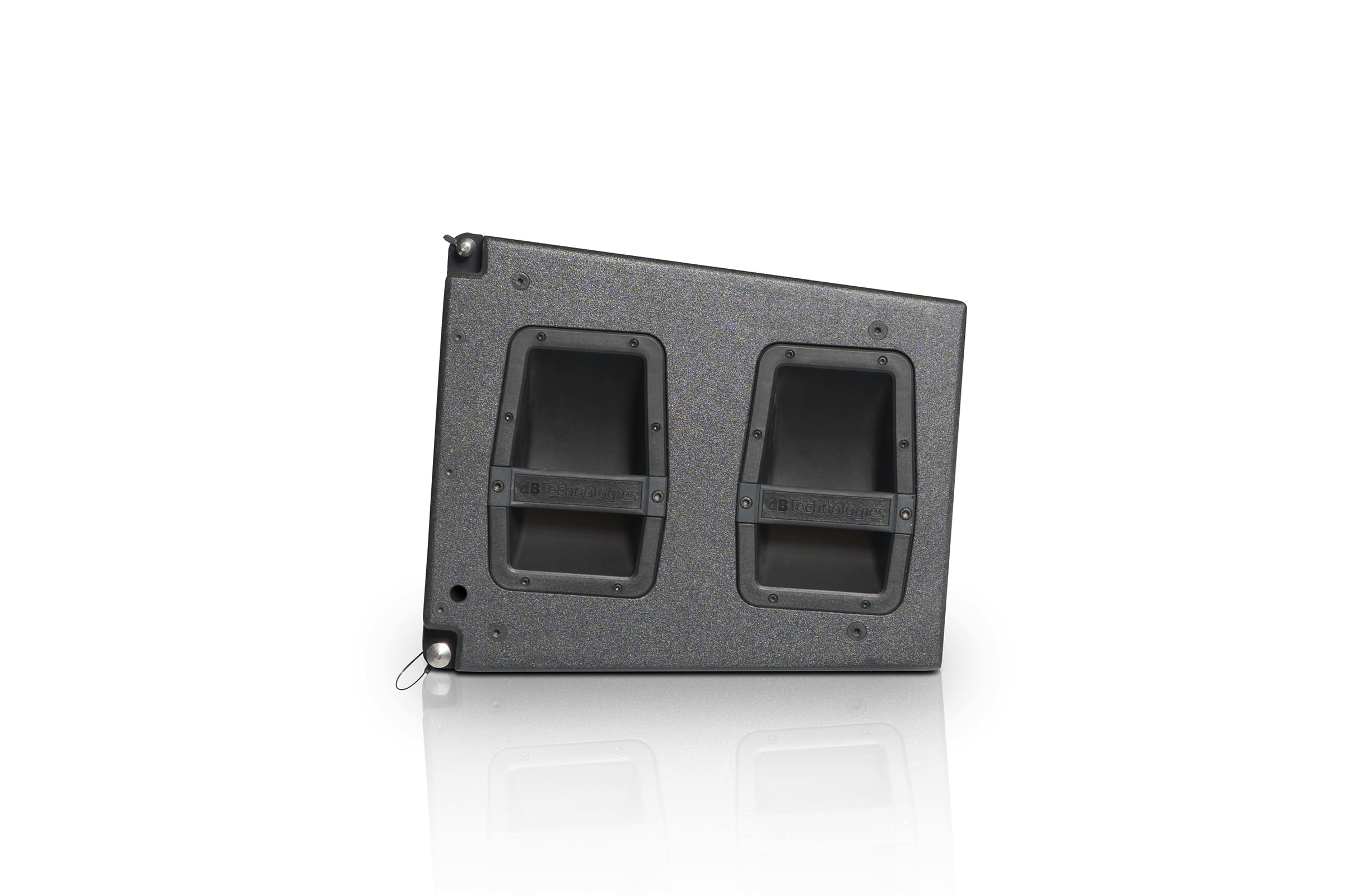

Handles |
4 x hanles (2 on each side) |
|
Raincover |
Included (Rubber magnetic) |
|
Rigging Points |
3 points riggine hardware |
|
Dimensions (WxHxD) |
1100x380x450 mm |
|
Weight |
54,4 kg |
