Upgrading arrayable loudspeaker concept to a brand-new level, dBTechnologies proudly presents VIO C, a complete series of 2-way active line-source speakers for the widest range of venues and applications, from installed PA systems to sound reinforcement for touring.
FEATURES
- 2-WAY ACTIVE LINE-SOURCE SPEAKERS
- HORIZONTAL SCALABLE LINE SOURCE CLUSTER OR VERTICAL CONSTANT CURVATURE ARRAY
- EXCLUSIVELY DESIGNED WAVEGUIDE FOR MAXIMUM HF DIRECTIVITY CONTROL
- NEODYMIUM COMPONENTS
- 1600W RMS DIGIPRO® G4 AMP TECHNOLOGY
- FULL RANGE SMPS WITH PFC
- ADVANCED DSP FEATURING LINEAR PHASE FIR FILTERS
- FULLY NETWORKABLE VIA AURORA NET
- OLED USER-FRIENDLY INTERFACE
- ACCESSORIES COMPATIBLE FOR ALL MODELS
Technical Data
Speaker Type: 2-Way Active Cluster Loudspeaker
Acoustical data
Usable Bandwidth [-10 dB]: 52 – 19.000 Hz
Frequency Response [-6 dB]: 55 – 18.000 Hz
Max SPL: 139 dB
HF: 1x 1.4”, 3” v.c. – Neodymium
LF: 1x 12”, 3.5” v.c. – Neodymium
Horizontal Directivity: 22.5°
Vertical Directivity: 55° (+20°/-35°)
Amplifier
Amplifier: 1600 W RMS Class-D Digipro® G4
Cooling: Convection, Internal fan
Power Supply: Full-range SMPS with PFC
Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 kHz
Limiter: Dual Active Peak, RMS, Thermal
Processing (filters): FIR Linear Phase
Input
Signal Input: 1x XLR female, balanced
Signal Output: 1x XLR male, balanced
Expansion Card: RDNet Card (1x RJ45 IN 1x RJ45 Link) Dante Card [Optional]
Power Socket: 1x PowerCON TRUE1 In 1x PowerCON TRUE1 Out
Controls: 1x OLED User Interface
Special Features: IR positioning System 380V Resistant SMPS IPOS Intelligent Power-On Sequence Opto-isolated floating pre-amp Inclinometer
Mechanics
Housing: Multiplex plywood – Polyurea painting
Handles: 4 x handles (2 on back, 1x side)

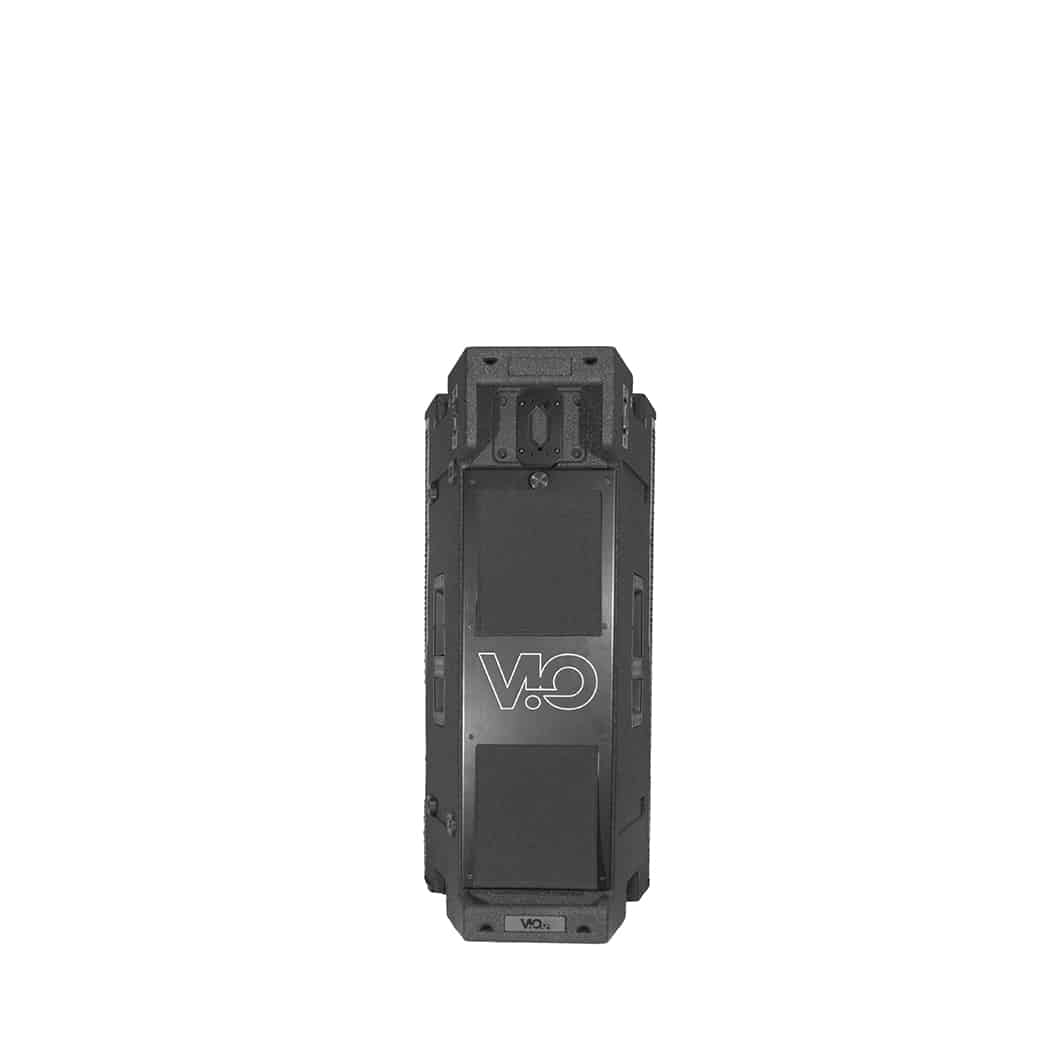

Rain Cover: Included
Rigging Points: Corner Quick Link
Width: 379 mm (14.92 in)
Height: 787 mm (30.98 in)
Depth: 495 mm (19.48 in)
Weight: 31.8 Kg (70.1 lbs)
