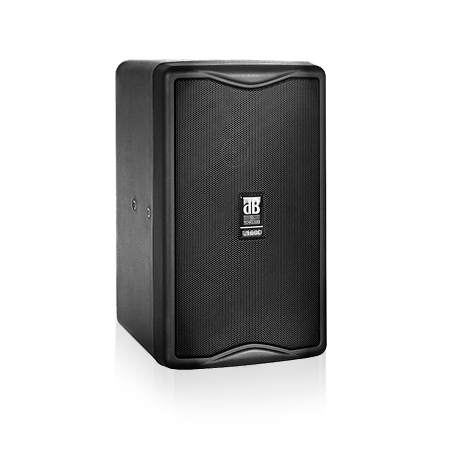

Active Speaker 2×5” 160 Watt
Technical Data
Speaker Type: 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 70 – 20.000 Hz
Max SPL: 116 dB
HF: 1 “
Type HF: Dome Tweeter, coaxial
Directivity: 85 x 75 °
LF: 2x 5 “
Amplifier
Amp Technology: digipro®
Amp Class: Class D
Power PRG: 160 W
Cooling: Convection
Processor
Controller: DSP 24bit/48kHz
System Presets: 8
Limiter: Dual Active Peak, RMS, Thermal

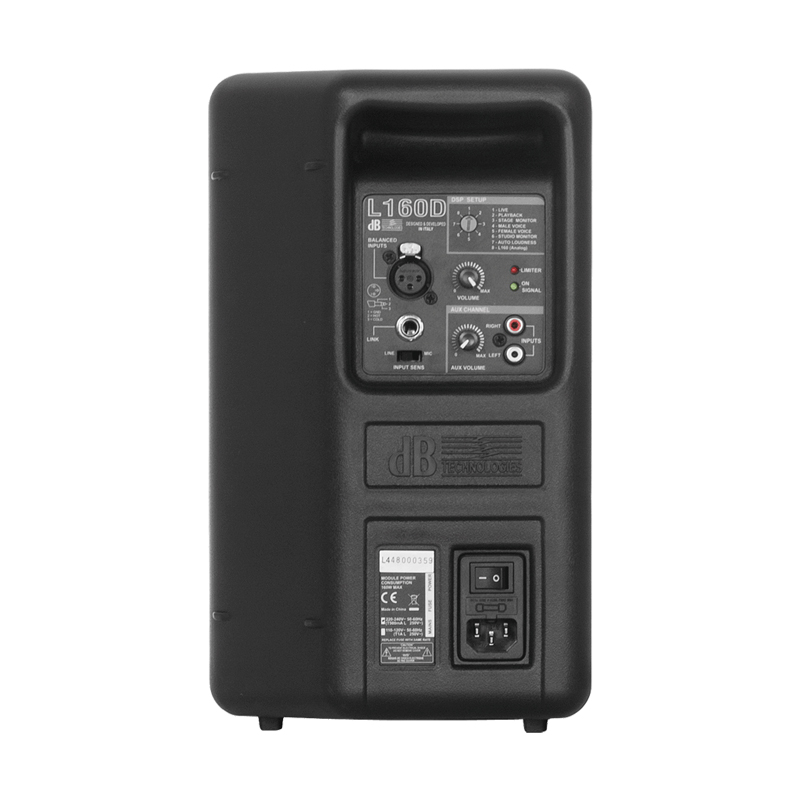

Input
Signal Input: 1x XLR Line In/Mic
1x 6.3mm phone jack
1x RCA cinch AUX with volume ctrl
1x 6.3mm phone jack
1x RCA cinch AUX with volume ctrl
Microphone Input: YES
Signal Output: 1x 6.3mm phone jack
Power Socket: VDE
Voltage Ran: Polyporpylen PP
Angles Up: Monitor use 60°
Rigging Points: 2x M5 on side
2x M5 on bottom for accessories
2x M5 on bottom for accessories
Accessory: WB03, SN120
Width: 200 mm (7.87 in)
Height: 335 mm (13.19 in)
Depth: 220 mm (8.66 in)
Weight: 5.2 kg (11.46 lbs)
