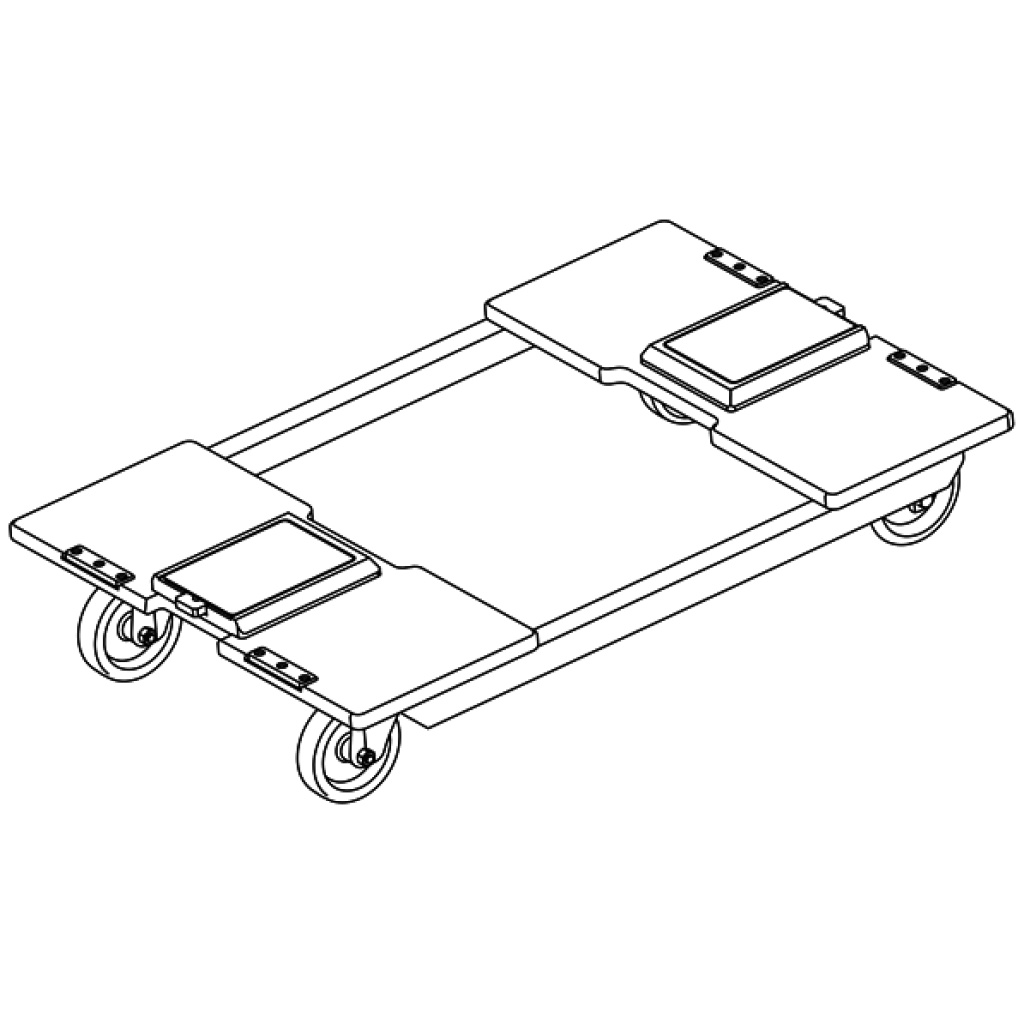

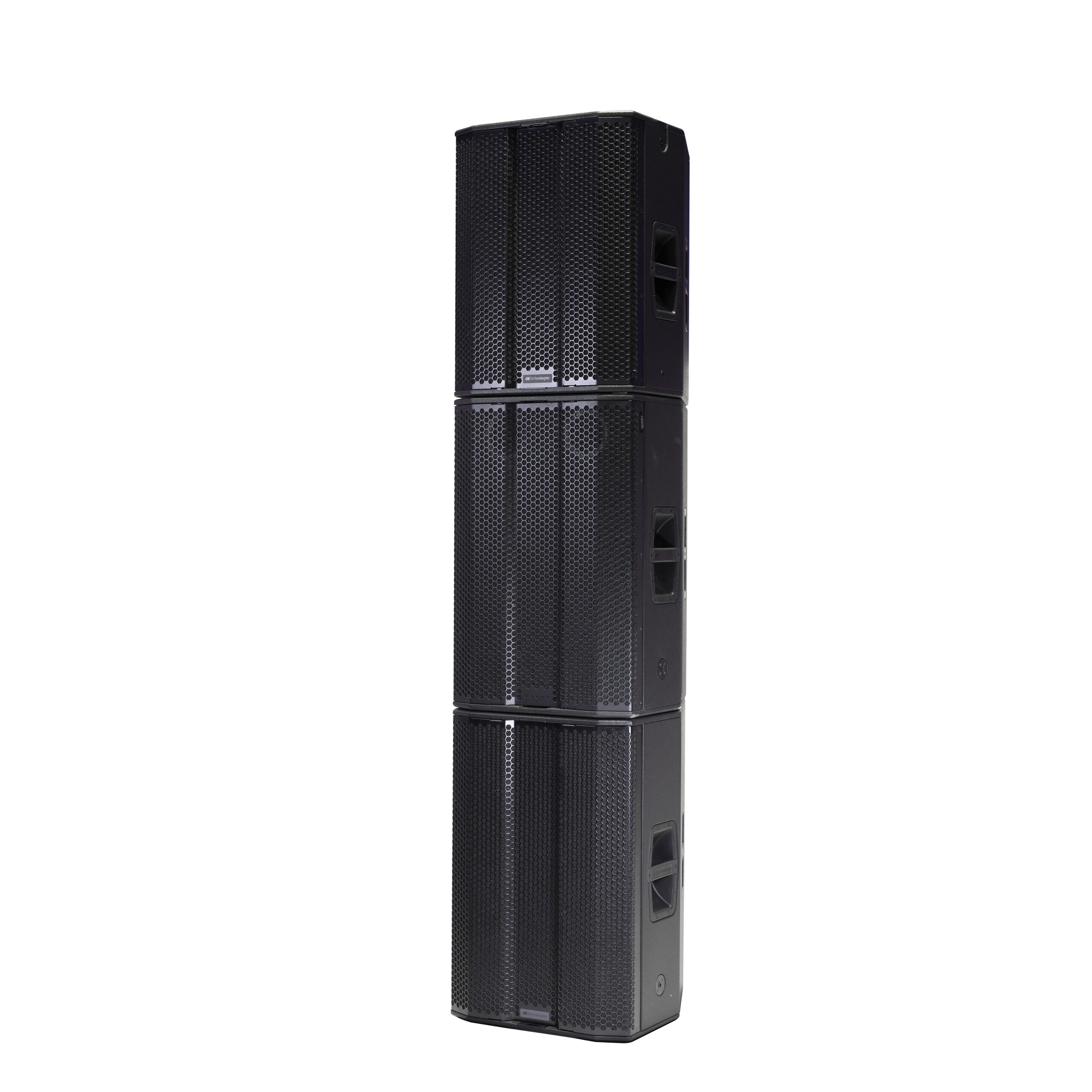

Fifty Line is one of our most straightforward systems: easy transport options, smooth deployment with scalable options, outstanding final result.
Technical Data

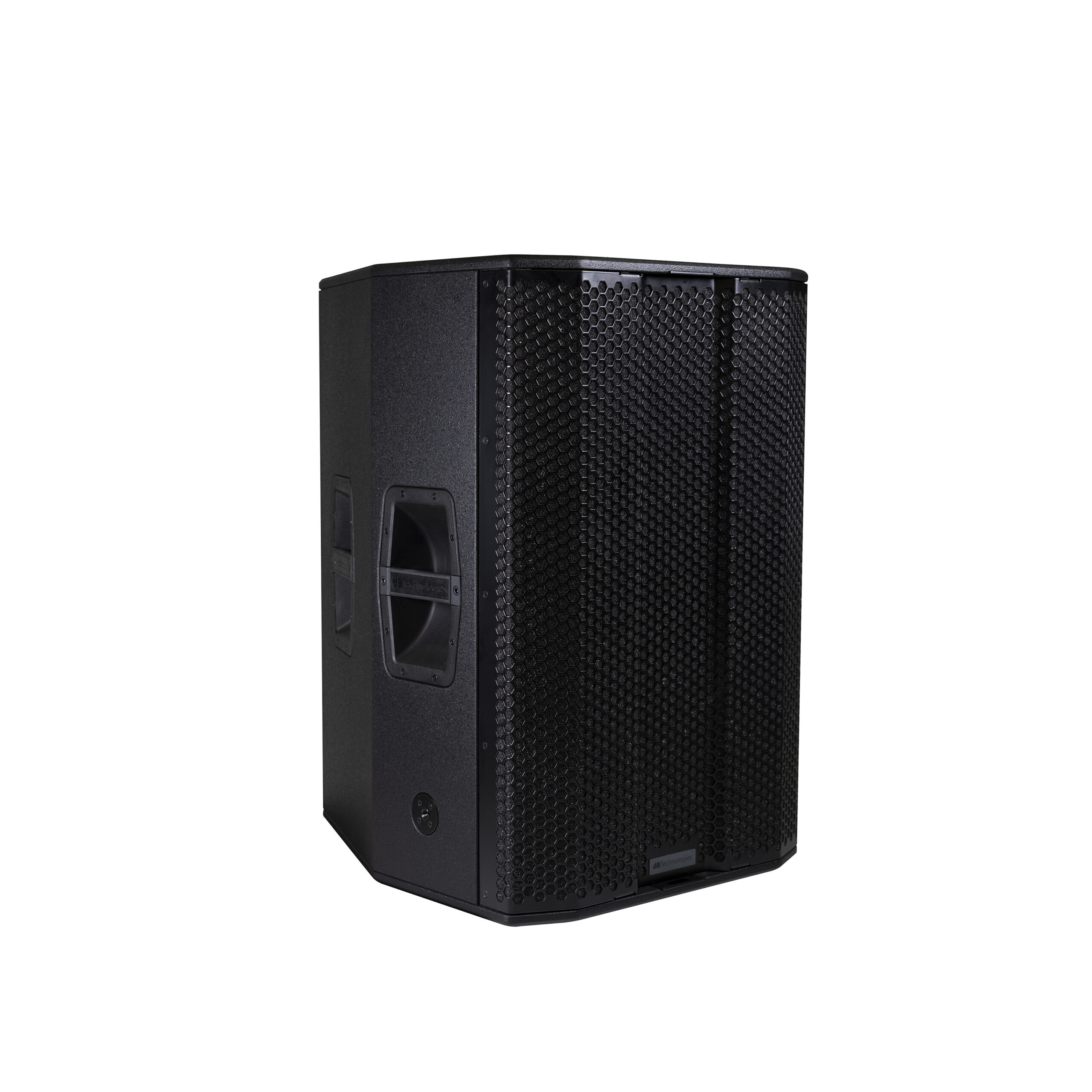

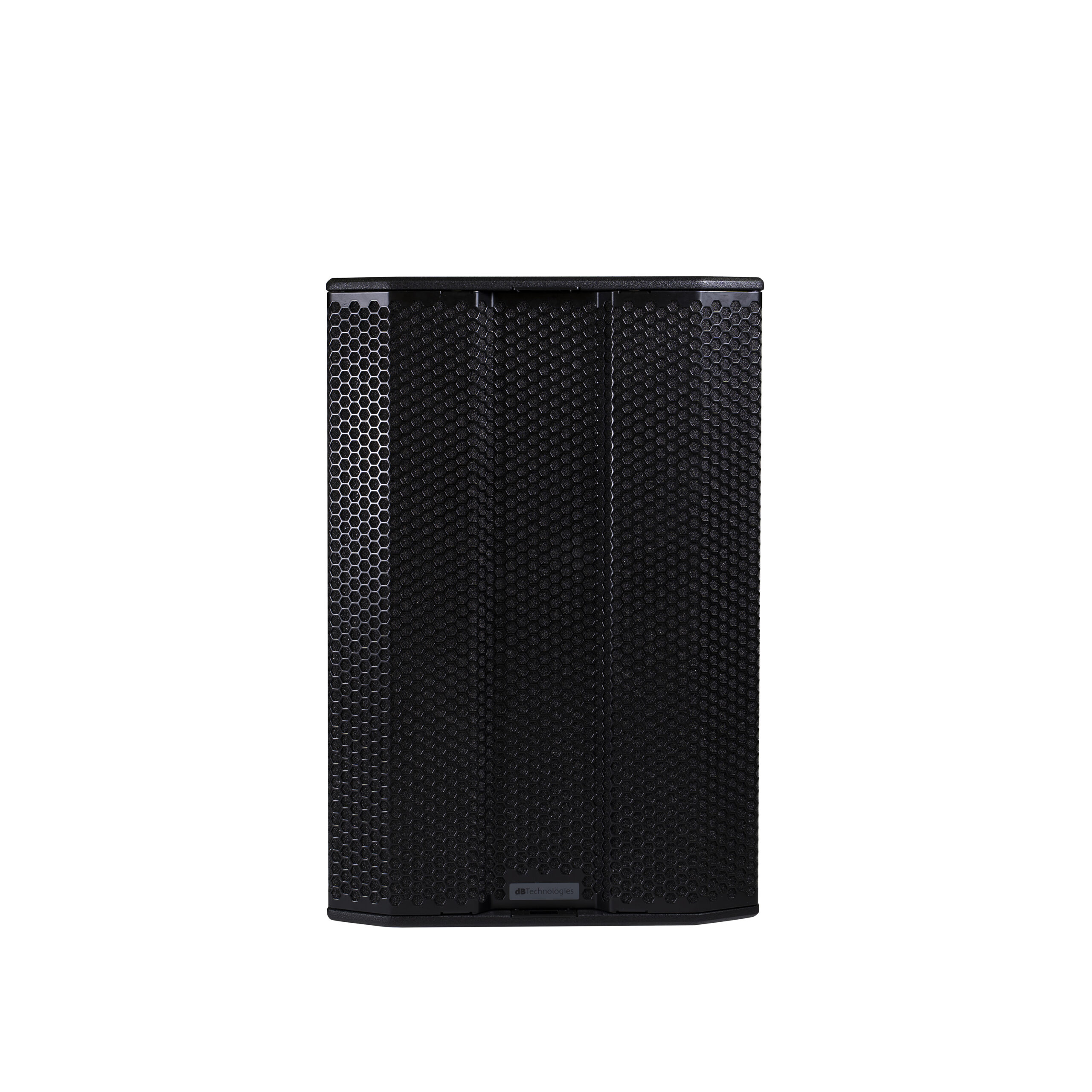

Speaker Type: Active Subwoofer
Acoustical data
Frequency Response [-6dB]: 38 Hz – Xover Frequency
Max SPL: 135.4 dB
LF: 1x 18″
LF Voice Coil: 4″
Amplifier
Amp Technology: PSC1 with PFC
Amp Class: Class-D
Peak Power: 3200 W
RMS Power: 1600 W
Cooling: Passive Convection
Processor
Controller: DSP 32 bit
AD/DA Converter: 24bit/96kHz
Input
Signal Input: 1 x XLR female
Signal Out: 1 x XLR male
USB connector: Type B – Data Service
Controls: 1 rotary encoder (Preset)
4 System LED (Limiter, Signal, Mute/Prot, Ready)
3 RDNet LED (Link, Active, Remote Active)
4 System LED (Limiter, Signal, Mute/Prot, Ready)
3 RDNet LED (Link, Active, Remote Active)
Power Socket:
1xPowerCon TRUE1 Mains
1xPowerCon TRUE1 Link
1xPowerCon TRUE1 Link
Mechanics
Housing: Plywood
Grille: Full metal grille
Rigging point: Flyable with accessories

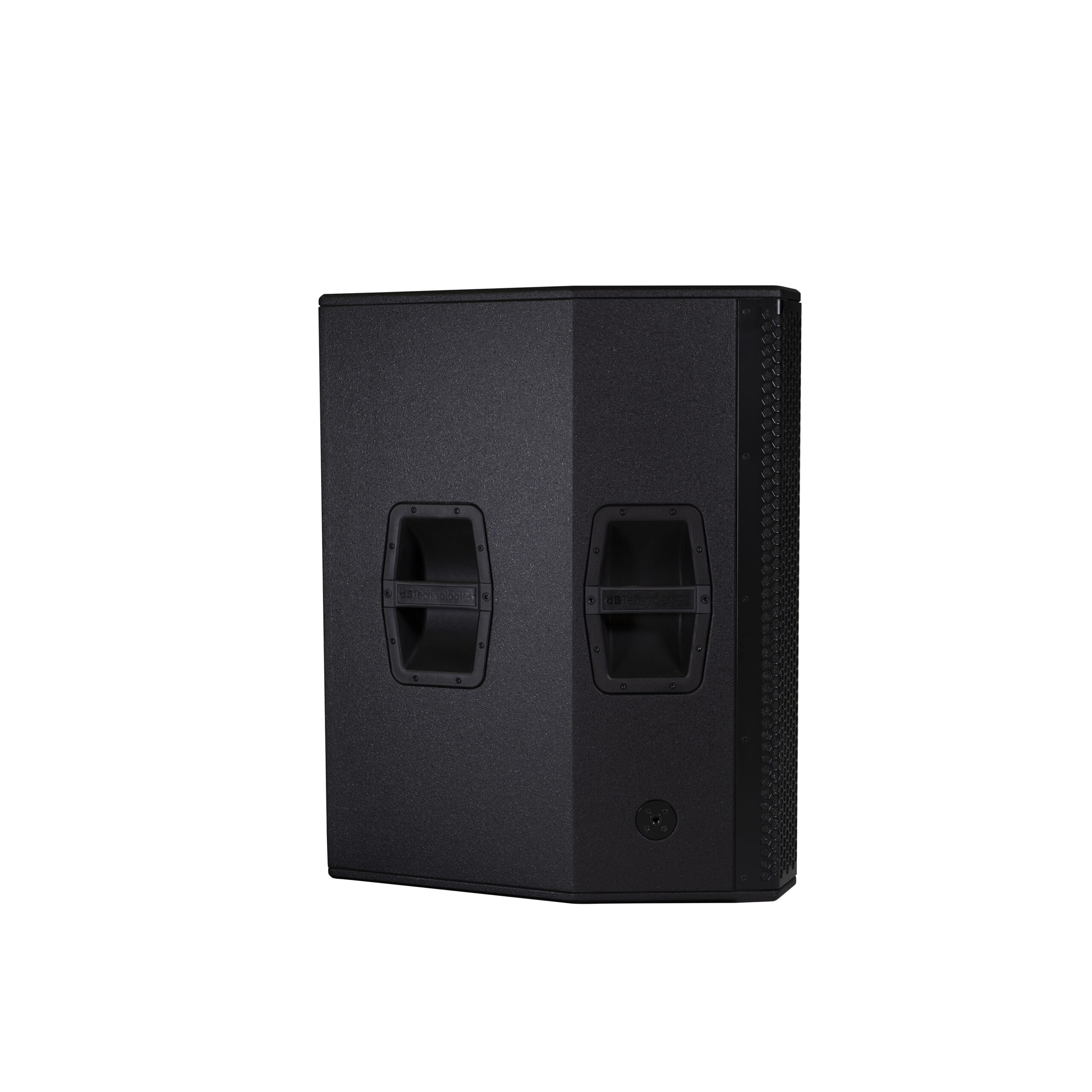

Handles: 2x side
Width: 500 mm (19.7 in)
Height: 750 mm (29.5 in)
Depth: 600 mm (23.6 in)
Weight: 42Kg (92.6 lbs.)
