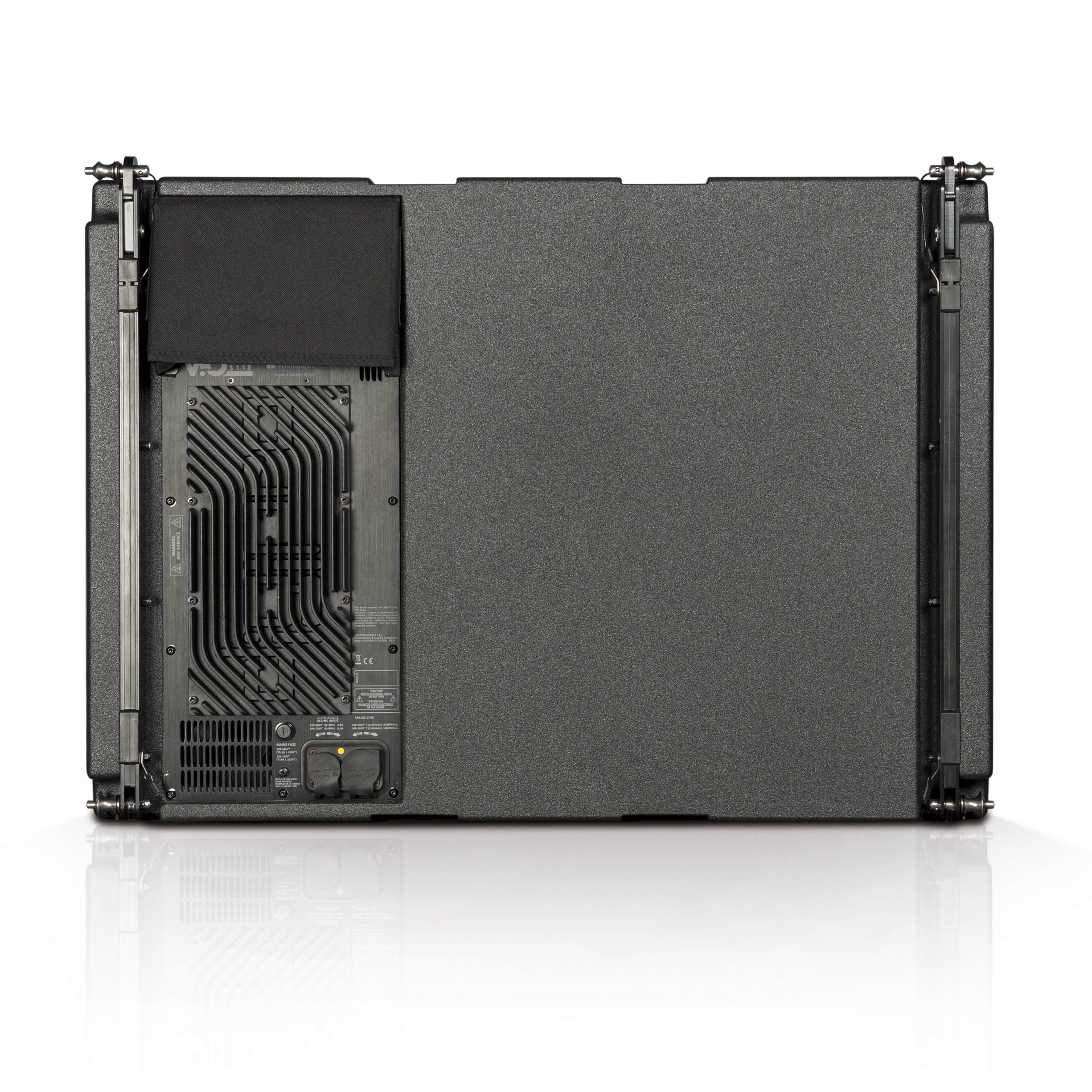

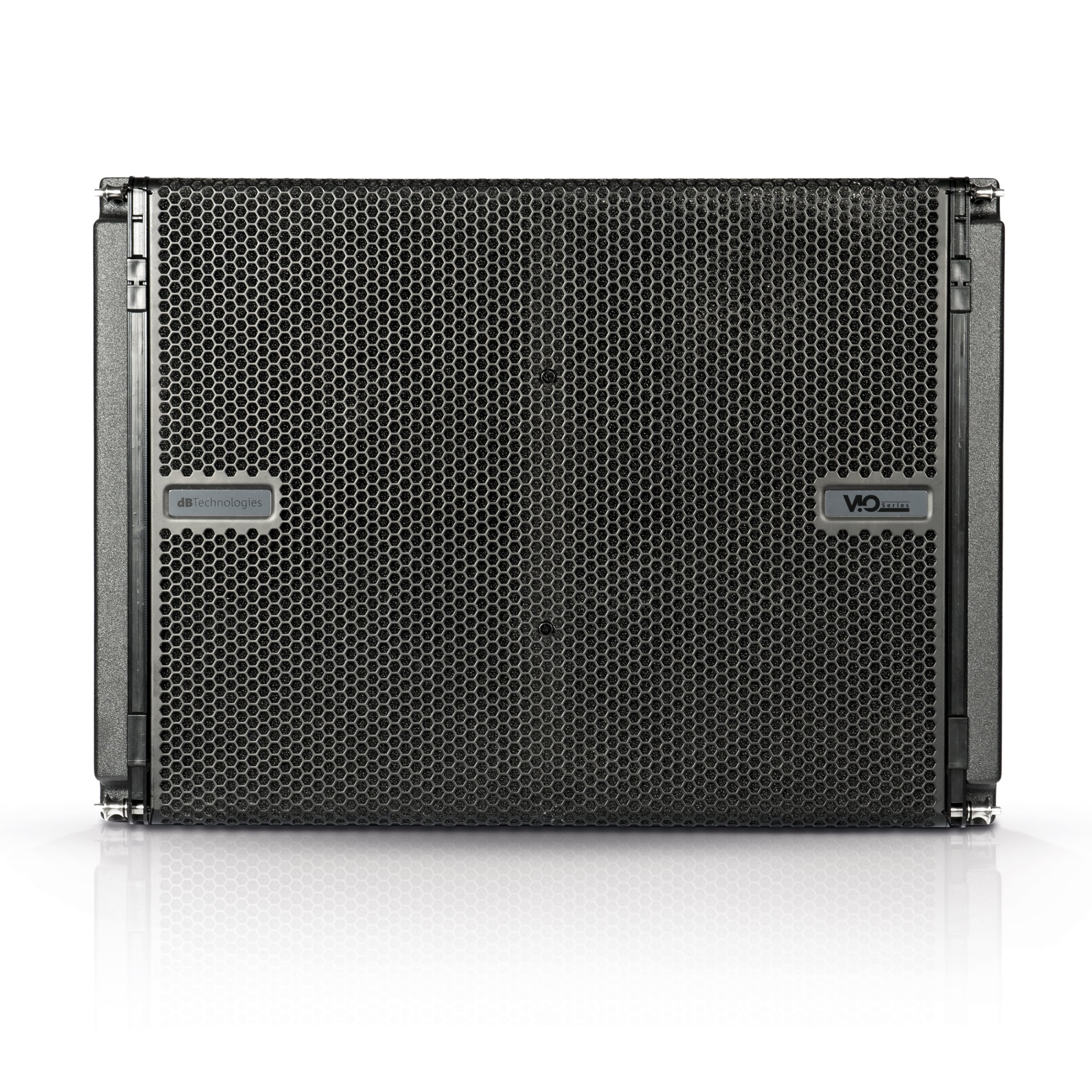

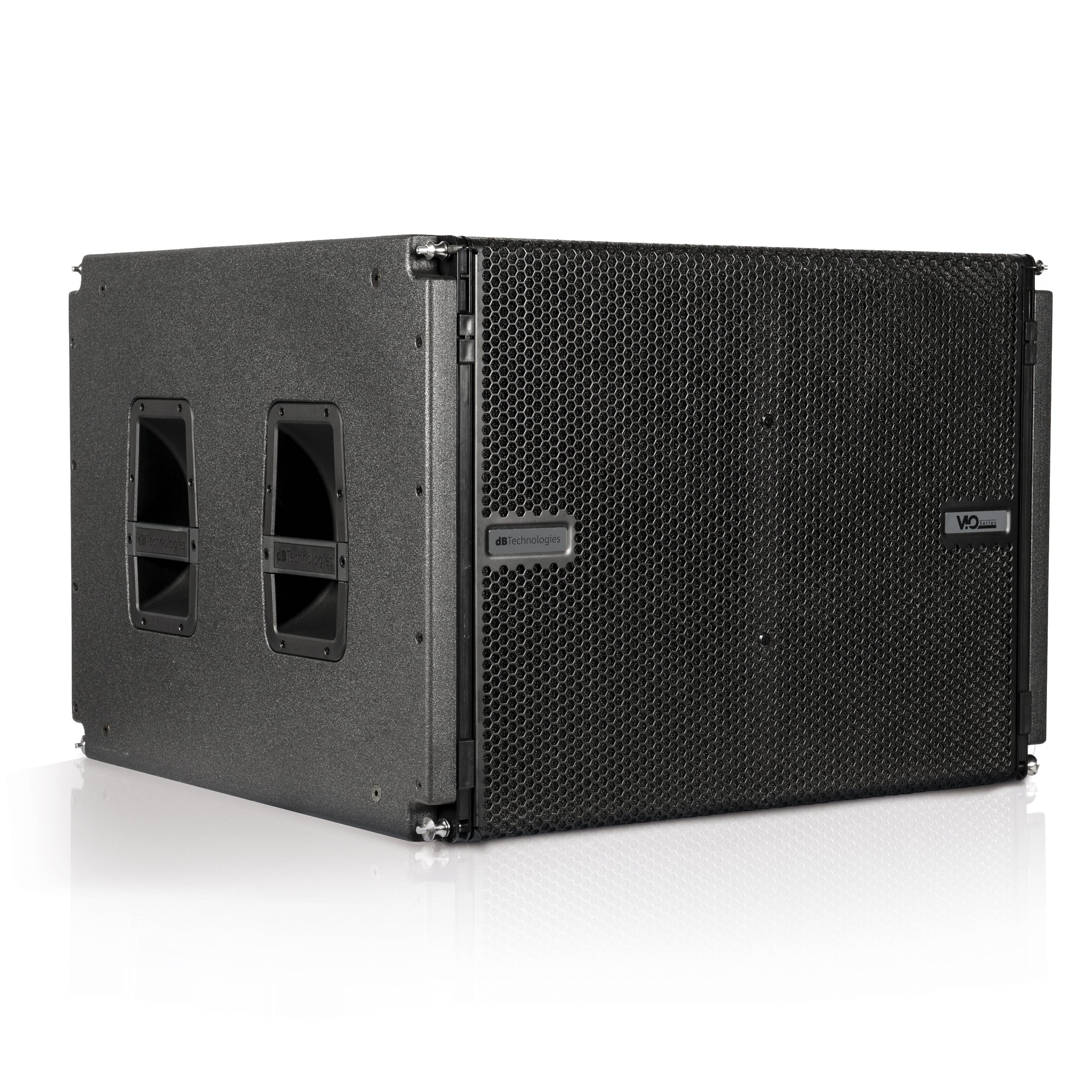

A flyable active subwoofer, equipped with a 18” neodymium woofer and crafted to complete with impressive low-end frequencies and vigorous SPL VIO’s accurate, phase coherent wave front.
* Flyable and groundstack configurations require dedicated adapters FSA-VIOL210 and GSA-VIOL210
FEATURES
- Active single 18” horn loaded subwoofer
- Last generation Digipro G4 Amp Technology
- 1600 W RMS class D DIGIPRO G4 amplifier with PFC
- System Auto-Test for quick diagnostics

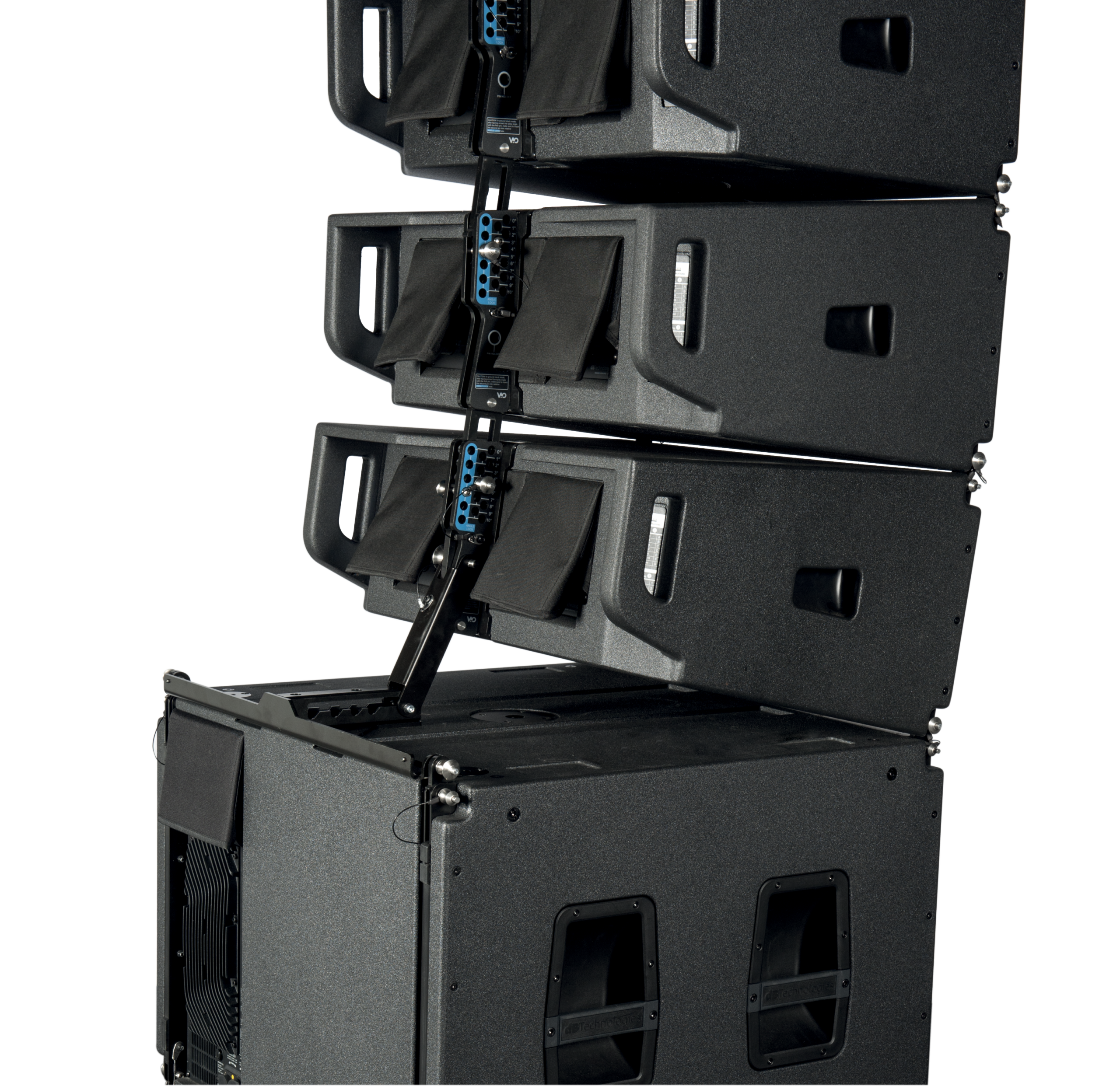

- Integrated flying hardware (compatible with VIO L210)
- Designed for maximum efficiency in the lower end
- On board delay for perfect time alignement
- On board cardioid array configuration preset
- Modular slot for network and digital audio expansion cards
Technical Data
Speaker TypeActive Horn-Loaded Flyable Subwoofer
Acoustical data
Frequency Response [- 6 dB]39 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB]36 Hz (HPF)
Max SPL139 dB
LF1x18″, Neodymium
Voice Coil LF4 ”
DirectivityOmnidirect ional Amplifier Amp TechnologyDigipro® G4 Amp ClassClass D RMS Power1600 W Peak Power3200 W CoolingConvection Power Supply1600 W with PFC Processor ControllerDSP 32 AD/DA Converter24 bit 96 kHz LimiterRMS, Peak, Thermal Delay Option0-9.9 ms internal Steps of 0.1 ms Crossover Frequency LF-HF60-110Hz + Full range LF-Xover out slope24 dB/Octave Input Signal Input1xXLR balanced Signal Output1x XLR balanced (link or X-over) 1xRJ45 LINK (RDNet) Expansion Card1xRJ45 IN (RDNet) 1xRJ45 LINK (RDNet) Power Socket1xPowerCON TRUE1 IN 1xPowerCON TRUE1 OUT Controls1x Input Attenuation Rotary Switch 1x Rotary Encoder (Delay 9.9 ms) 1XPolarity Inversion Switch (0° or 180°) 1xCardioid Mode Switch 1x X-Over Freq Switch (60-110 Hz + Full Range 1x System Auto-test Mechanics HousingMultiplex plywood Polyurea painted Handles2x Per Side Aluminium Pole MountM20 Thread RaincoverIncluded Rigging Points2xPick Points on top to fix DRK-210 rigging frame (stack use) 4x Pick Points on top and 4x on bottom for rigging Width720 mm (28.34 in) Height520 mm (20.47 in) Depth695 mm (27.36 in) Weight45.1 kg (99.42 lbs)
