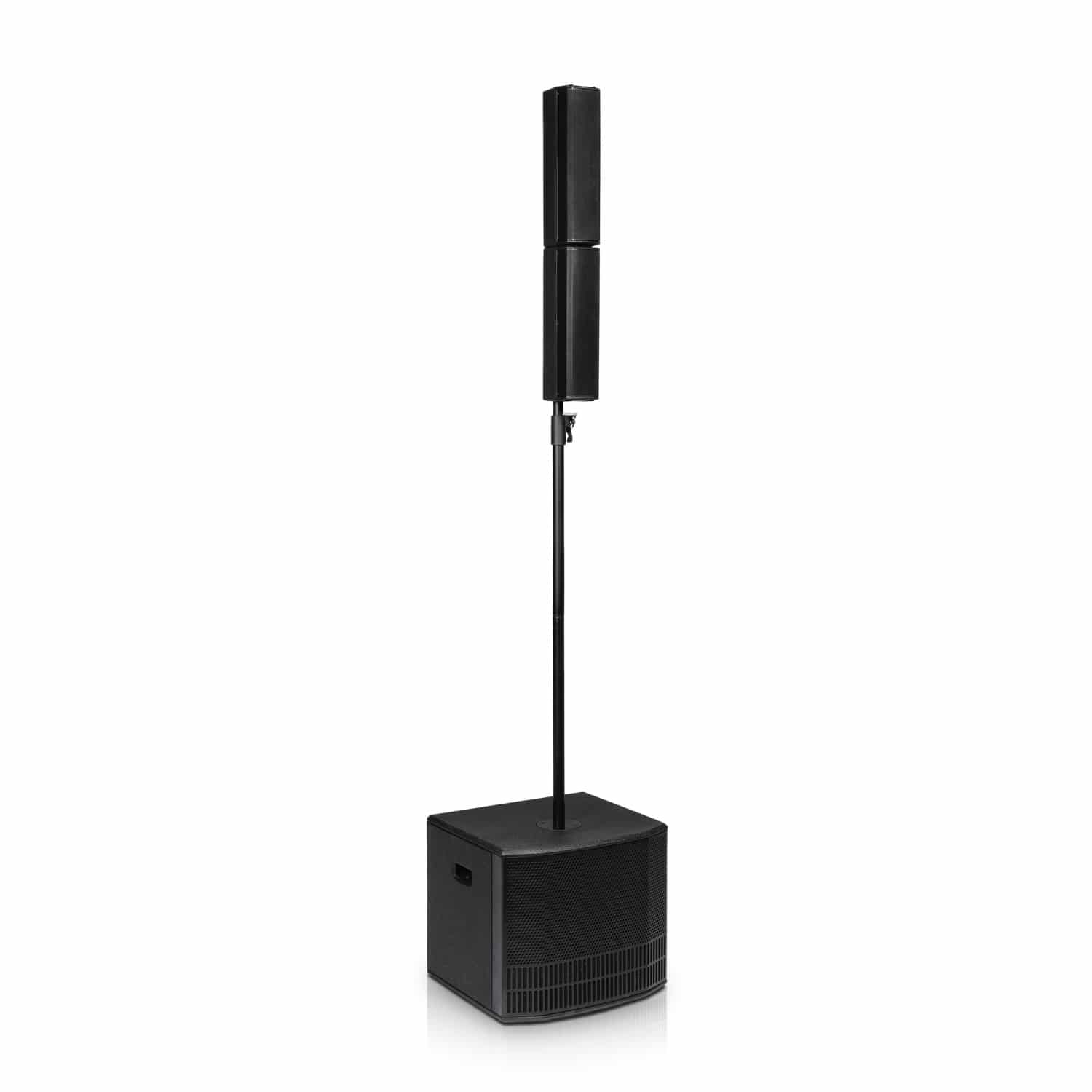

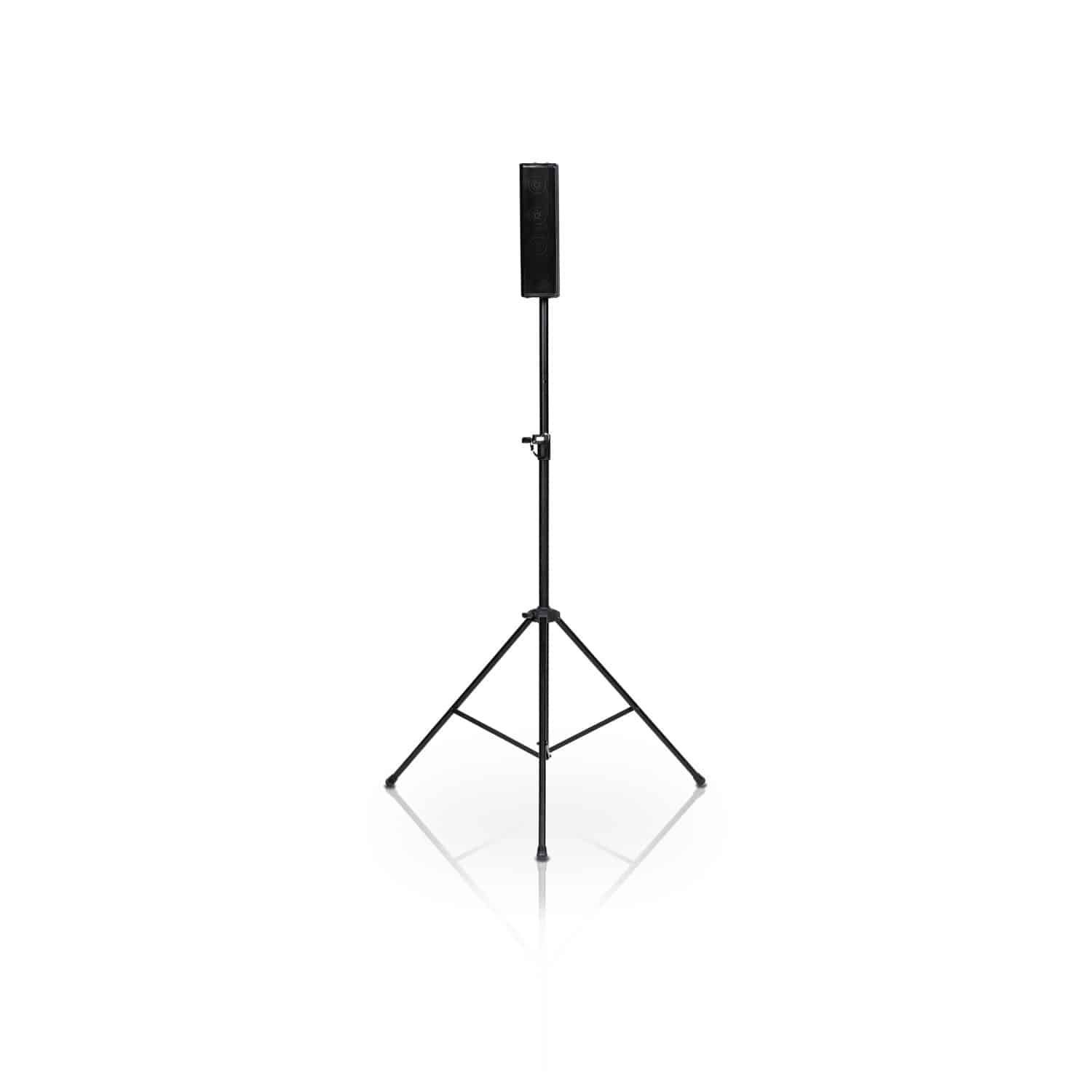

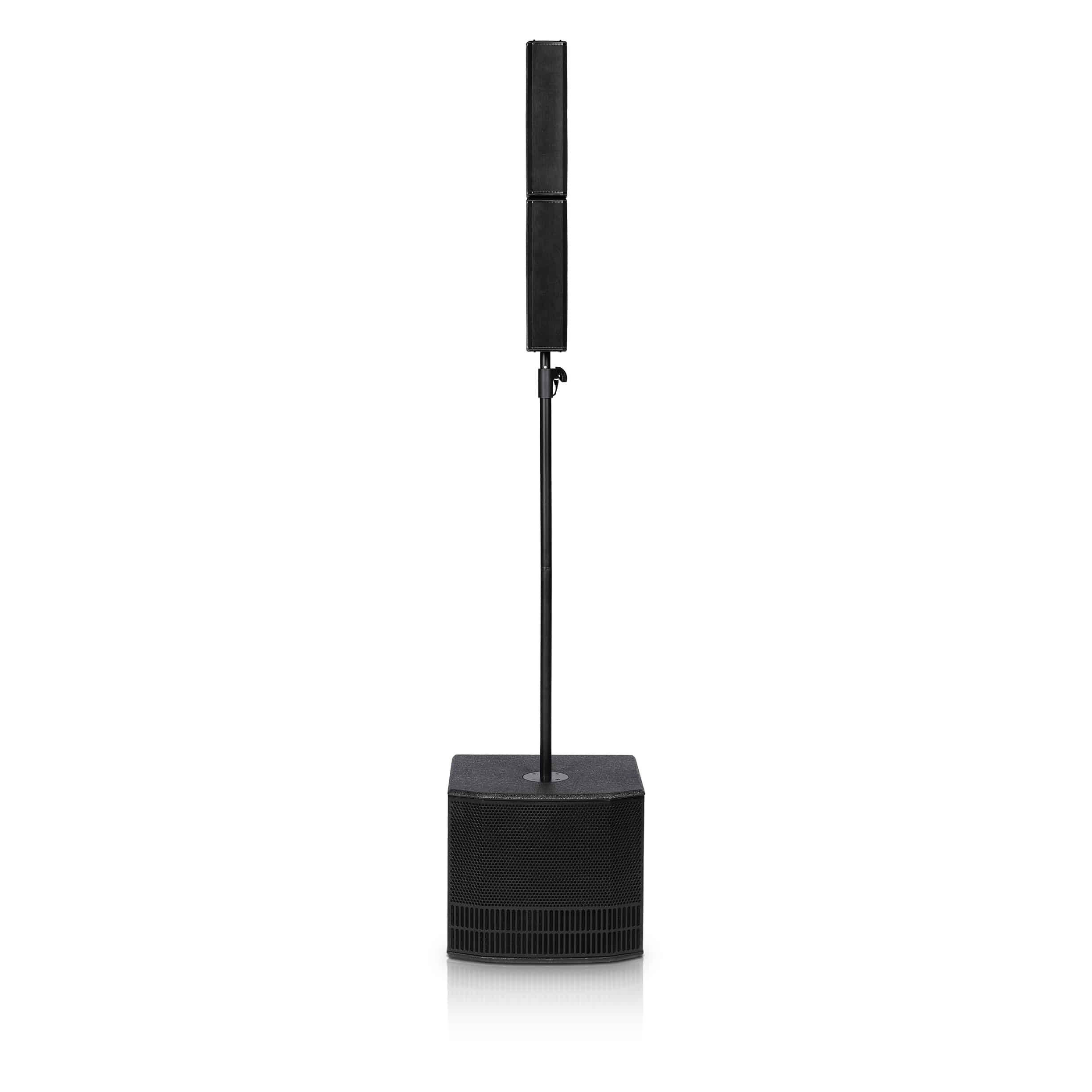

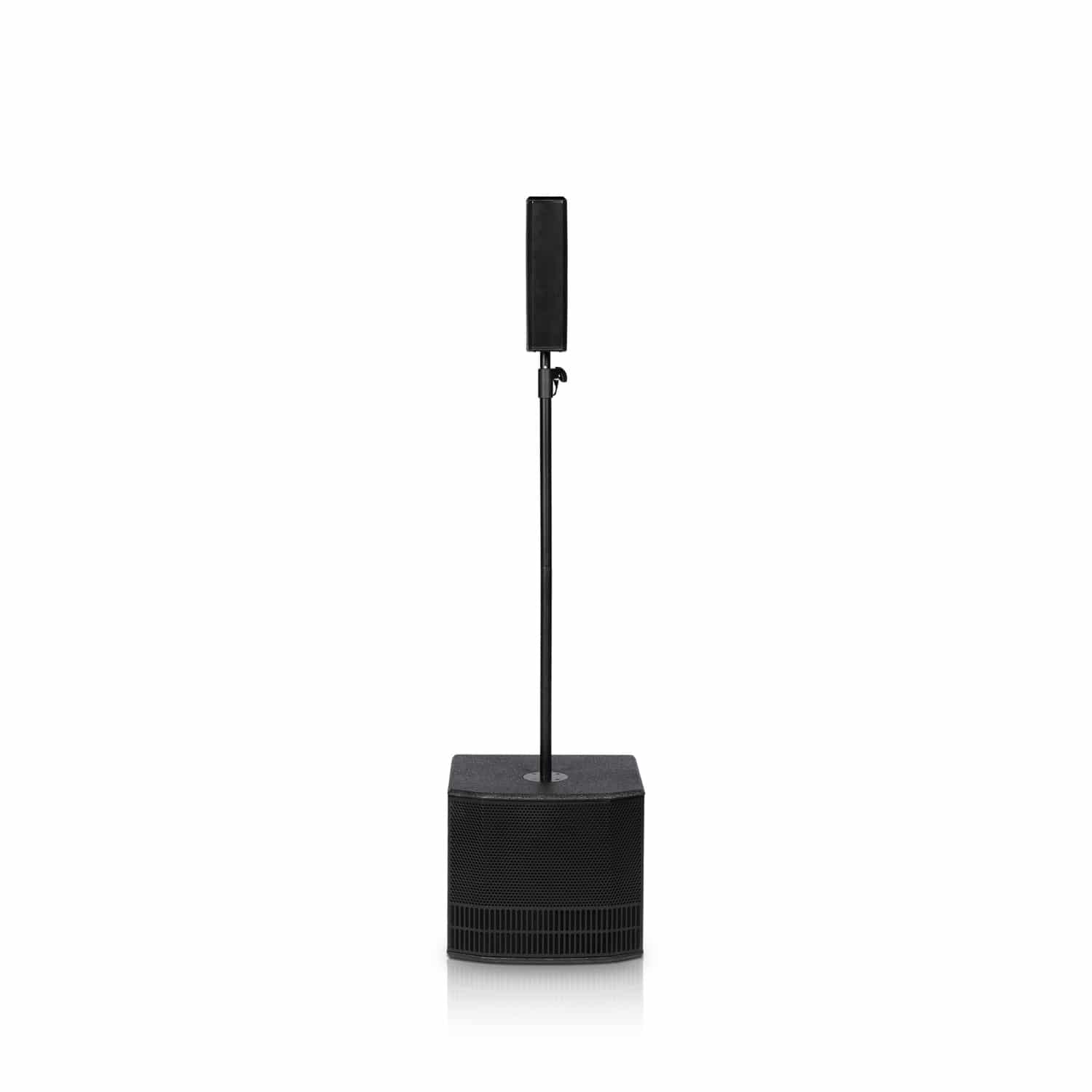

ES503 is the ultimate portable column speaker PA system. Perfect as a portable PA system for live sound as well as playback applications, ES provide a simple yet powerful plug-and-play solution for solo musicians or small bands, and is the must-have sound system in the touring DJ equipment, thanks to a built in digital mixer and a stereo Bluetooth audio receiver.
Features
- 3 AMPED STEREO SYSTEM
- 2 FULLRANGE TOPS+1 ACTIVE SUBWOOFER
- HF-MF 8X3″ (FOR EACH TOP)
- LF 12″
- 1000W PEAK POWER
- MAX 121 dB SPL

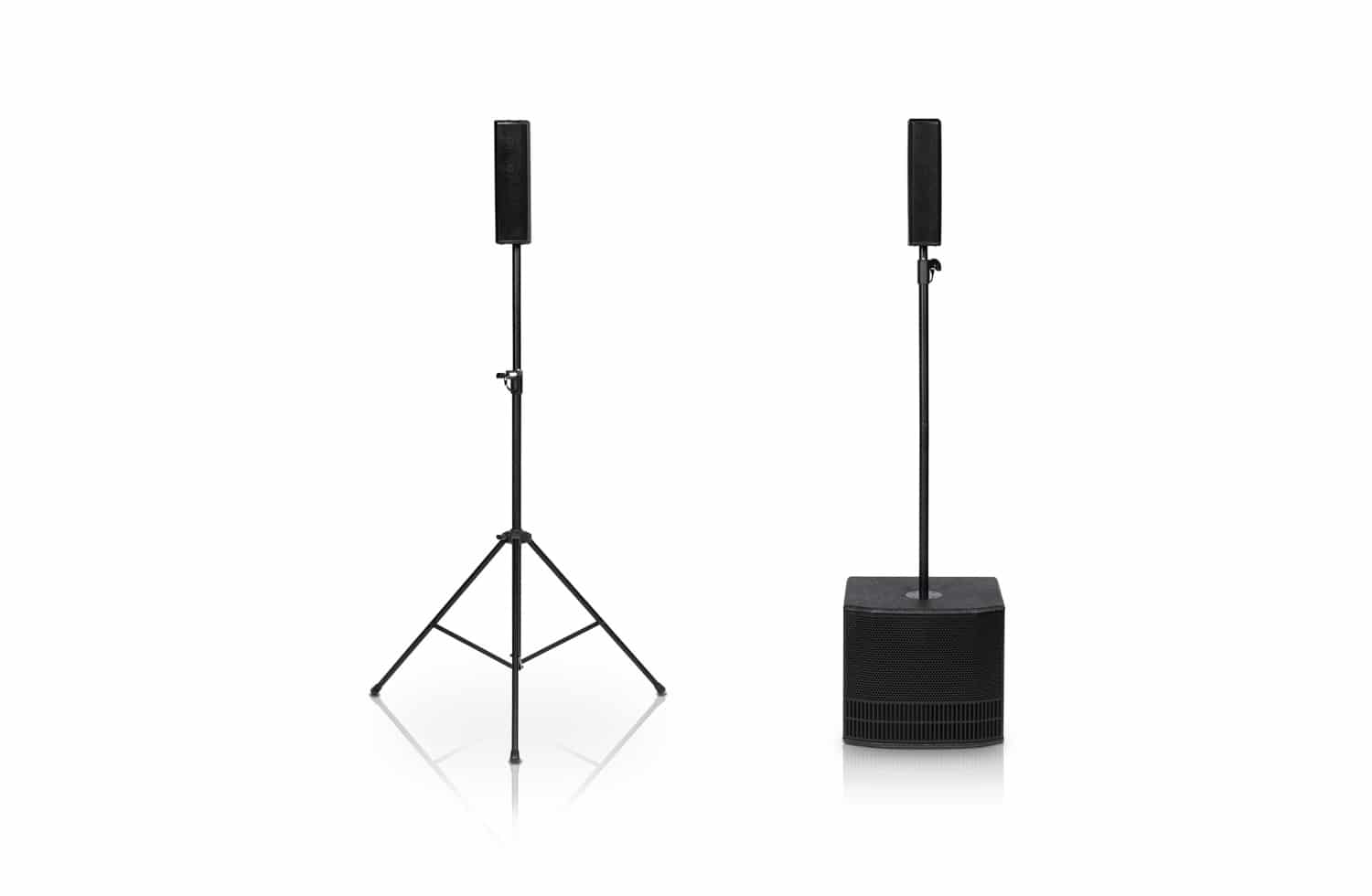

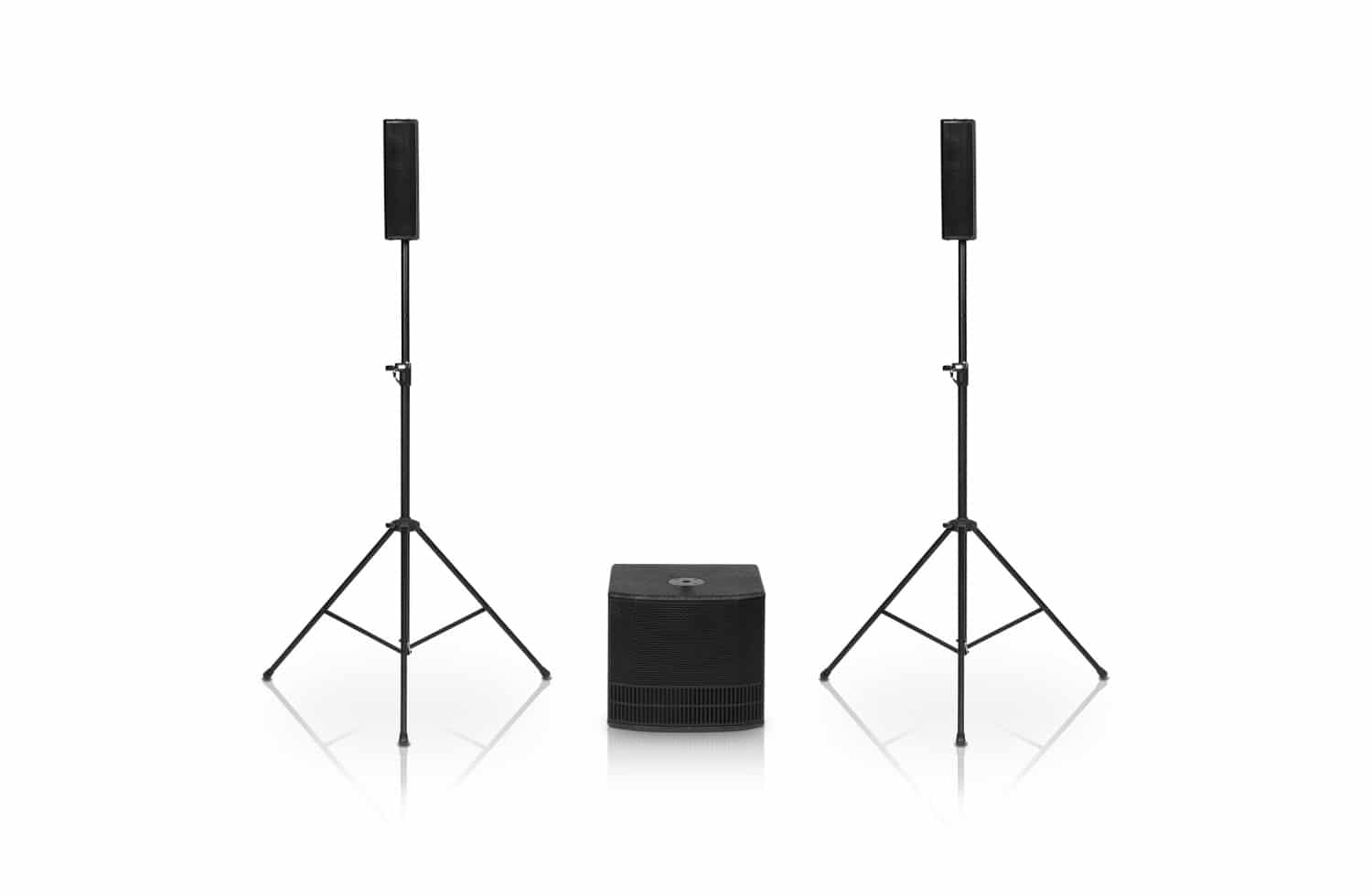

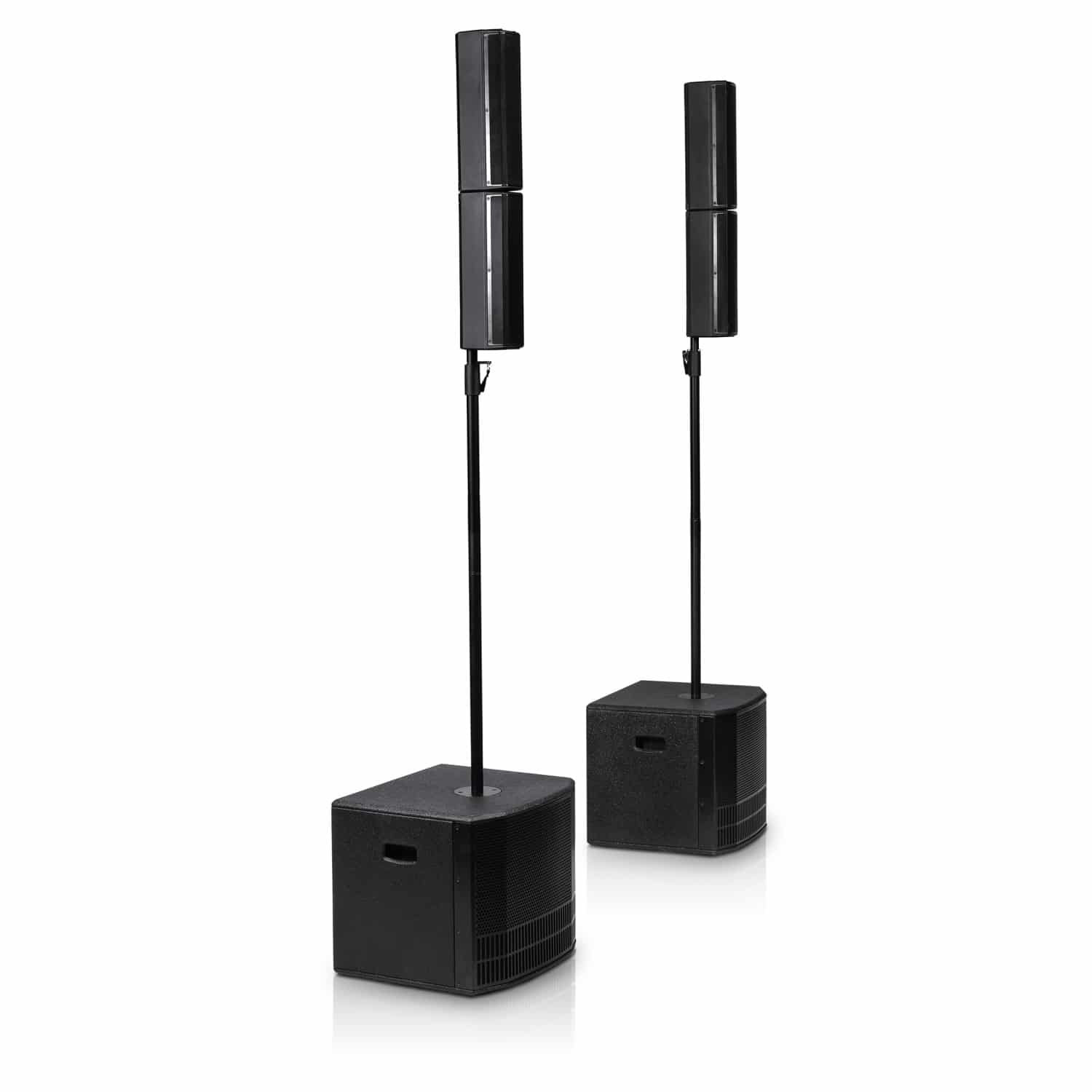

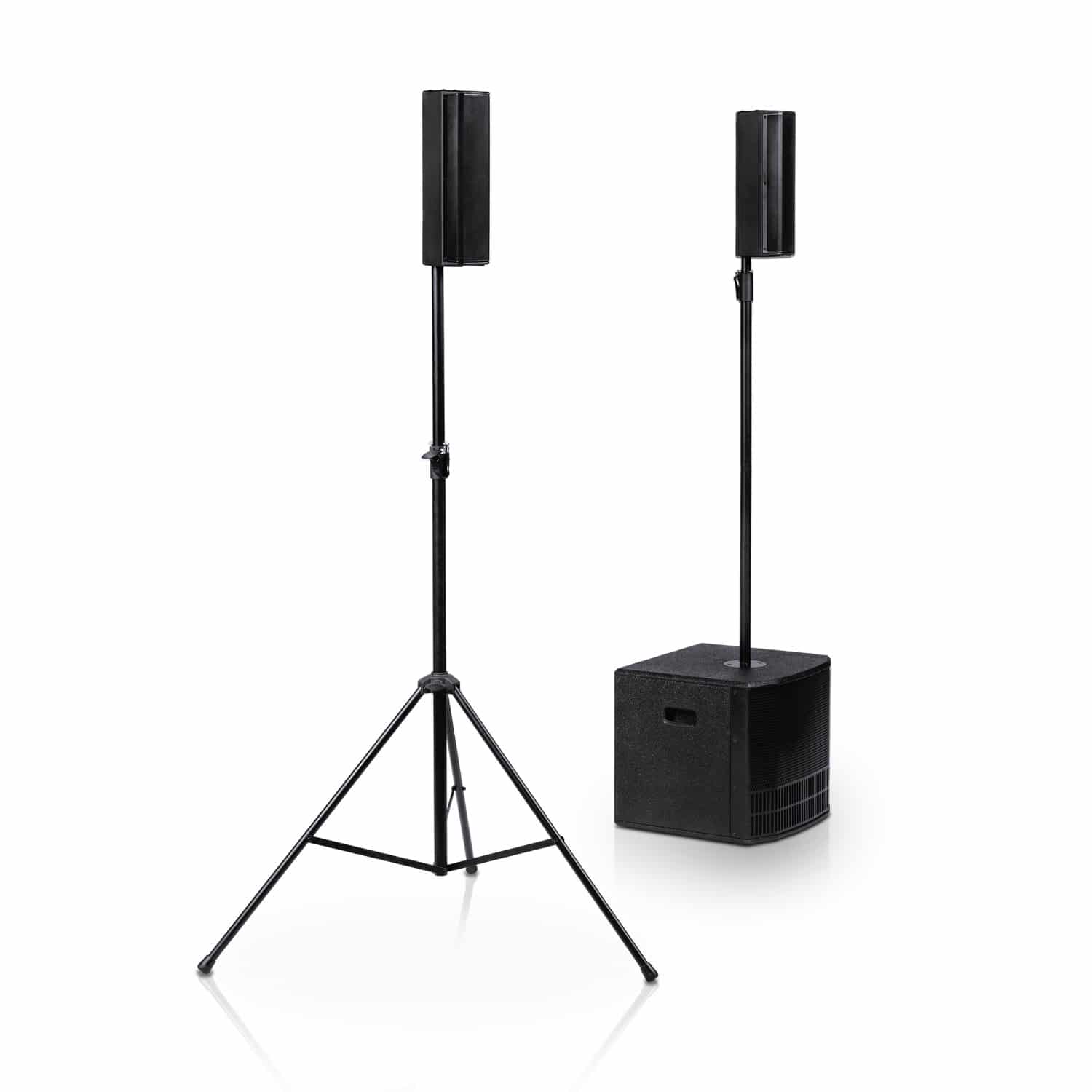

- STEREO OR MONO CONFIGURATION
- OLED DISPLAY INTERFACE
- ON-BOARD3-CHANNEL MIXER
- 3 INPUT CHANNELS (MIC/INSTR/LINE)
- CUSTOMIZABLE OUTPUT CHANNEL (MIX/MONITOR/AUX)
- BLUETOOTH® STEREO STREAMING
Technical Data
Speaker Type:3-amped Stereo System with two full-range tops and one subwoofer
Acoustical data
Frequency Response [-10dB]: 37 – 15.000 Hz
Max SPL: 121 dB

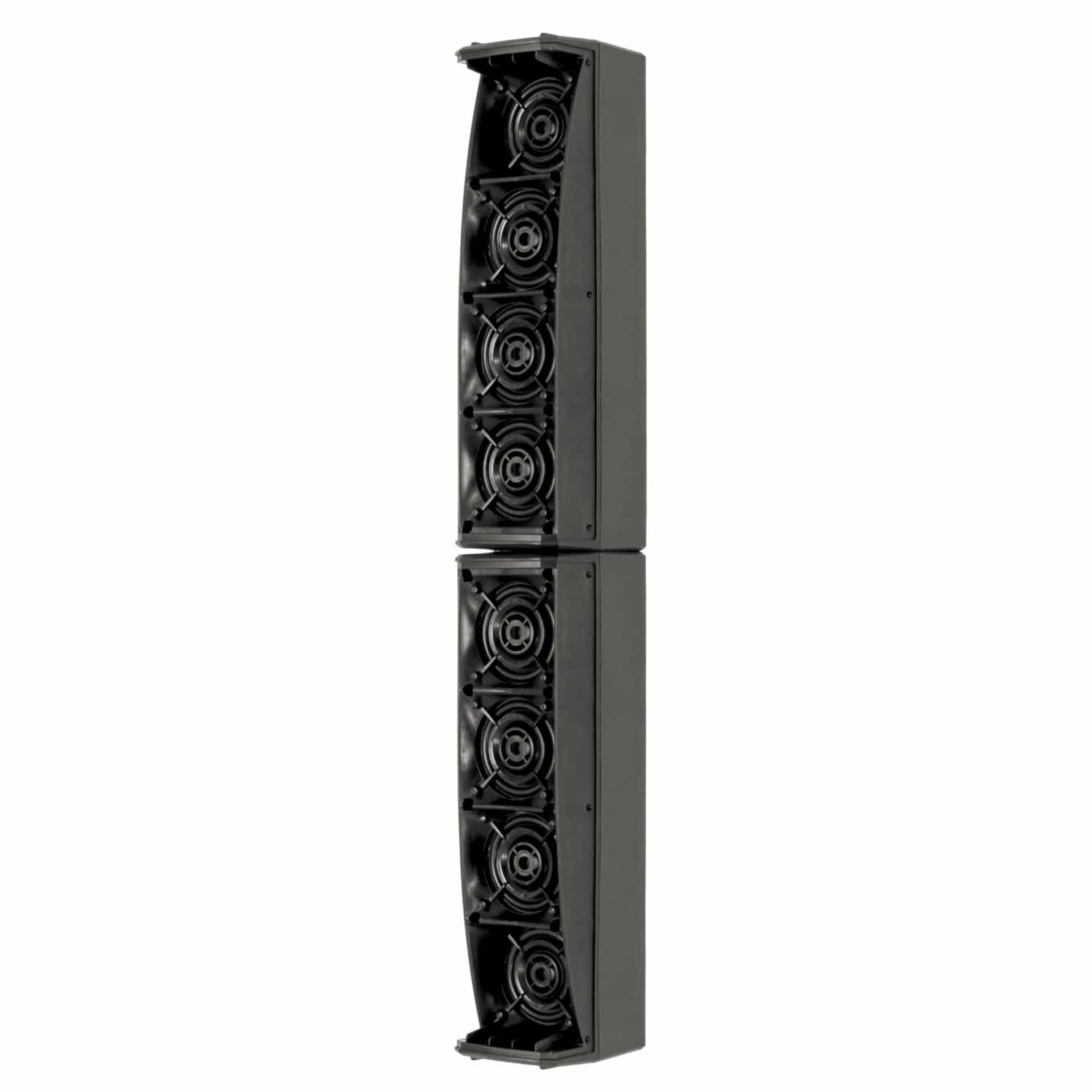

MF – HF: 8x 3″
Type MF – HF: Neodymium
LF: 12″
Directivity: 95×65°
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class-D
Power Amp Peak: 1000 W
Processor
Controller: DSP 24 Bit/48 kHz
System Presets: Factory presets + User defined
Limiter: Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF: 206 Hz
Input
Mic/Instrument Channel: 1x Combo (XLR/Jack) balanced/unbalanced input
Line Channels: 2x Combo (XLR/Jack) balanced/unbalanced inputs
Media Channel: 1x Bluetooth® built-in receiver
Mix Output: 1x XLR balanced output
Mechanics

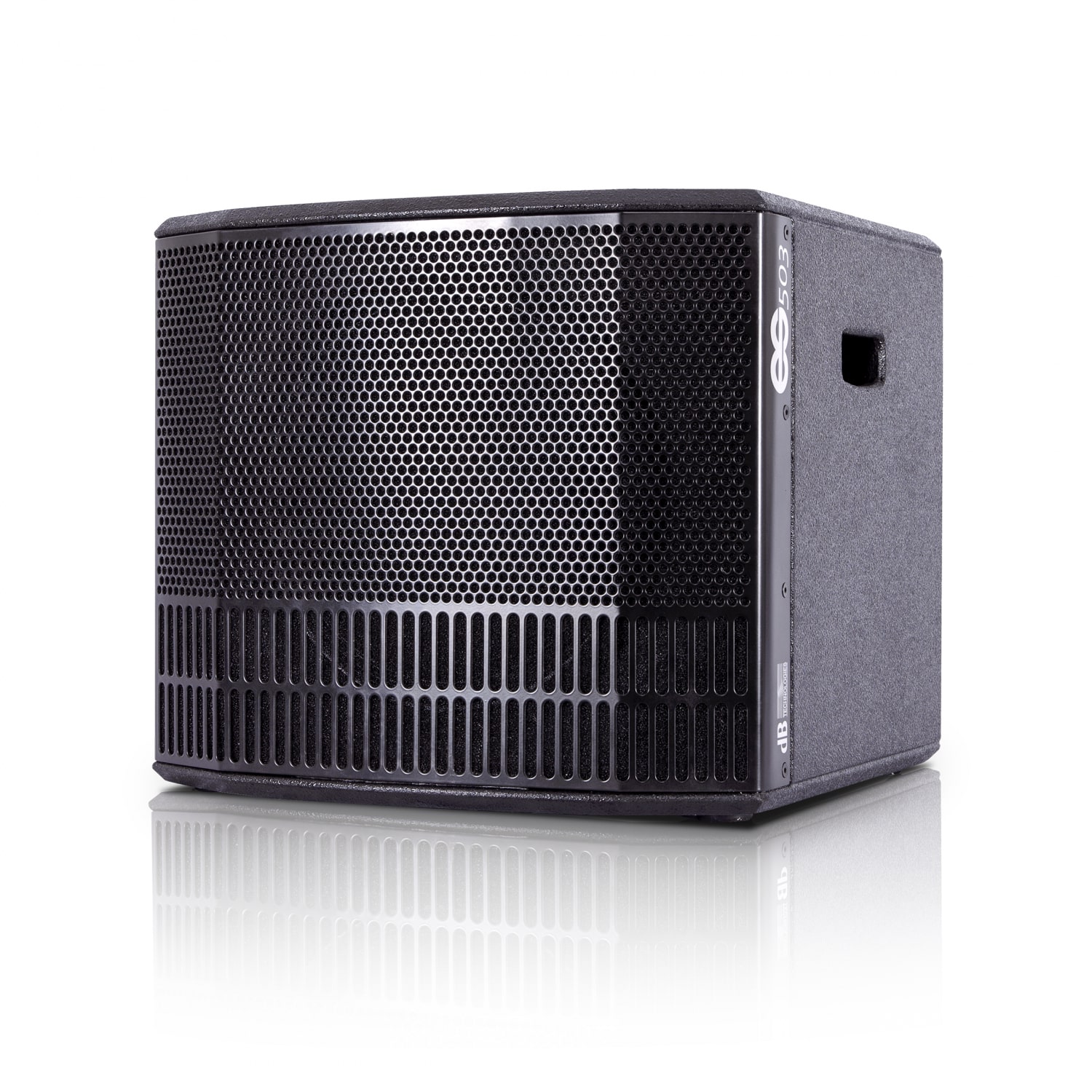

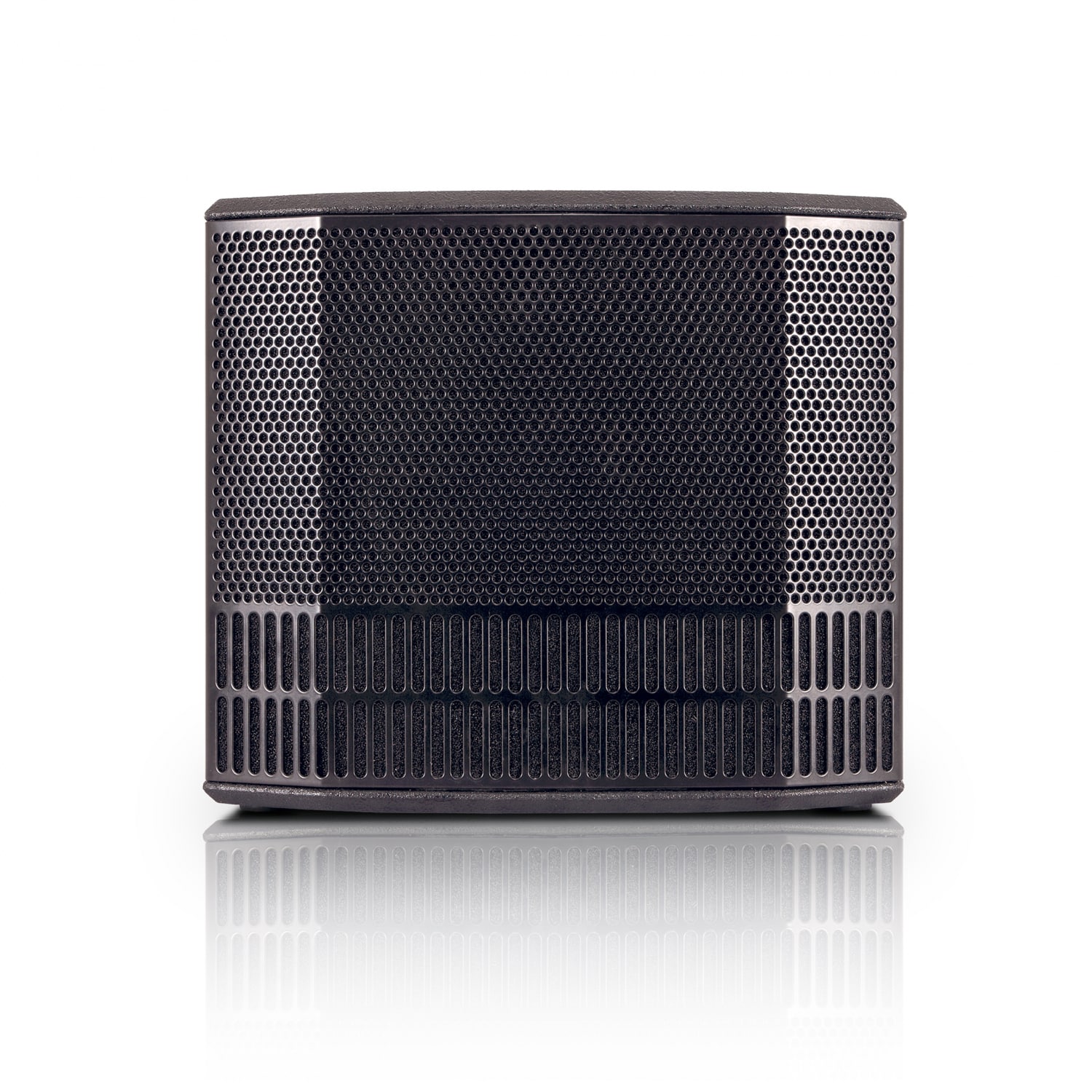

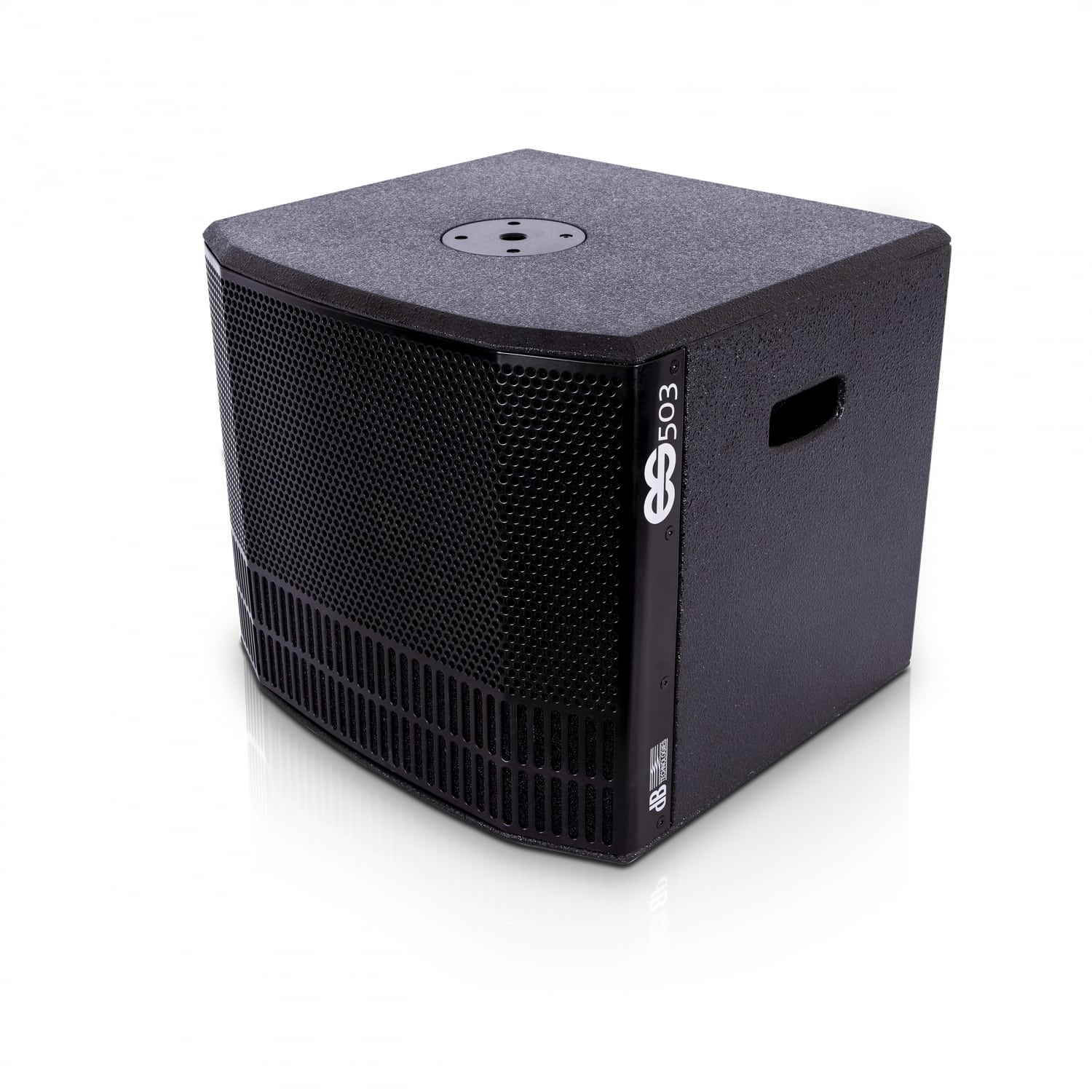

Housing (Subwoofer)
15mm Black Painted Plywood

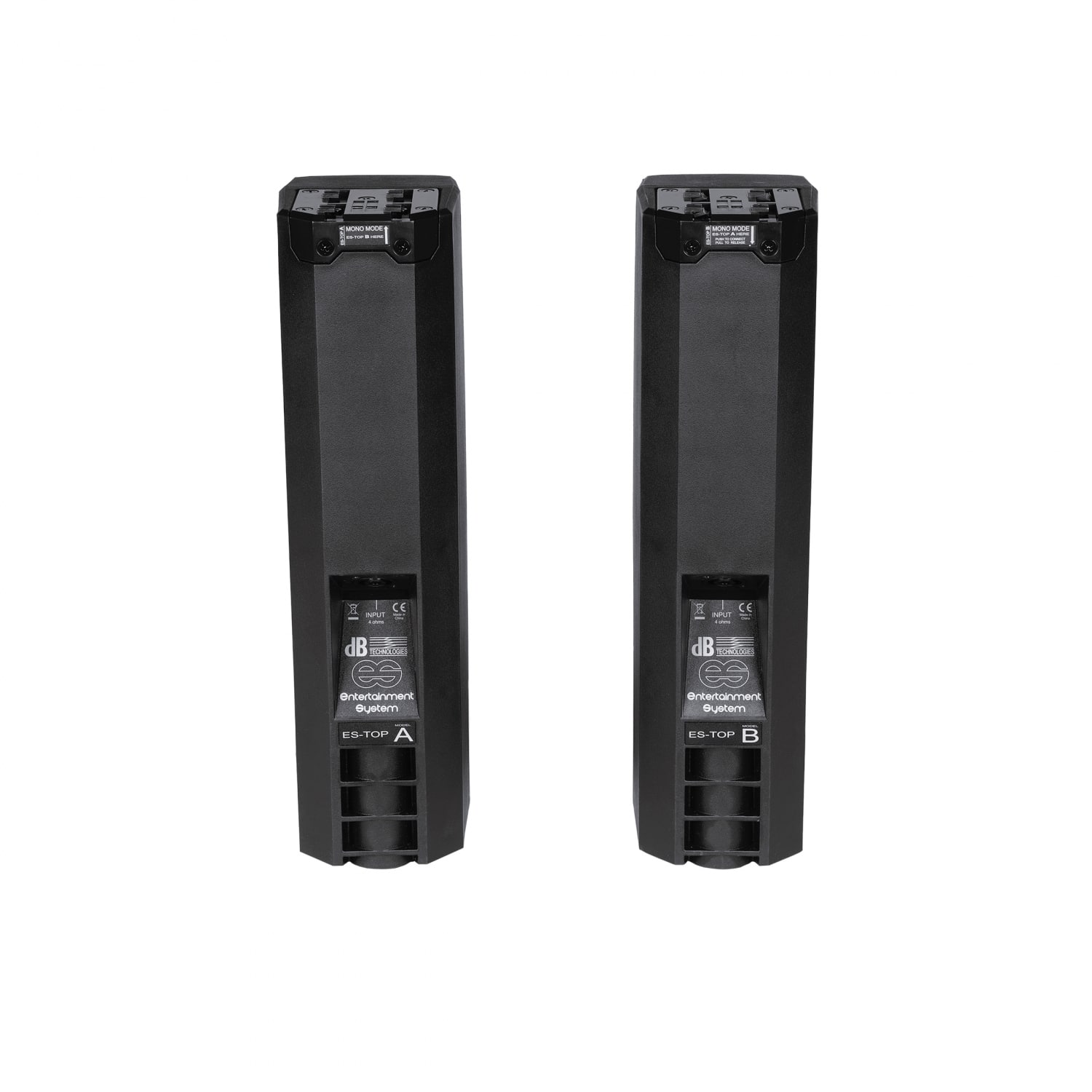

Housing (Tops)
Polypropylene PP
Handles: 2x lateral side (Subwoofer)
Width (Top): 95 mm (3.74 in)
Height (Top): 360 mm (13.98 in)
Depth (Top): 137 mm (5.39 in)
Width (Subwoofer): 465 mm (18.3 in)
Height (Subwoofer): 400 mm (15.7 in)
Depth (Subwoofer): 430 mm (16.9 in)
Weight (Top): 1.9Kg – 4.19lbs.
Weight (Subwoofer): 16.4Kg – 36.16lbs.
