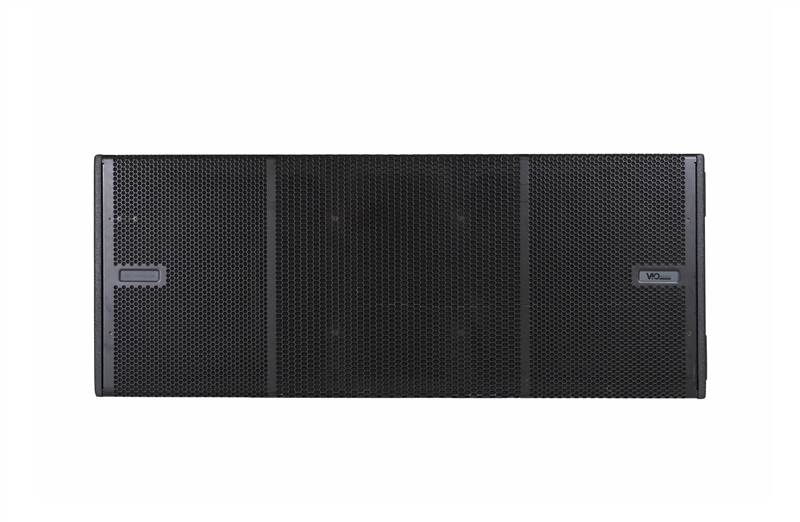

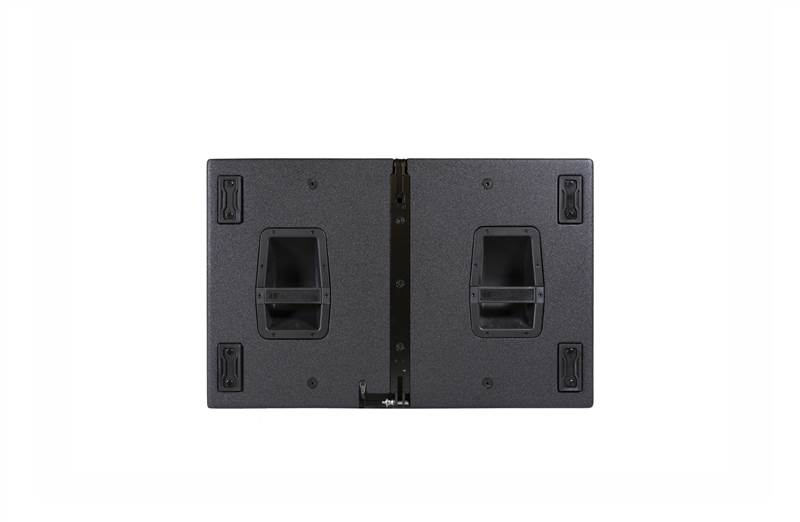

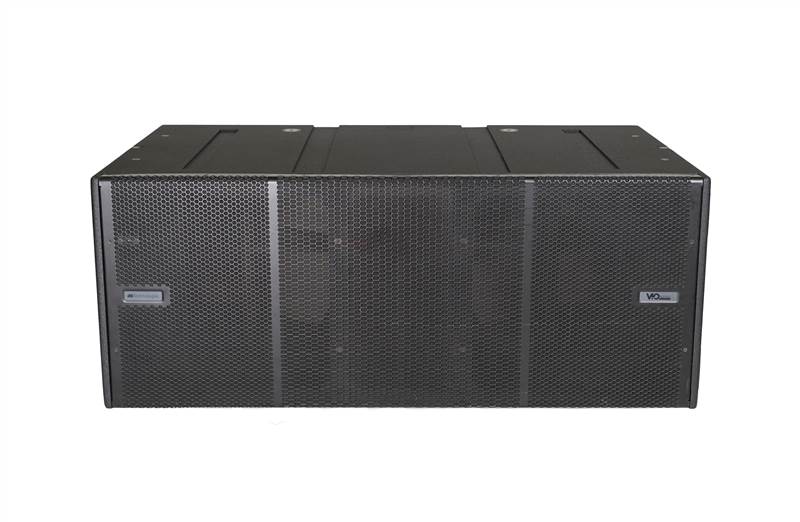

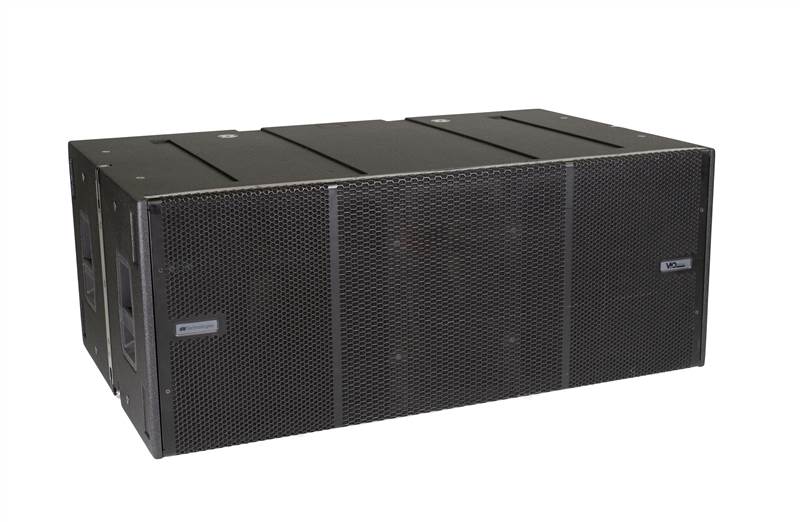

dBTEchnologies VIO S218F subwoofer

Ring 9818 5066

⚠️ Varen på fjernlager, leveringstid 8-14 dage

Varenr.: VIO S218FKategorier: VIO SUBS, VIO SUBSTags: VIO SBrand: dBTechnologies

Packed with exclusive technologies, VIO S218F widens the possibilities for low frequency reproduction in larger VIO sound reinforcement deployment.
SKY IS THE LIMIT

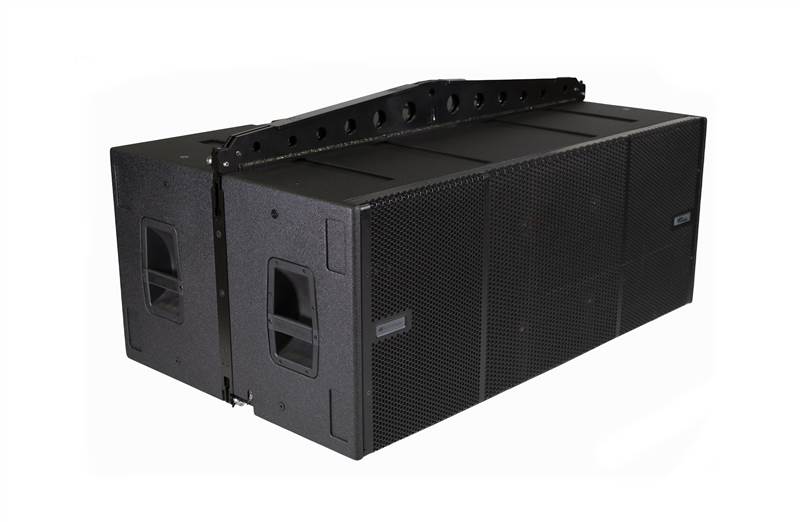

With this system version, you can extend the range of action of the distinctive VIO S218 subwoofer by flying an array of VIO S218F in the air. Up to 14 cabinets can be flown with a single DRK-218F flybar.
TOUR-READY
The most demanding sound reinforcement application for touring requires extreme flexibility in order to accommodate the specific needs for every event in any venue worldwide. VIO S218F is the perfect bottom-end addition to large VIO deployments, packing astounding sound performance and a ultra low frequency punch, extending down to 28Hz.
CARDIOID PRESET
A cardioid preset button automatically process the sound of the backward sub in gradient inverted stack configurations, in order to reach maximum cancellation of the rear side. You can easily fly VIO S218 in inverted orientations, according to the desired backward rejection. An easy cable run carved out will allow all the cables to run smoothly through the cabinets for a clean cable management.
REAL-TIME CONTROL
As a default, VIO S218F is equipped with dBTechnologies RD-Net card, for real time remote control via Aurora Net software. Furthermore, the preamplifier is ready for future upgrades with Audinate DanteTM AoIP protocol. To help users in this configuration, S218F comes with built-in technologies: Near Field Communication (NFC™) proximity sensors are used to determine the position of each box within an array. This technology, together with a hi-brightness LED bulb on the front of the enclosure, contributes to help the user to recognize, identify and match each box physical position on the remote control software Aurora Net. The amp also allows users to run auto-test on electronics and transducers before and after use and a real time impedance control. This unique system ensure tour-grade reliability and remote control over your entire PA’s health.

FEATURES
  • FLYABLE ACTIVE BASSREFLEX SUBWOOFER
  • 3200W RMS DIGIPRO® G4 AMPLIFIER
  • 143 dB MAX SPL
  • USABLE BANDWIDTH [- 6 dB]: 28 Hz to cut frequency
  • DANTE & A2NET READY
  • LF: 2 x 18”, 4” v.c. – NEODYMIUM
  • Weight: 100Kg (220 lbs)
Technical Data
Speaker Type: Flyable Active Bassreflex subwoofer
Acoustical data: Frequency Response [- 10 dB] – 27 Hz (HPF)
Frequency Response [- 6 dB]: 28 Hz to cut frequency (Xover dependent)
Max SPL: 143 dB
LF: 2×18” Neodymium
Voice Coil LF: 4”
Directivity: Omnidirectional
Amplifier
Amplifier: 3200 W RMS [2x 1600 W RMS Class-D Digipro® G4]
Cooling: Passive convection, internal fan
Power Supply: Full-range SMPS with PFC (100V~-240V~, 50-60Hz)
Processor:
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 kHz
Limiter: Peak, RMS, Thermal
Delay Option: 0 – 9.9 ms internal | steps of 0.1 ms [on-board]
Crossover Frequency LF-HF: Selectable 60-110 Hz + Full Range (8 steps)
LF-Xover out slope: 24 dB/Octave
Input
Signal Input: 1x XLR balanced – 1x USB Data Service
Signal Output: 1x XLR balanced
Network: RDNet Card (1x RJ45 IN 1x RJ45 Link) – Dante Card [Optional]
Power Socket: 1x PowerCON TRUE1 In – 1x PowerCON TRUE1 Out
Controls: 1x Input Attenuation Rotary Encoder – 2x Delay Rotary Encoder (0-9.9 ms) – 1x Polarity Inversion Switch (0° or 180°) – 1x Cardioid mode Switch – 1x X-Over Frequency Rotary Encoder (8 steps)
Special Features: NFCTM and Frontal LED Identification System – 380V Resistant SMPS – IPOS Intelligent Power-On Sequence – Opto-isolated floating pre-amp – System Test (transducers diagnostics)
Mechanics
Housing: Multiplex plywood – Polyurea painting
Handles: 2x Side. Aluminium
Raincover: Included
Rigging Points: side integrated rigging hardware, 2x Pick Points on top for DRK-210 rigging frame
Width: 1300 mm
Height: 520 mm
Depth: 800 mm
Weight: 100 kg (220
