The active two-way speaker series providing a professional sonic performance to all kind of users. The most accurate sound reproduction combined with aggressive sound pressure levels and enhanced portability.
FEATURES
- Maximum efficiency up to 126,5 dB SPL
- Professional acoustic performance
- Innovative horn design for uniform and extended coverage
- Compact featherweight
- Clean and contemporary design enhancing portability
- 3 handles

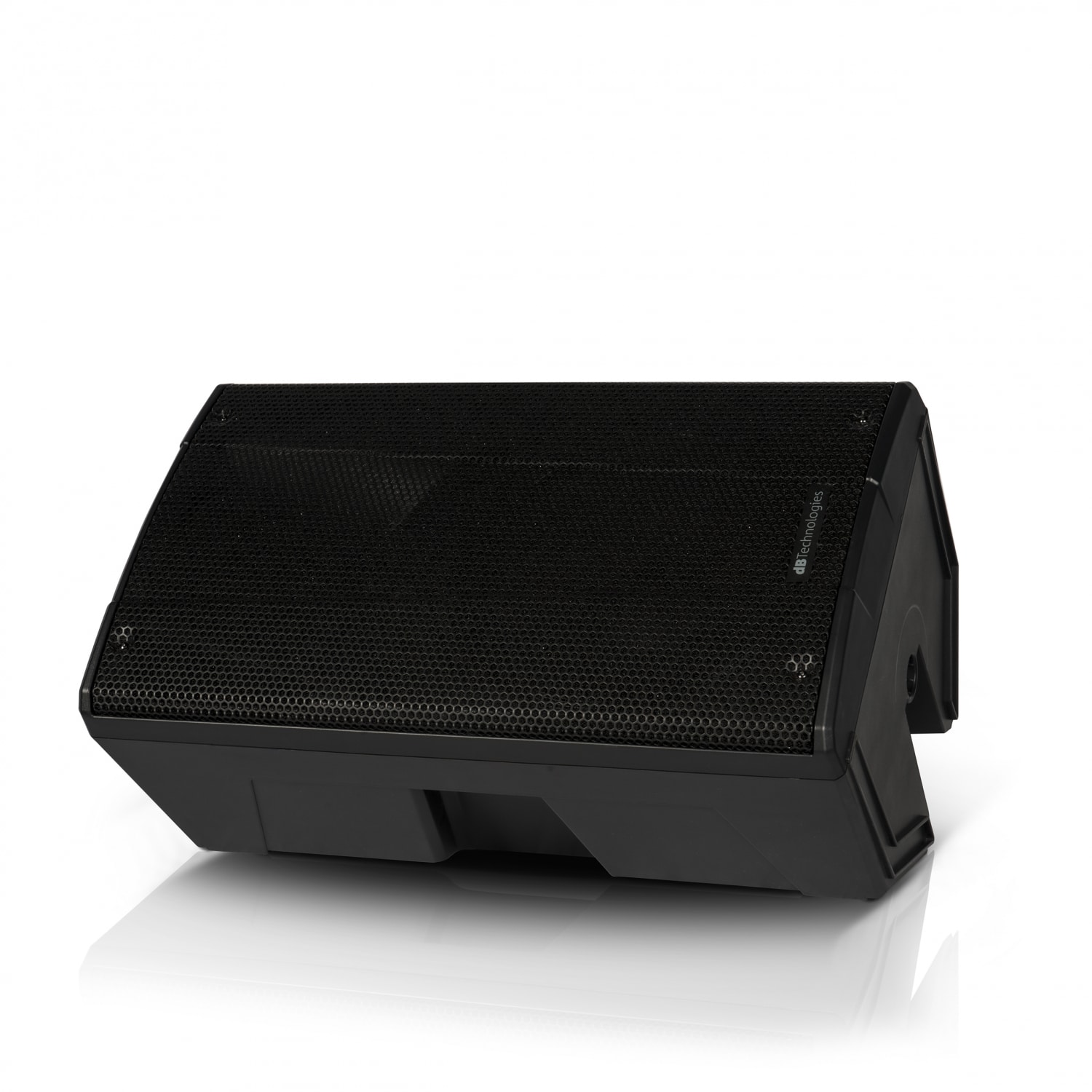

- Double stage monitor angle
- Preset EQ Flat /Boost
Technical Data
Speaker Type: 2-Way Active Speaker
Acoustical data
Usable Bandwidth [-10dB]: 51 – 20.000 Hz
Frequency Response [-6 dB]: 57 – 19.700 Hz
Max SPL: 126.5 dB
Type HF: Compression Driver
HF voice coil: 1 ”
LF: 15 ”
LF voice coil: 2 ”
Crossover Frequency: 2100 Hz (24 dB/oct.)
Horizontal Dispersion: asymmetrical 85° up / 120°down
Vertical Dispersion: 85° (+25/ -60°)
Amplifier
Amp Technology: Custom Made
Amp Class: Class D – Passice cooling (convection)
Power Peak: 400 W
Processor
Controller: DSP 28/56 bit- 48 kHz
Limiter: Peak, RMS, Thermal
Controls: Volume, Audio Input Sensitivity, DSP Preset
Input
Main Connection: VDE
Signal Input: Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out: (Balanced) 1xXLR OUT (LINK)
Mechanics
Housing: Polypropylene
Grille: Full Metal Grille
Handles: 3 (2 on side 1 on top)
Pole Mount: 36 mm
Width: 415 mm (16.34 in)
Height: 725 mm (28.54 in)
Depth: 391 mm (15.39 in)
Weight: 17.4 kg (38.36 lbs)
Angles Up: Double wedge angle 45°
