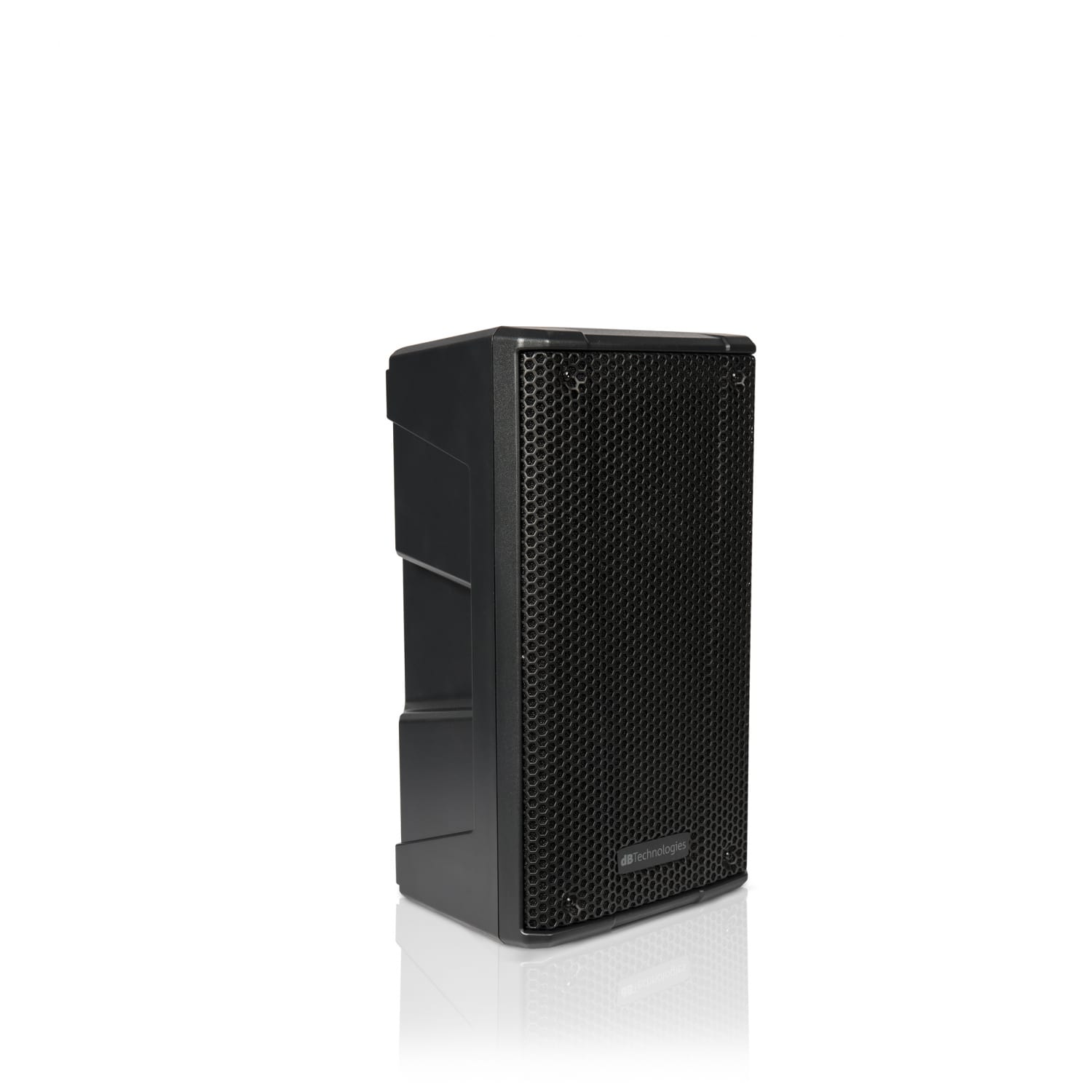

The active two-way speaker series providing a professional sonic performance to all kind of users. The most accurate sound reproduction combined with aggressive sound pressure levels and enhanced portability.
FEATURES
- Maximum efficiency up to 120 dB SPL
- Professional acoustic performance
- Innovative horn design for uniform and extended coverage
- Compact featherweight
- Clean and contemporary design enhancing portability
- 3 handles

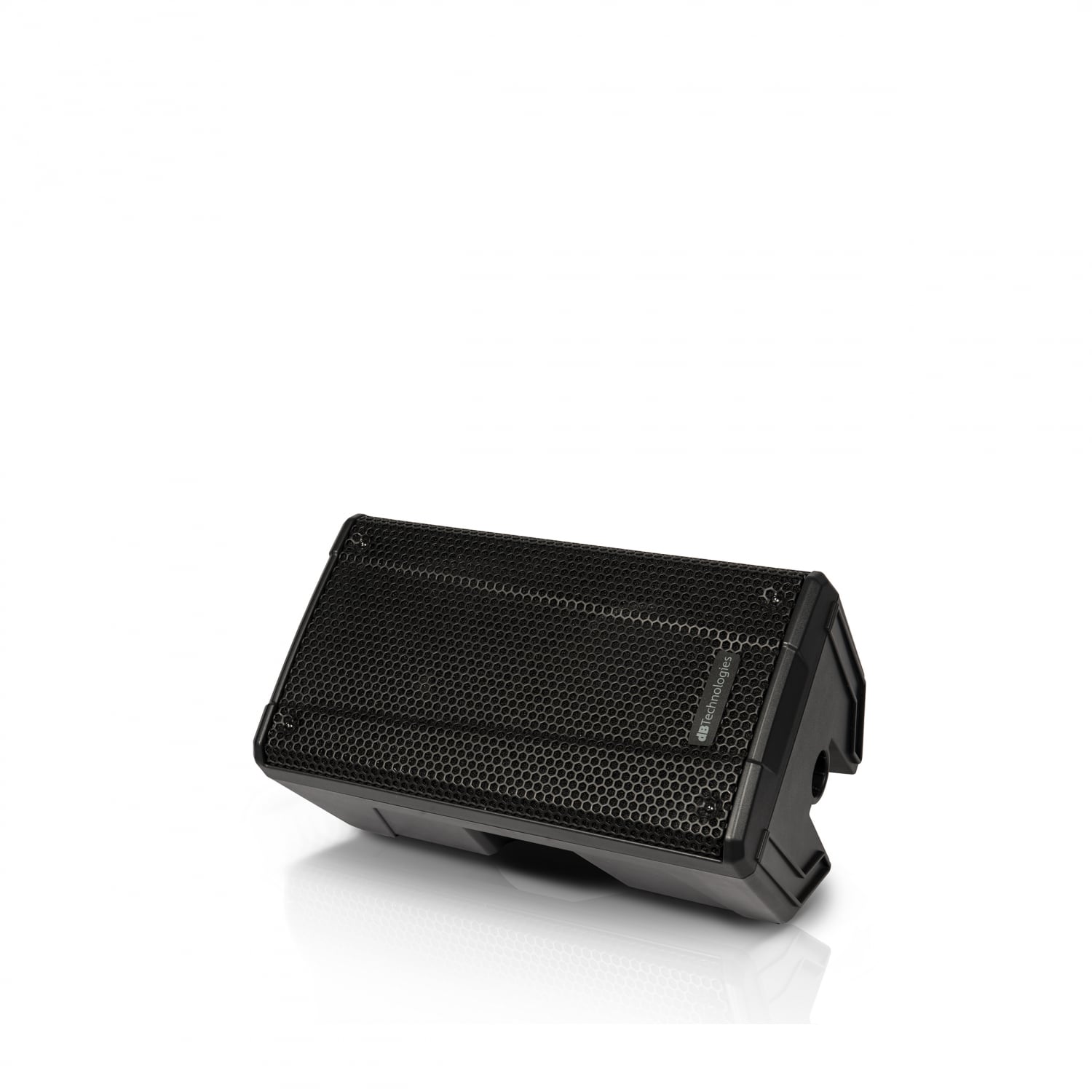

- Double stage monitor angle
- Preset EQ Flat /Boost
Technical Data
Speaker Type: 2-Way Active Speaker
Acoustical data
Usable Bandwidth [-10dB]: 65 – 20.000 Hz
Frequency Response [-6 dB]: 70 – 19.600 Hz
Max SPL: 120 dB
Type HF: Compression Driver
HF voice coil: 1 “
LF: 8 ”
LF voice coil: 1.5 ”
Crossover Frequency: 2300 Hz (24 dB/oct.)
Horizontal Dispersion: asymmetrical 85° up / 120°down
Vertical Dispersion: 85° (+25/ -60°)
Amplifier
Amp Technology: Custom Made
Amp Class: Class D – Passice cooling (convection)
Power Peak: 260 W
Processor
Controller: DSP 28/56 bit- 48 kHz
Limiter: Peak, RMS, Thermal
Controls: Volume, Audio Input Sensitivity, DSP Preset

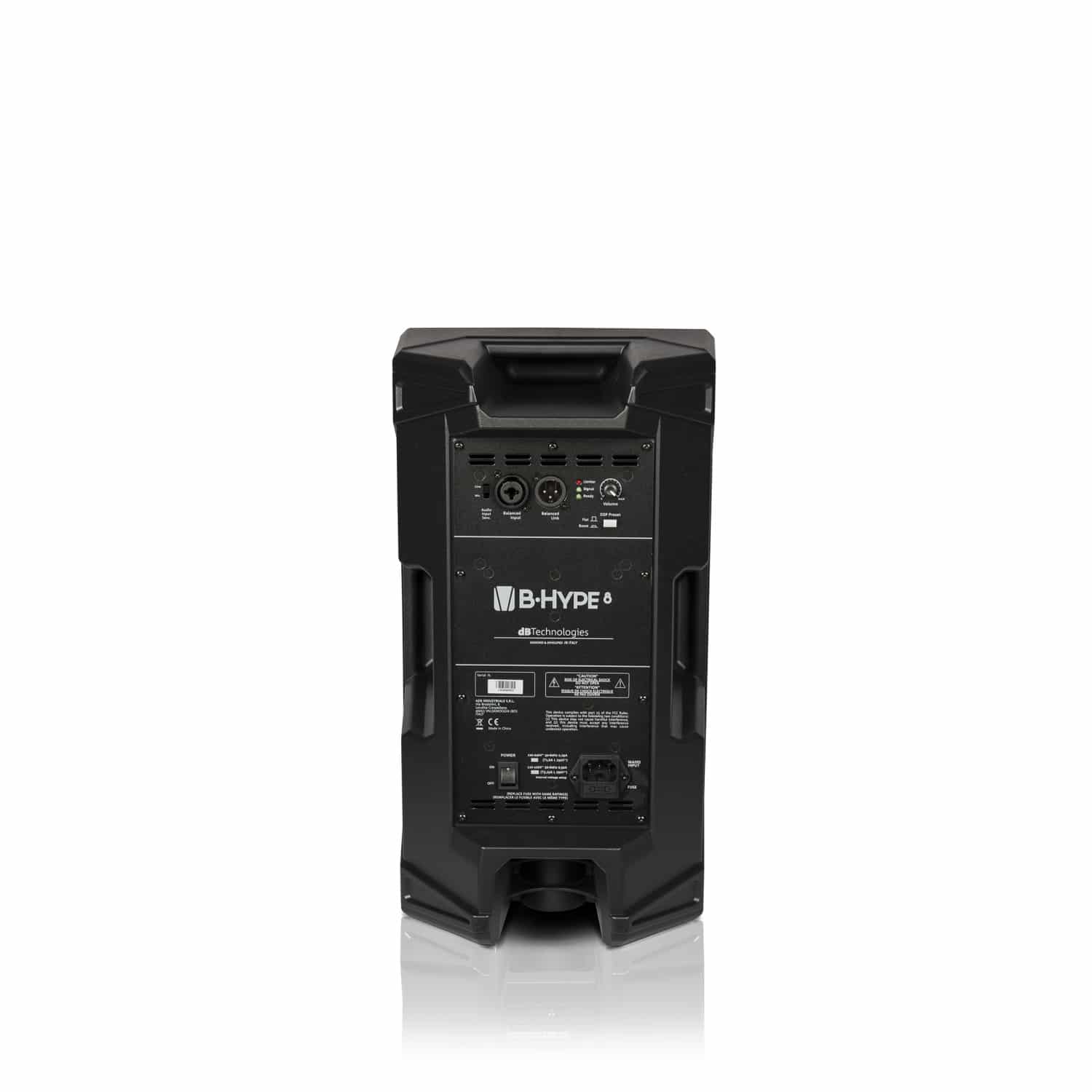

Input
Main Connection: VDE
Signal Input: Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out: (Balanced) 1xXLR OUT (LINK)

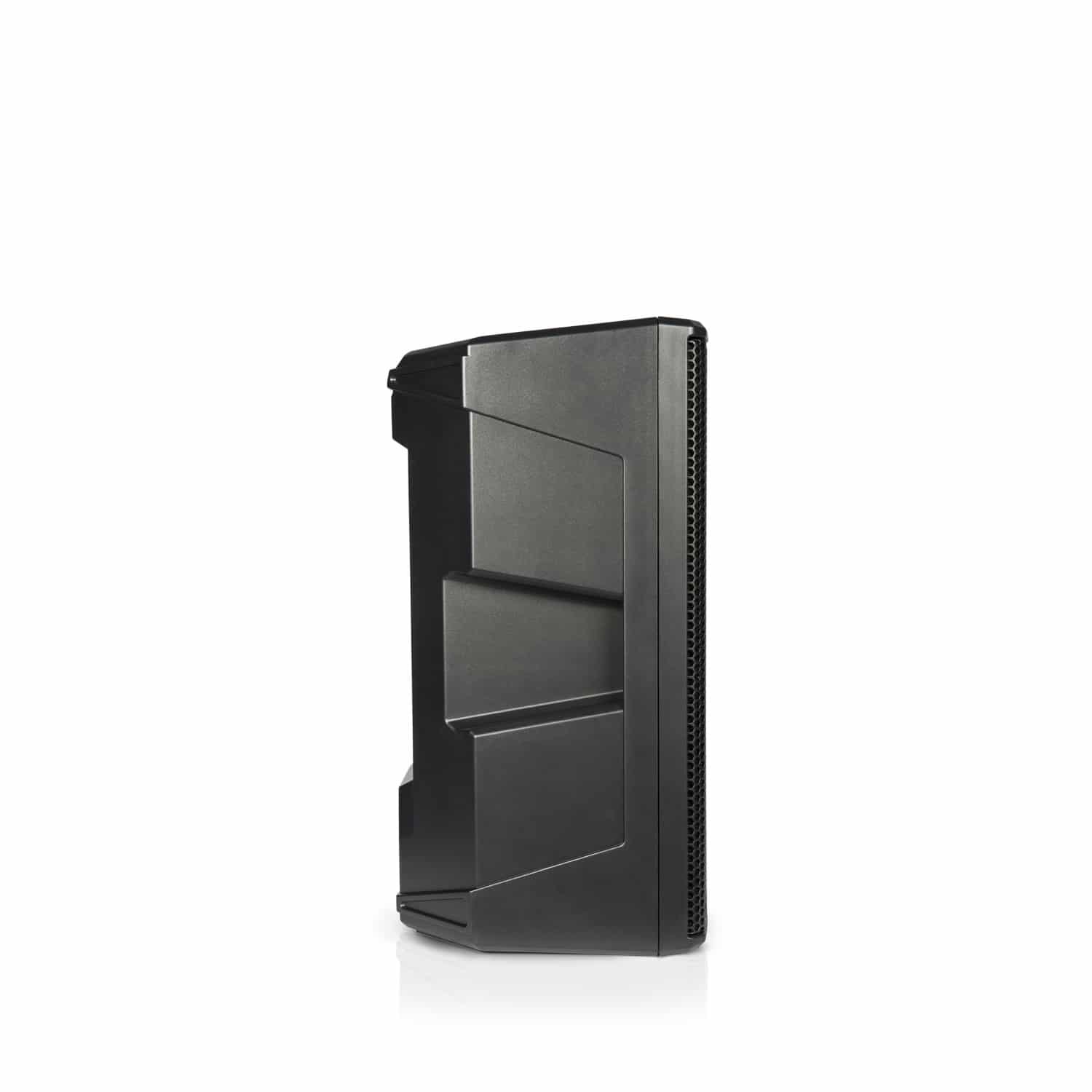

Mechanics
Housing: Polypropylene

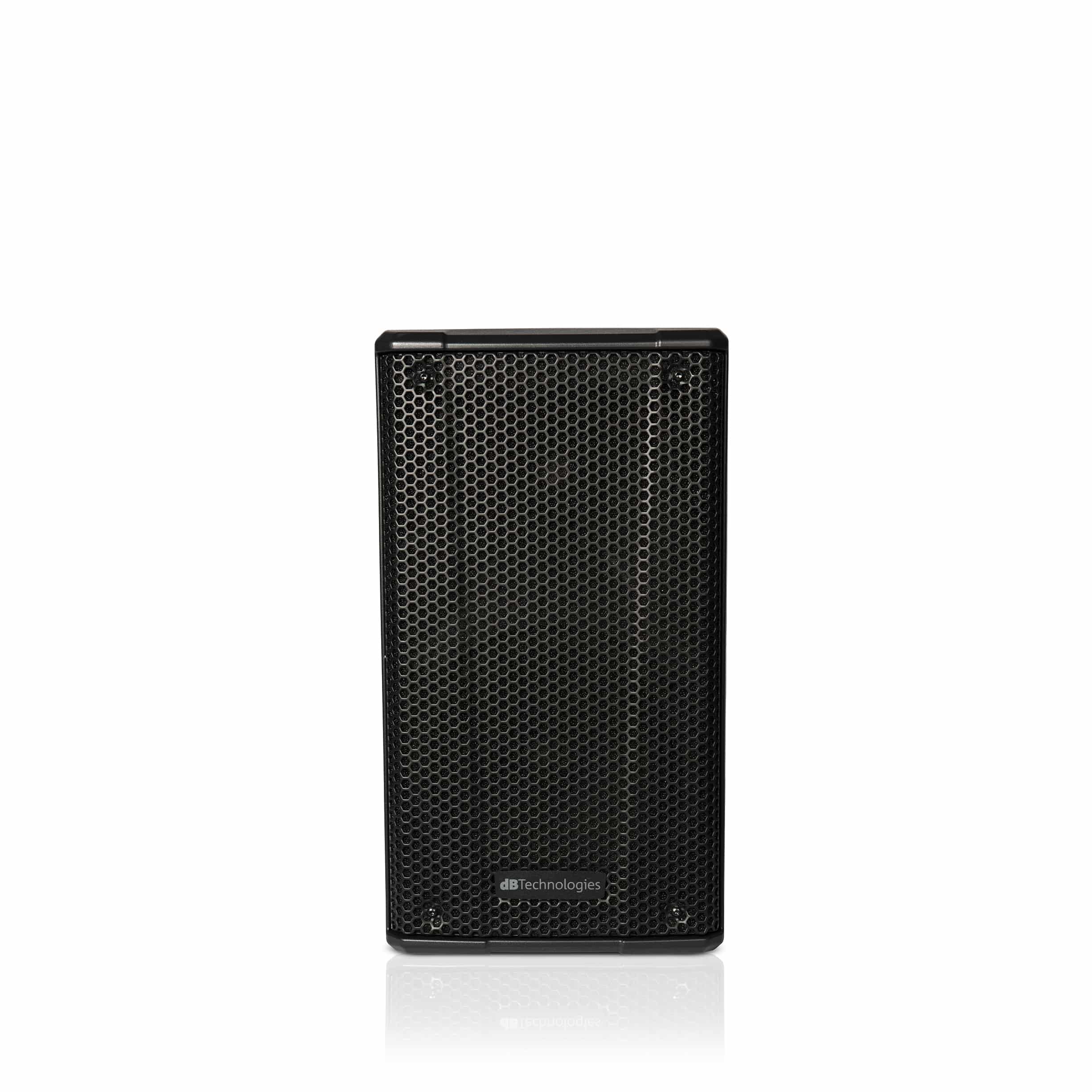

Grille: Full Metal Grille

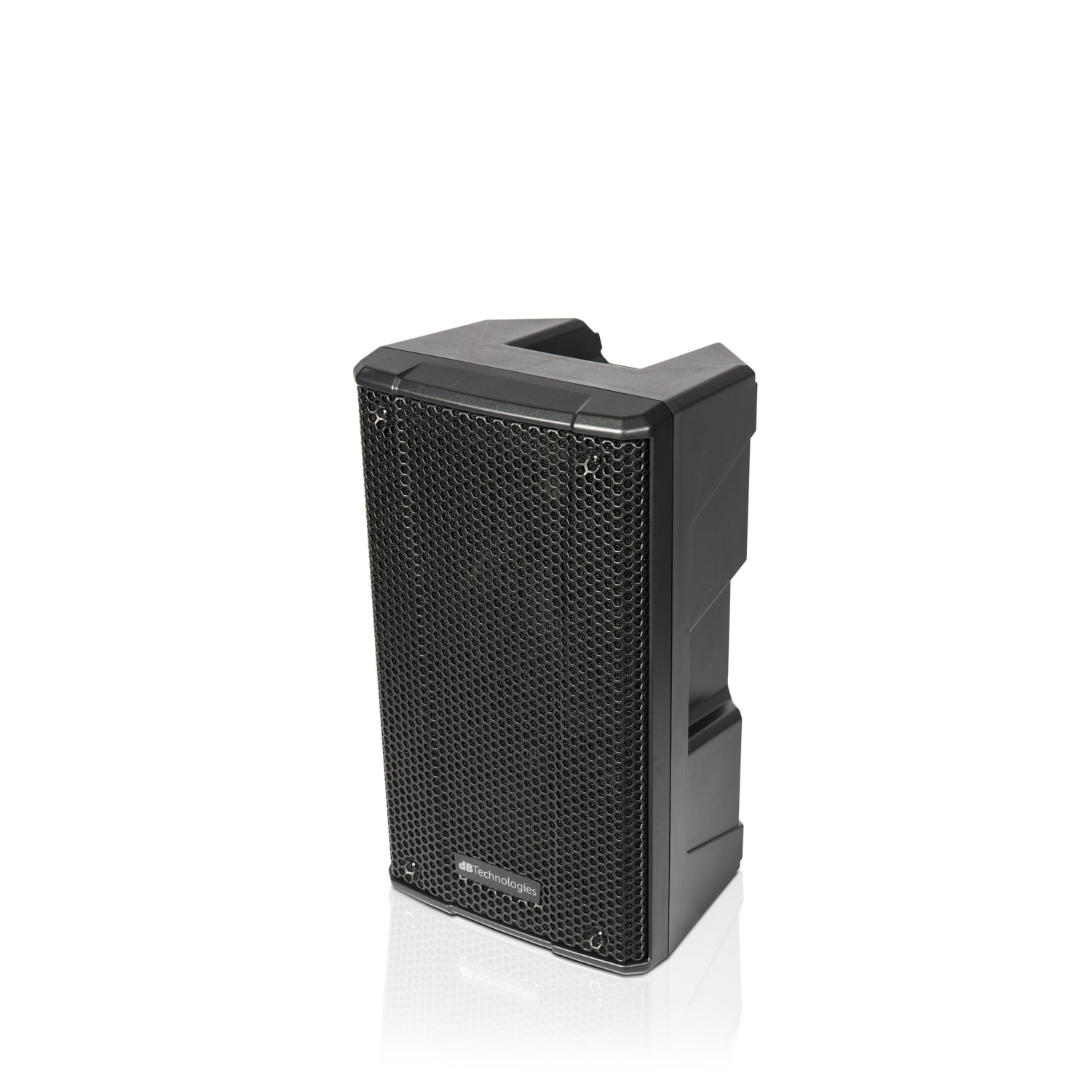

Handles: 3 (2 on side 1 on top)
Pole Mount: 36 mm
Width: 243 mm (9.57 in)
Height: 443mm (17.44 in)
Depth: 231 mm (9.09 in)
Weight: 6.6 kg (14.55 lbs)
Angles: UpDouble wedge angle 45°
