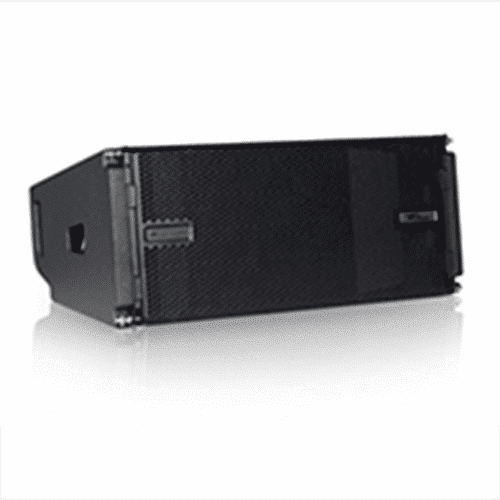

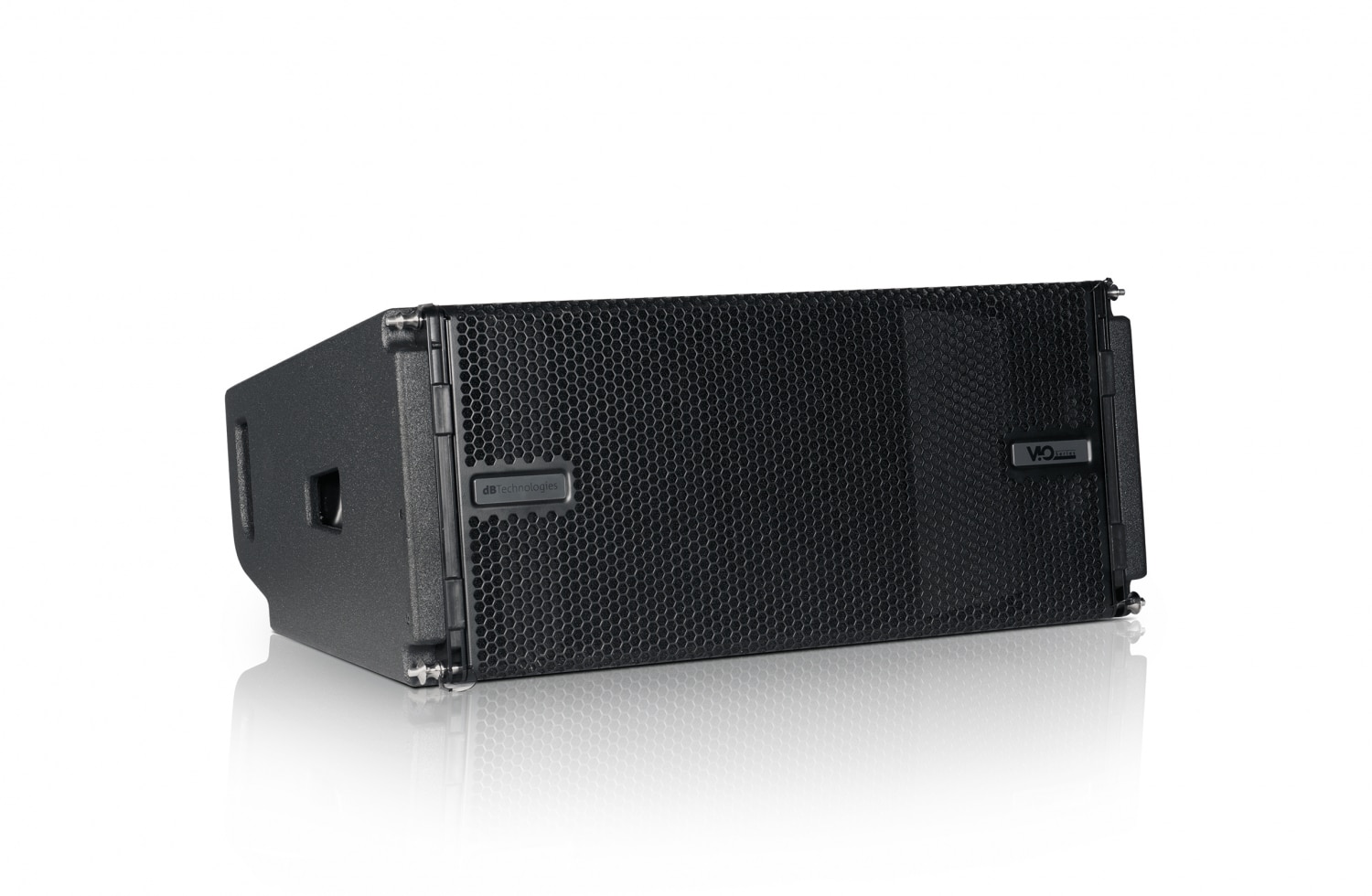

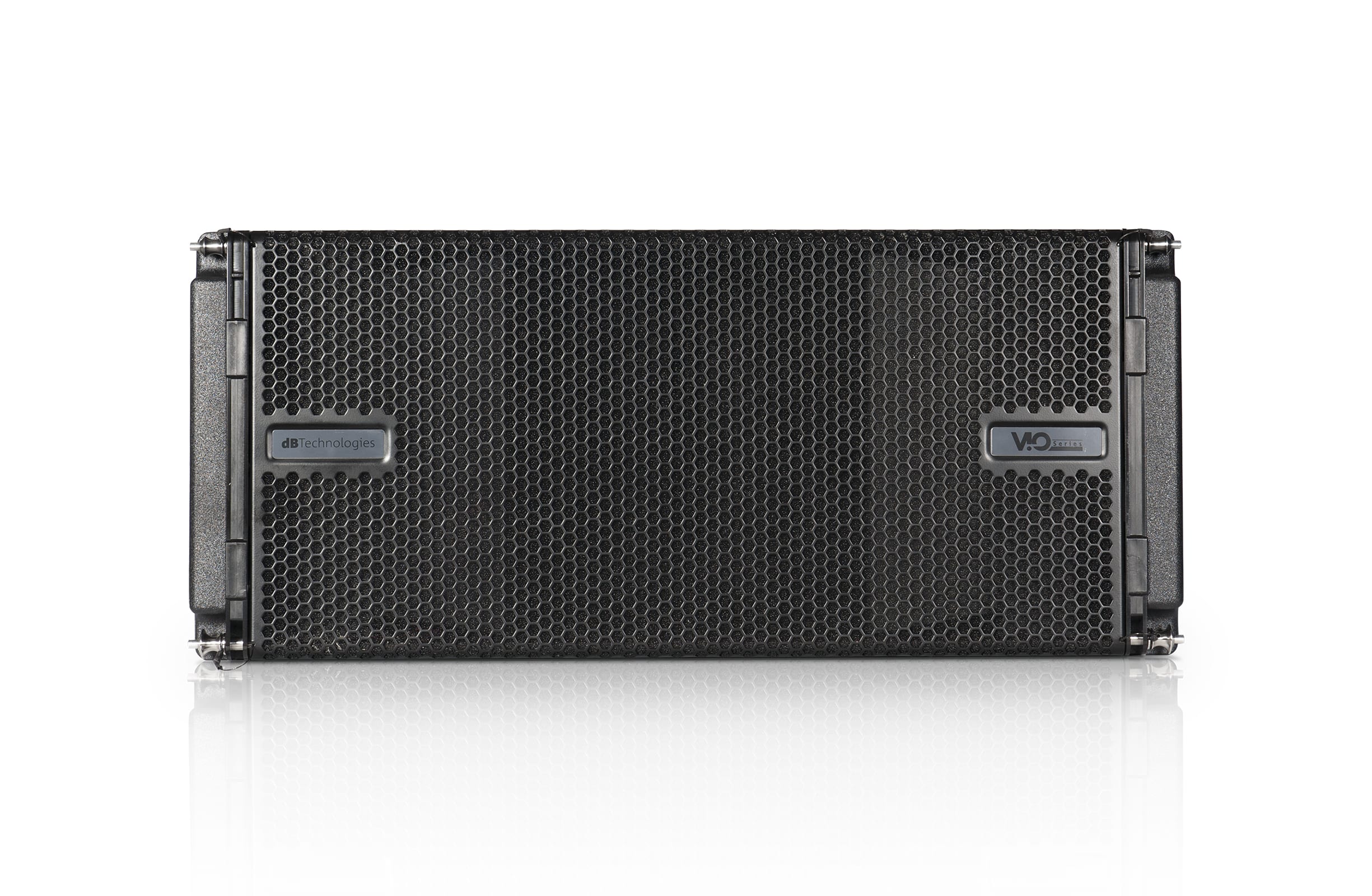

As a result of many years’ experience, VIO L210 reaches the next level among dBtechnologies’ speaker range aimed at larger sound reinforcement applications. A unique internal acoustic design and advanced sound processing merge to deliver outstanding performances in terms of sound pressure, coverage coherence, intelligibility and sound definition.
FEATURES

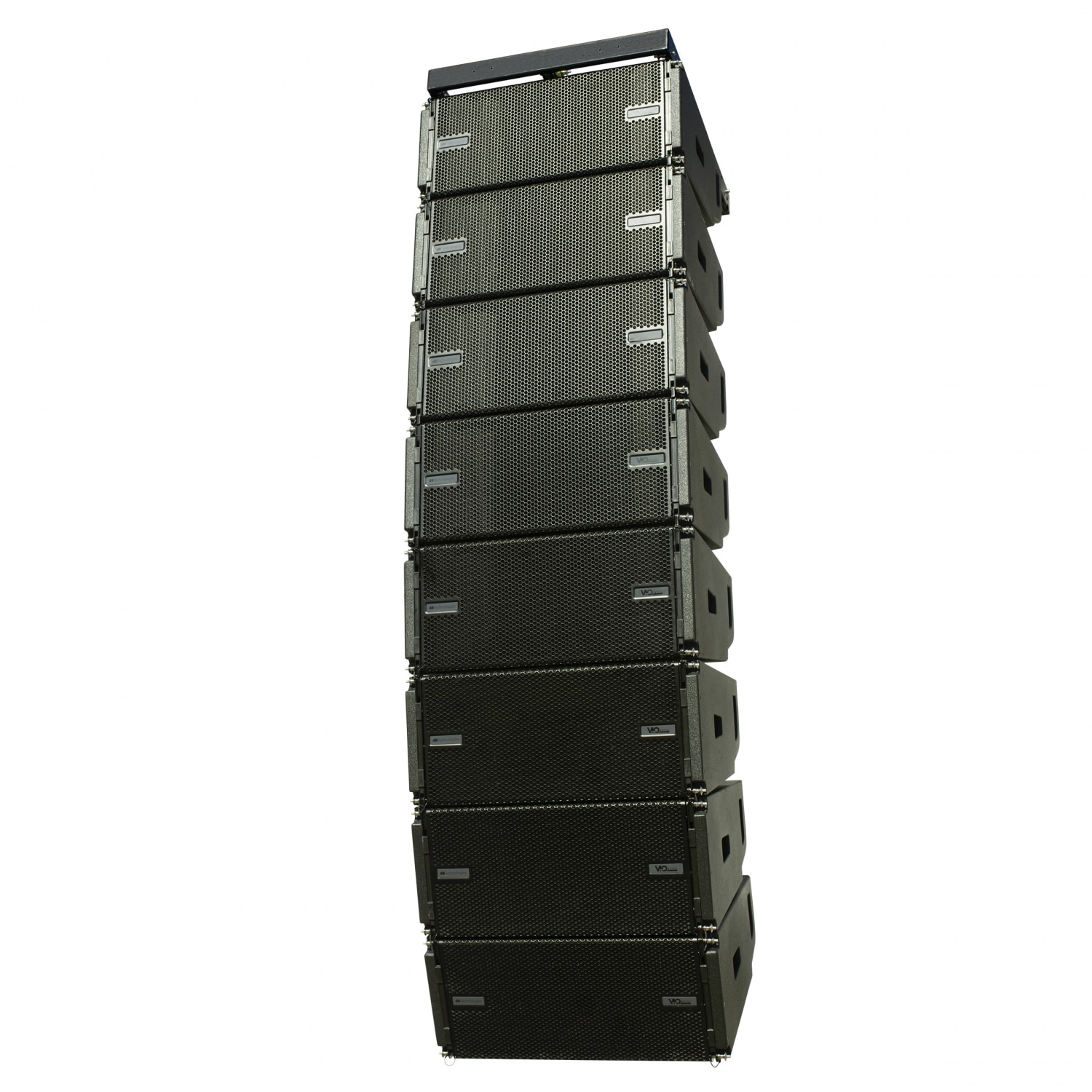

- 2 WAY ACTIVE LINE ARRAY SYSTEM
- NETWORK READY WITH AN INTEGRATED RDNET PORT
- NEWLY DESIGNED WOODEN ENCLOSURE COATED WITH POLYUREA
- SMOOTH CONFIGURATION AND SET UP

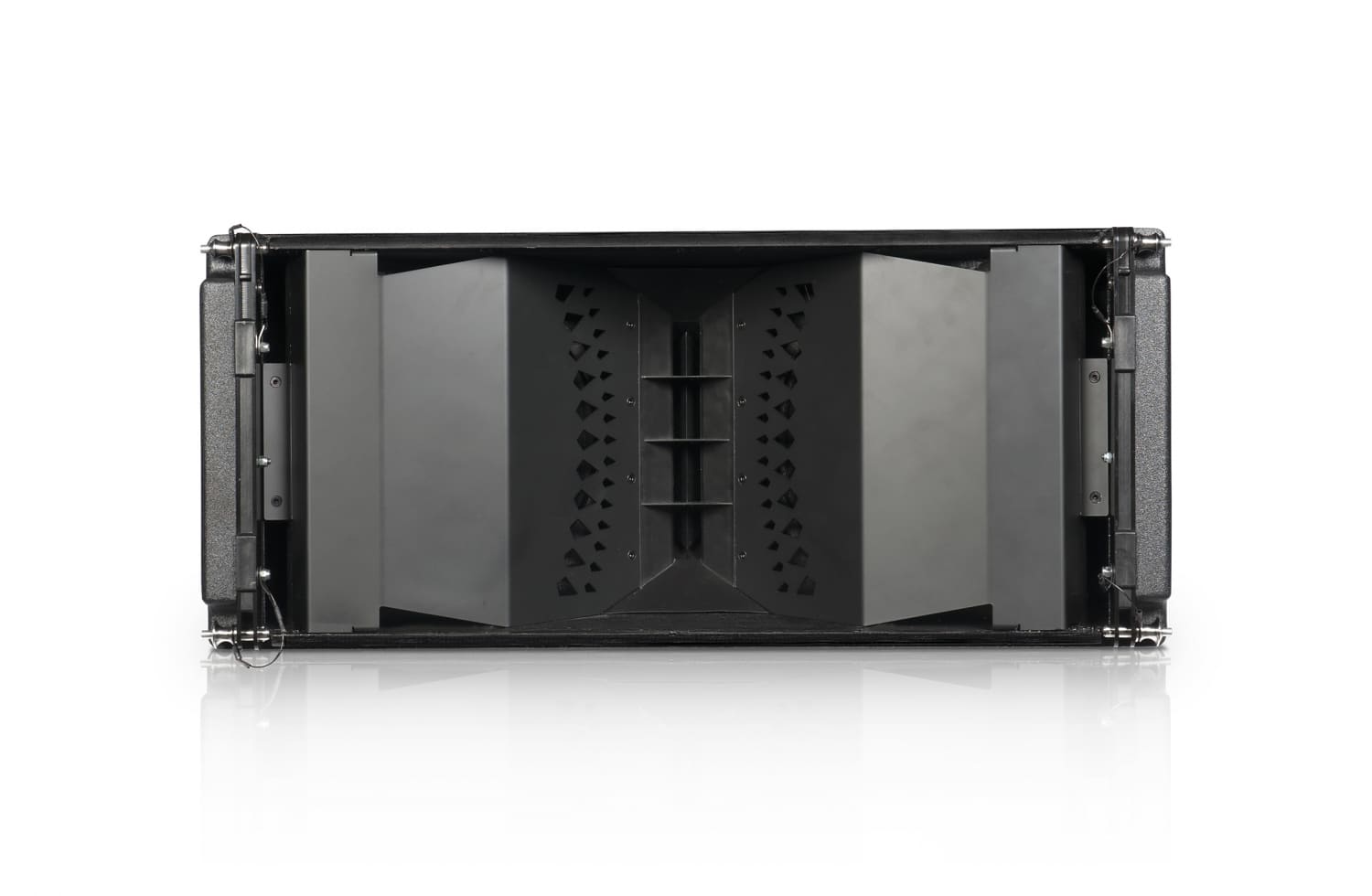

- EXCLUSIVELY DESIGNED WAVEGUIDE
- ALUMINIUM PHASE PLUGS
- ADVANCED DSP WITH FIR FILTERS
- LIGHTWEIGHT NEODYMIUM MAGNETS
- ON-BOARD DOUBLE ROTARY EQ CONTROL SYSTEM
Technical Data
Speaker Type: 2-way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB]: 67-20,000 Hz
Frequency Response [+/- 3dB]: 78-18,100 Hz
Max SPL: 135 dB

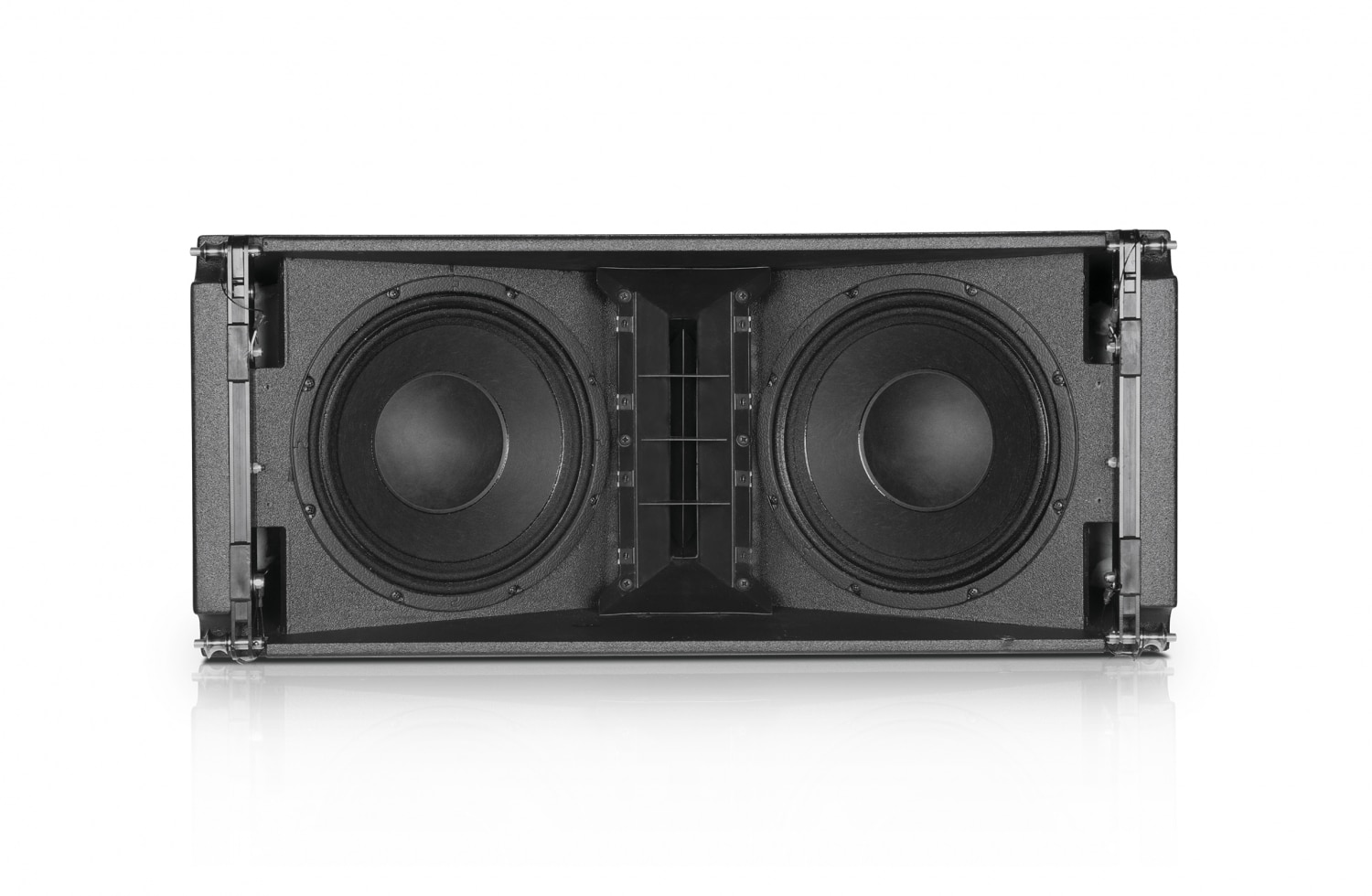

HF: 1×1.4″
Voice Coil H: F3″
Type HF: Neodymium, Titanium Diaphragm
LF: 2×10″
Voice Coil L: 2.5″
Type LF: Neodymium Aluminium Phase Plug
Horizontal Directivity: 100°

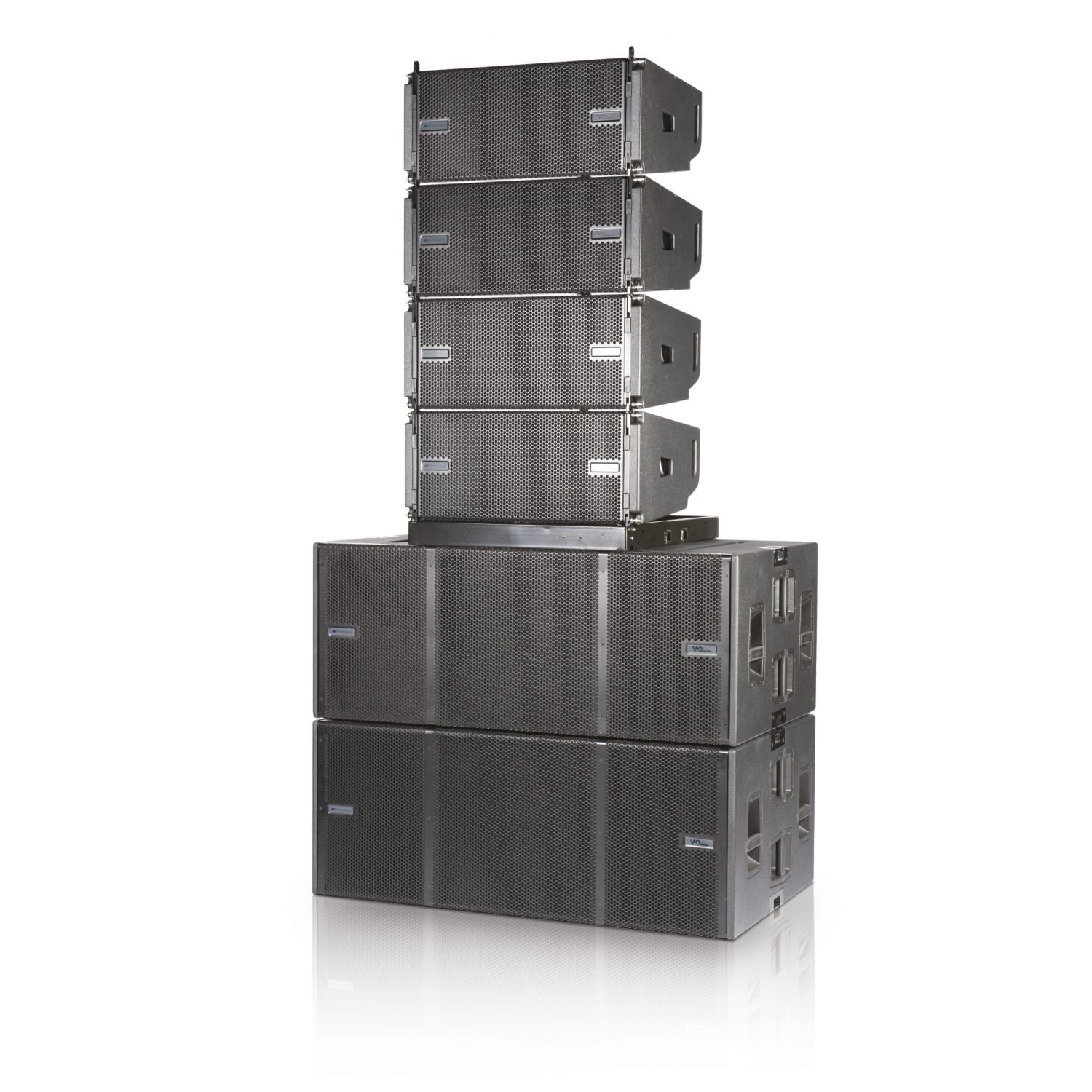

Vertical Directivity: depends on array size and configuration
Amplifier
Amp Technology: Digipro G3 [bi-amped]
Amp Class: Class-D
Power RMS: 900 W
Peak Power: 1800 W
Cooling: Convection
Power Supply: 900 W SMPS with Auto-range PSU
Processor
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 KHz
Limiter: Dual Active Multiband Peak, RMS, Thermal
Processing (filters): FIR Linear Phase
Crossover Frequency LF-HF: 950 Hz
Slope LF-HF: 24 dB/Octave

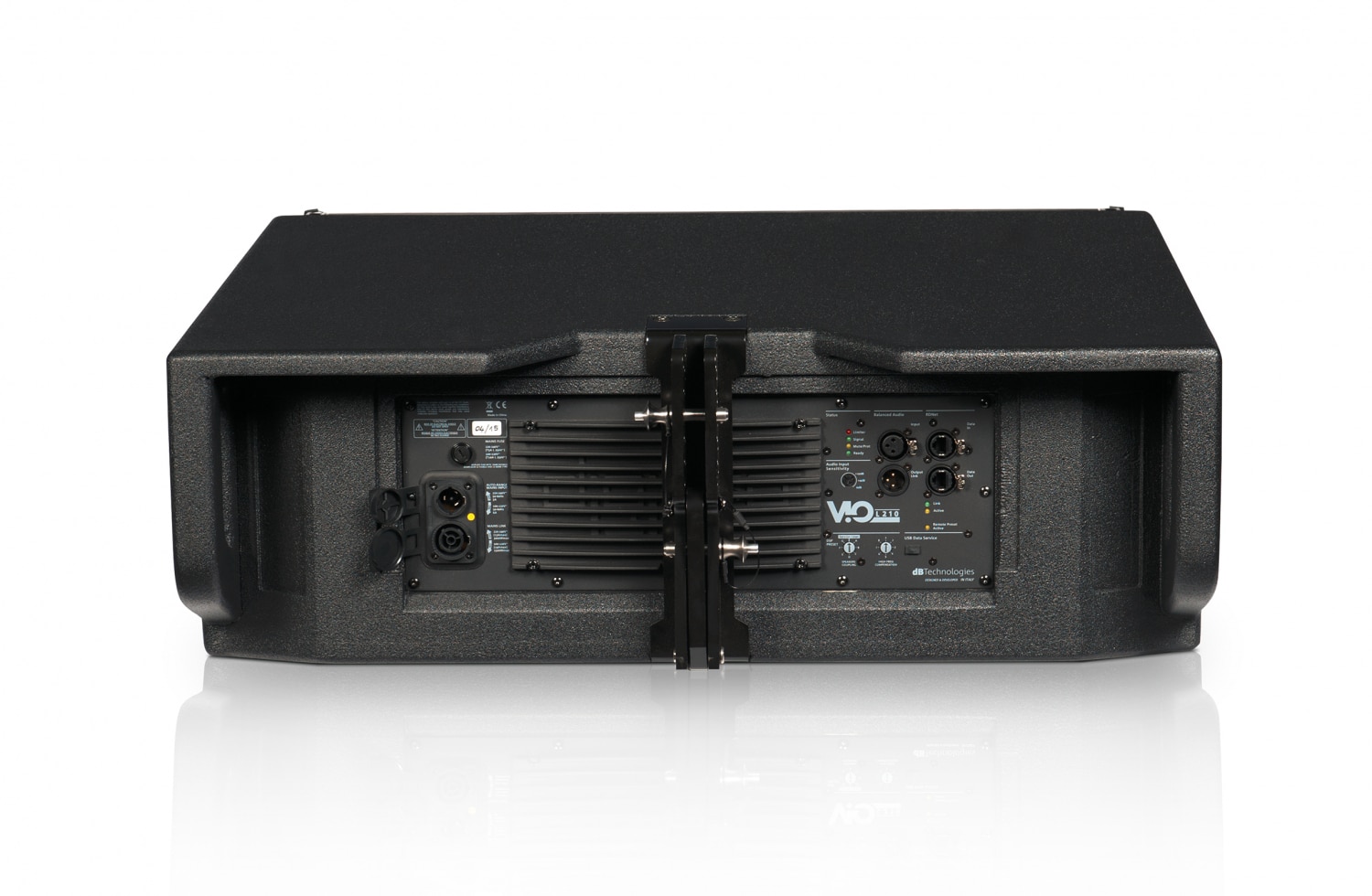

Input
Signal Input: 1xXLR fem, Bal.
Signal Output: 1xXLR male, Bal.
Network: RDNet remote control RJ45 connector IN/OUT
Power Socket: 1xPowerCon TRUE1 IN 1xPowerCon TRUE1 Out
Controls: 1xSpeakers Coupling (7 presets) 1x HF Compensation (8 presets) 1XInput Attenuation Rotary Switch
Mechanics
Housing: Multiplex Plywood Polyurea painted Housing DesignTrapezoidal 10°

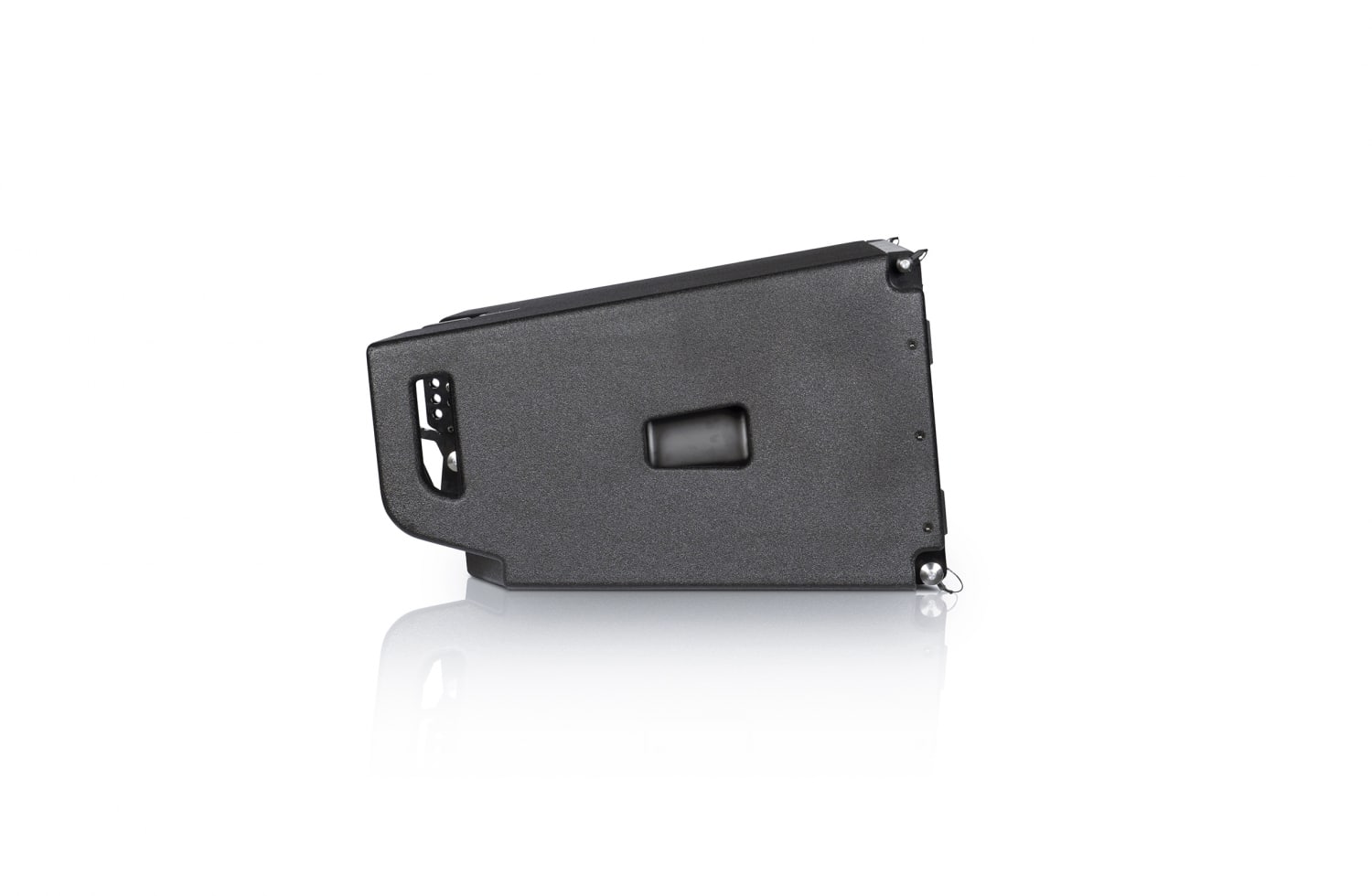

Handles: 2x side
Rain Cover: Included

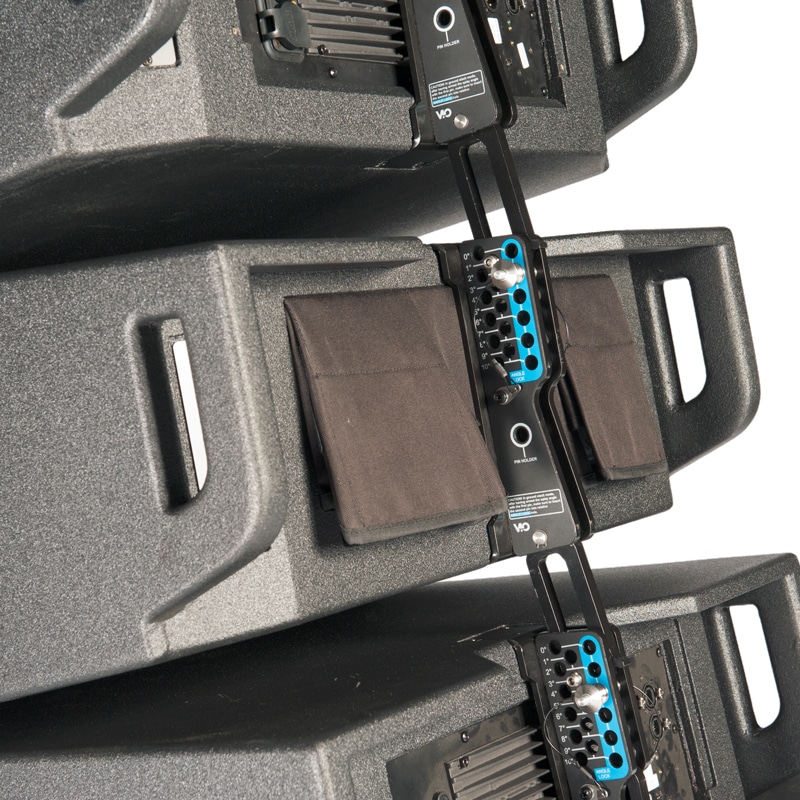

Rigging Points: Integrated rigging hardware
Width: 720 mm (28.35 in)
Height: 320 mm (12.6 in)
Depth: 520 mm (20.47 in)
Weight: 28.6 Kg (63.00 lbs)
