dBTechnologies VIO S115 subwoofer

Ring 9818 5066

❌ Varen på fjernlager, leveringstid 8-14 dage

Pdf:

Pdf: Manual VIO S115

Pdf: Datablad VIO S115

EXTENDING THE FLYABLE CONCEPT

VIO S115 is a self-powered, flyable, single 15″ subwoofer, with a standard frontal bass reflex acoustic configuration. It is definitely inspired by dBTechnologies popular VIO S118R subwoofer, with the advantages of being flyable. A compact VIO sub, just perfect as a complement for all VIO X full range series. The system is loaded with a 15″ neodymium woofer, driven by a 900 W RMS Digipro G3 amp, which allows for complete networkability with all other speakers in VIO family.
The cabinet is provided with M10 flying points and M20 pole mounts on both top and side of the box, so the sub allows for horizontal or vertical use, when flown or ground stacked. Two different flybars and sub brackets open for tons of possible configurations with VIO X206 boxes when in line array mode, a single flybar allowing for a simple set up, and a double flybar, which allows to fly multiple sub arrays and top arrays together, and many more configurations that will suit any installation requirements.

FEATURES

  • ACTIVE BASSREFLEX SUBWOOFER
  • FLYABLE via M10 or DRK1/DRK2+LP4
  • 900W RMS DIGIPRO® G3 AMPLIFIER
  • 134 dB MAX SPL
  • USABLE BANDWIDTH [- 6 dB]: 40 Hz to cut frequency
  • LF: 1 x 15”, 4” v.c. – NEODYMIUM
  • WEIGHT: 32.8Kg (72.3 lbs)

Technical Data:

Speaker Type: Active Bassreflex Subwoofer
Acoustical data
Frequency Response [- 6 dB]: 40 Hz – (user frequency LPF)
Frequency Response [- 10 dB]: 36 Hz – (user frequency LPF)
Max SPL: 134 dB
LF: 1x 15″
Voice Coil LF: 4″
Directivity: Omnidirectional
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class D
RMS Power: 900 W
Peak Power: 1800 W
Cooling: Convection
Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 KHz
Limiter: RMS, Peak, Thermal

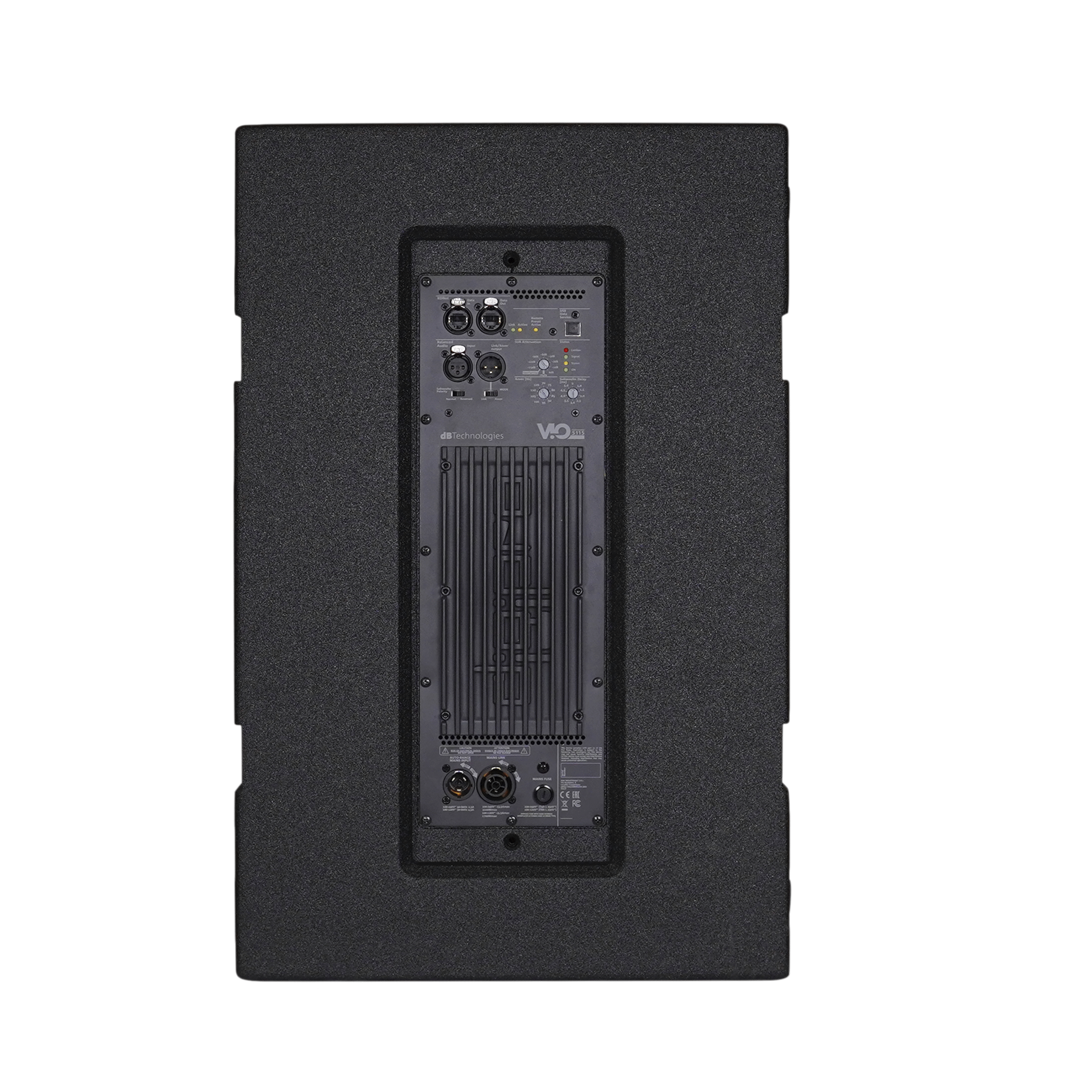

Input
Signal Input: 1xXLR balanced – 1xRJ45 LINK (RDNet)
Signal Output: 1x XLR ba: 1xPowerCON TRUE1 IN – 1xPowerCON TRUE1 OUT
Controls: 1x Input Sensitivity Rotary Encoder – 1x X-Over Selection Encoder – 1x Delay Selection Encoder – 1x Polarity Selection Switch – 1x X-Out Mode Selection Switch – 1x On LED – 1x Status LED – 1x Signal LED – 1x Limiter LED – 3x RDNet Status LED
Mechanics
Housing: Multiplex plywood – Polyurea painted

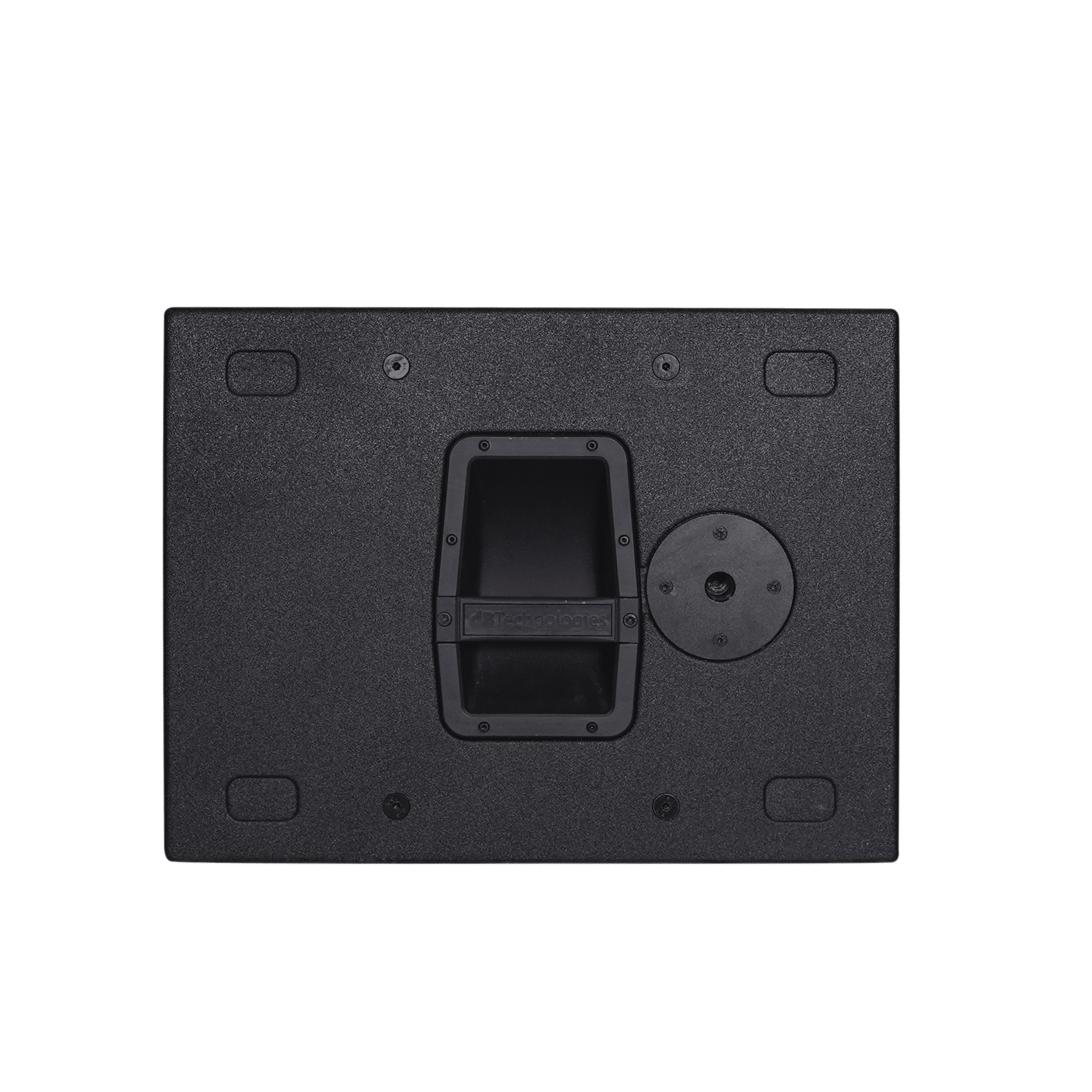

Pole Mount: 1x M20 on Top, 1x M20 on Right Side
Handles: 1x Side – Aluminium
Rigging Points: 16x M10
Width: 650 mm
Height: 420 mm
Depth: 550 mm
Weight: 32.8 kg
